PHPT60603NY
View detailed images (5)

PHPT60603NY

SKU: PHPT60603NY

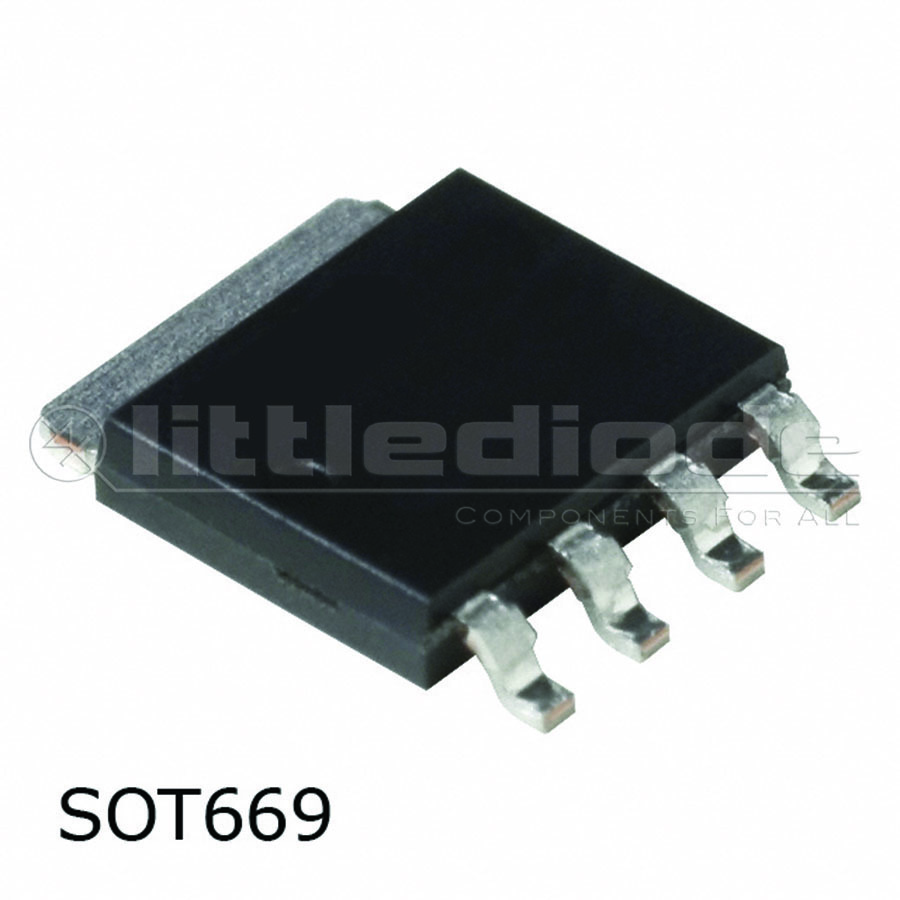

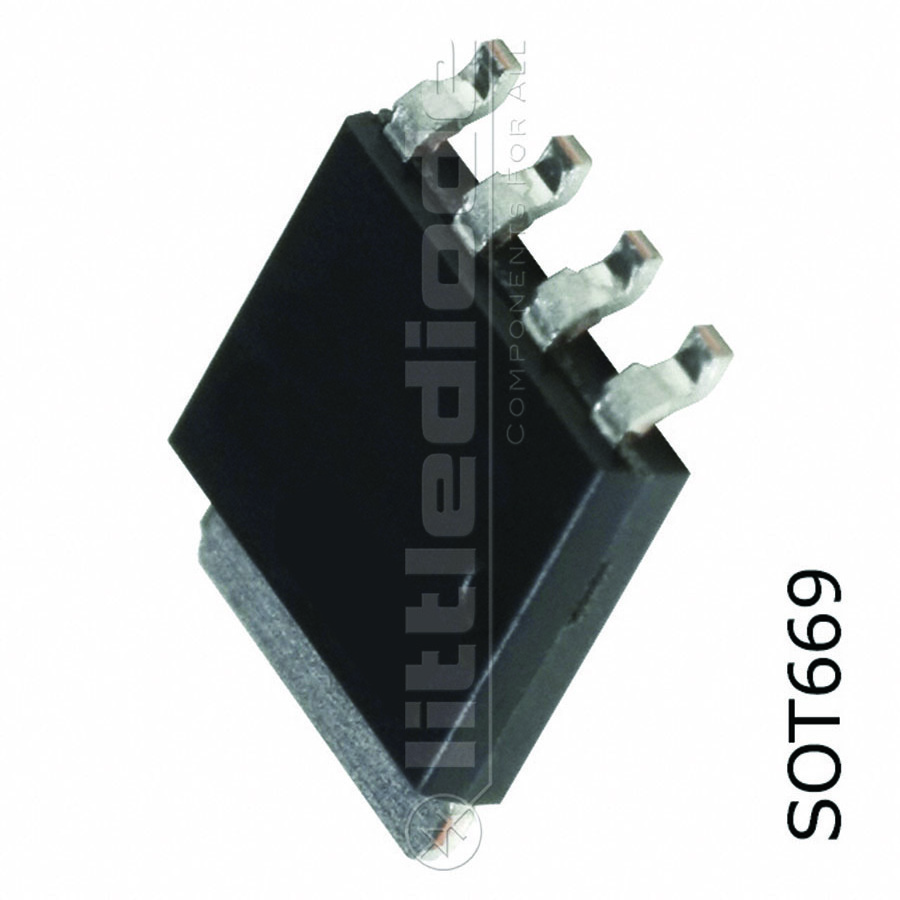

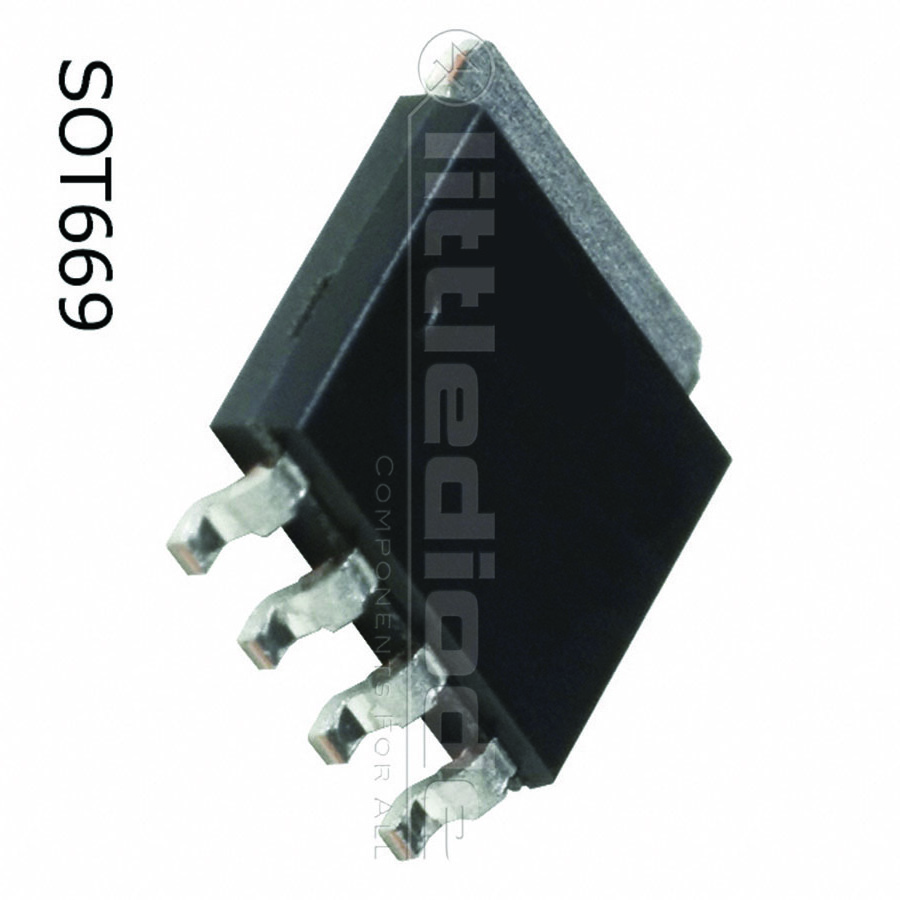

PHPT60603NY Transistor Silicon NPN CASE: SOT669 MAKE: Generic
Product specifications
Type Transistor Silicon NPN
Case SOT669
Manufacturer Generic
Polarity NPN
Maximum Collector Power Dissipation (Pc) 25 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 7 V
Maximum Collector Current |Ic max| 3 A
Max. Operating Junction Temperature (Tj) 175 °C
Collector Capacitance (Cc) 17 pF
Transition Frequency (ft): 140 MHz
Forward Current Transfer Ratio (hFE), MIN 50
SMD Transistor Code 0603NAB
SKU 1439525
