PHPT60603PY
View detailed images (5)

PHPT60603PY

SKU: PHPT60603PY
PHPT60603PY Transistor Silicon PNP CASE: SOT669 MAKE: Generic
Product specifications
Type Transistor Silicon PNP

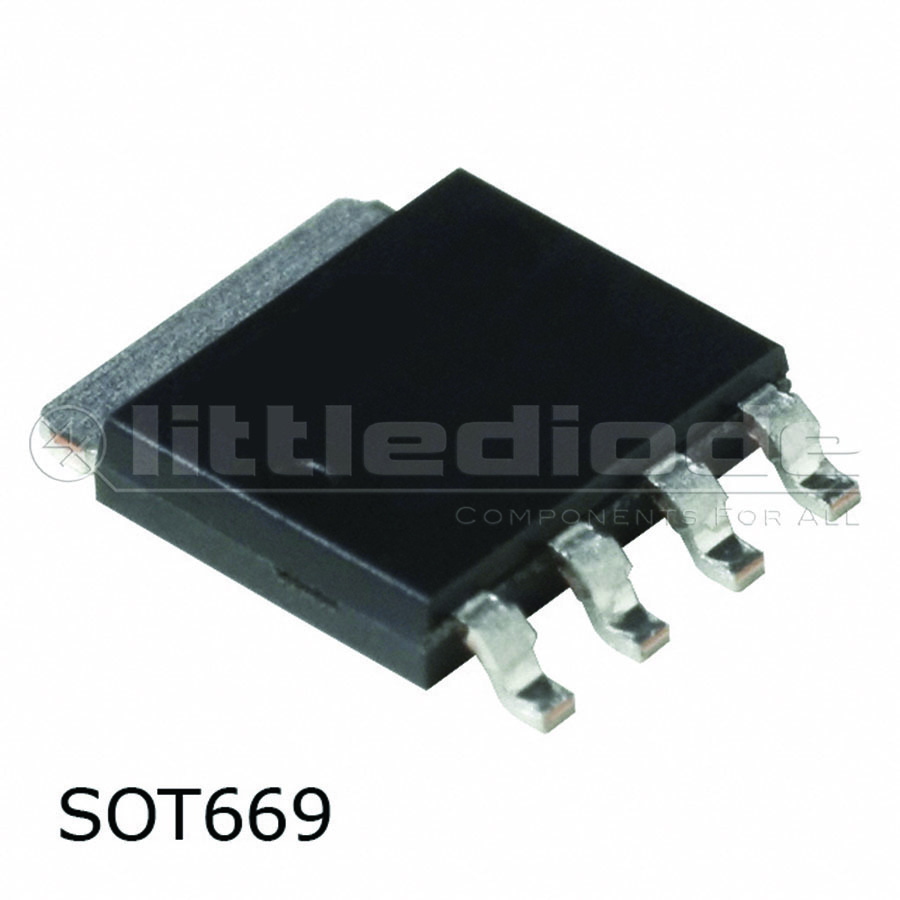

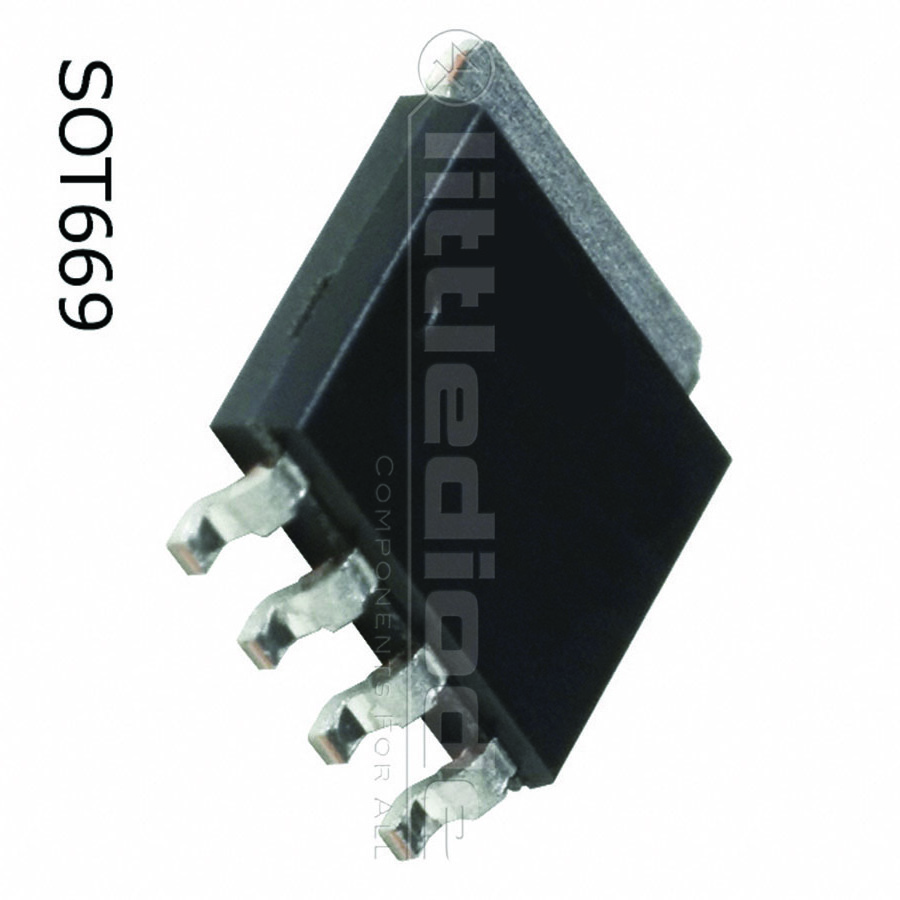

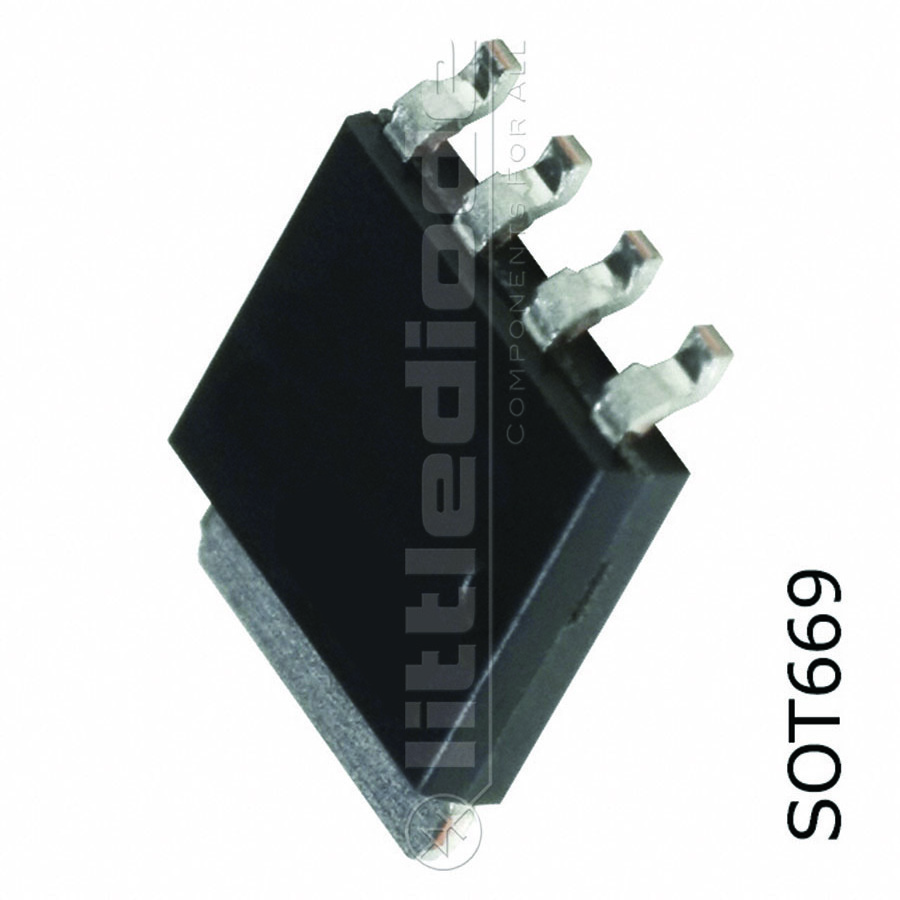

Case SOT669
Manufacturer Generic
Polarity PNP
Maximum Collector Power Dissipation (Pc) 25 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 8 V
Maximum Collector Current |Ic max| 3 A
Max. Operating Junction Temperature (Tj) 175 °C
Collector Capacitance (Cc) 60 pF
Transition Frequency (ft): 110 MHz
Forward Current Transfer Ratio (hFE), MIN 35
SMD Transistor Code 0603PAB
SKU 1439526
