PHPT61002PYC
View detailed images (5)

PHPT61002PYC

SKU: PHPT61002PYC

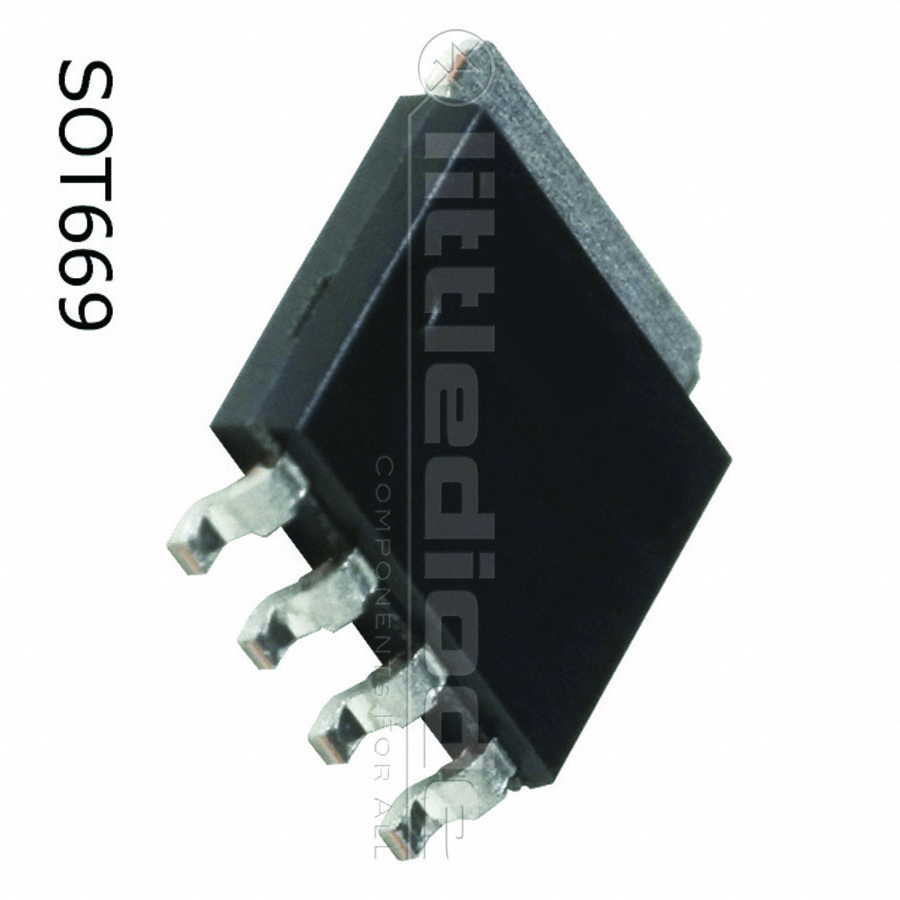

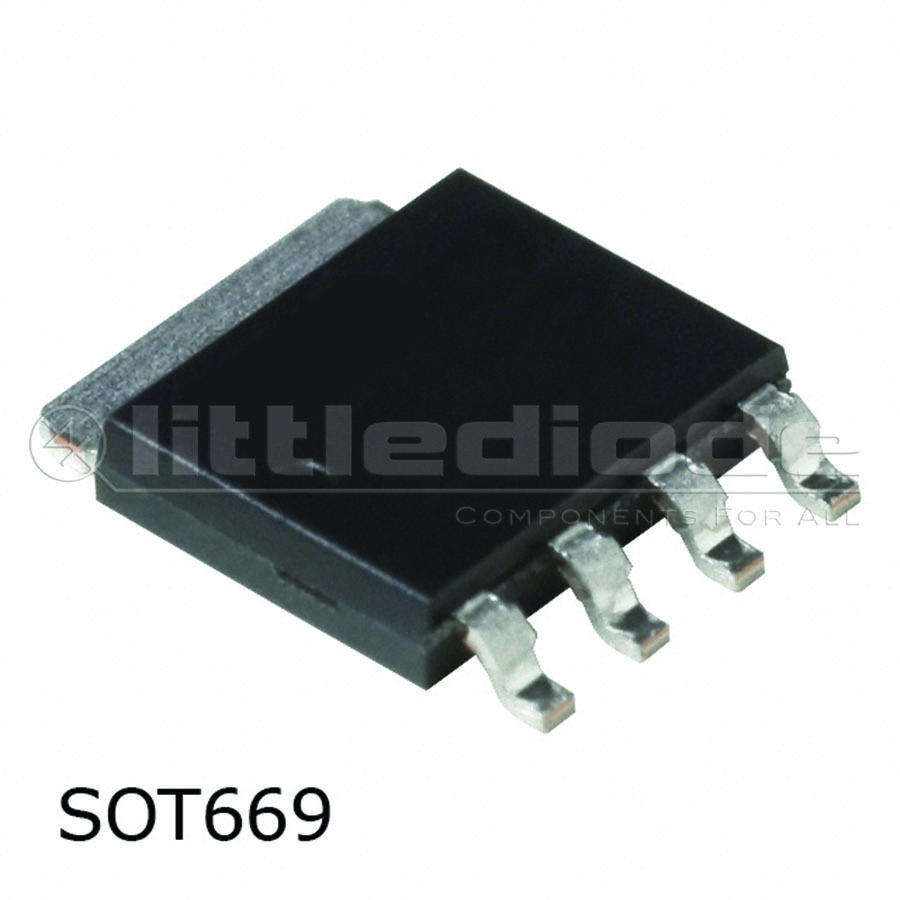

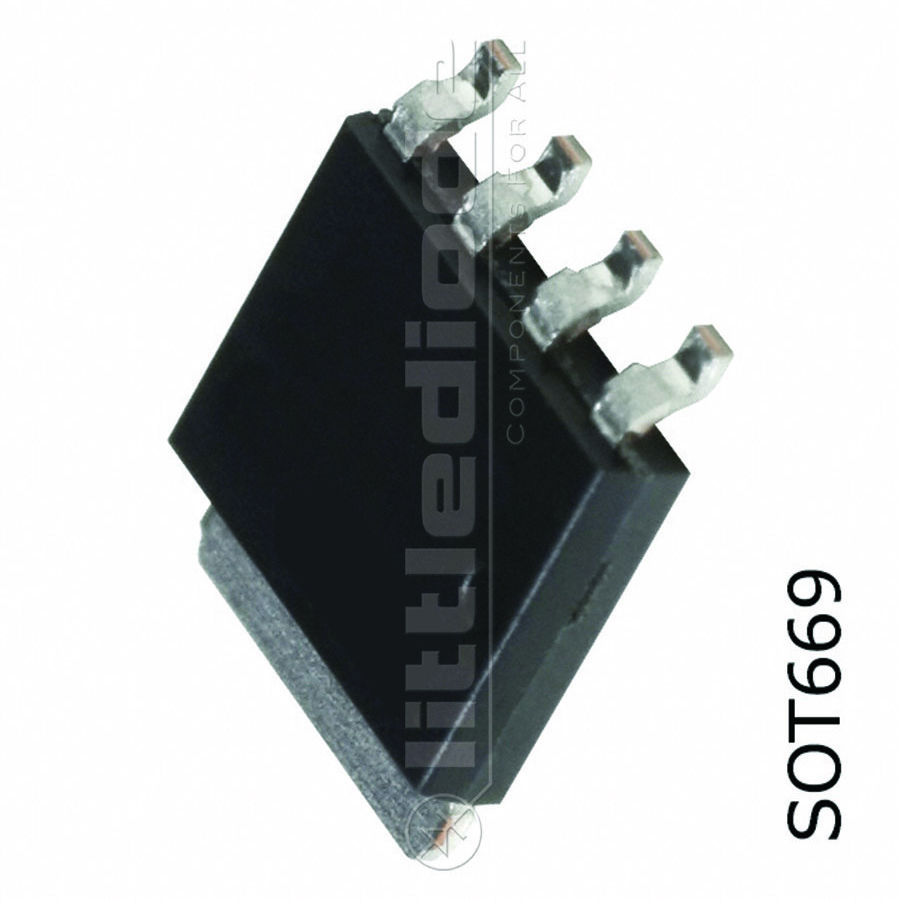

PHPT61002PYC Transistor Silicon PNP CASE: SOT669 MAKE: Generic
Product specifications
Type Transistor Silicon PNP
Case SOT669
Manufacturer Generic
Polarity PNP
Maximum Collector Power Dissipation (Pc) 25 W
Maximum Collector-Base Voltage |Vcb| 100 V
Maximum Collector-Emitter Voltage |Vce| 100 V
Maximum Emitter-Base Voltage |Veb| 8 V
Maximum Collector Current |Ic max| 2 A
Max. Operating Junction Temperature (Tj) 175 °C
Collector Capacitance (Cc) 28 pF
Transition Frequency (ft): 125 MHz
Forward Current Transfer Ratio (hFE), MIN 20
SMD Transistor Code 1002PCA
SKU 1439532
