PHPT61006NY
View detailed images (5)

PHPT61006NY

SKU: PHPT61006NY

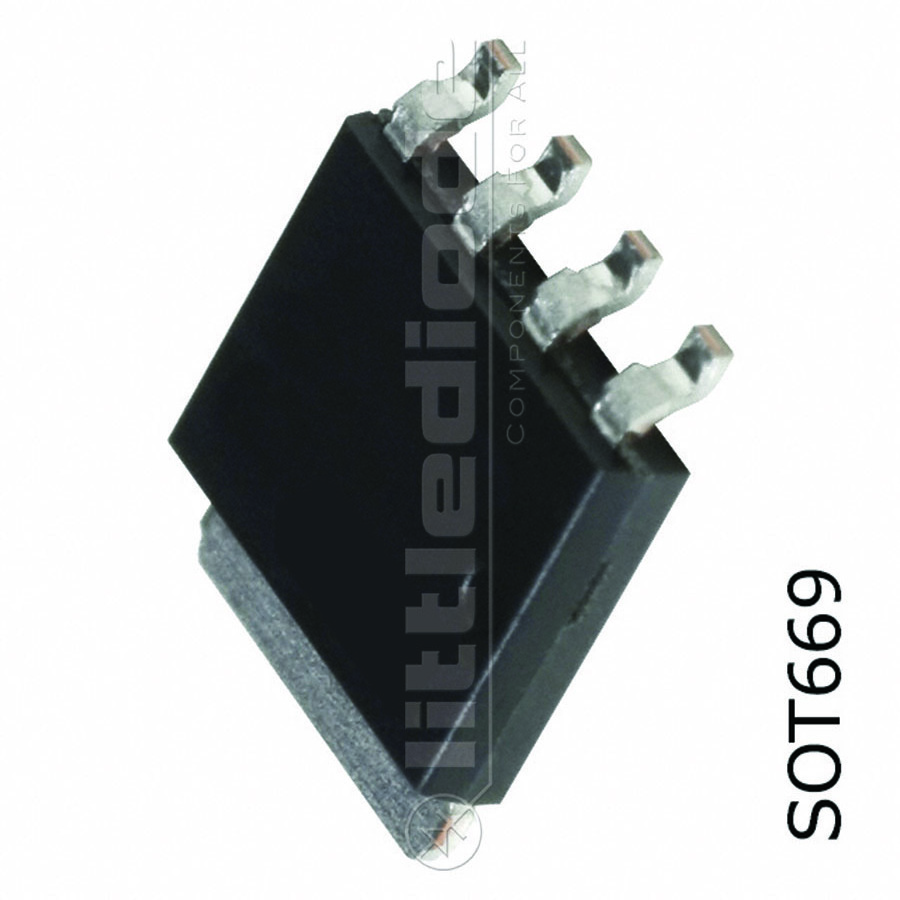

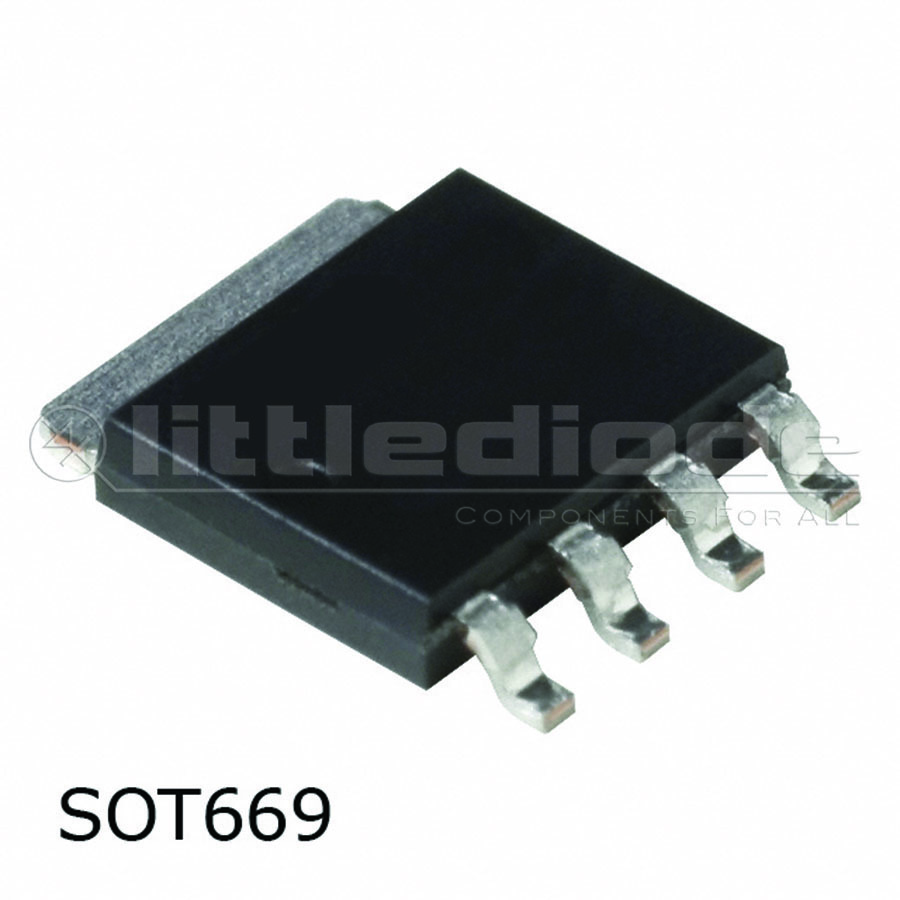

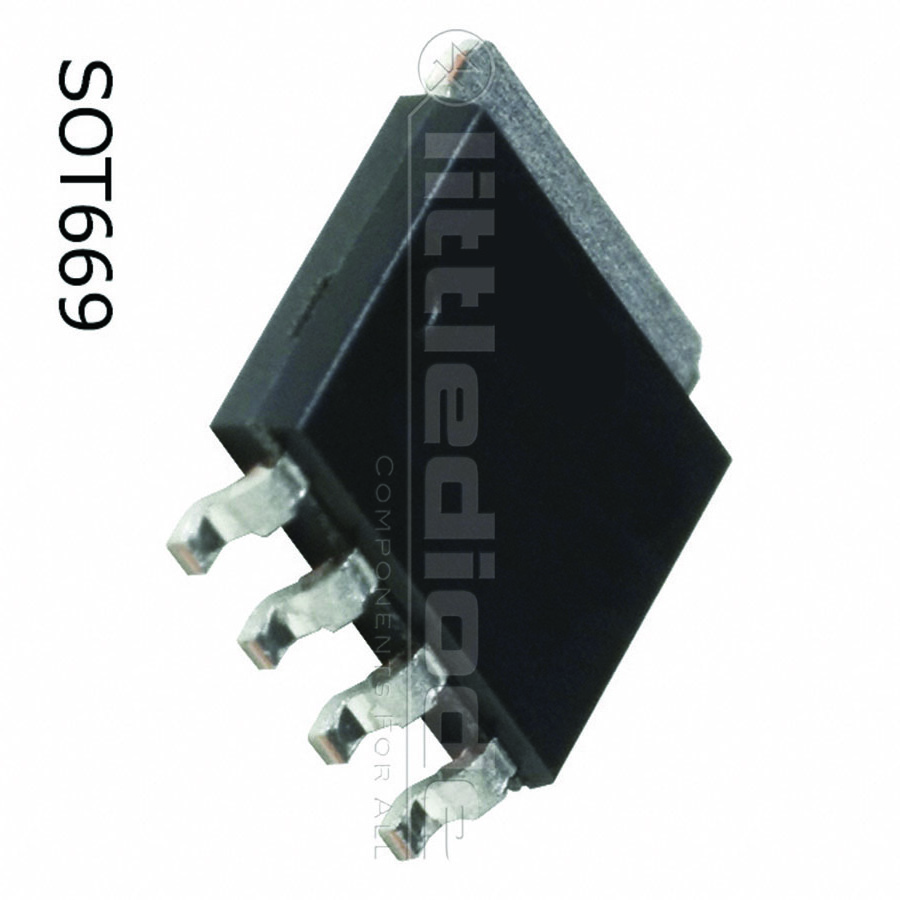

PHPT61006NY Transistor Silicon NPN CASE: SOT669 MAKE: Generic
Product specifications
Type Transistor Silicon NPN
Case SOT669
Manufacturer Generic
Polarity NPN
Maximum Collector Power Dissipation (Pc) 25 W
Maximum Collector-Base Voltage |Vcb| 100 V
Maximum Collector-Emitter Voltage |Vce| 100 V
Maximum Emitter-Base Voltage |Veb| 7 V
Maximum Collector Current |Ic max| 6 A
Max. Operating Junction Temperature (Tj) 175 °C
Collector Capacitance (Cc) 22 pF
Transition Frequency (ft): 170 MHz
Forward Current Transfer Ratio (hFE), MIN 140
SMD Transistor Code 1006NAB
SKU 1439540
