PHPT61006PY
View detailed images (5)

PHPT61006PY

SKU: PHPT61006PY

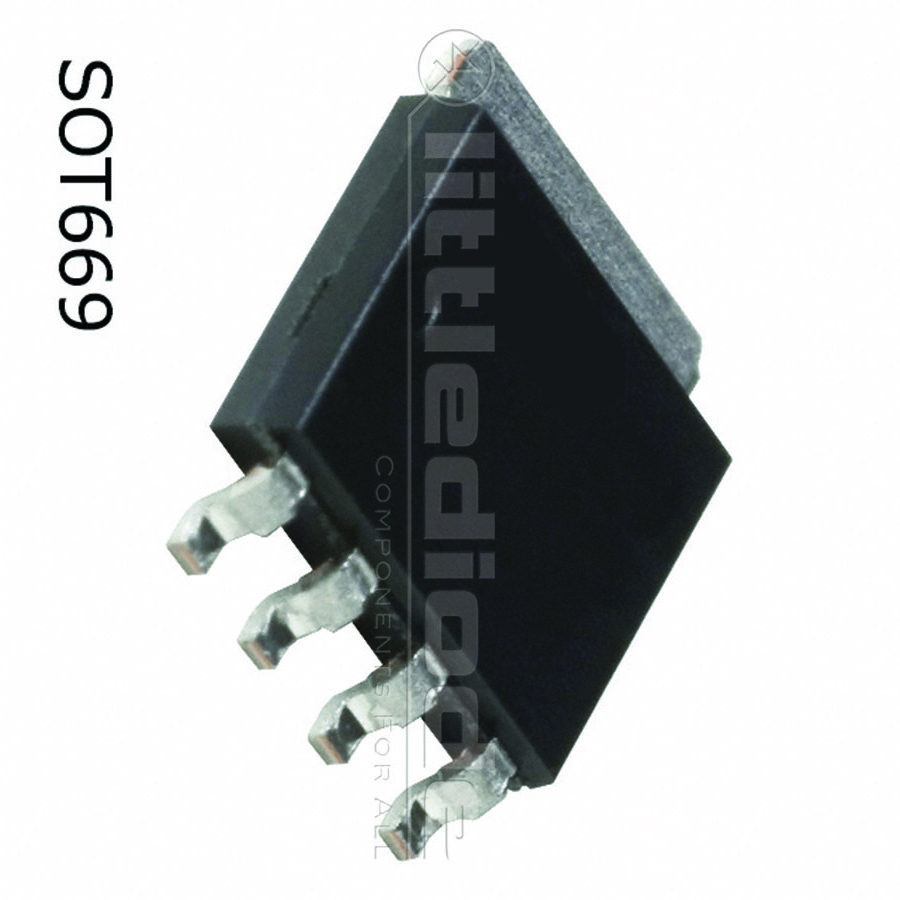

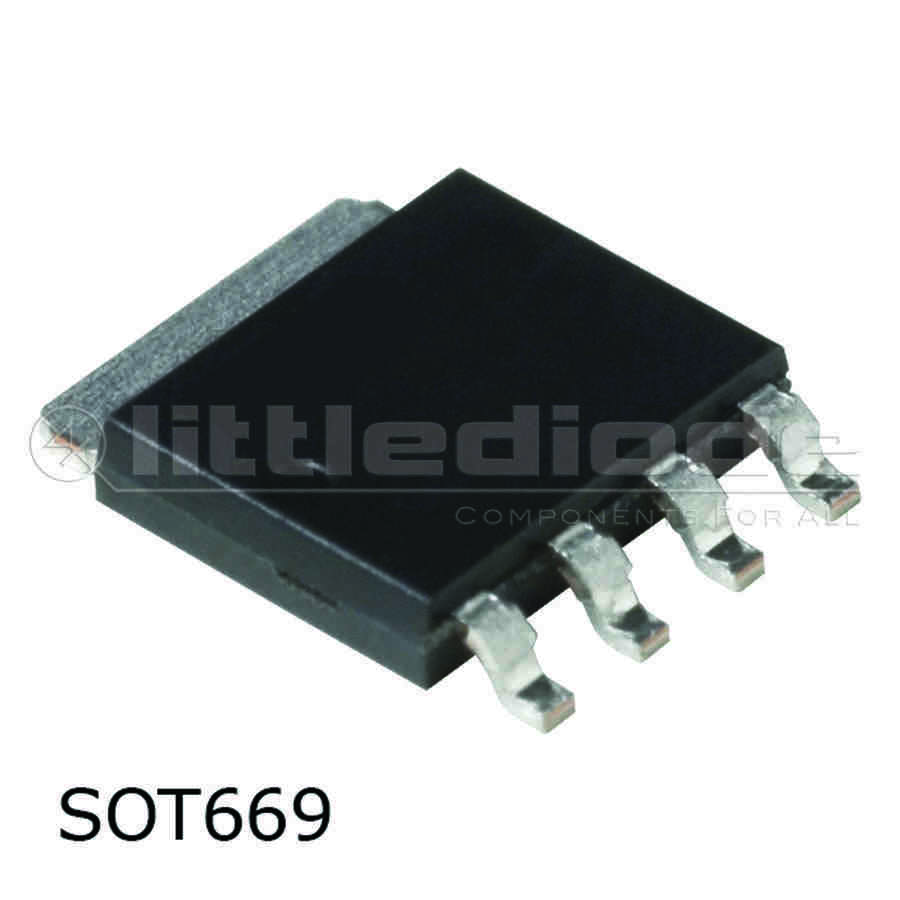

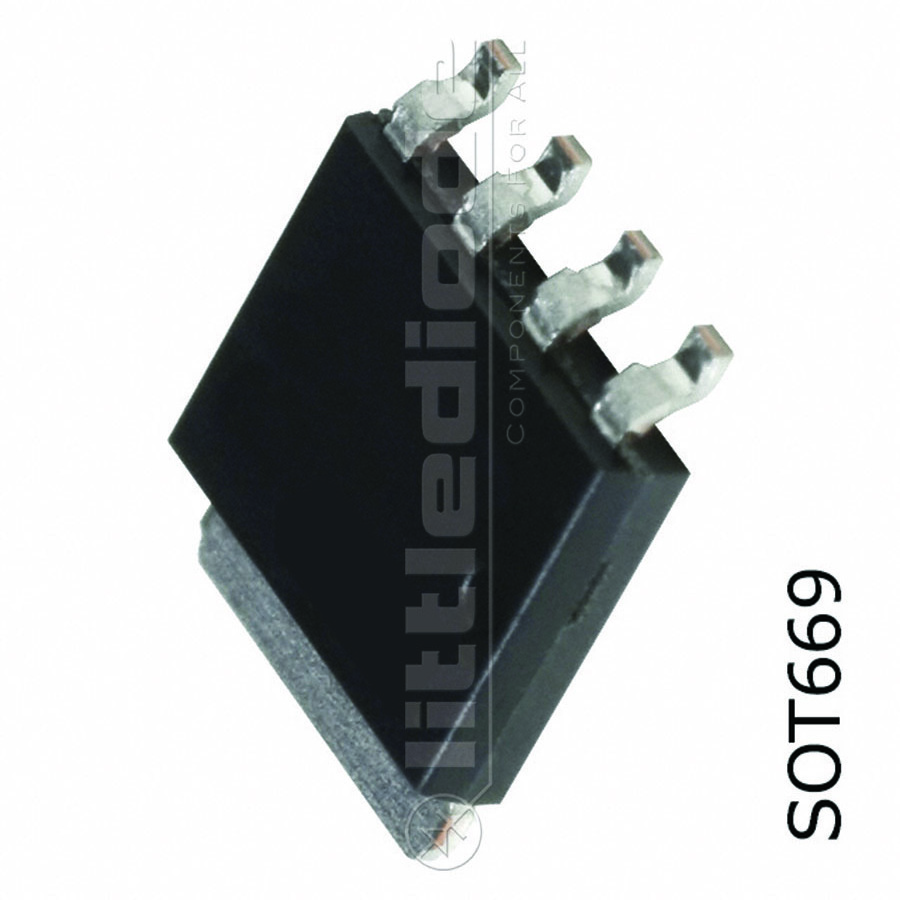

PHPT61006PY Transistor Silicon PNP CASE: SOT669 MAKE: Generic
Product specifications
Type Transistor Silicon PNP
Case SOT669
Manufacturer Generic
Polarity PNP
Maximum Collector Power Dissipation (Pc) 25 W
Maximum Collector-Base Voltage |Vcb| 100 V
Maximum Collector-Emitter Voltage |Vce| 100 V
Maximum Emitter-Base Voltage |Veb| 8 V
Maximum Collector Current |Ic max| 6 A
Max. Operating Junction Temperature (Tj) 175 °C
Collector Capacitance (Cc) 52 pF
Transition Frequency (ft): 116 MHz
Forward Current Transfer Ratio (hFE), MIN 10
SMD Transistor Code 1006PAB
SKU 1439541
