PM7545HPC
View detailed images (4)

PM7545HPC

SKU: PM7545HPC

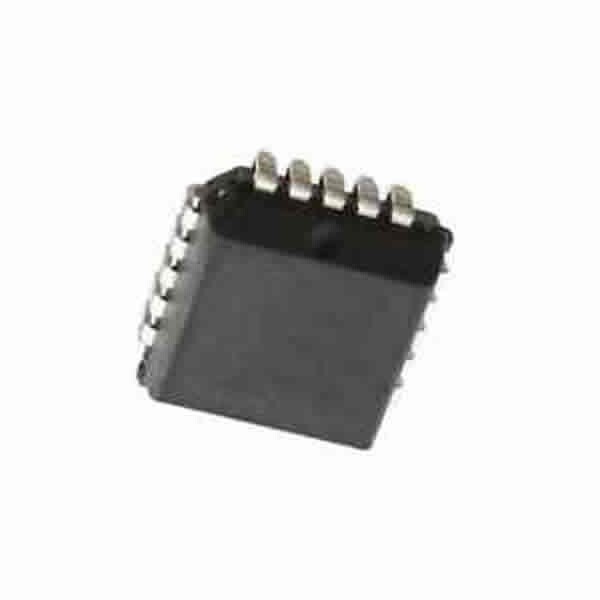

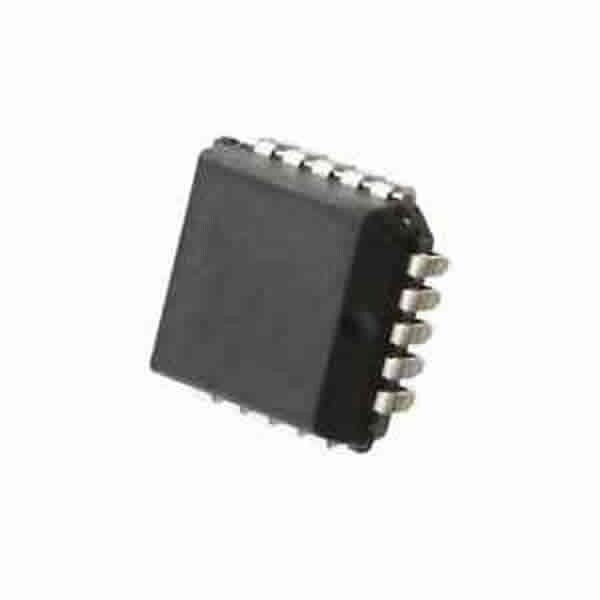

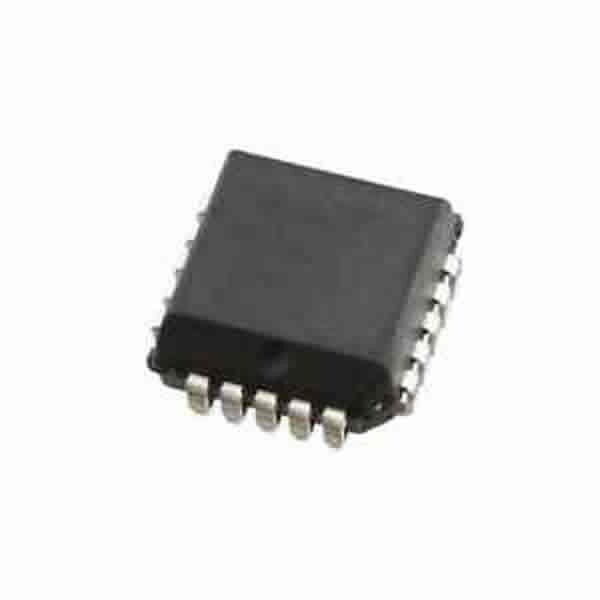

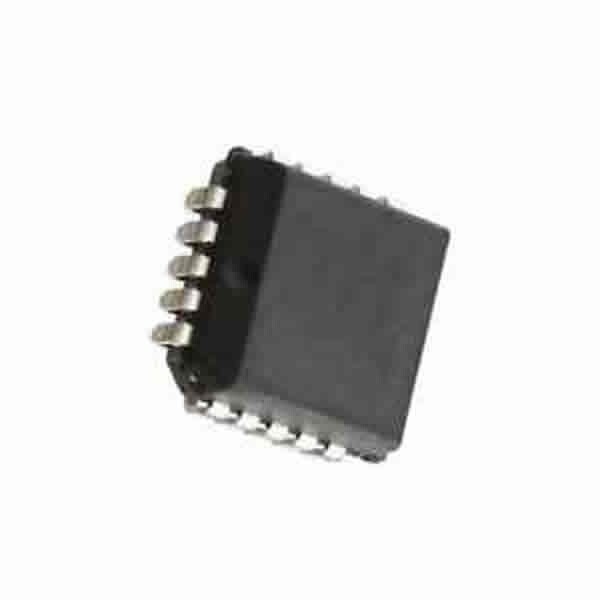

PM7545HPC Integrated Circuit - Case: PLCC20 Make: PMI
+ VAT 20% for UK purchases
Product specifications
Type Integrated Circuit
Case PLCC20
Manufacturer PMI
FSR Error (LSB/%) 1
Inp Arith. Code AG
Vih Min (V) 13.5
Vil Max. (V) 1.5
PD Max. (W) 450m
Nom. Neg Supp 0.0
Nom. Pos. Supp 15
Settling Time (S) 1.0u
Tech. CMOS Integrated Circuit
Temp Drift Max. (ppm/°C) 5.0
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
@ Accuracy (% FSR) 0.5
Volt or Cur. Mode Current
Logic Level Family TTL
Pinout Equivalence Number 20-92
No. of Pins 20
Surface Mounted Yes/No YES
SKU 275578
