PMC3358
View detailed images (4)

PMC3358

SKU: PMC3358

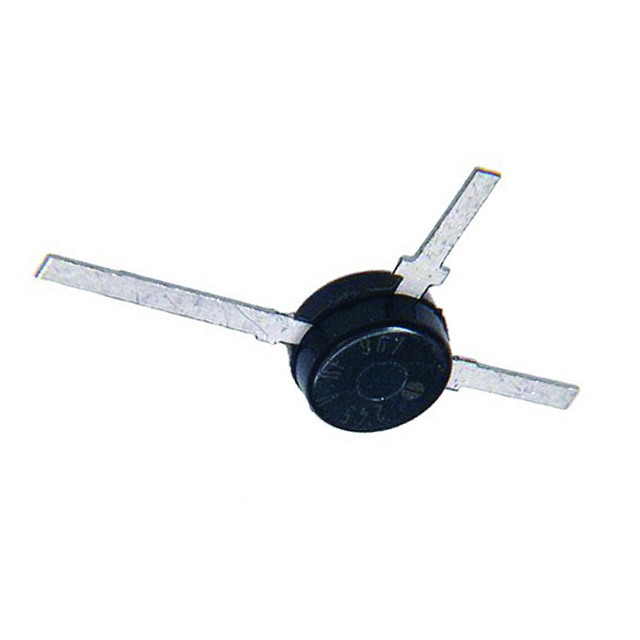

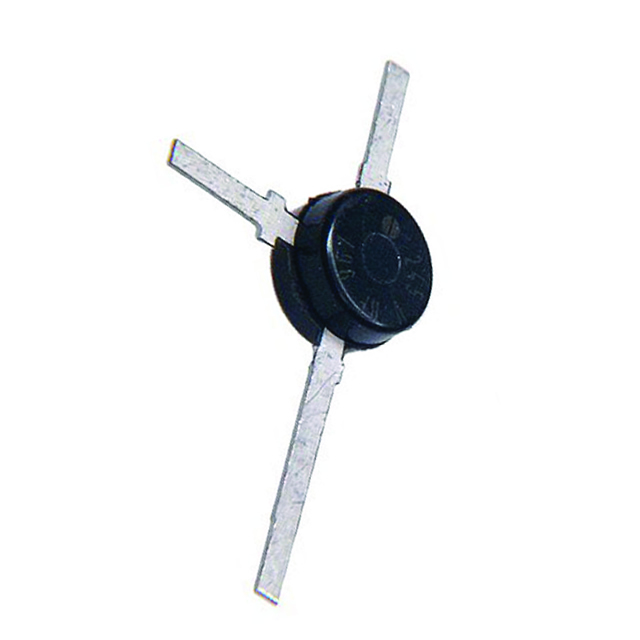

PMC3358 Transistor Silicon NPN CASE: SOT37 MAKE: Generic
Product specifications
Type Transistor Silicon NPN
Case SOT37
Manufacturer Generic
Polarity NPN
Maximum Collector Power Dissipation (Pc) 0.25 W
Maximum Collector-Base Voltage |Vcb| 20 V
Maximum Collector-Emitter Voltage |Vce| 12 V
Maximum Emitter-Base Voltage |Veb| 3 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 70 °C
Collector Capacitance (Cc) 0.5 pF
Transition Frequency (ft): 6000 MHz
Forward Current Transfer Ratio (hFE), MIN 50
SKU 1439577
