PS2403-3

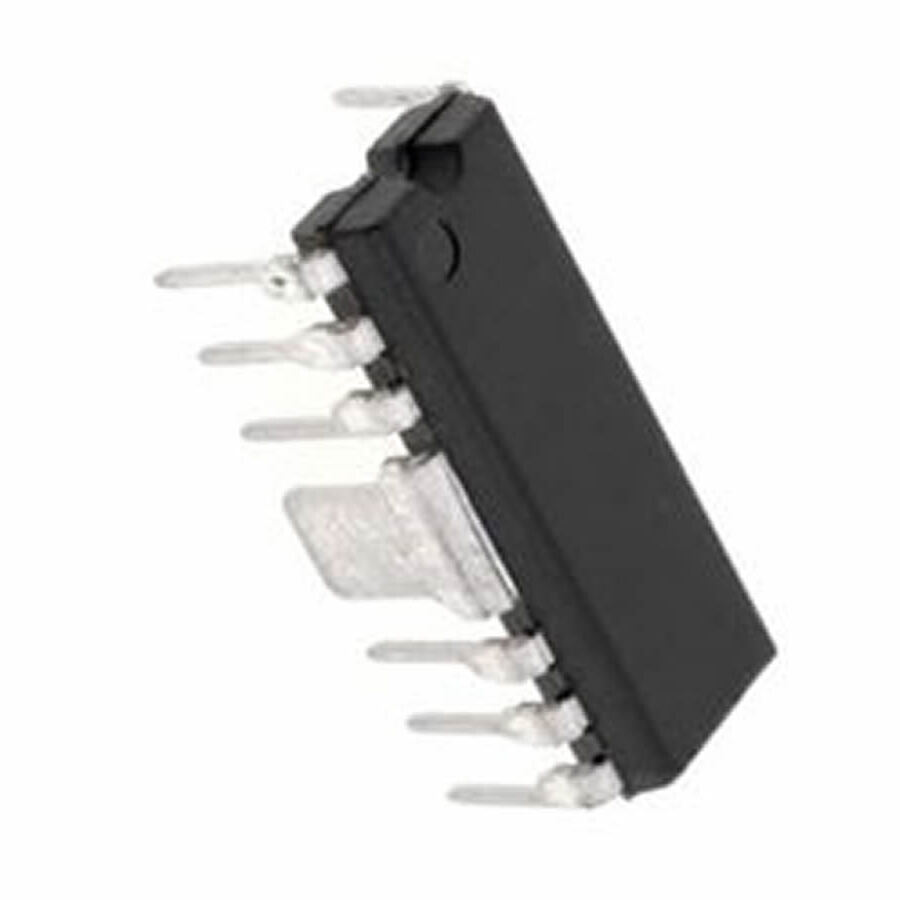

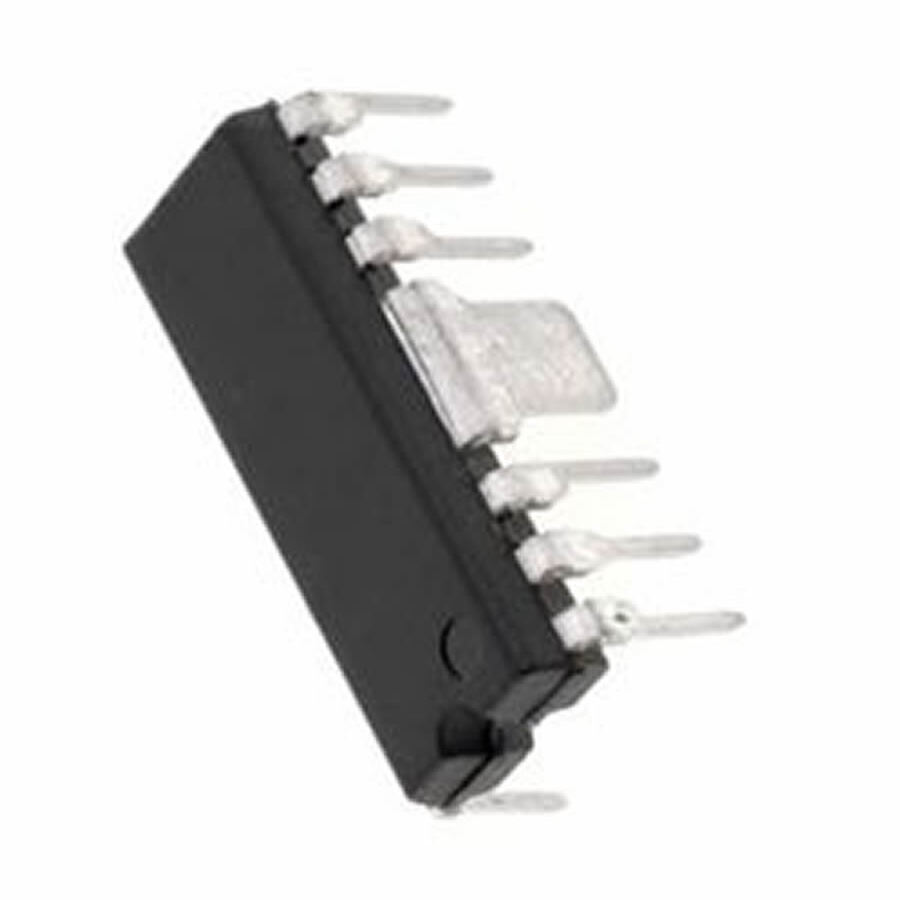

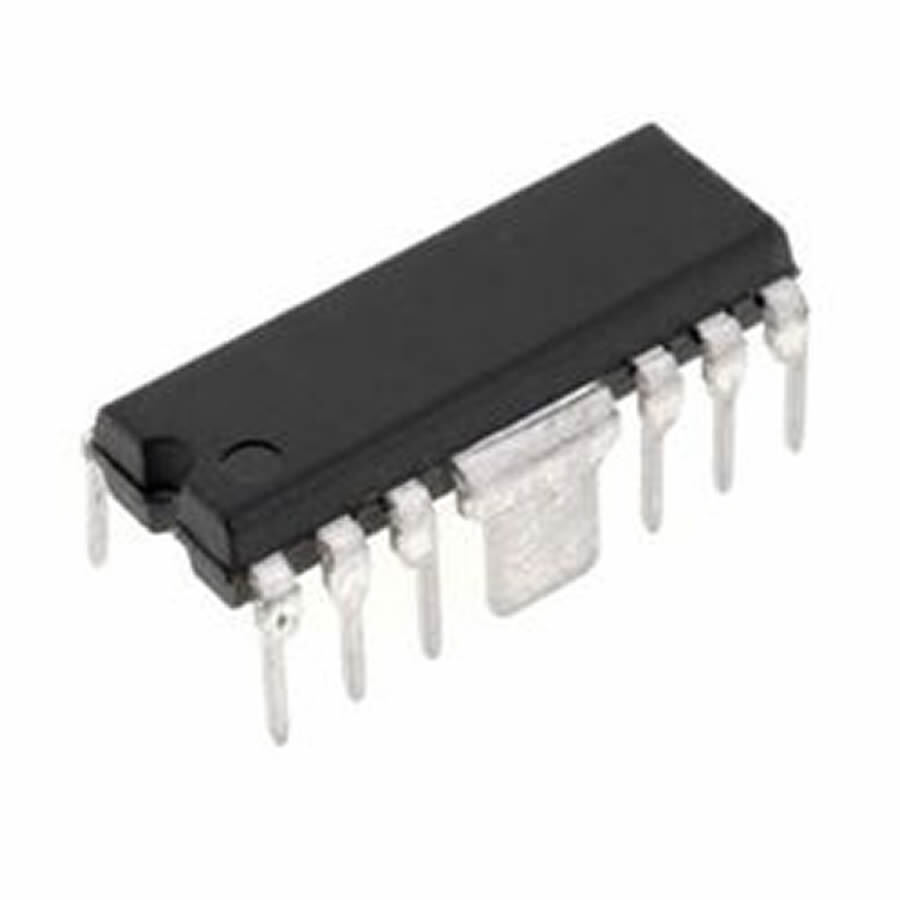

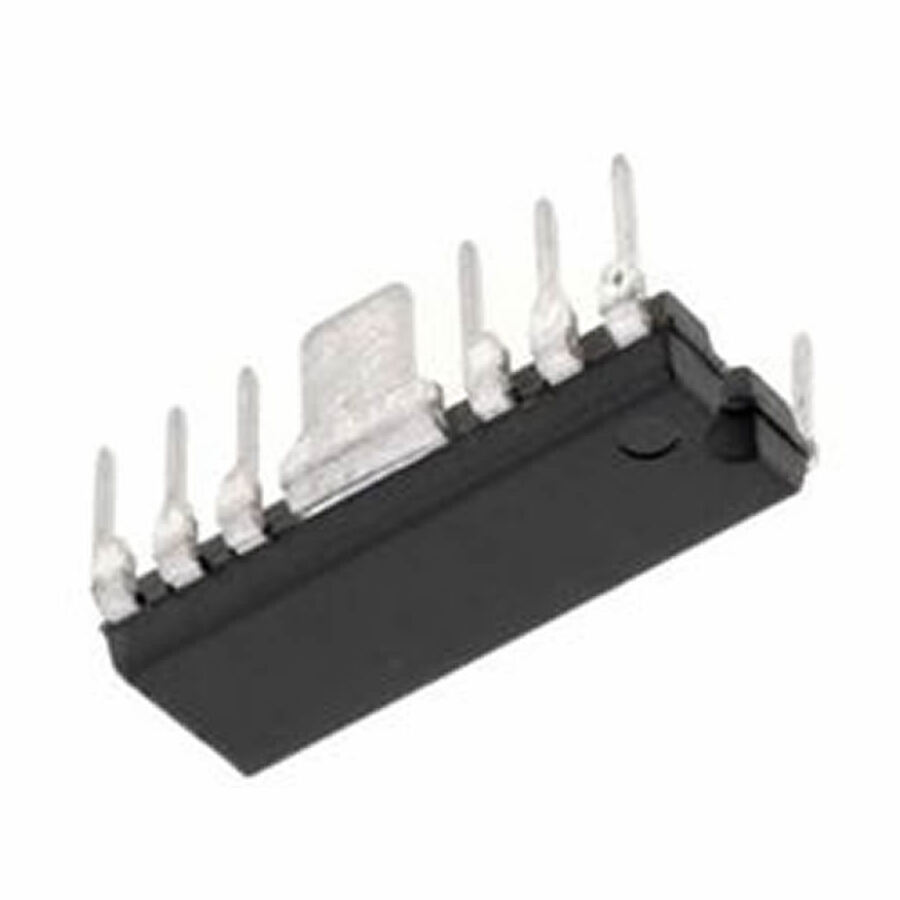

View detailed images (4)

PS2403-3

SKU: PS2403-3
PS2403-3 SemiConductor CASE: DIP12 MAKE: NEC
Product specifications
Type SemiConductor
Case DIP12
Manufacturer NEC
CTR (%) 200
V(isol) Max. (V) 5.0k
Ic Max. (A) 30m
If Max. (A) 50m
@If (test) (A) 1.0m
PD Max. (W) 120m
t(resp) (S) 60u
VCE(sat) Max. 250m
Vbr CEO 40
Vf Max. 1.3
@Ic (test) 200u
@VCE (test) 5.0
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 100
@If (A) 1.0m
@If (A) 1.0m
Number of Chan. 3
Pinout Equivalence Number 12-1
Surface Mounted Yes/No NO
SKU 654783
