PS2501-3
View detailed images (4)

PS2501-3

SKU: PS2501-3

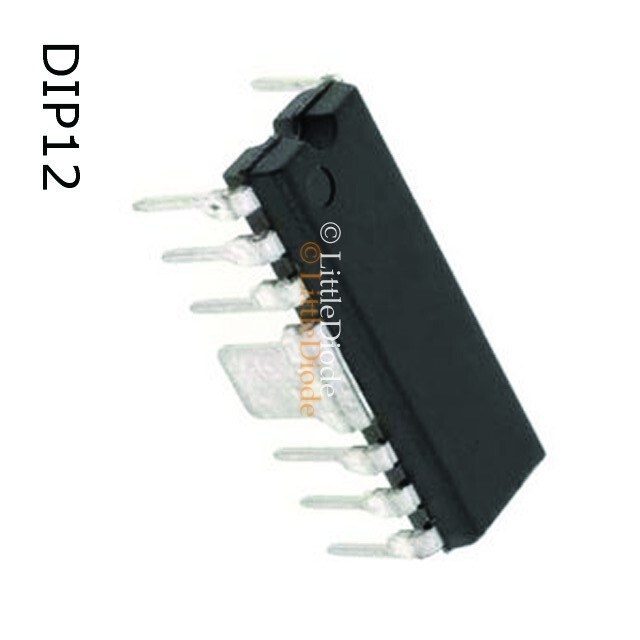

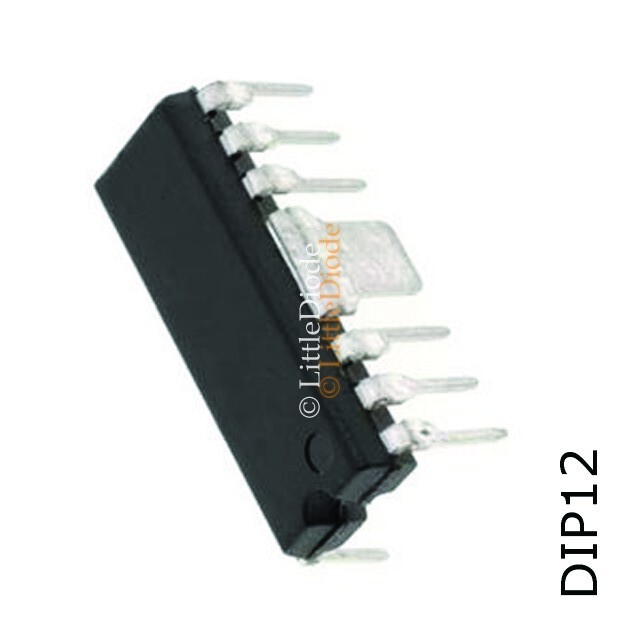

PS2501-3 SemiConductor - Case: DIP12 Make: NEC
+ VAT 20% for UK purchases
Product specifications
Type SemiConductor
Case DIP12
Manufacturer NEC
CTR (%) 80
V(isol) Max. (V) 5k
Ic Max. (A) 80m
If Max. (A) 80m
@If (test) (A) 10m
PD Max. (W) 120m
t(resp) (S) 3.0u
VCE(sat) Max. 300m
Vbr CEO 80
Vf Max. 1.4
@Ic (test) 2.0m
@VCE (test) 5.0
Oper. Temp (°C) Min -55
Oper. Temp (°C) Max. 100
@If (A) 5.0m
@If (A) 10m
Number of Chan. 3
Pinout Equivalence Number 12-1
Surface Mounted Yes/No NO
SKU 277230
