PT9790
View detailed images (12)

PT9790

SKU: PT9790

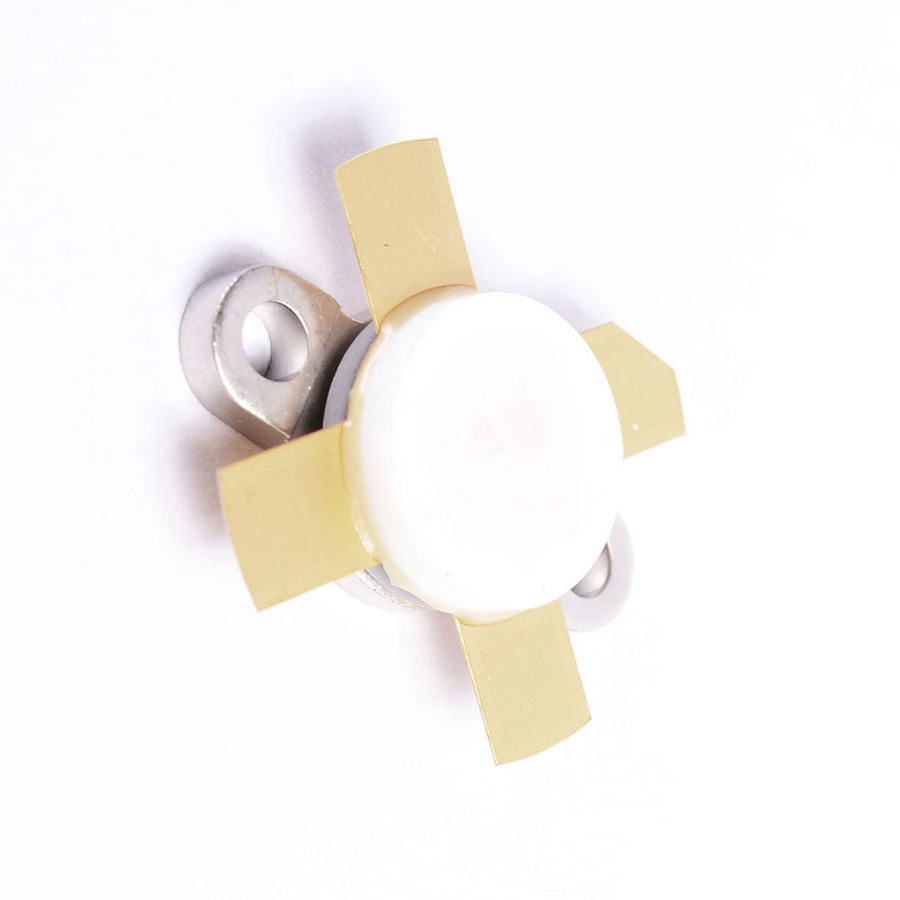

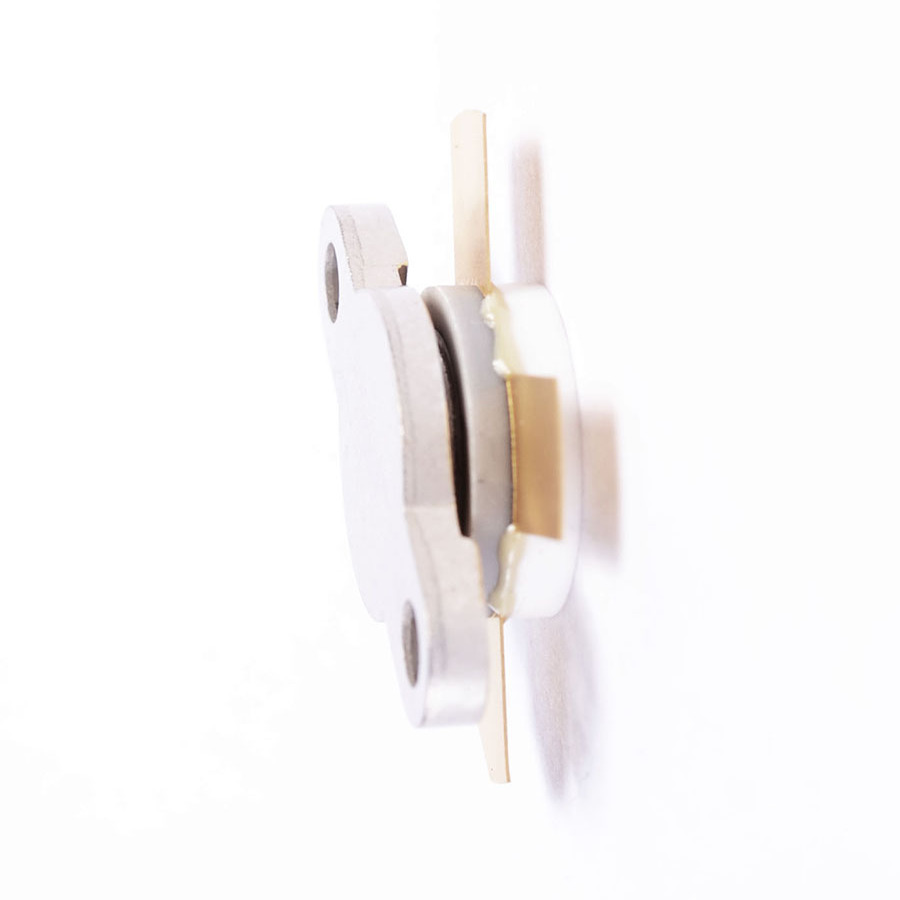

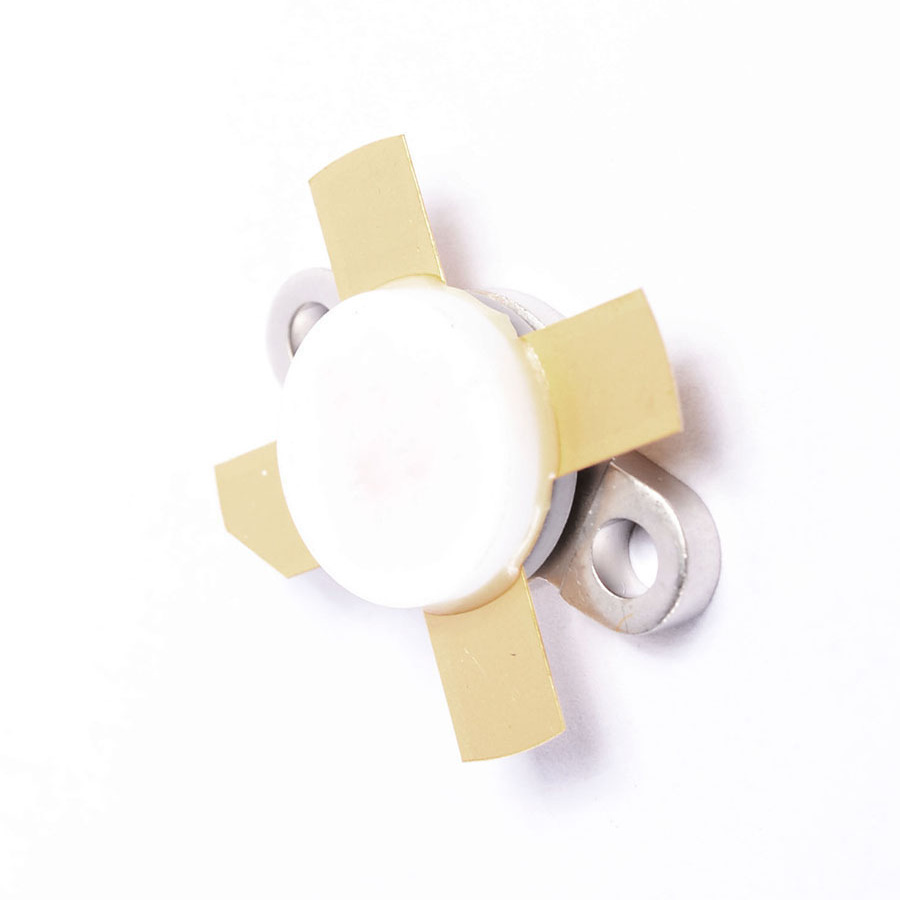

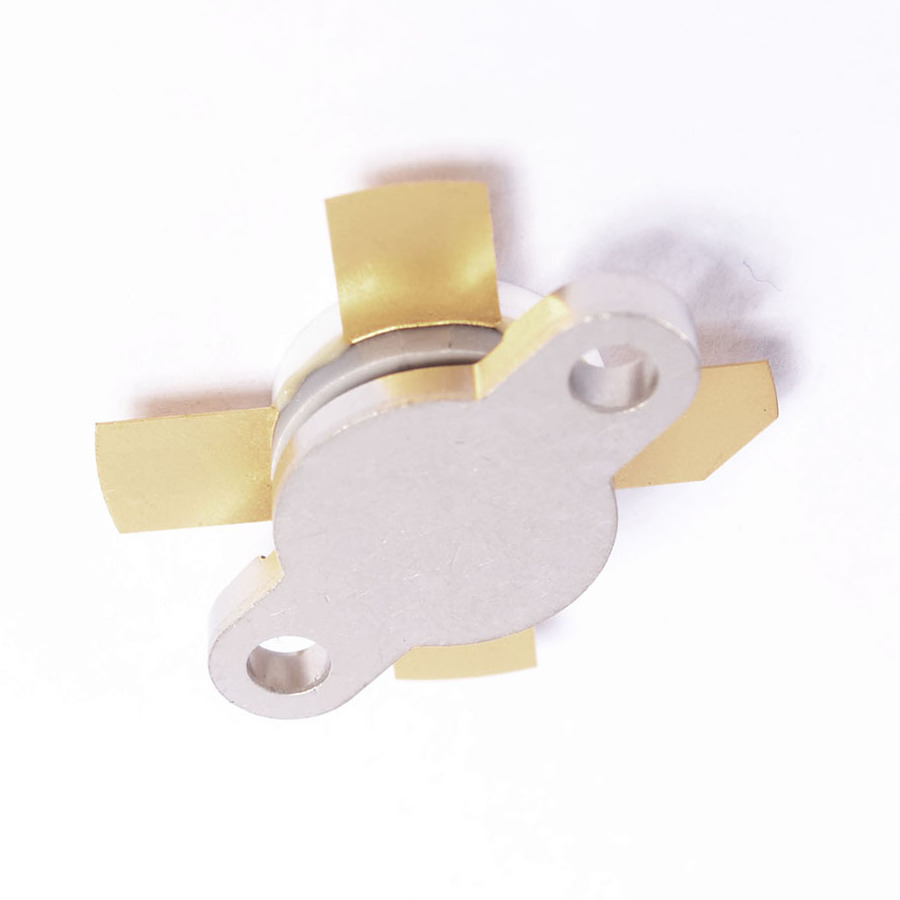

PT9790 Transistor Silicon NPN CASE: SOT121 MAKE: Motorola Semiconductor
Product specifications
Type Transistor Silicon NPN
Case SOT121
Manufacturer Motorola Semiconductor
Vbr CBO 110
Vbr CEO 55
Max. PD (W) 300
Max. hFE 60
Min hFE 10
Ic Max. (A) 15
@Ic (test) (A) 1.0
Polarity NPN
Derate Above 25°C 2.0
Trans. Freq (Hz) Min. 30M
Oper. Temp (°C) Max. 175
@VCE (V) 5.0
Pinout Equivalence Number 4-28
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 300 W
Maximum Collector-Base Voltage |Vcb| 110 V
Maximum Collector-Emitter Voltage |Vce| 55 V
Maximum Emitter-Base Voltage |Veb| 4 V
Maximum Collector Current |Ic max| 15 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 200 pF
Forward Current Transfer Ratio (hFE), MIN 10
SKU 553773
