PZT3904
View detailed images (8)

PZT3904

SKU: PZT3904

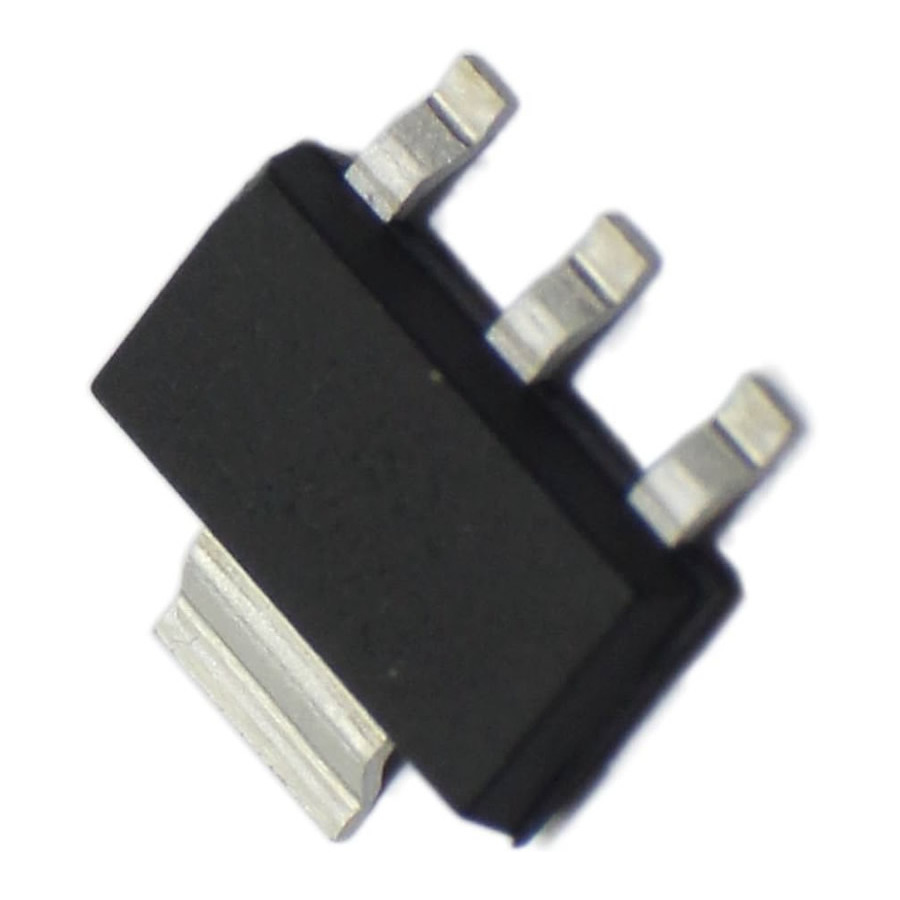

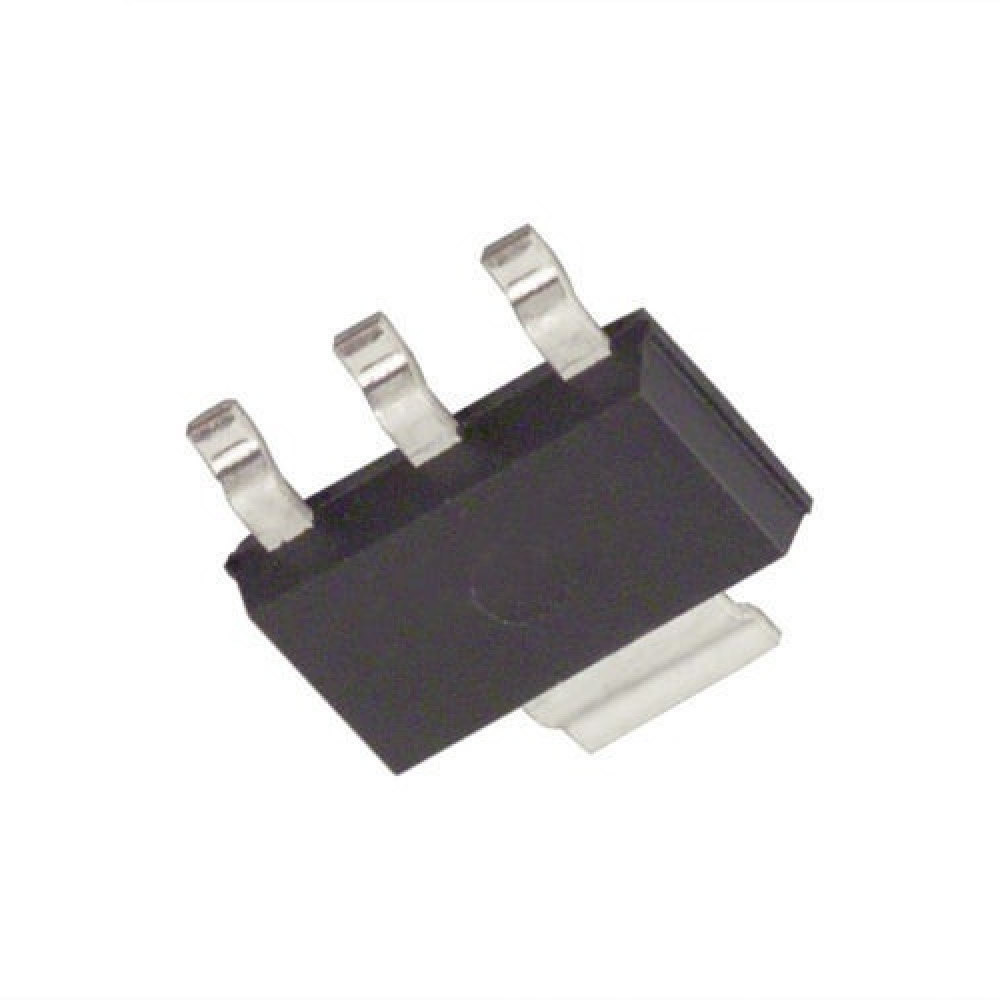

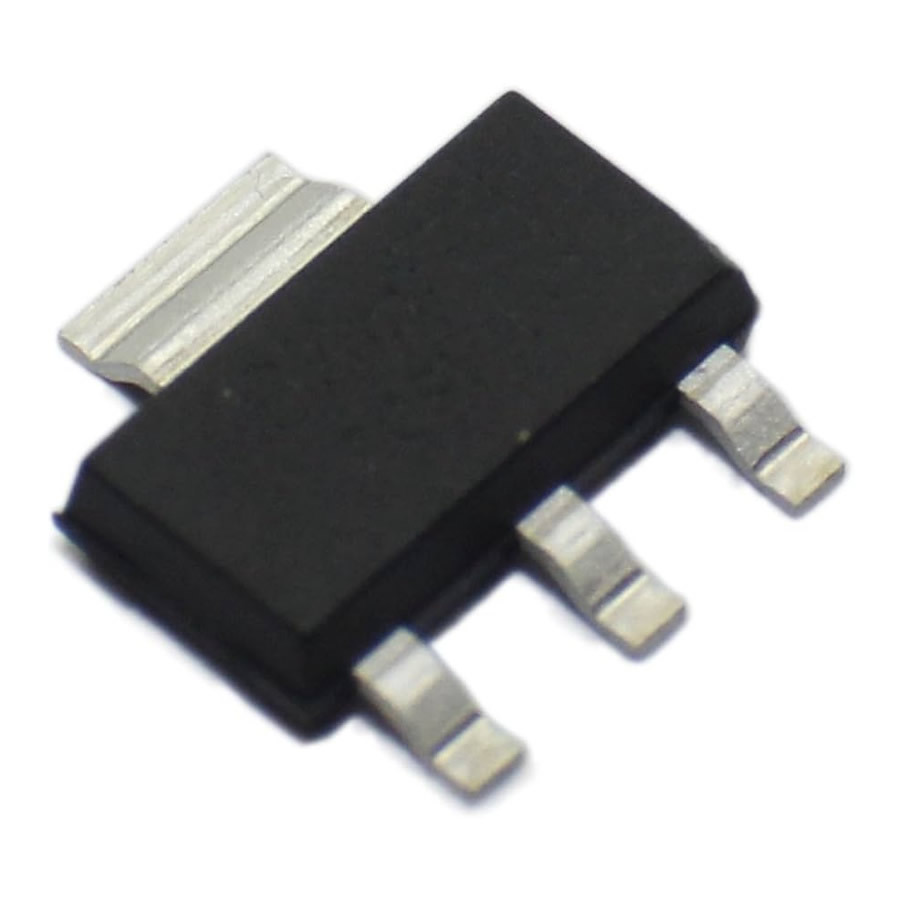

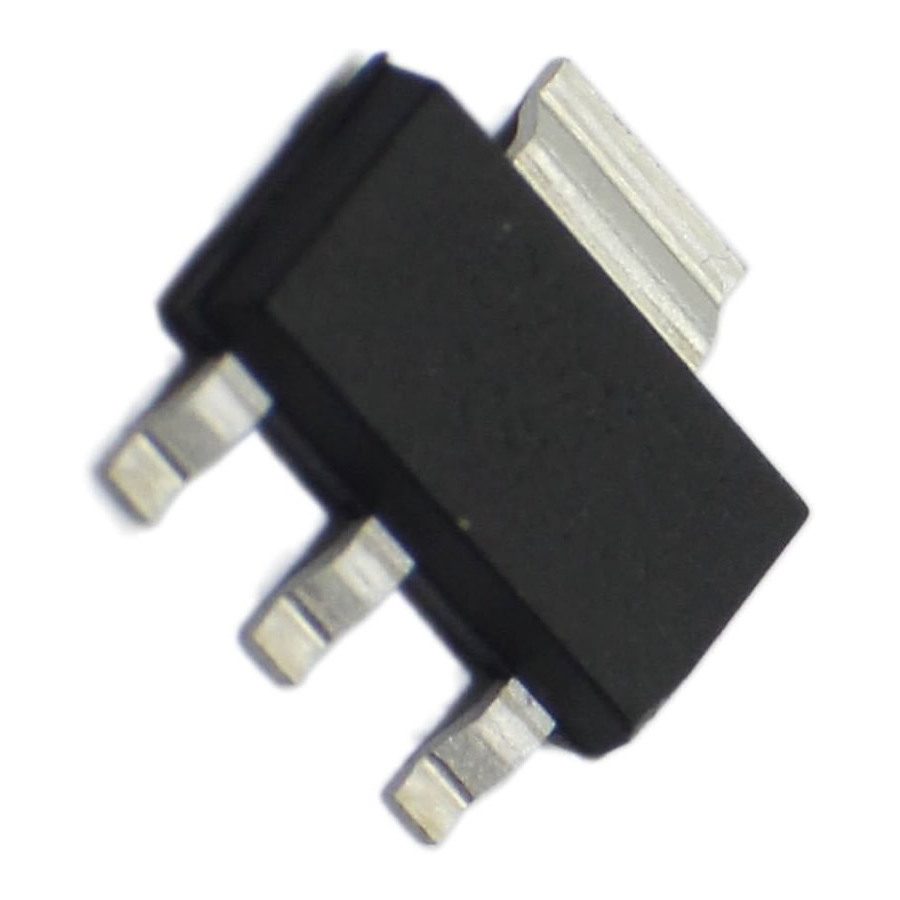

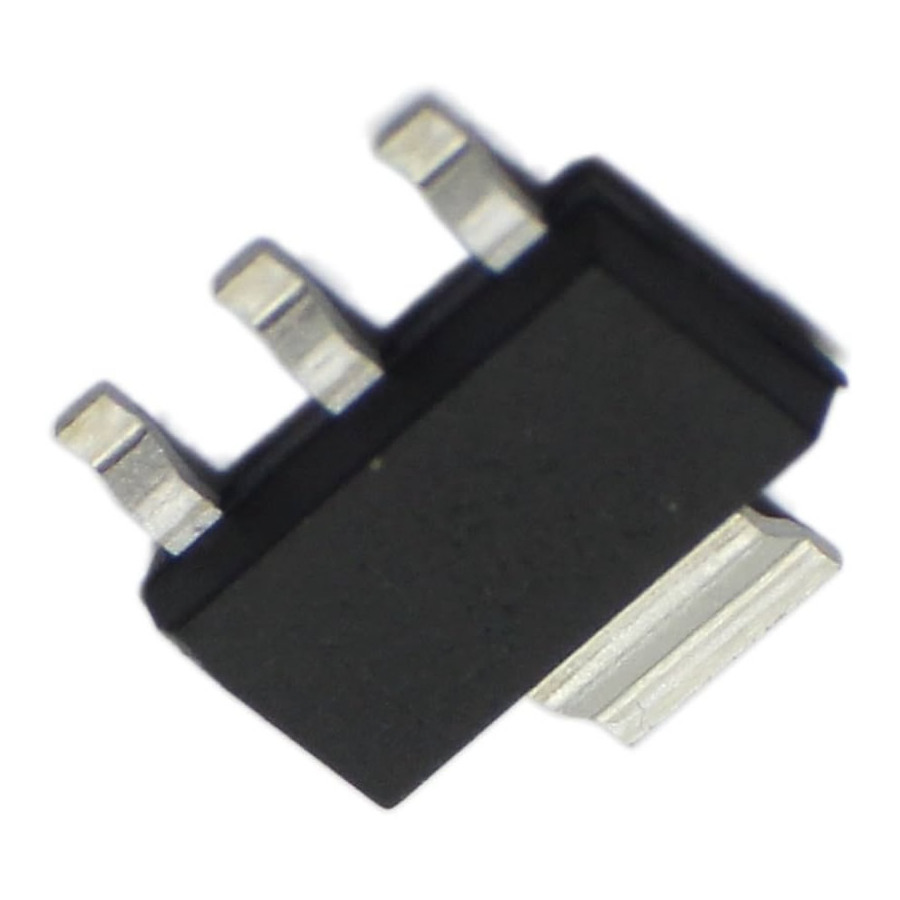

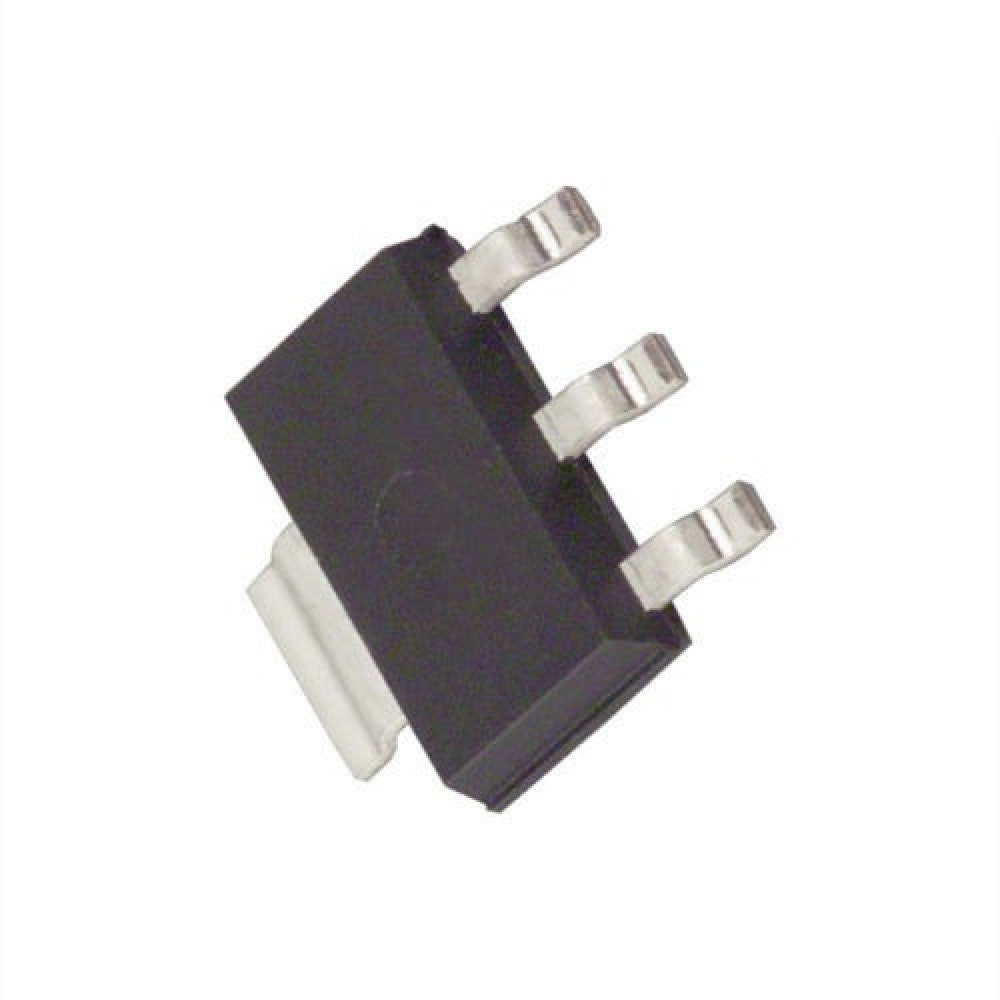

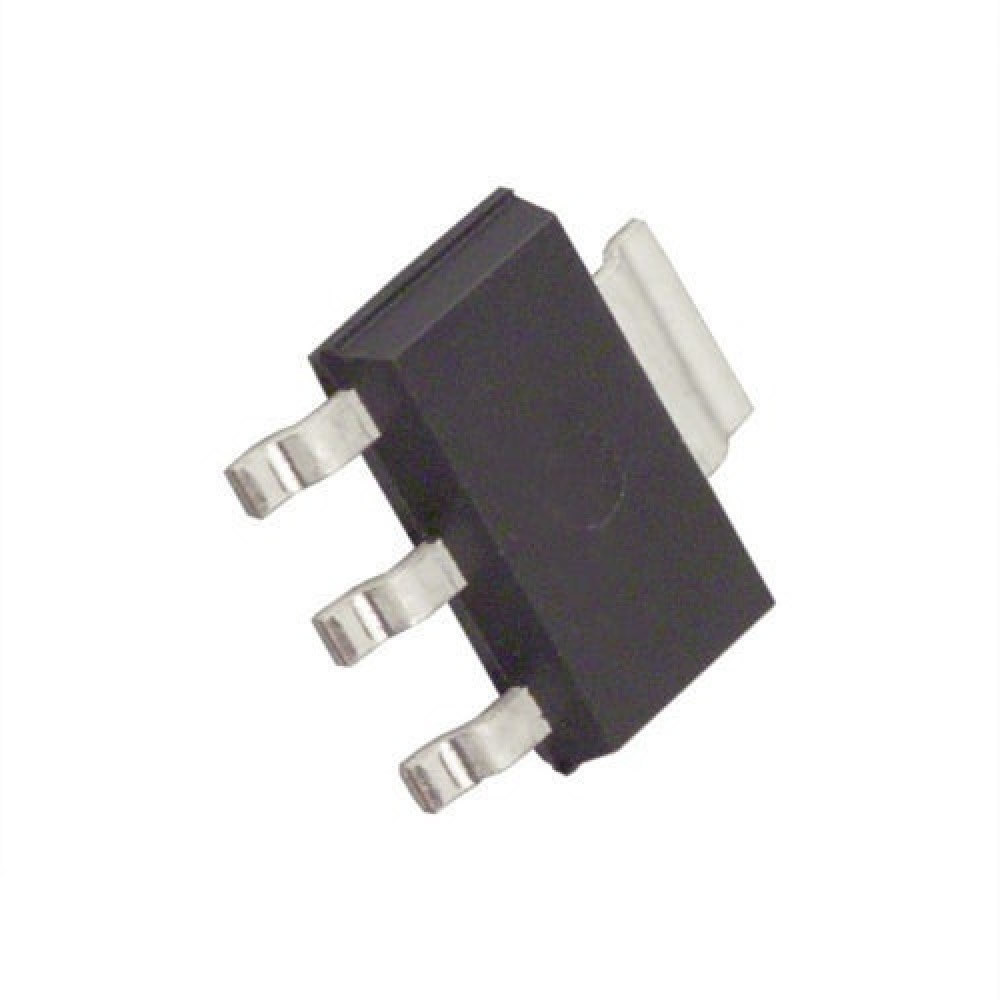

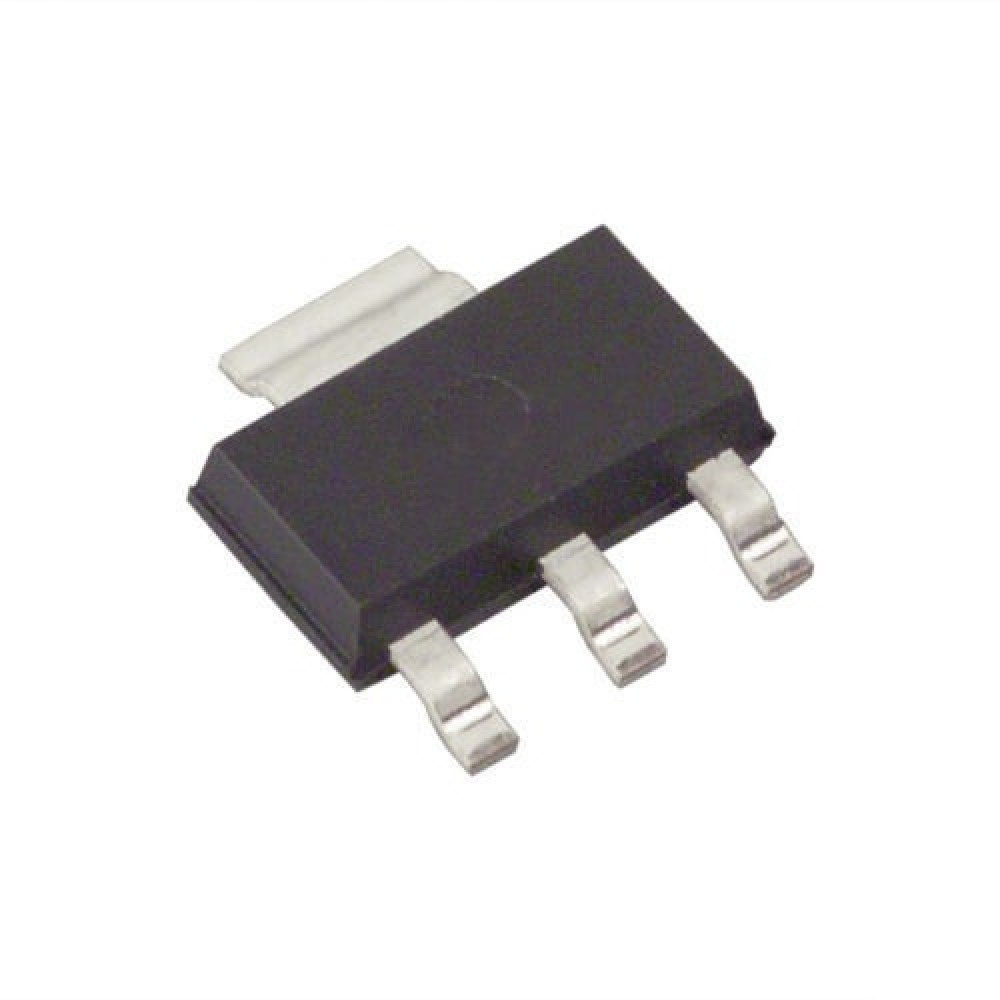

PZT3904 Transistor Silicon NPN CASE: SOT223 MAKE: Fairchild Semiconductor
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 2 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Transistor Silicon NPN
Case SOT223
Manufacturer Fairchild Semiconductor
Vbr CBO 60
Vbr CEO 40
Max. PD (W) 1.5
Min hFE 40
Ic Max. (A) 200m
@Ic (test) (A) 0.1m
Icbo Max. @Vcb Max. (A) 50n
Polarity NPN
Tr Max. (s) 35n
Trans. Freq (Hz) Min. 300M
Oper. Temp (°C) Max. 150
@VCE (V) 1.0
Pinout Equivalence Number 4-105
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 1 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 40 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 0.2 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 4 pF
Transition Frequency (ft): 300 MHz
Forward Current Transfer Ratio (hFE), MIN 40
SMD Transistor Code 3904_1AM_P1A_ZT3904
SKU 439227
