PZTA43

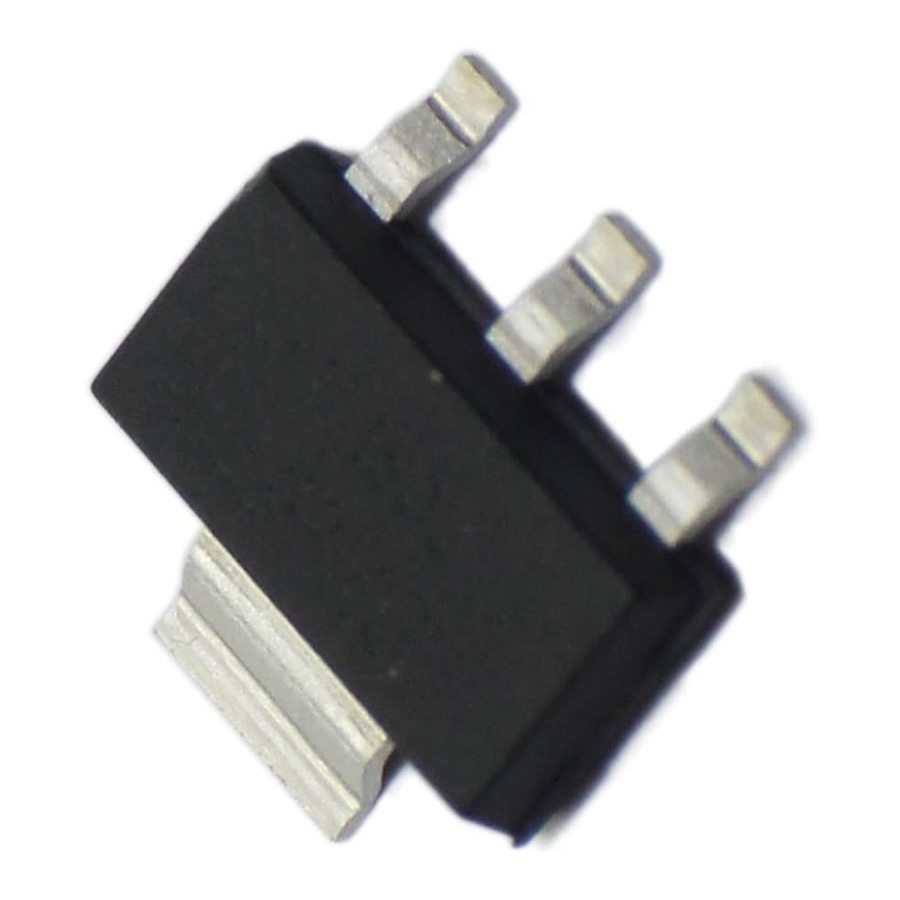

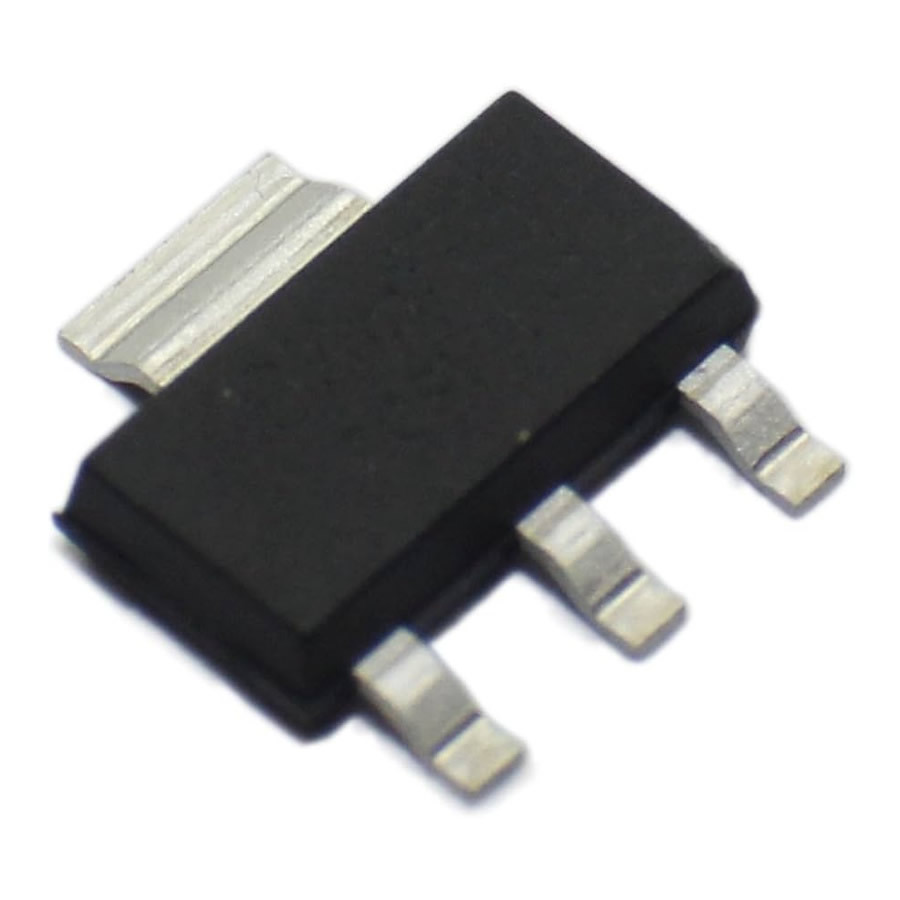

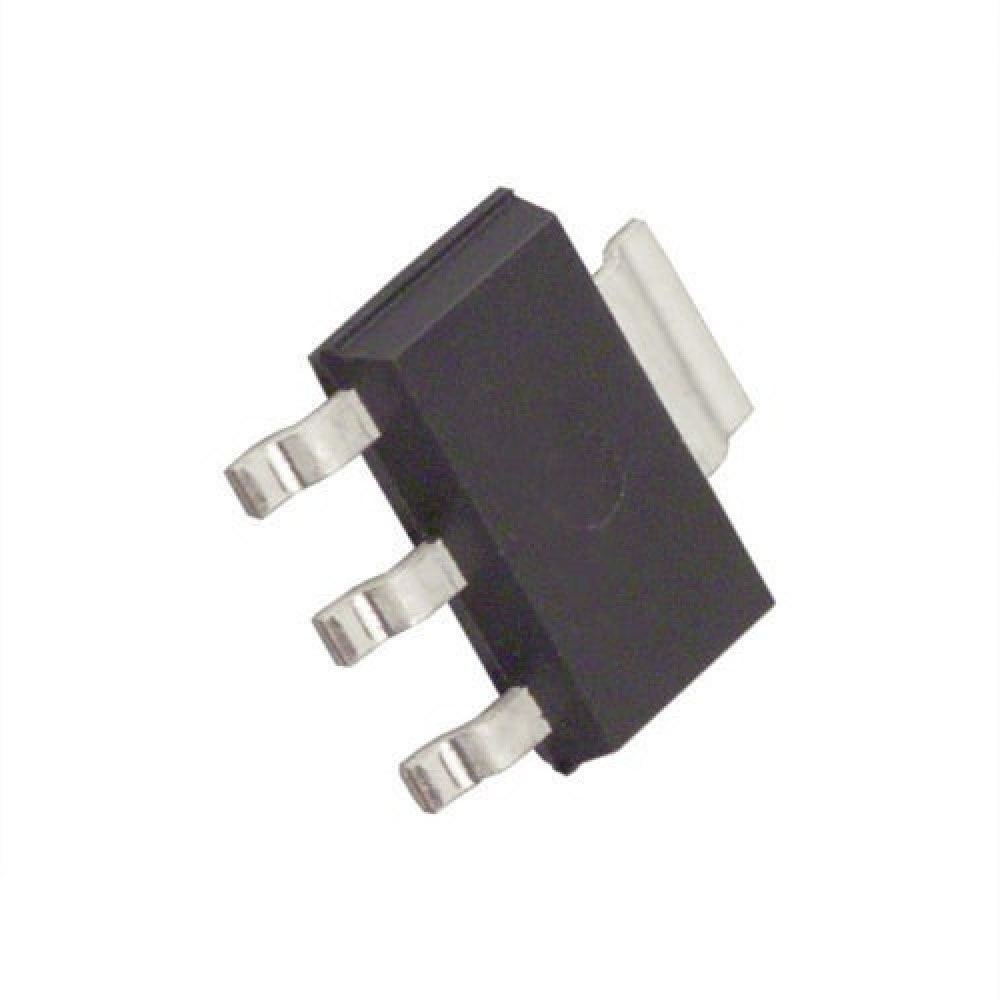

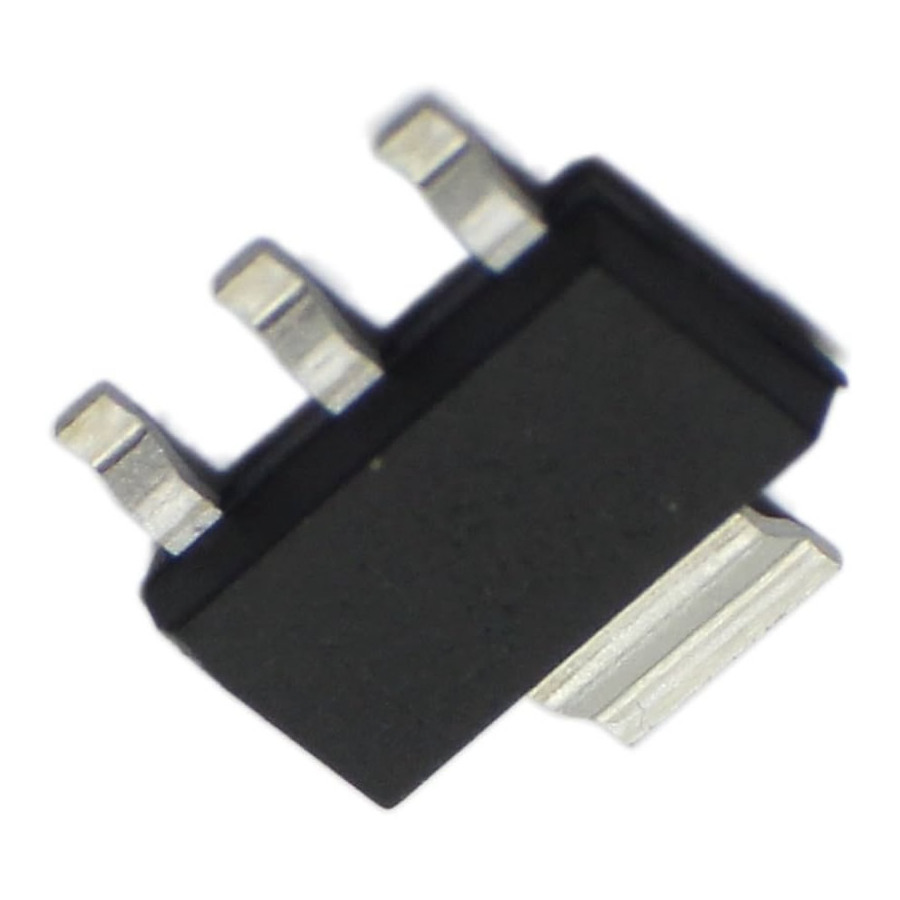

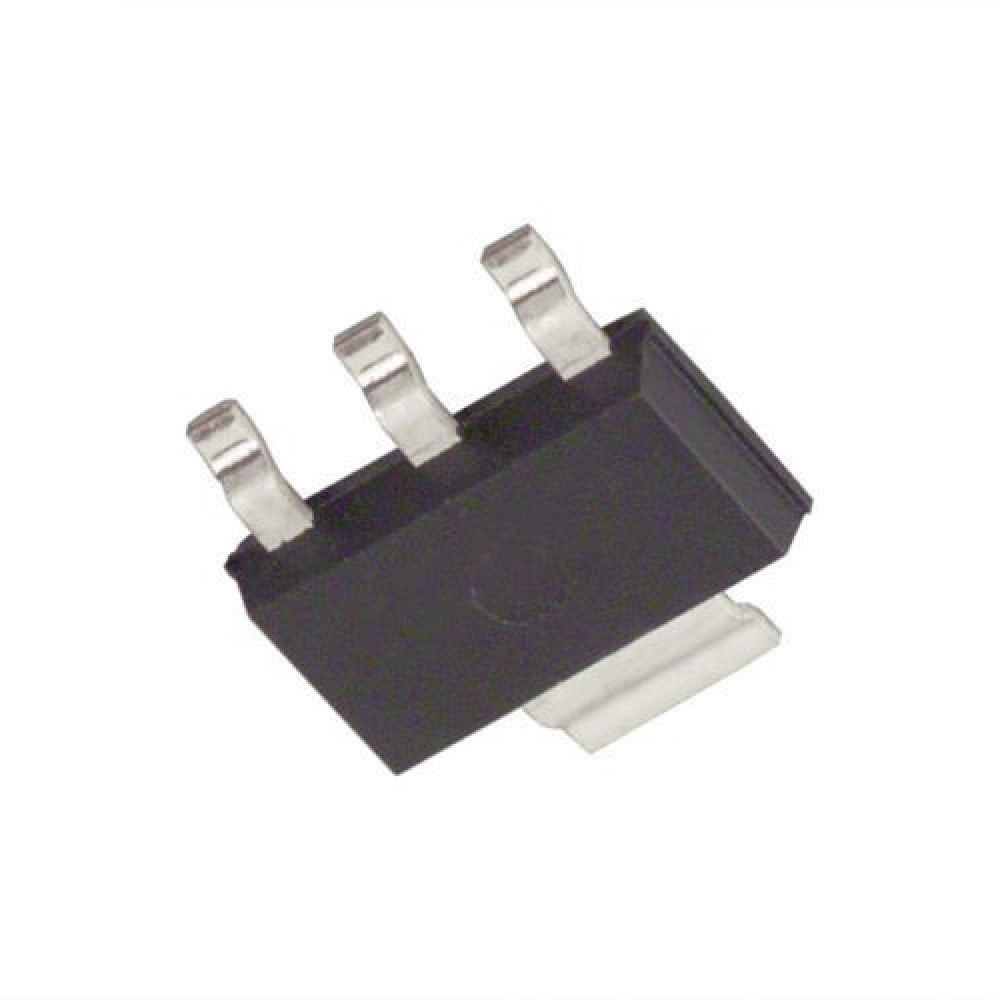

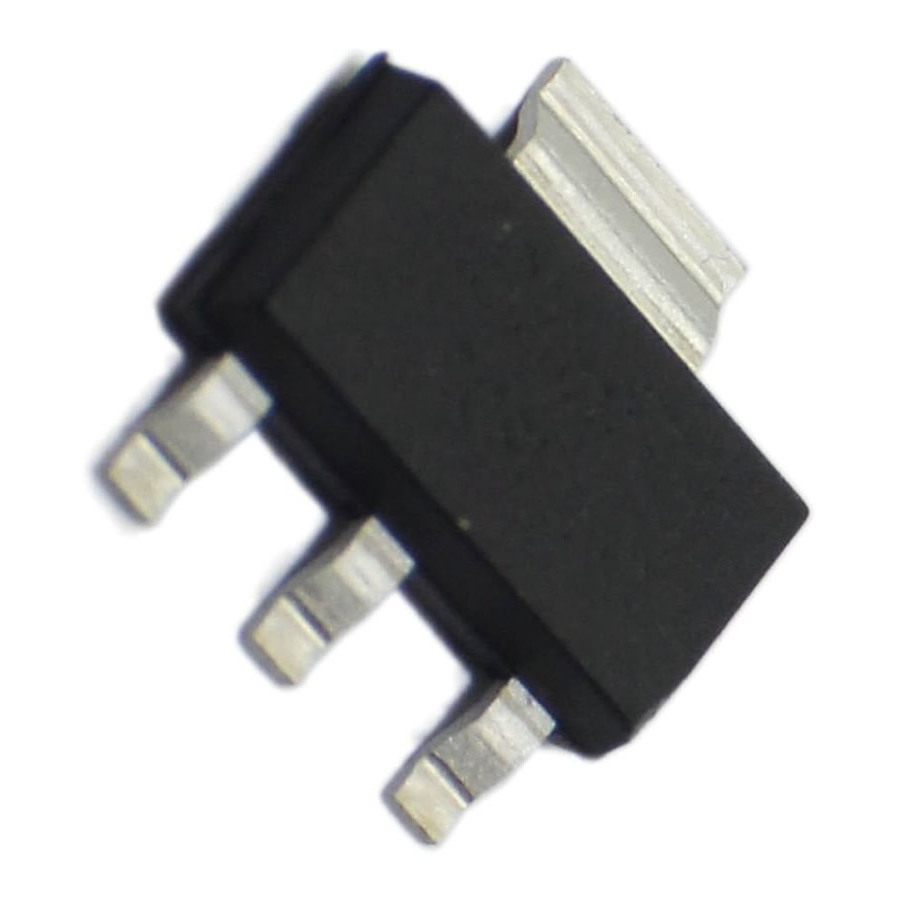

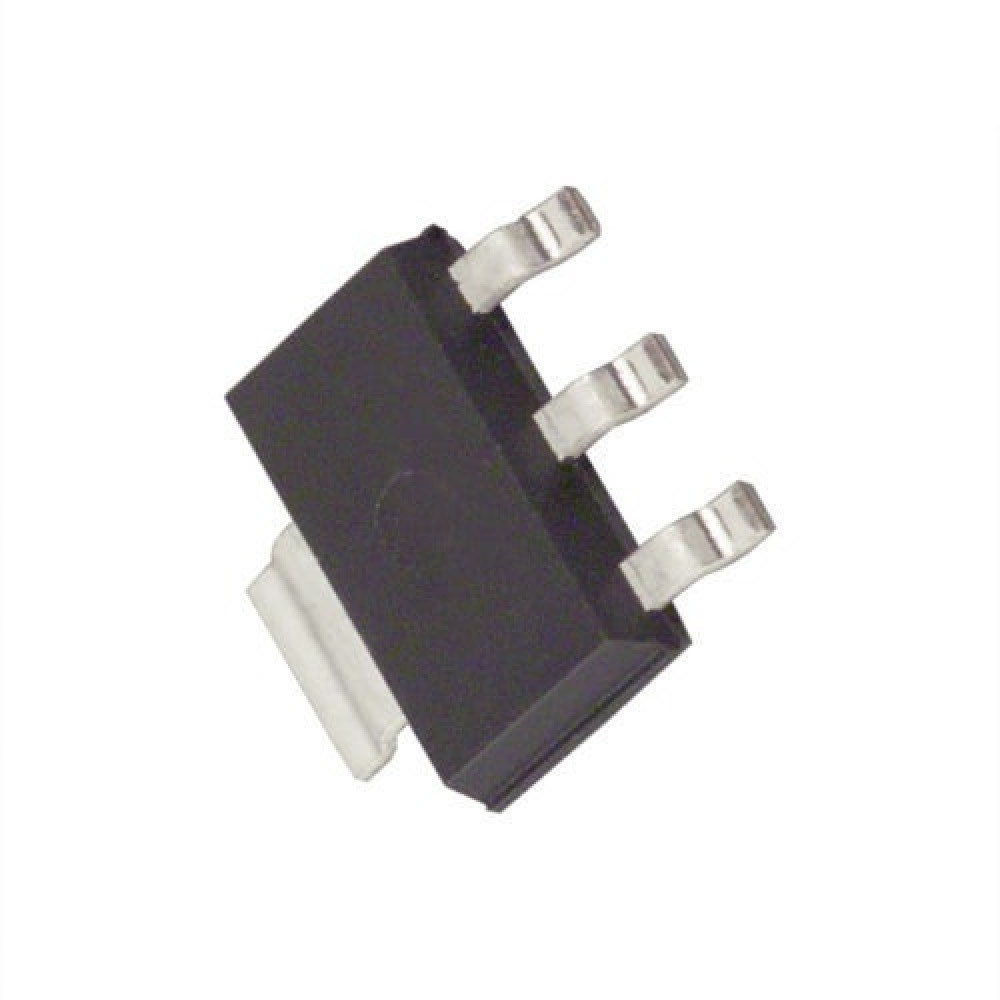

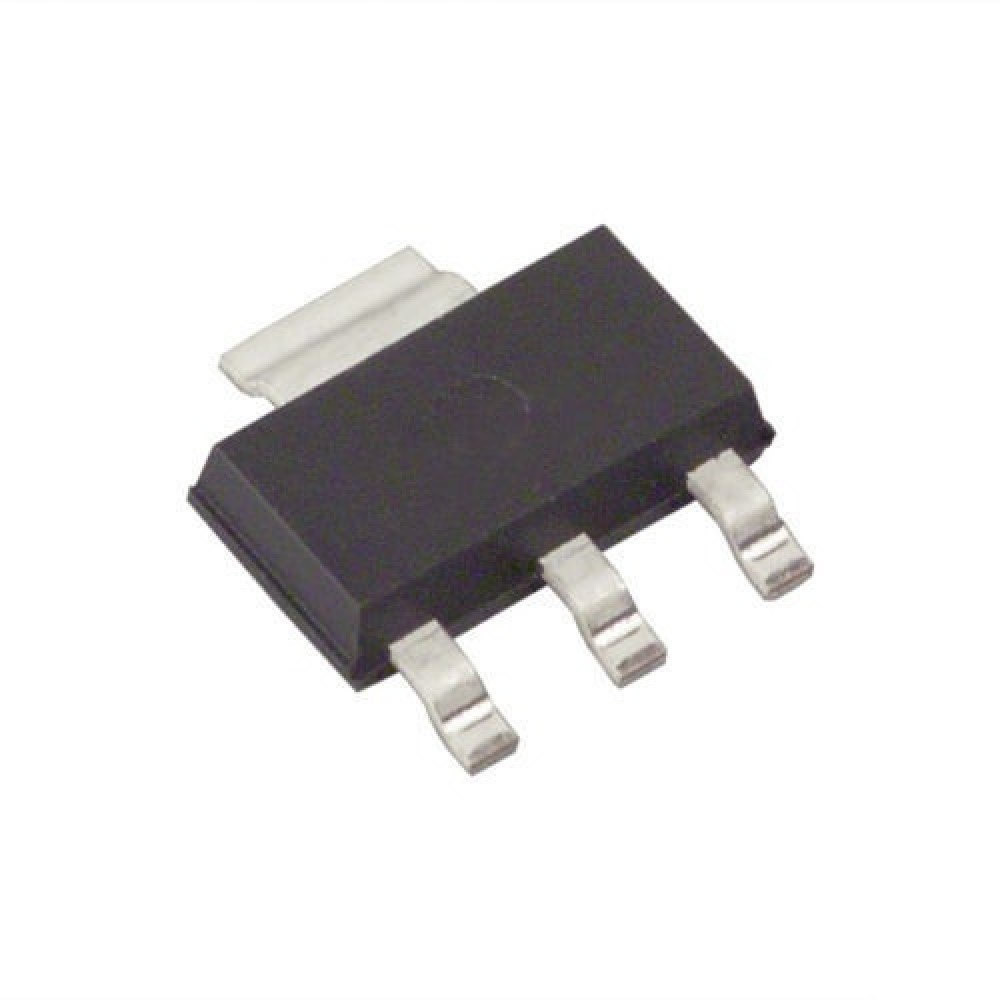

View detailed images (8)

PZTA43

SKU: PZTA43
PZTA43 Transistor Silicon NPN CASE: SOT223 MAKE: ON Semiconductor
Product specifications
Type Transistor Silicon NPN
Case SOT223
Manufacturer ON Semiconductor
Vbr CBO 200
Vbr CEO 200
Max. PD (W) 1.5
Min hFE 40-
Ic Max. (A) 500m
@Ic (test) (A) 10m
Icbo Max. @Vcb Max. (A) 100n
Polarity NPN
Trans. Freq (Hz) Min. 50M
Oper. Temp (°C) Max. 140
@VCE (V) 10
Pinout Equivalence Number 4-105
Surface Mounted Yes/No YES
Maximum Collector Power Dissipation (Pc) 1 W
Maximum Collector-Base Voltage |Vcb| 200 V
Maximum Collector-Emitter Voltage |Vce| 200 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 0.5 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 4 pF
Transition Frequency (ft): 50 MHz
Forward Current Transfer Ratio (hFE), MIN 80
SMD Transistor Code P1E
SKU 1269915
