RA1B

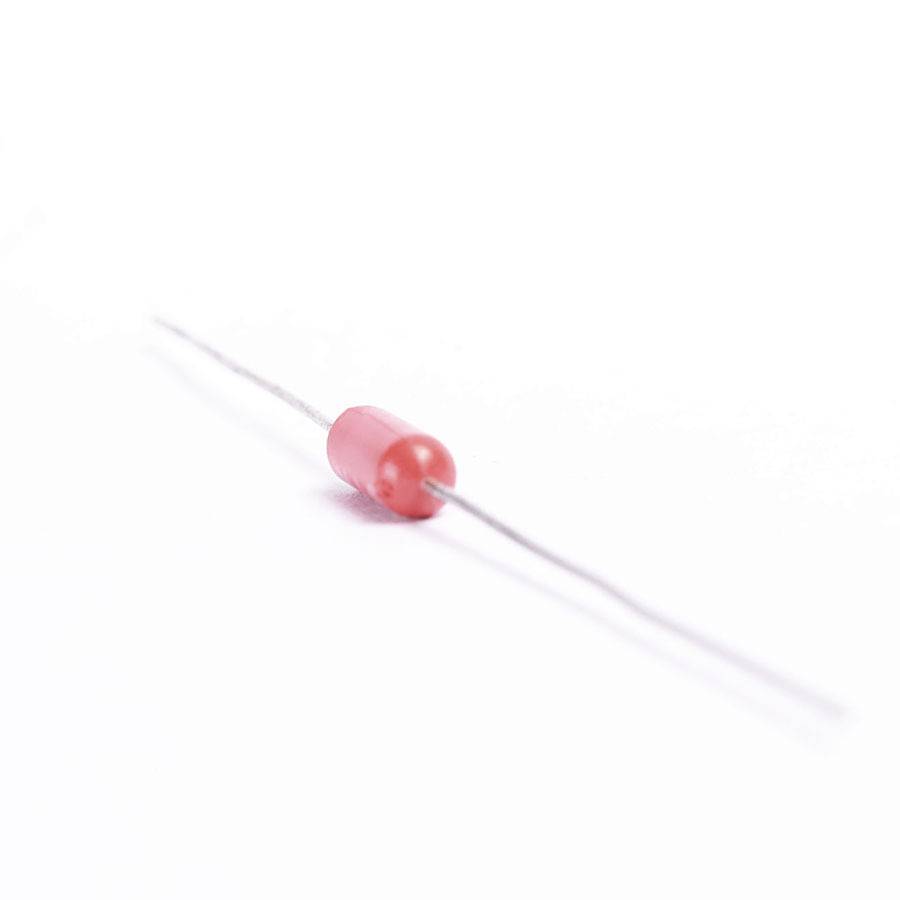

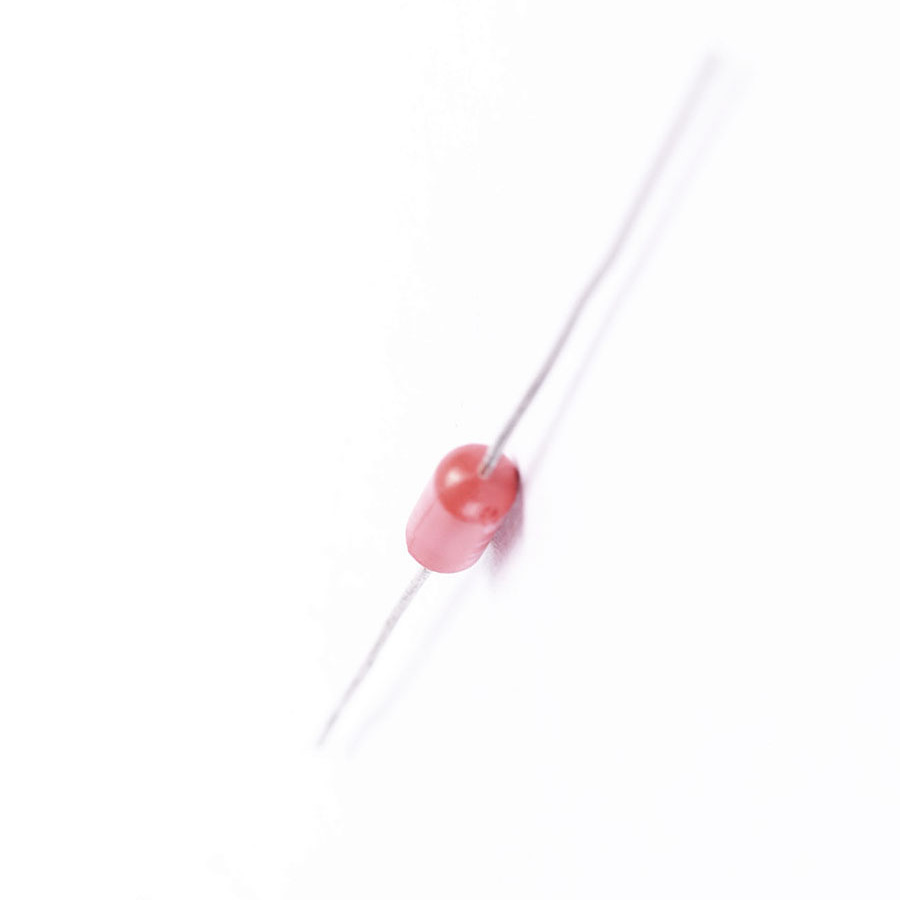

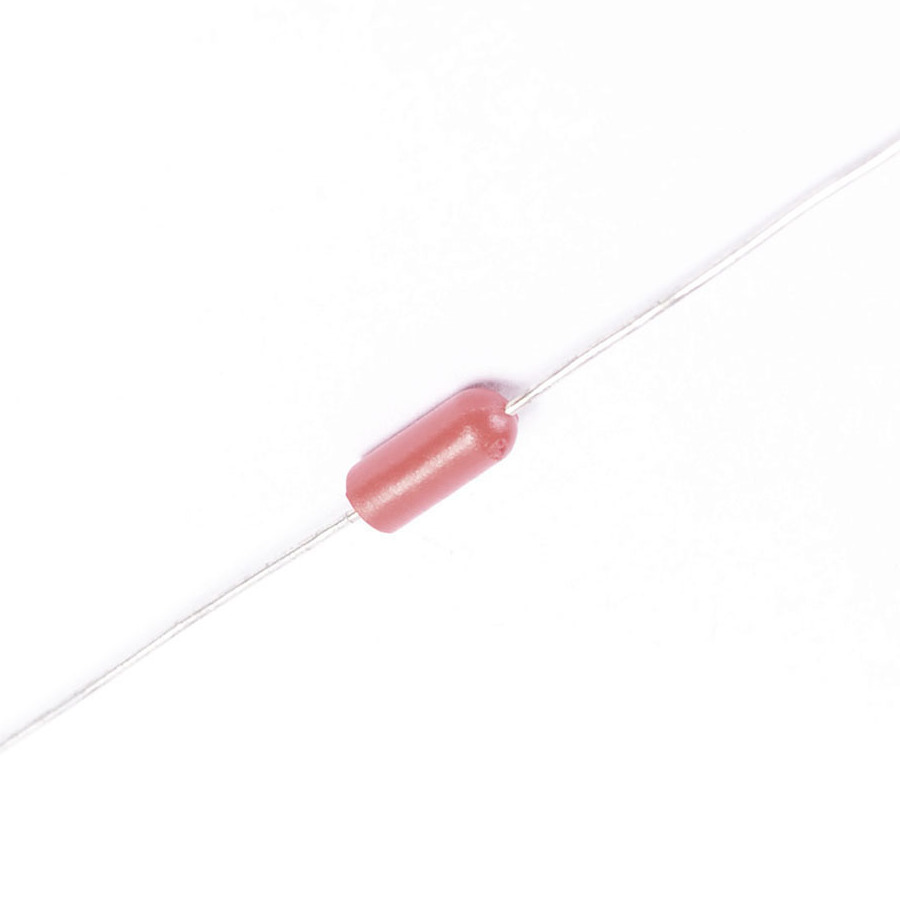

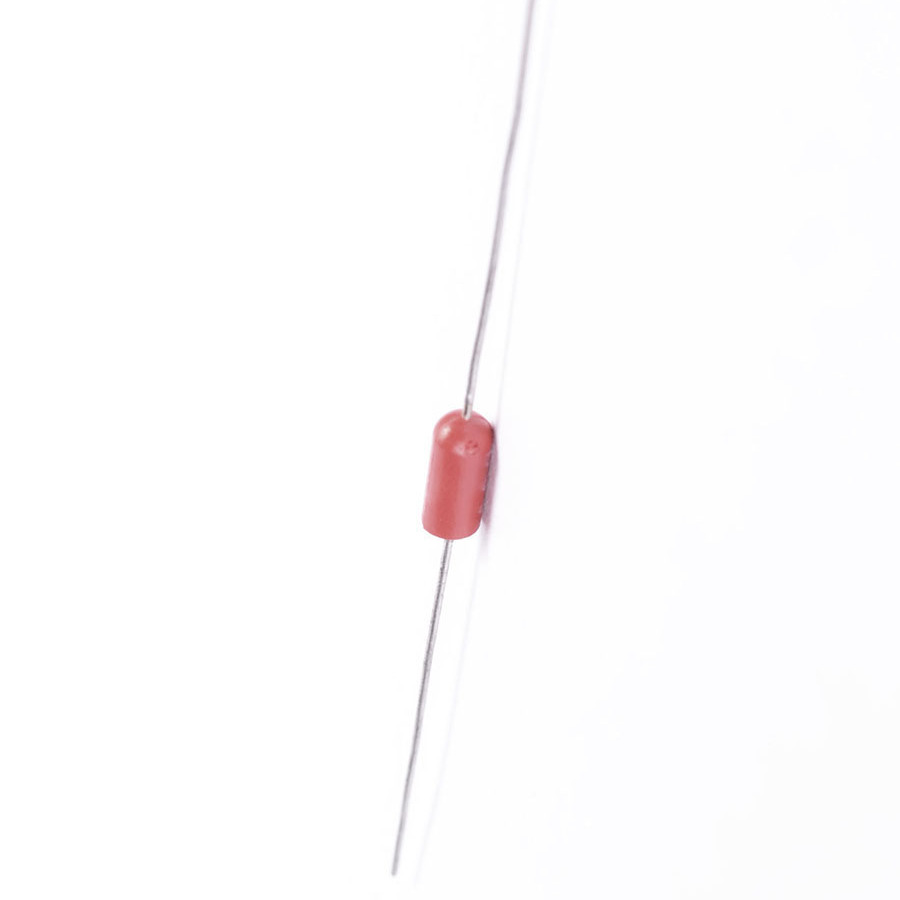

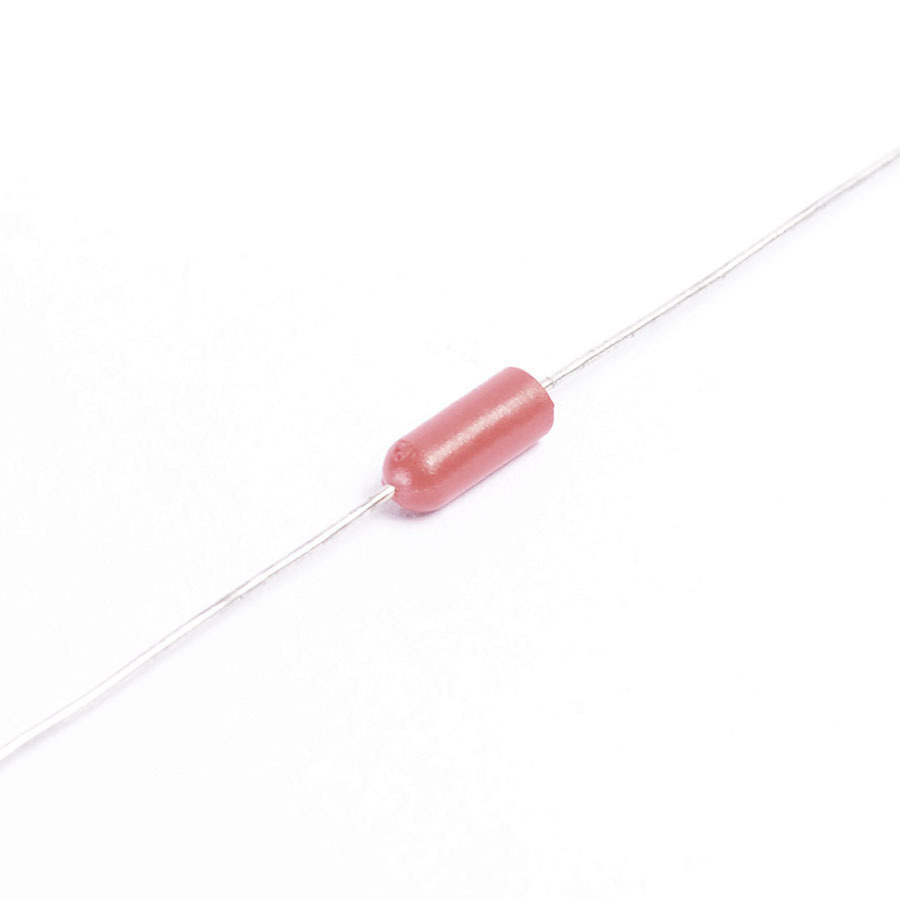

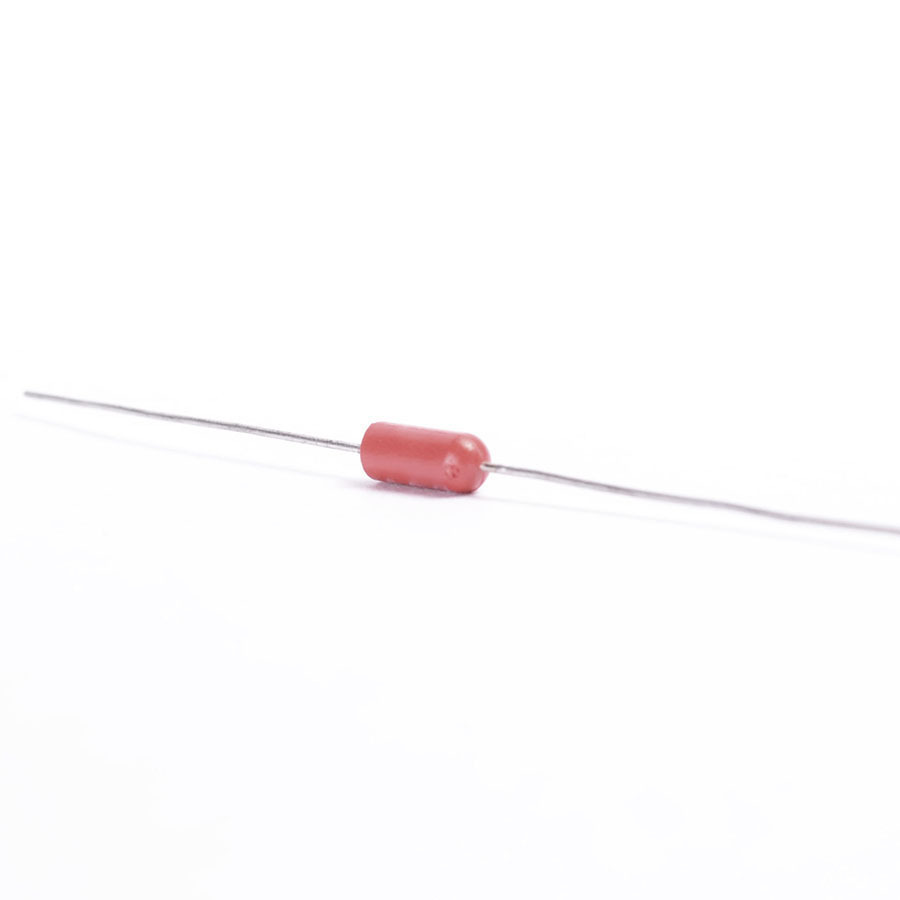

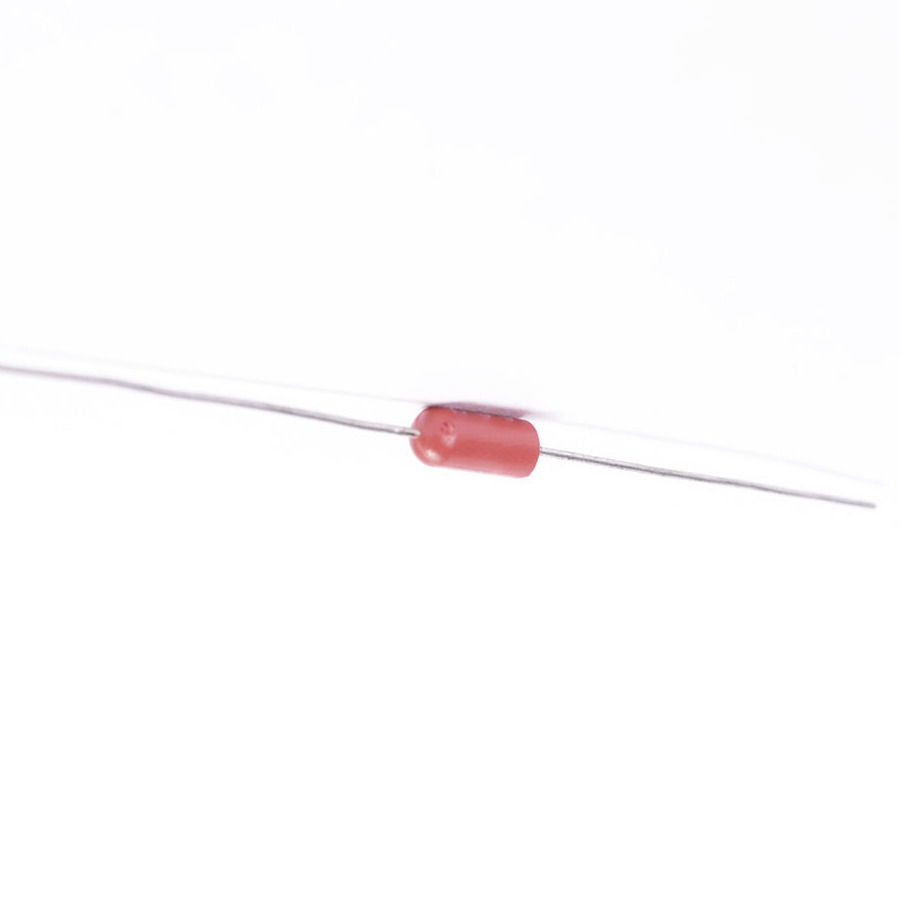

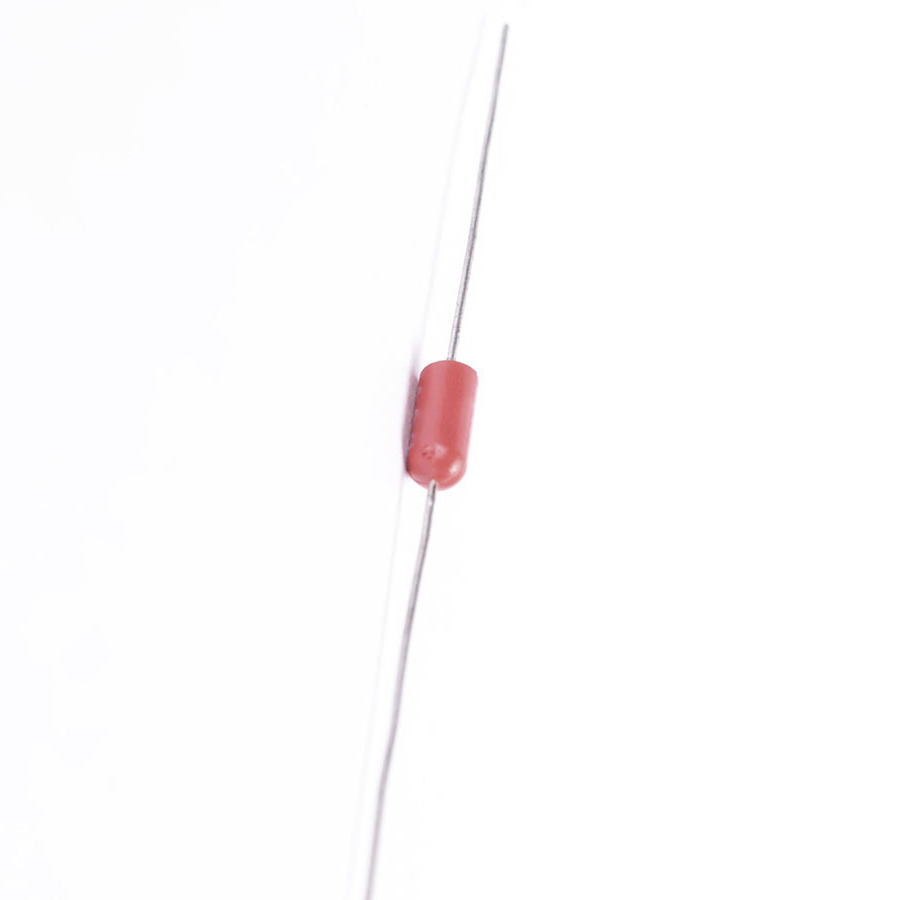

View detailed images (12)

RA1B

SKU: RA1B

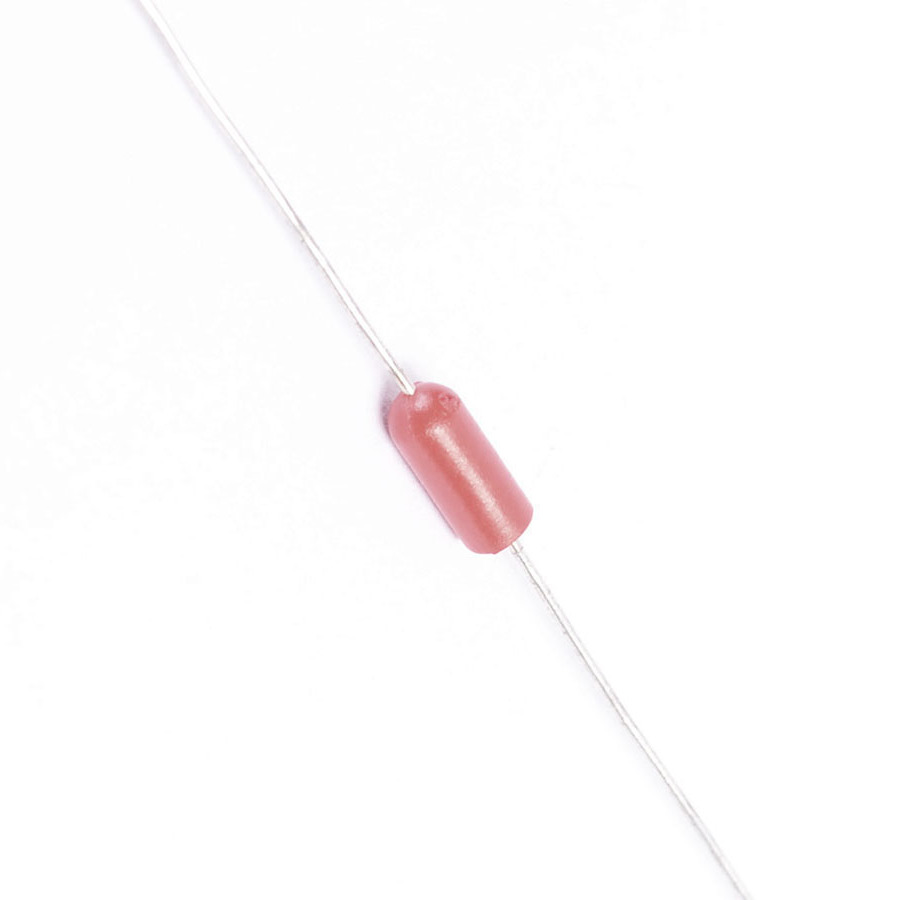

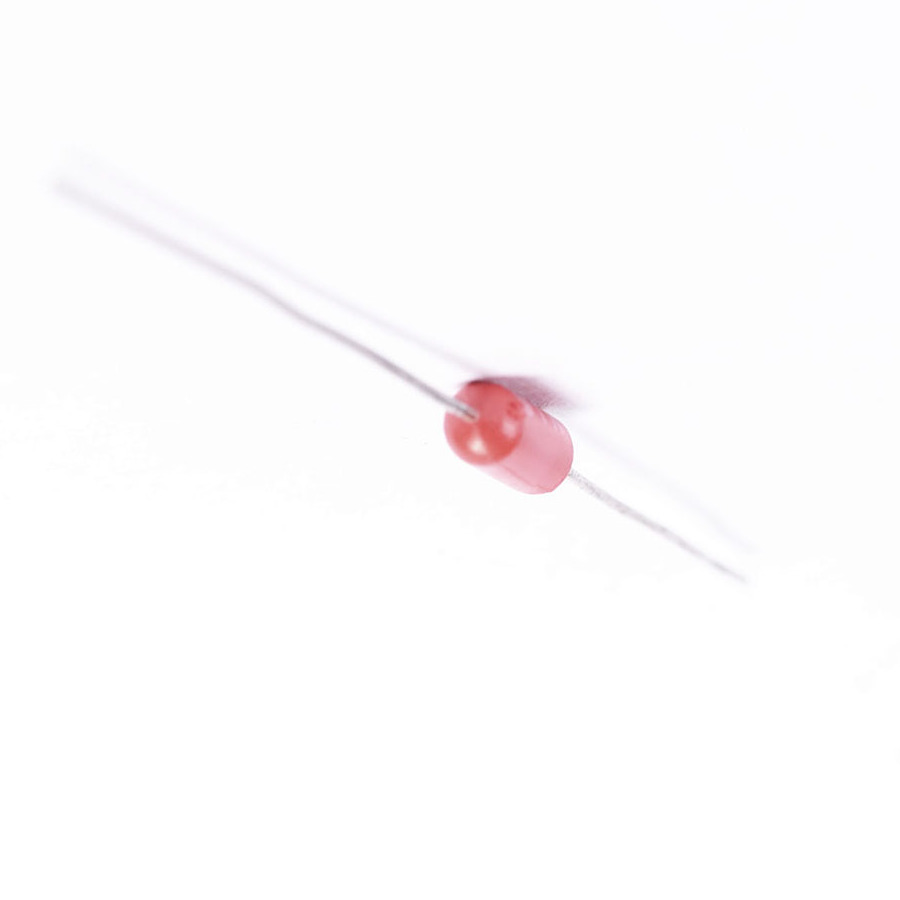

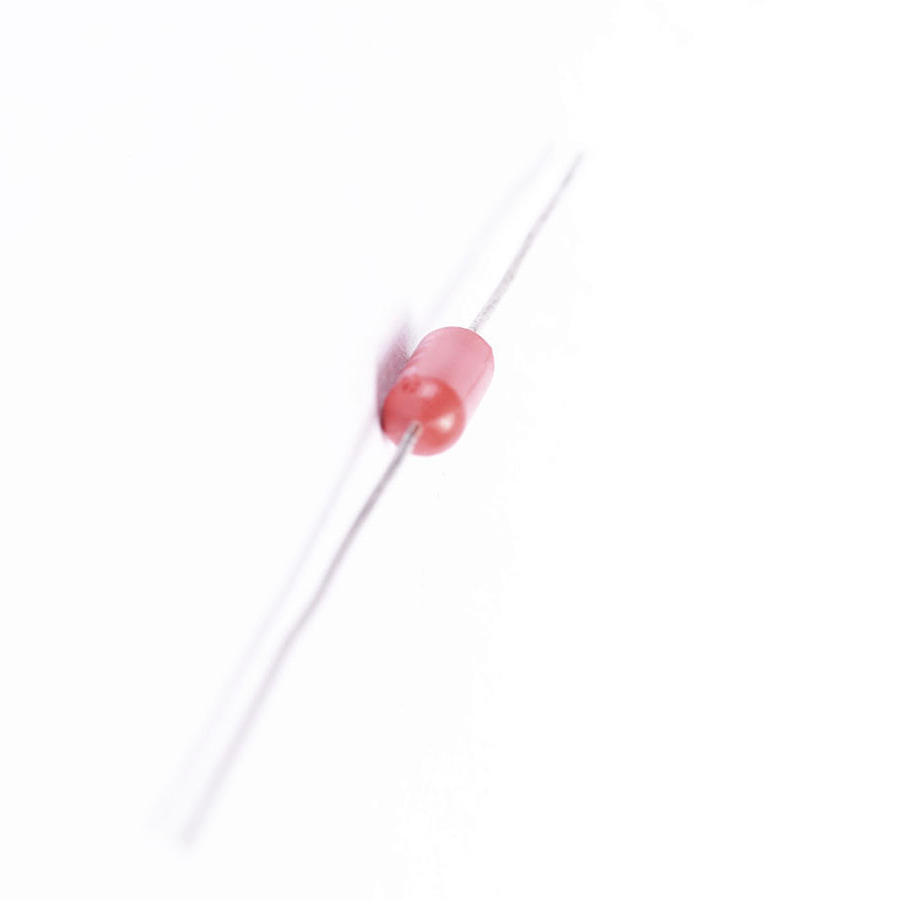

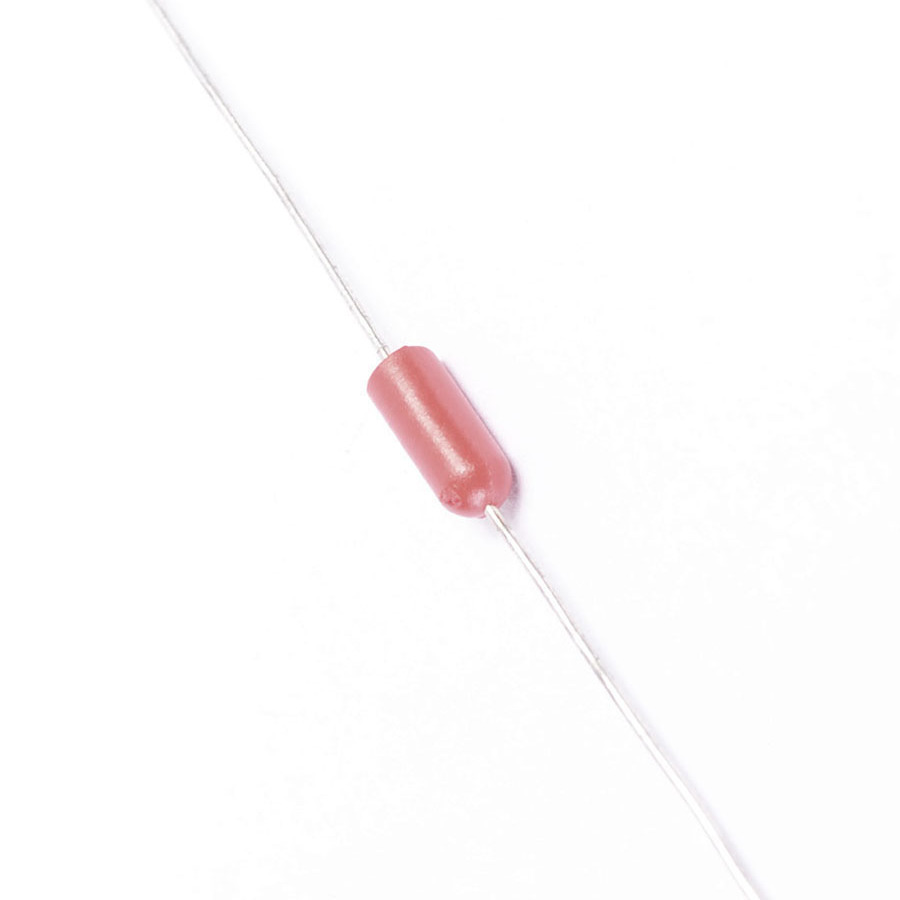

RA1B SemiConductor CASE: DO14 MAKE: Sanken
Product specifications
Type SemiConductor
Case DO14
Manufacturer Sanken
Min hFE 10
@Temp. (test) (°C) 50
Mat. Silicon Logic
VRRM 800
PD Max. (W) 300m
1-Cycle Surge Current (A) 40
@Temp. (test) for Vf) 25
Vf Max. 1.2
Ir @25°C 5.0u
I(out) (If AVG) Max. 800m
@Volts (test) (V) 800
@Ic (test) 500u
@If (test) 1.0
Oper. Temp (°C) Max. 130
Vceo Max. 45
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
SKU 570505
