RN1101MFV
View detailed images (5)

RN1101MFV

SKU: RN1101MFV

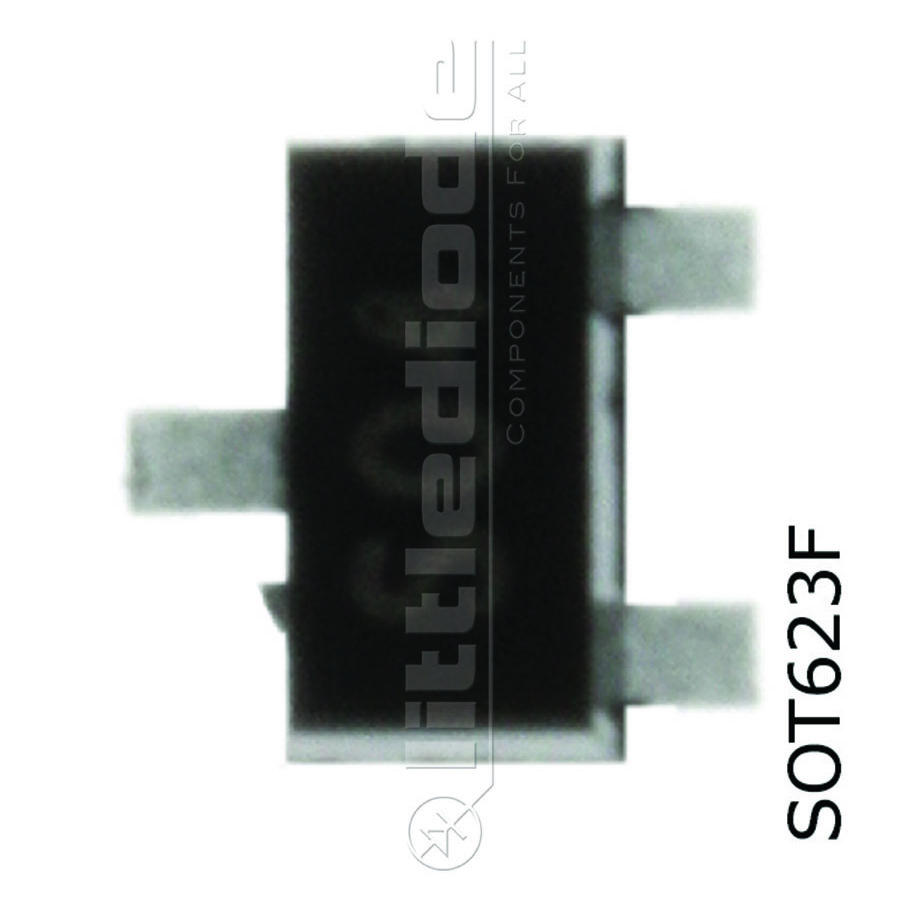

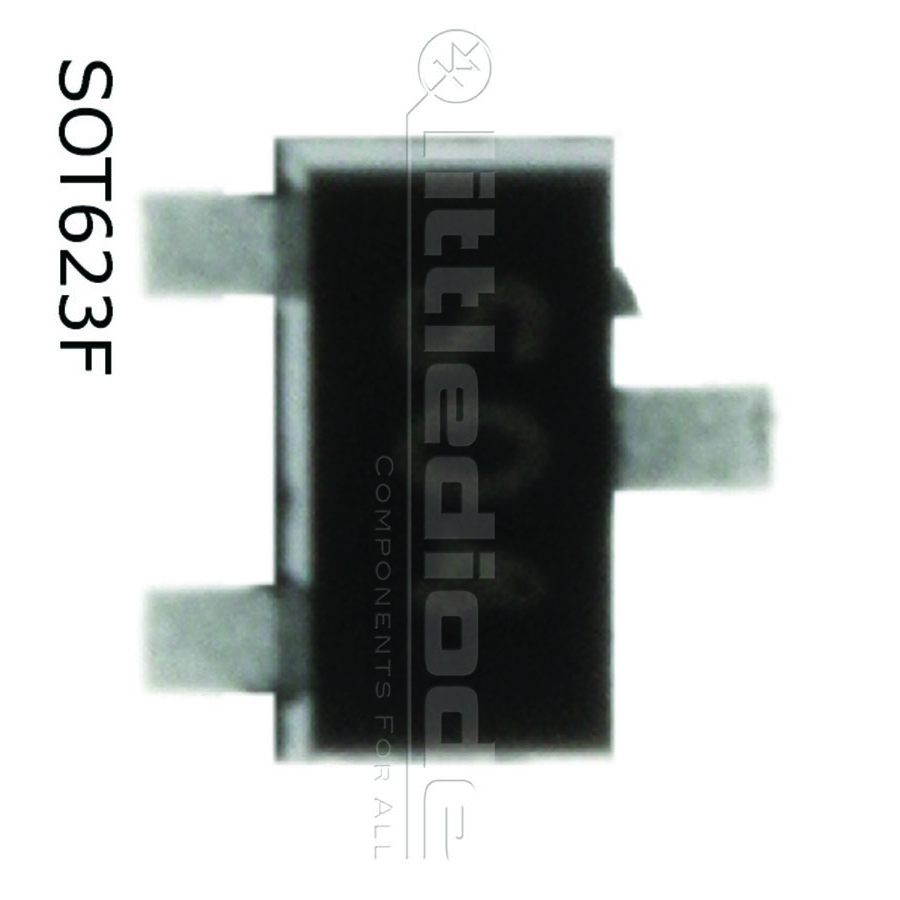

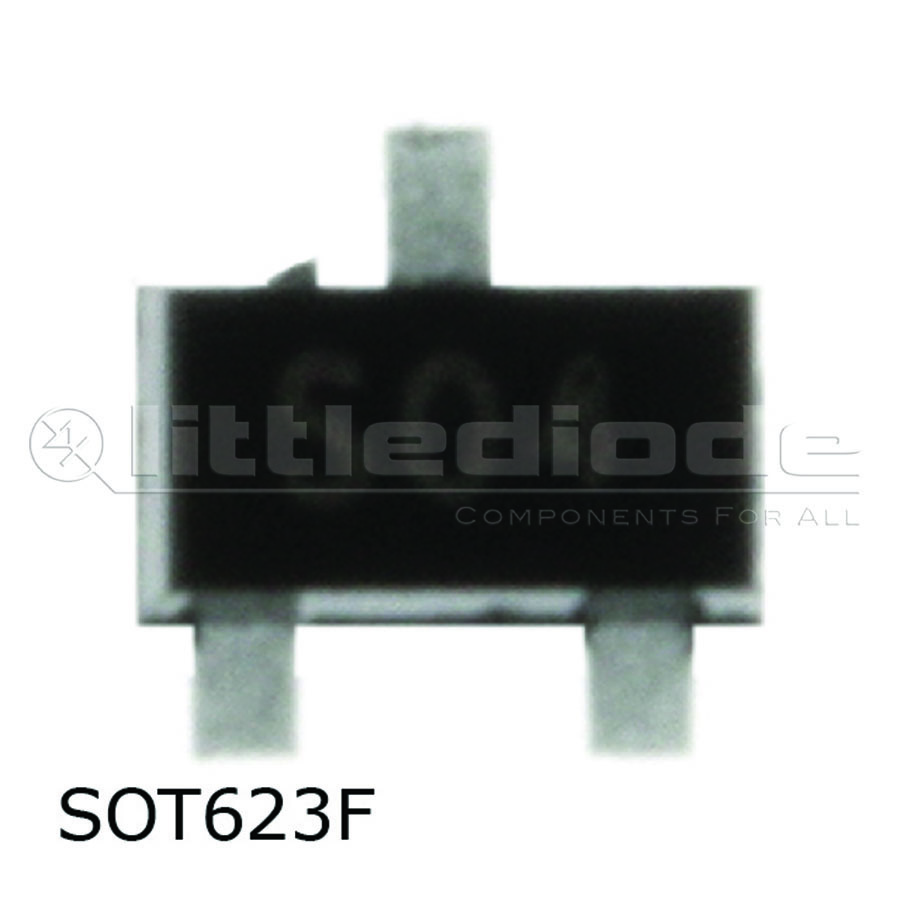

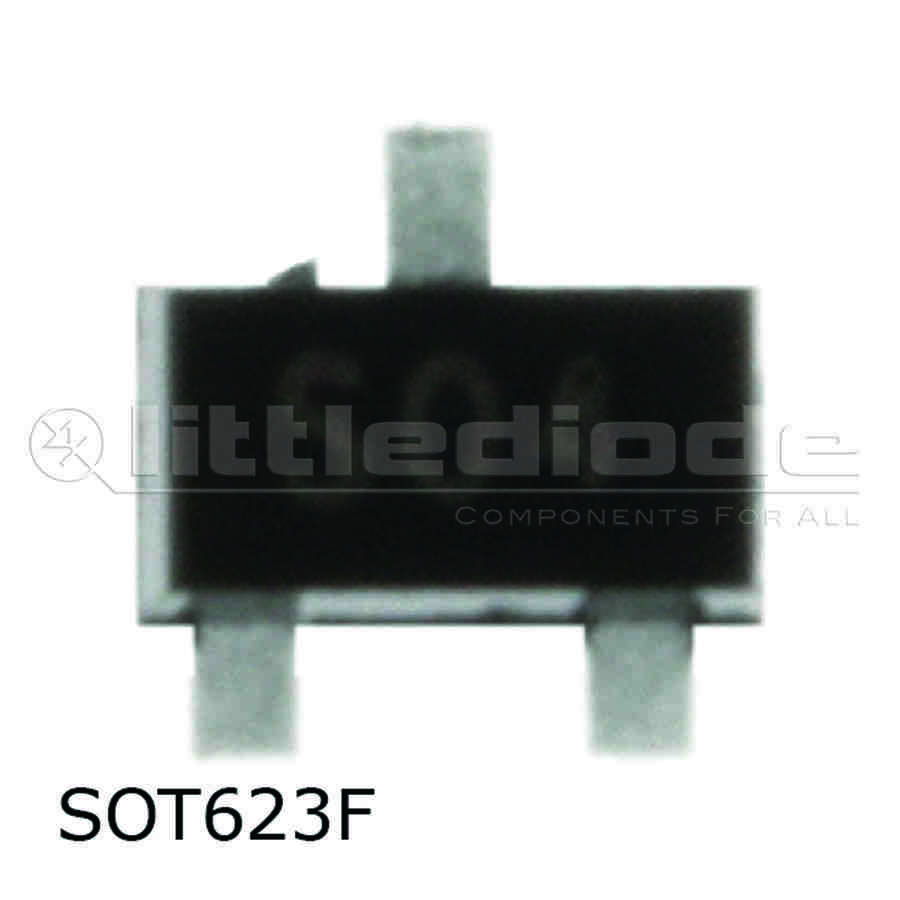

RN1101MFV Transistor Silicon Pre-Biased-NPN CASE: SOT623F MAKE: Toshiba
Product specifications
Type Transistor Silicon Pre-Biased-NPN
Case SOT623F
Manufacturer Toshiba
Polarity Pre-Biased-NPN
Maximum Collector Power Dissipation (Pc) 0.15 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 10 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 0.7 pF
Forward Current Transfer Ratio (hFE), MIN 30
SMD Transistor Code XA
Built in Bias Resistor R1 4.7 kOhm
Built in Bias Resistor R2 4.7 kOhm
Typical Resistor Ratio R1/R2 1
SKU 586441
