RN1104MFV
View detailed images (5)

RN1104MFV

SKU: RN1104MFV

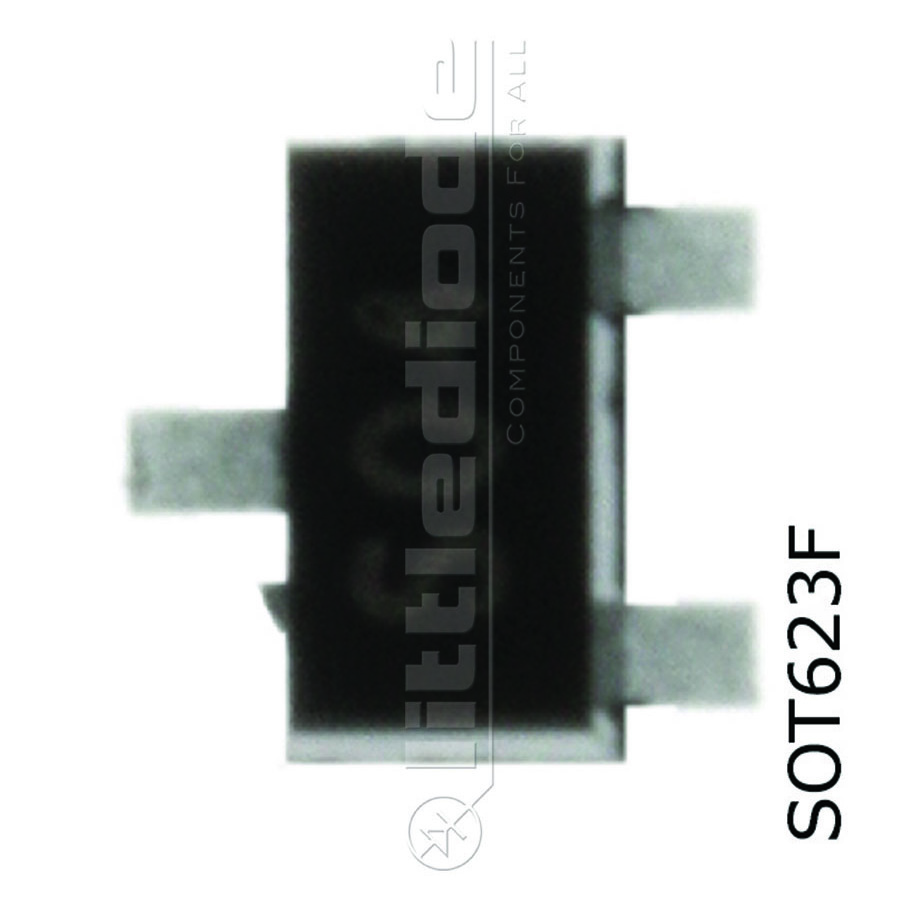

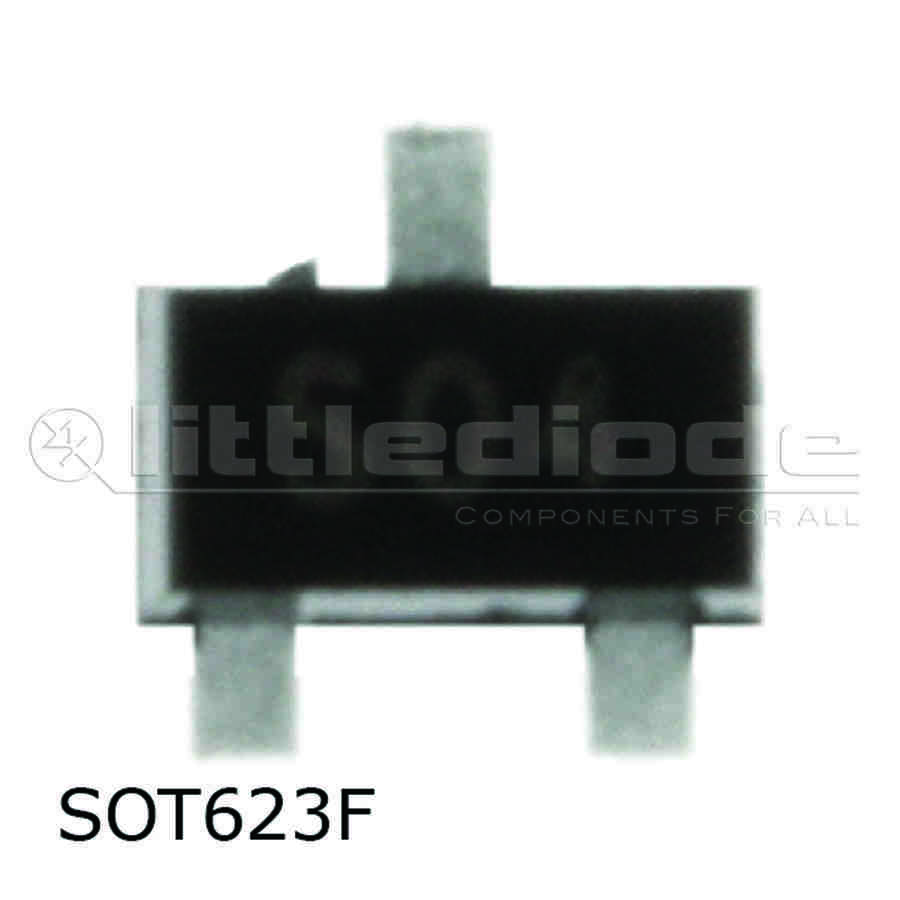

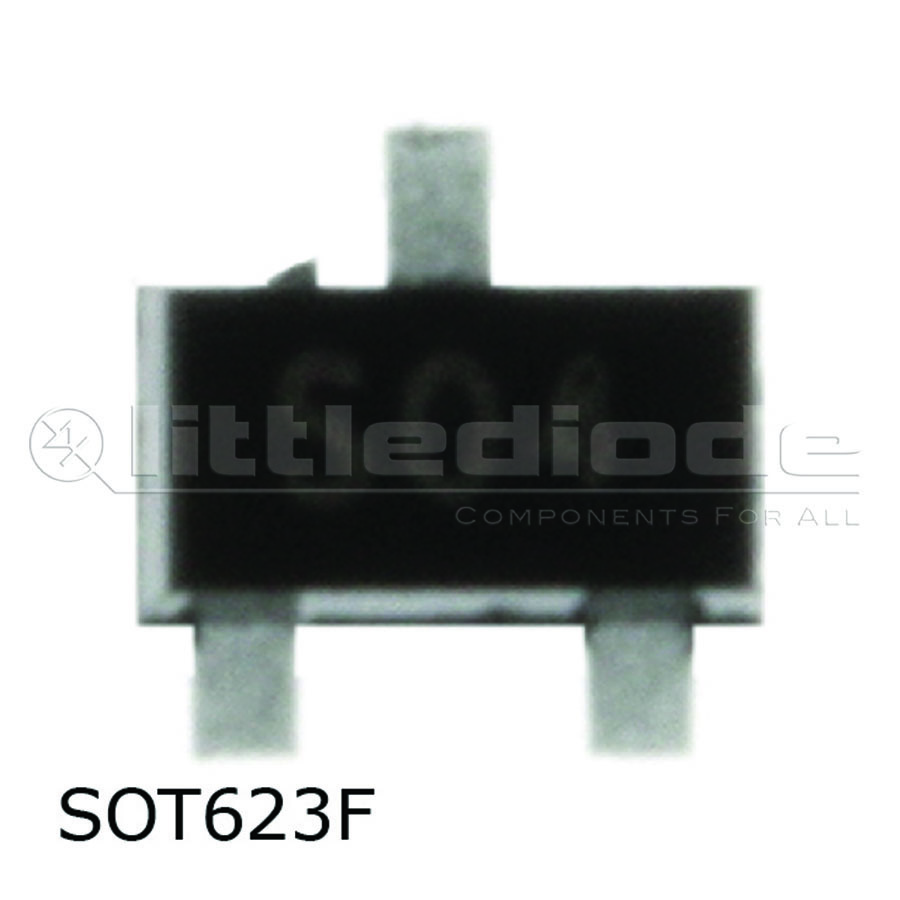

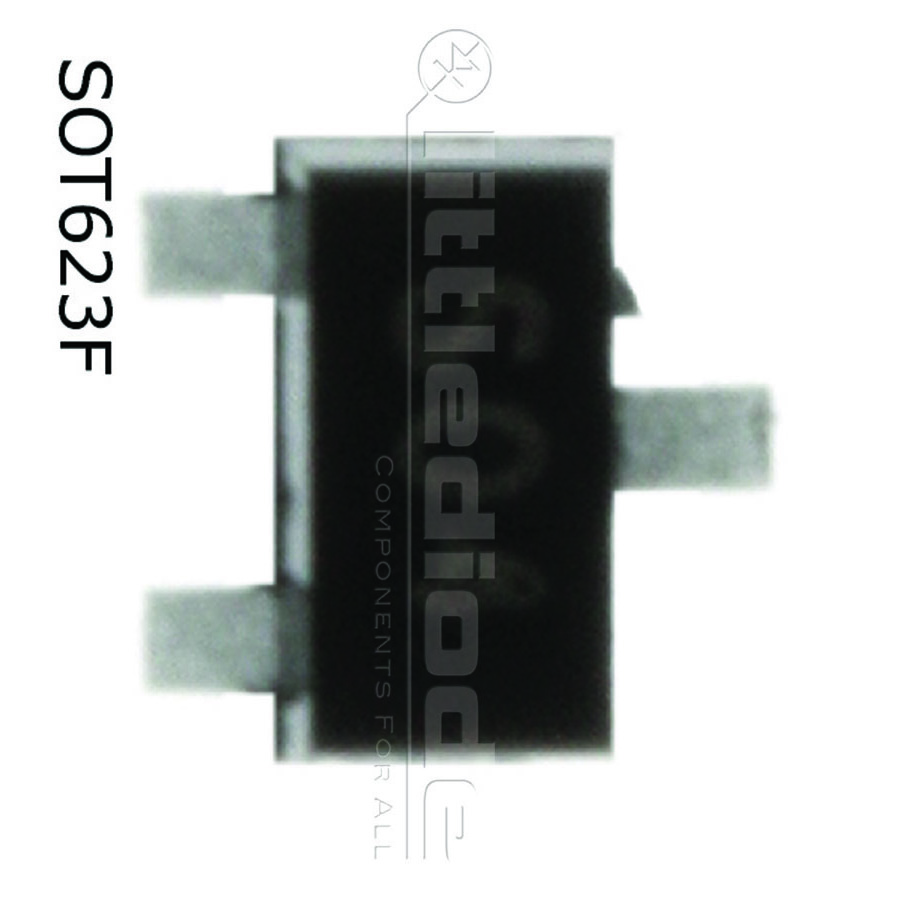

RN1104MFV Transistor Silicon Pre-Biased-NPN CASE: SOT623F MAKE: Toshiba
Product specifications
Type Transistor Silicon Pre-Biased-NPN
Case SOT623F
Manufacturer Toshiba
Polarity Pre-Biased-NPN
Maximum Collector Power Dissipation (Pc) 0.15 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 10 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 0.7 pF
Forward Current Transfer Ratio (hFE), MIN 80
SMD Transistor Code XD
Built in Bias Resistor R1 47 kOhm
Built in Bias Resistor R2 47 kOhm
Typical Resistor Ratio R1/R2 1
SKU 586444
