RN1605
View detailed images (5)

RN1605

SKU: RN1605

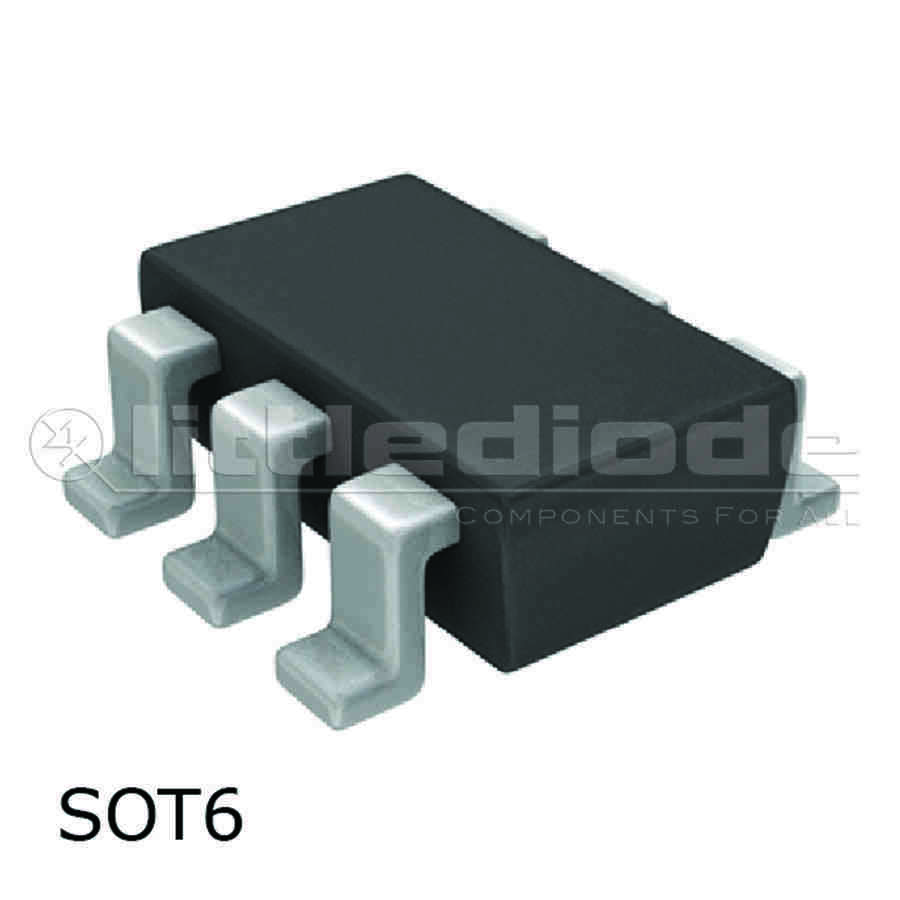

RN1605 Transistor Silicon NPN CASE: SOT6 MAKE: Toshiba
Datasheet
RN1605 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT6
Manufacturer Toshiba
Polarity Pre-Biased-NPN
Maximum Collector Power Dissipation (Pc) 0.3 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 3 pF
Transition Frequency (ft): 250 MHz
Forward Current Transfer Ratio (hFE), MIN 80
SMD Transistor Code XE
Built in Bias Resistor R1 2.2 kOhm
Built in Bias Resistor R2 47 kOhm
Typical Resistor Ratio R1/R2 0.047
SKU 361571
