RN1704
View detailed images (5)

RN1704

SKU: RN1704

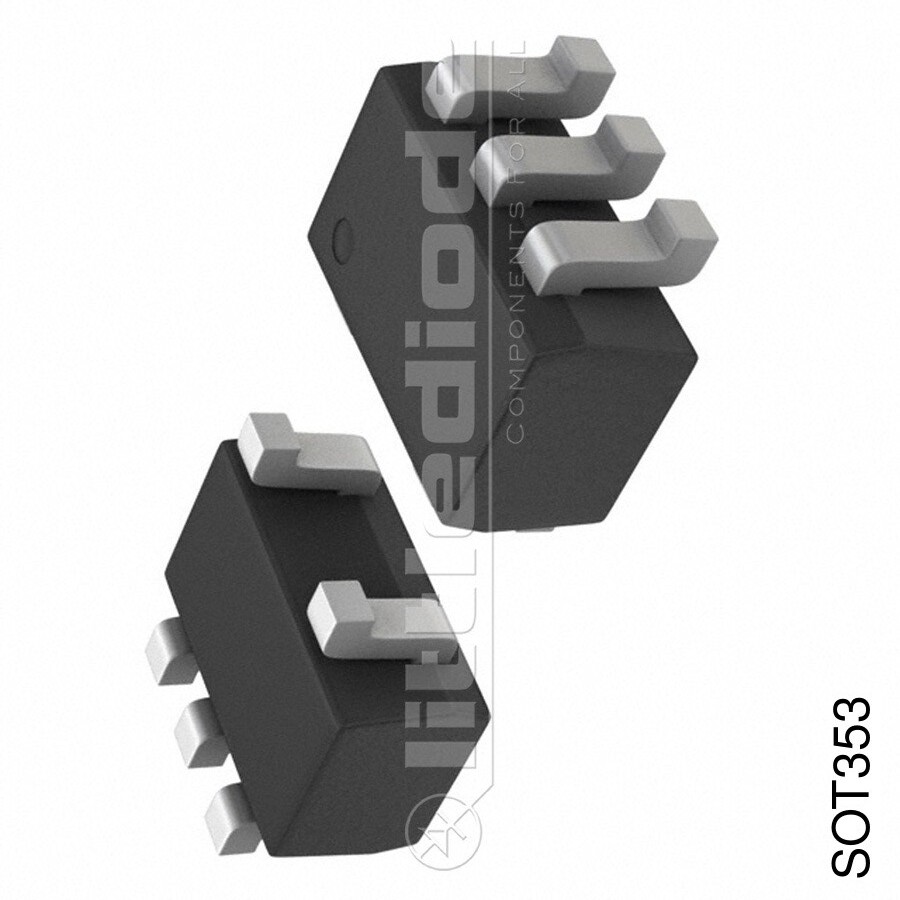

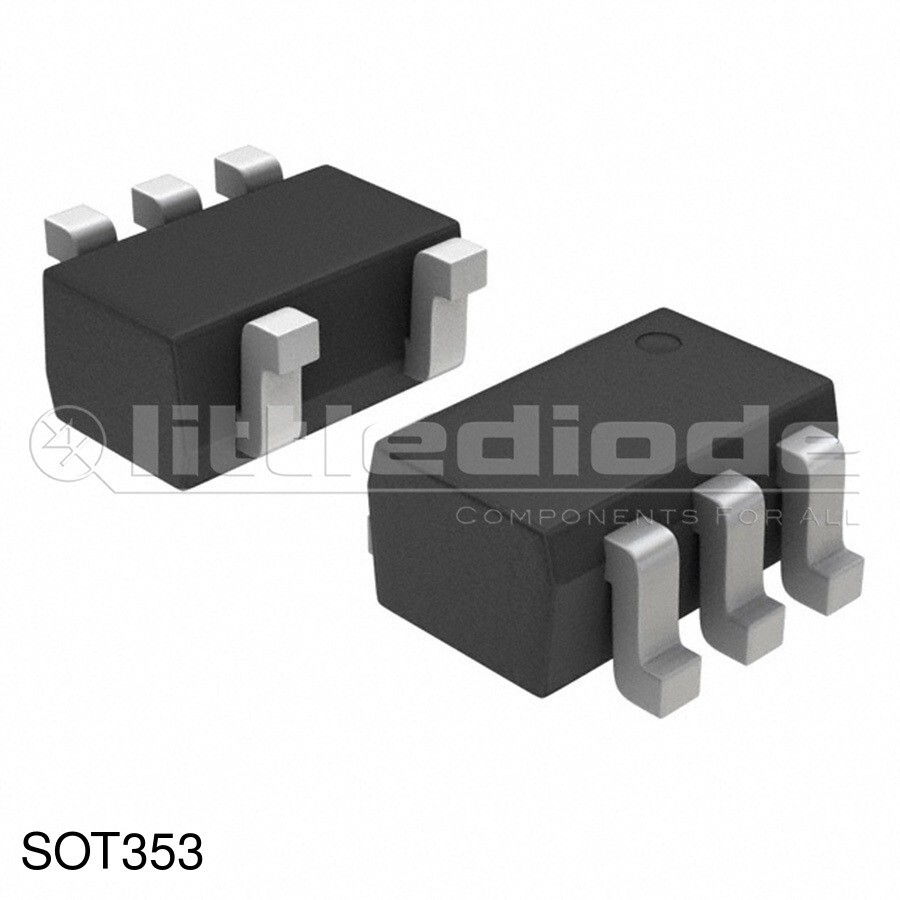

RN1704 Transistor Silicon NPN CASE: SOT353 MAKE: Toshiba
Datasheet
RN1704 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT353
Manufacturer Toshiba
Polarity Pre-Biased-NPN
Maximum Collector Power Dissipation (Pc) 0.2 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 10 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 3 pF
Transition Frequency (ft): 250 MHz
Forward Current Transfer Ratio (hFE), MIN 80
SMD Transistor Code XD
Built in Bias Resistor R1 47 kOhm
Built in Bias Resistor R2 47 kOhm
Typical Resistor Ratio R1/R2 1
SKU 361584
