RN1705
View detailed images (5)

RN1705

SKU: RN1705

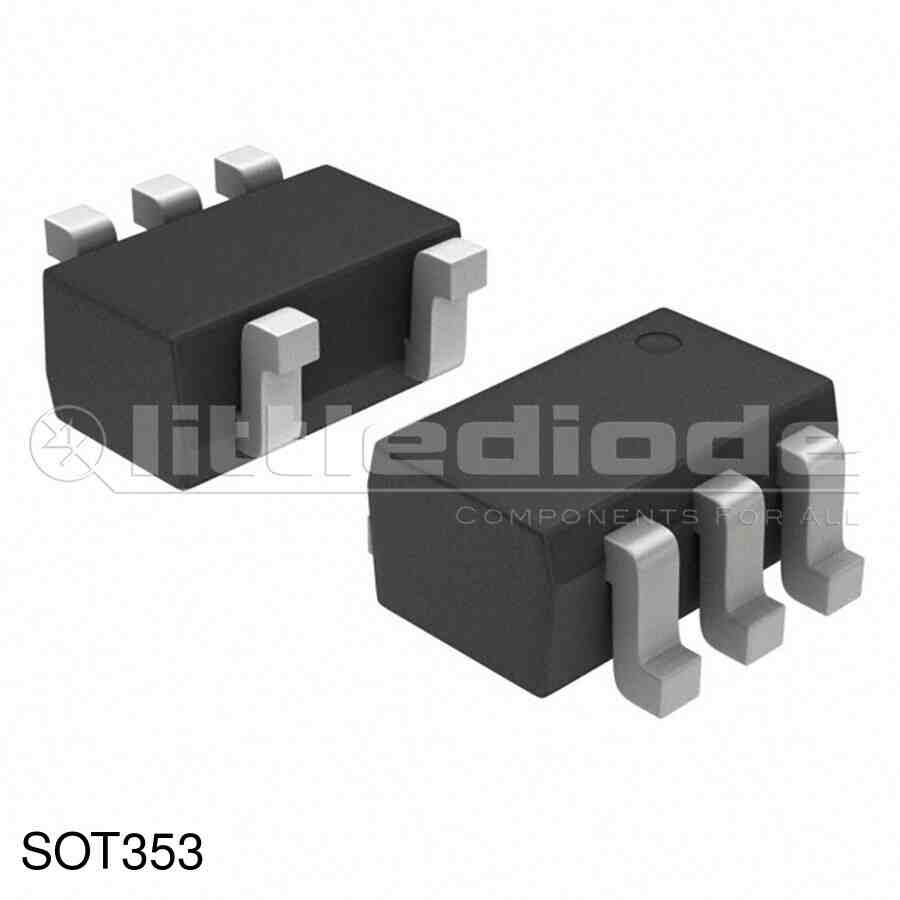

RN1705 Transistor Silicon NPN CASE: SOT353 MAKE: Toshiba
Datasheet
RN1705 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT353
Manufacturer Toshiba
Polarity Pre-Biased-NPN
Maximum Collector Power Dissipation (Pc) 0.2 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 3 pF
Transition Frequency (ft): 250 MHz
Forward Current Transfer Ratio (hFE), MIN 80
SMD Transistor Code XE
Built in Bias Resistor R1 2.2 kOhm
Built in Bias Resistor R2 47 kOhm
Typical Resistor Ratio R1/R2 0.047
SKU 361586
