RN2101MFV
View detailed images (5)

RN2101MFV

SKU: RN2101MFV

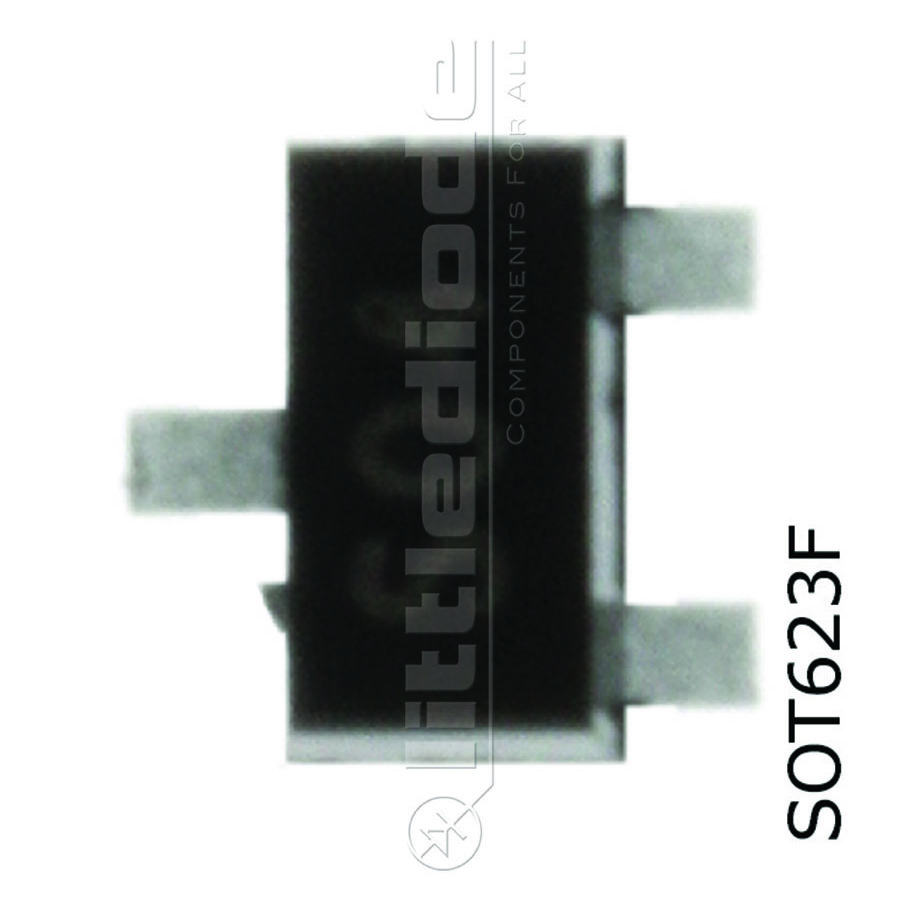

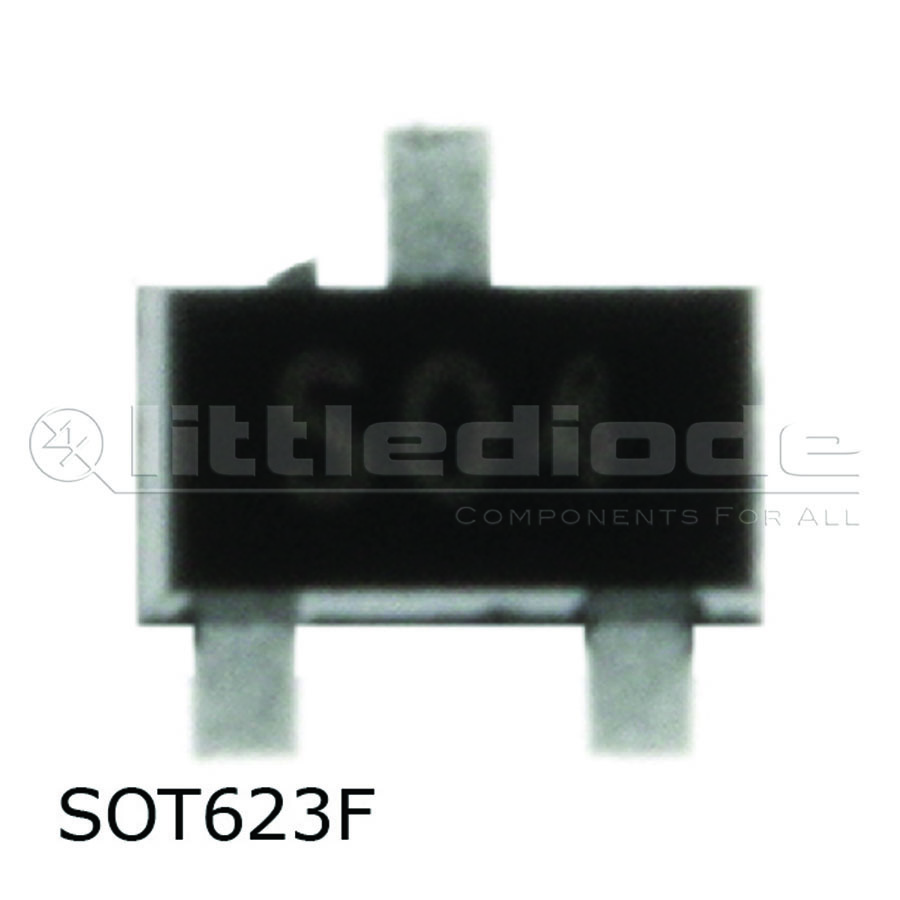

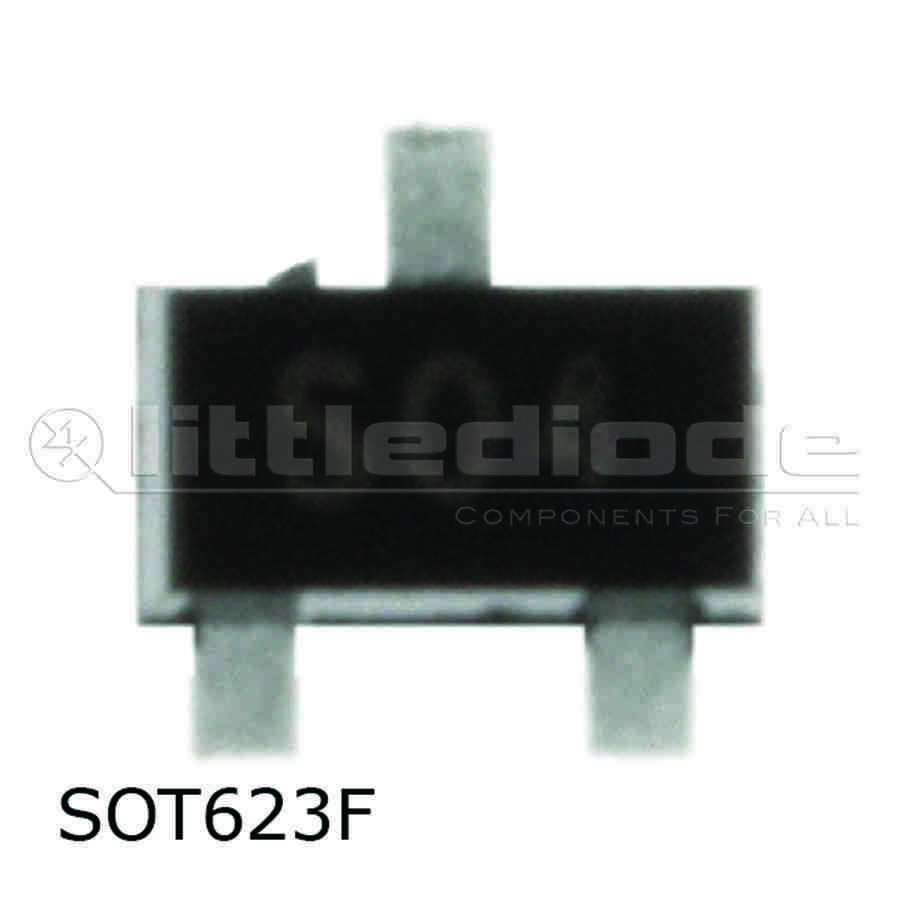

RN2101MFV SemiConductor - CASE: SOT623F MAKE: Toshiba
+ VAT 20% for UK purchases
Product specifications
Type Transistor Silicon PNP
Case SOT623F
Manufacturer Toshiba
Polarity Pre-Biased-PNP
Maximum Collector Power Dissipation (Pc) 0.15 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 10 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 0.9 pF
Transition Frequency (ft): 250 MHz
Forward Current Transfer Ratio (hFE), MIN 30
SMD Transistor Code YA.
Built in Bias Resistor R1 4.7 kOhm
Built in Bias Resistor R2 4.7 kOhm
Typical Resistor Ratio R1/R2 1
SKU 586458
