RN2109

SKU: RN2109

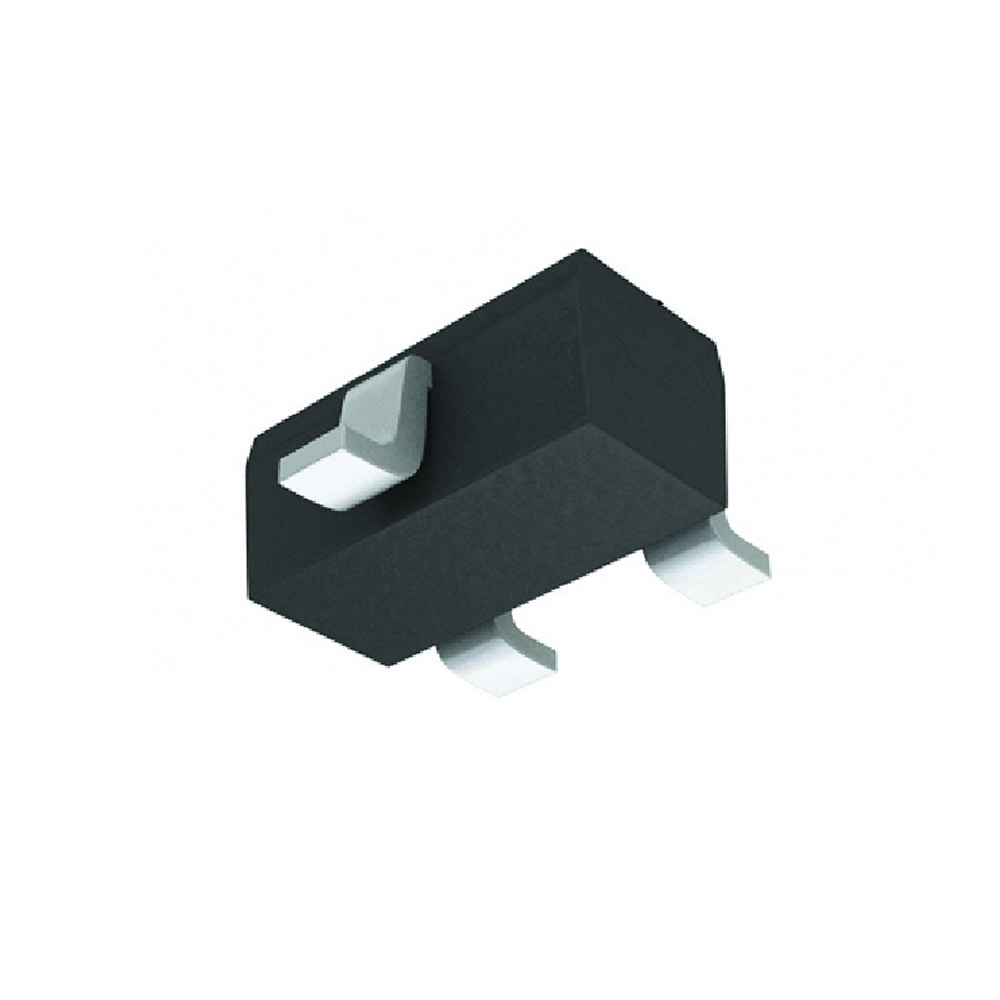

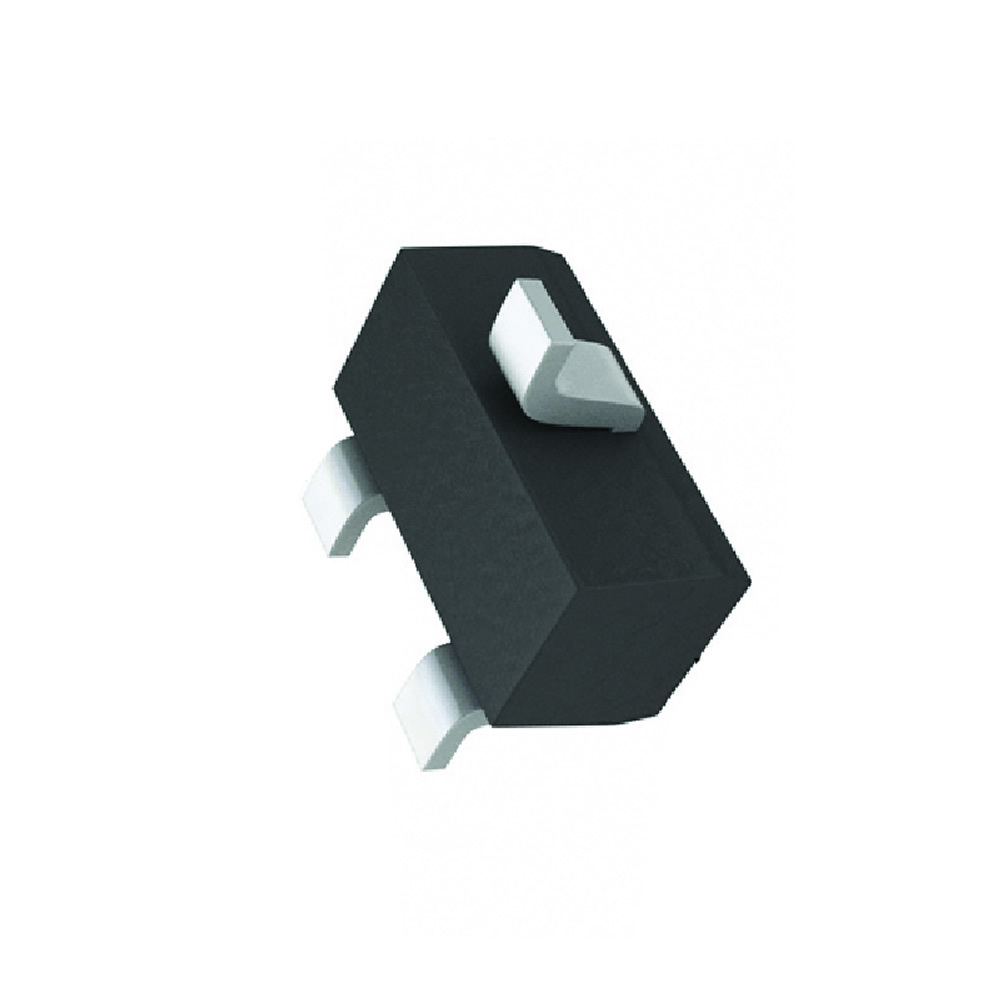

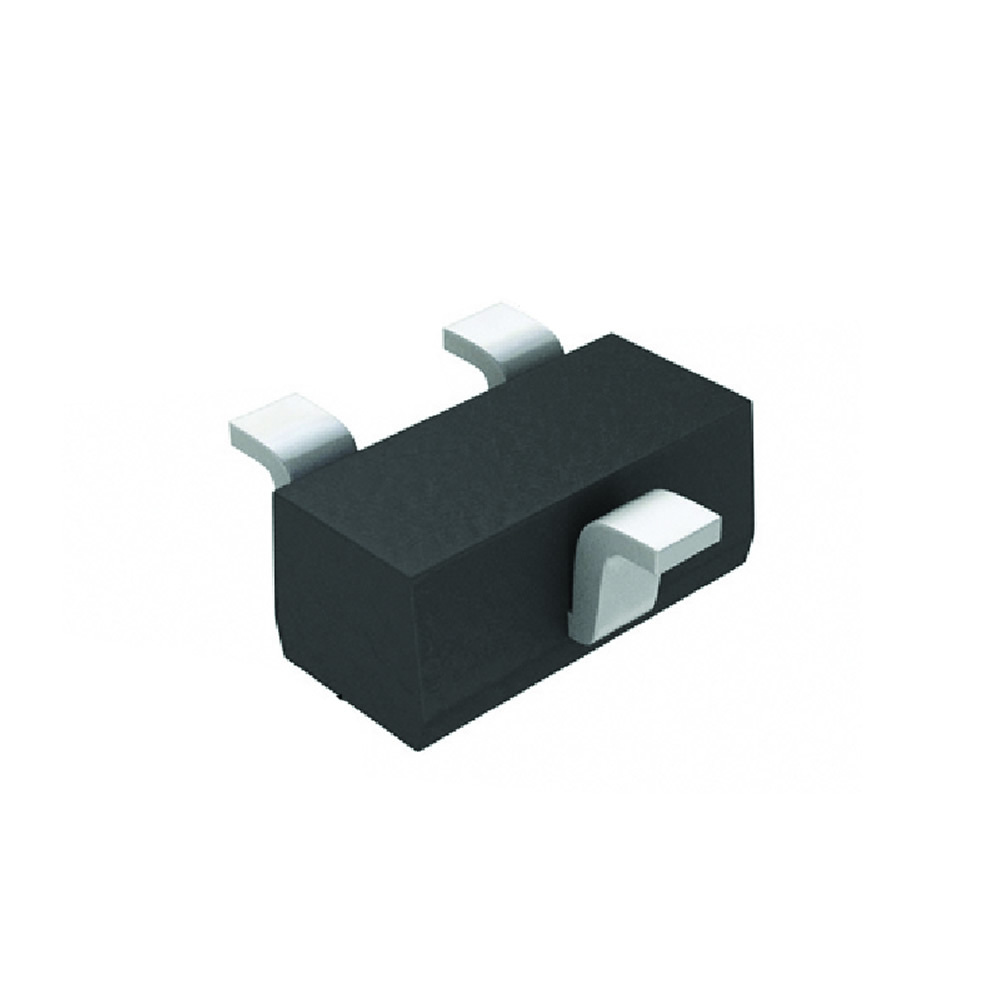

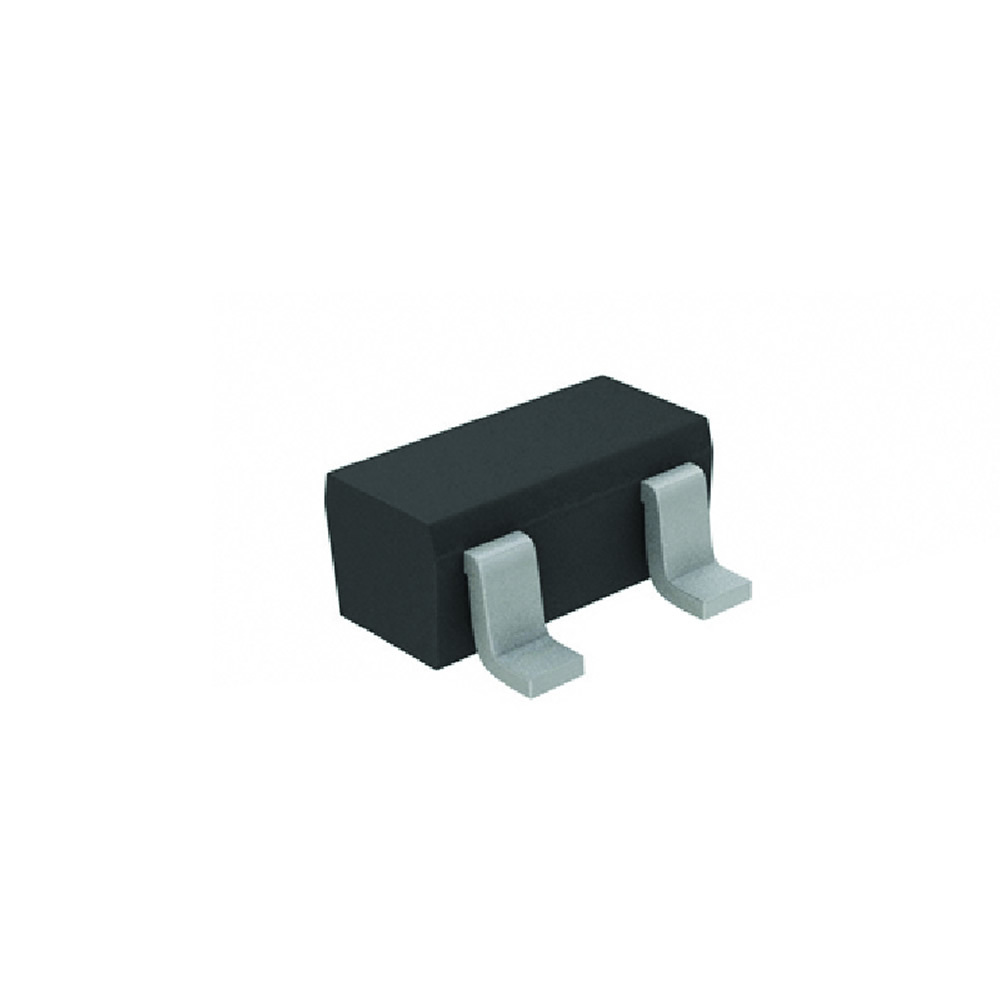

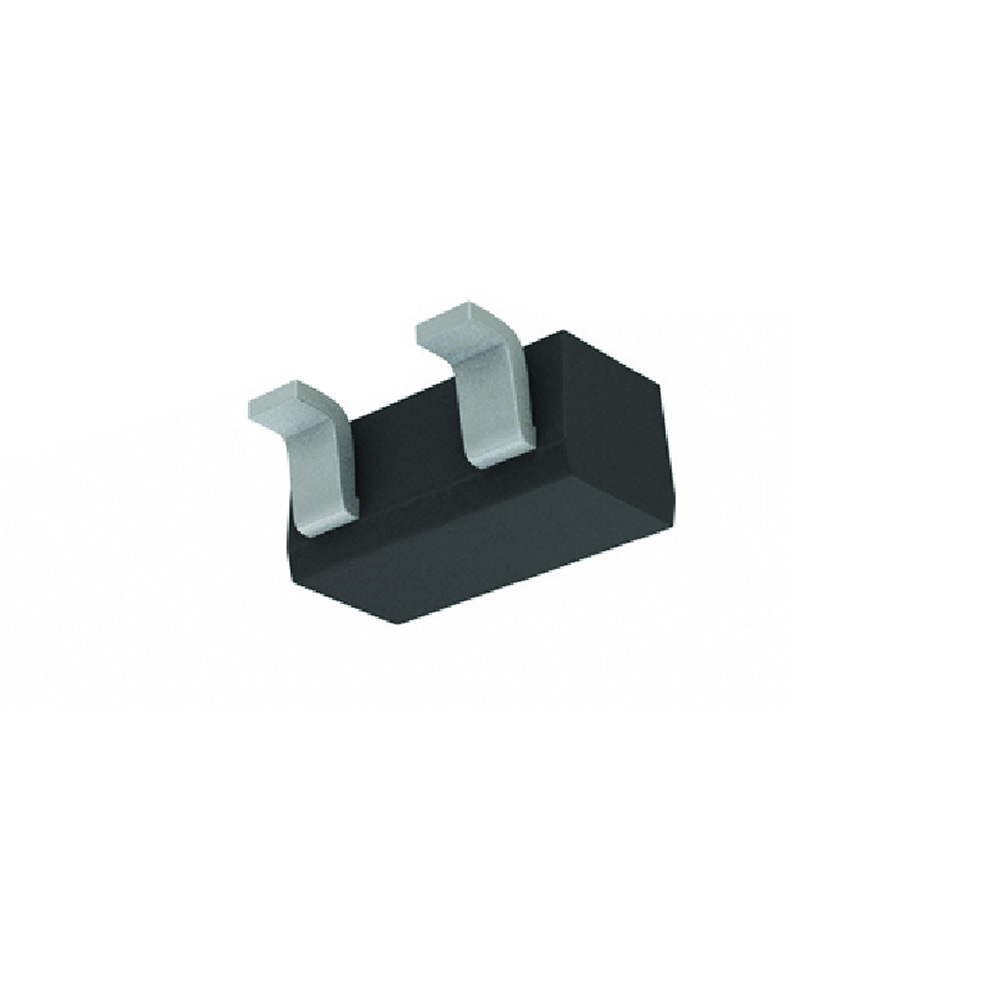

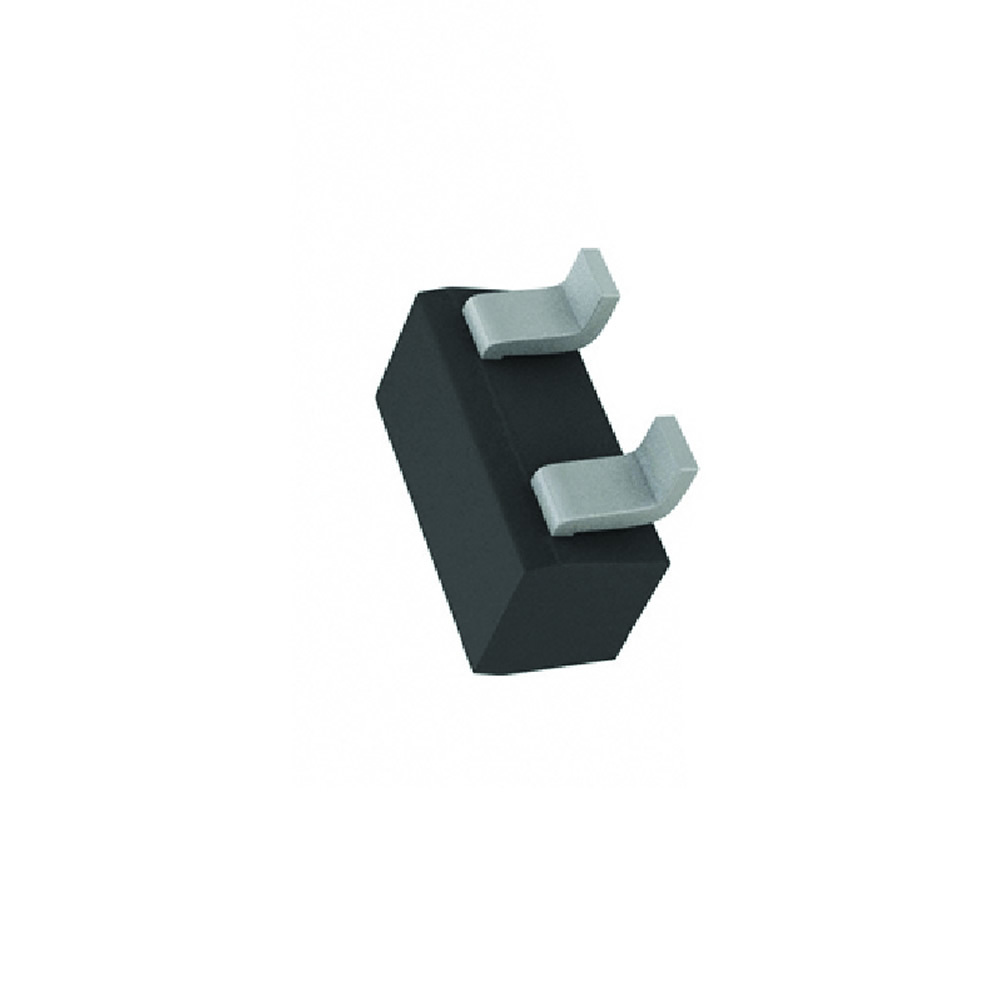

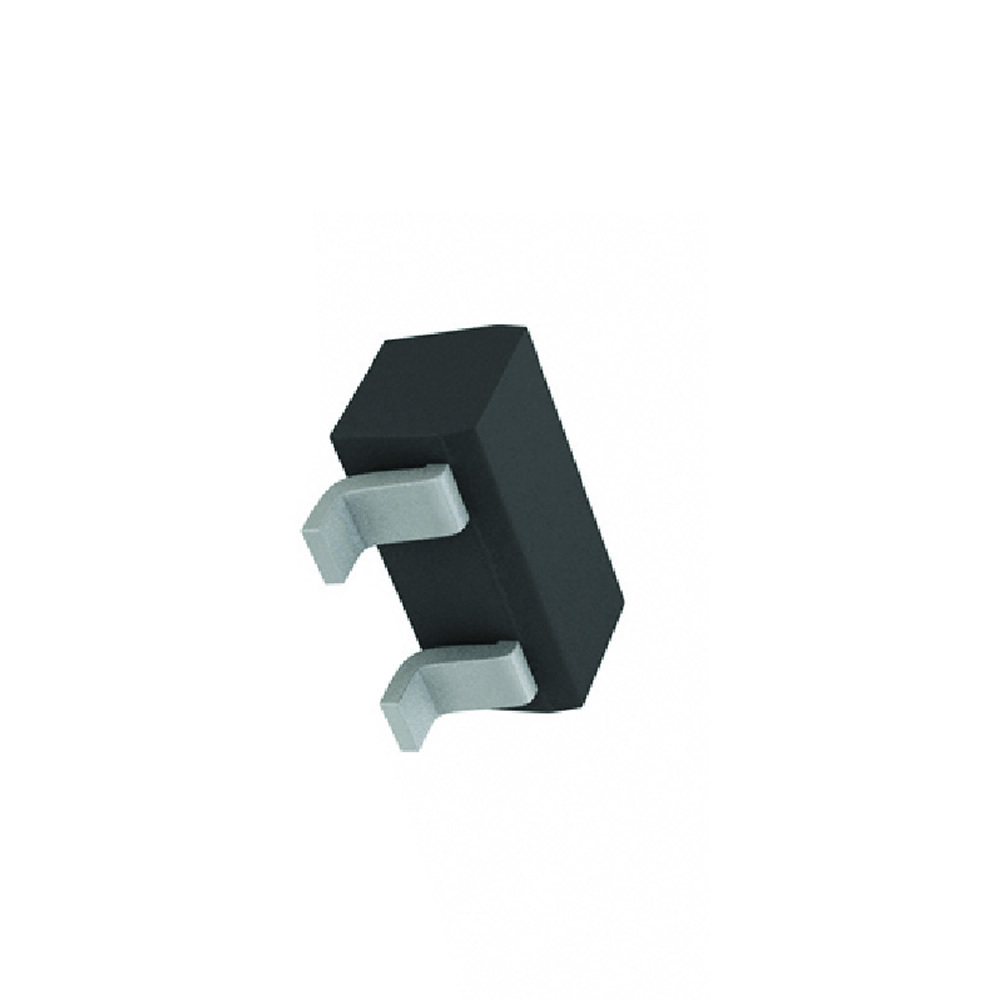

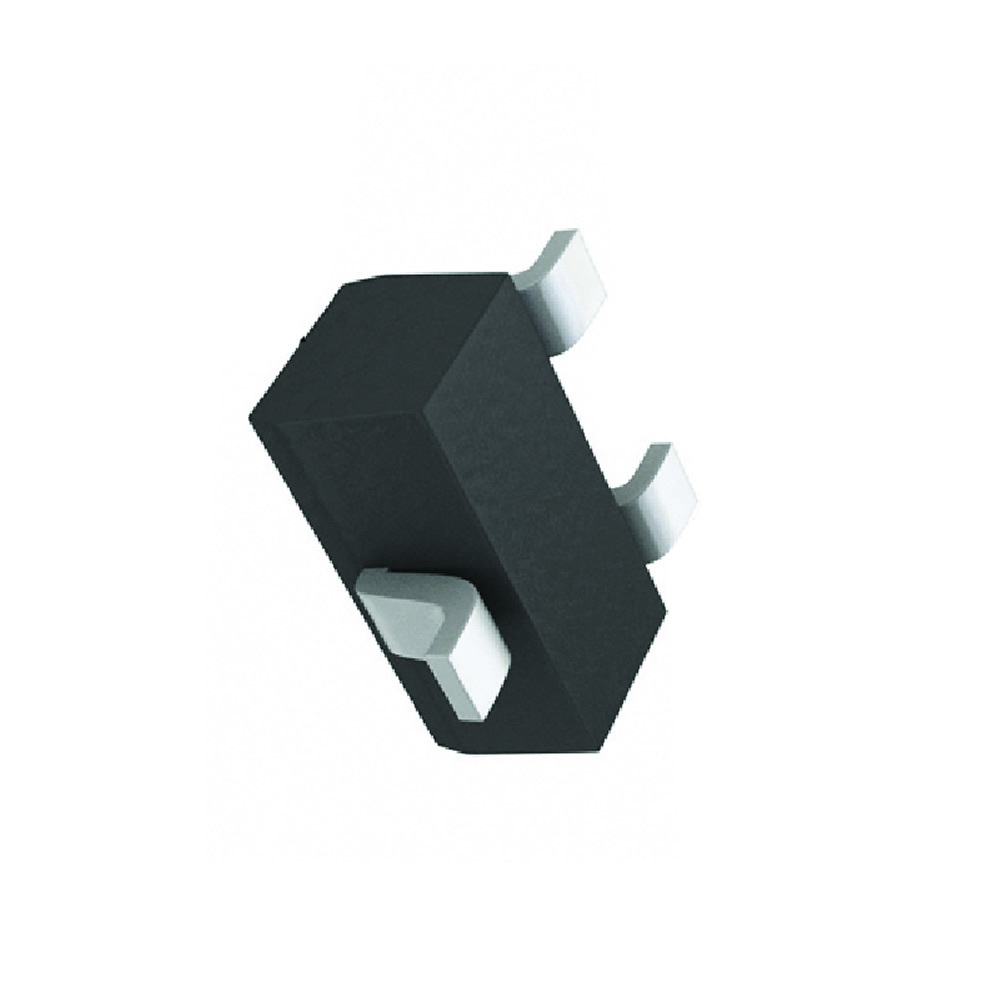

RN2109 Transistor Silicon NPN CASE: SOT416 MAKE: Toshiba
Datasheet
RN2109 Datasheet
Product specifications
Equivalent RN2109F
Type Transistor Silicon NPN
Case SOT416
Manufacturer Toshiba
Polarity Pre-Biased-PNP
Maximum Collector Power Dissipation (Pc) 0.1 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 15 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 3 pF
Transition Frequency (ft): 200 MHz
Forward Current Transfer Ratio (hFE), MIN 70
SMD Transistor Code YJ
Built in Bias Resistor R1 47 kOhm
Built in Bias Resistor R2 22 kOhm
Typical Resistor Ratio R1/R2 2.1
SKU 361680
