RN2307

SKU: RN2307

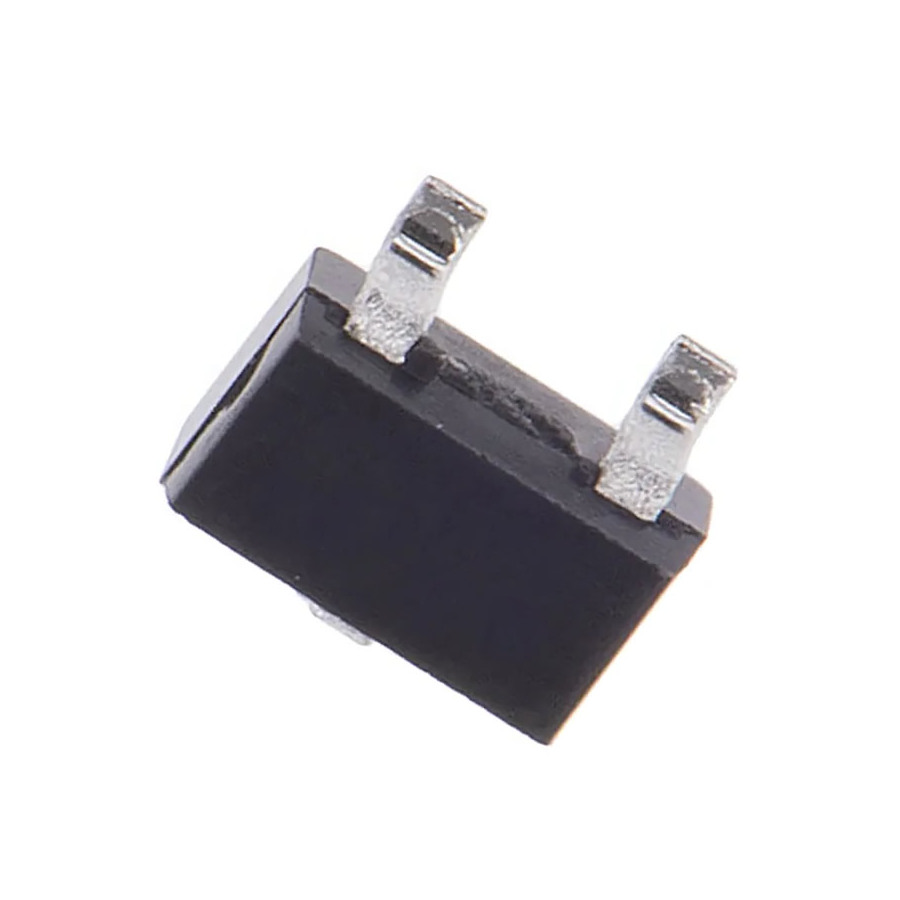

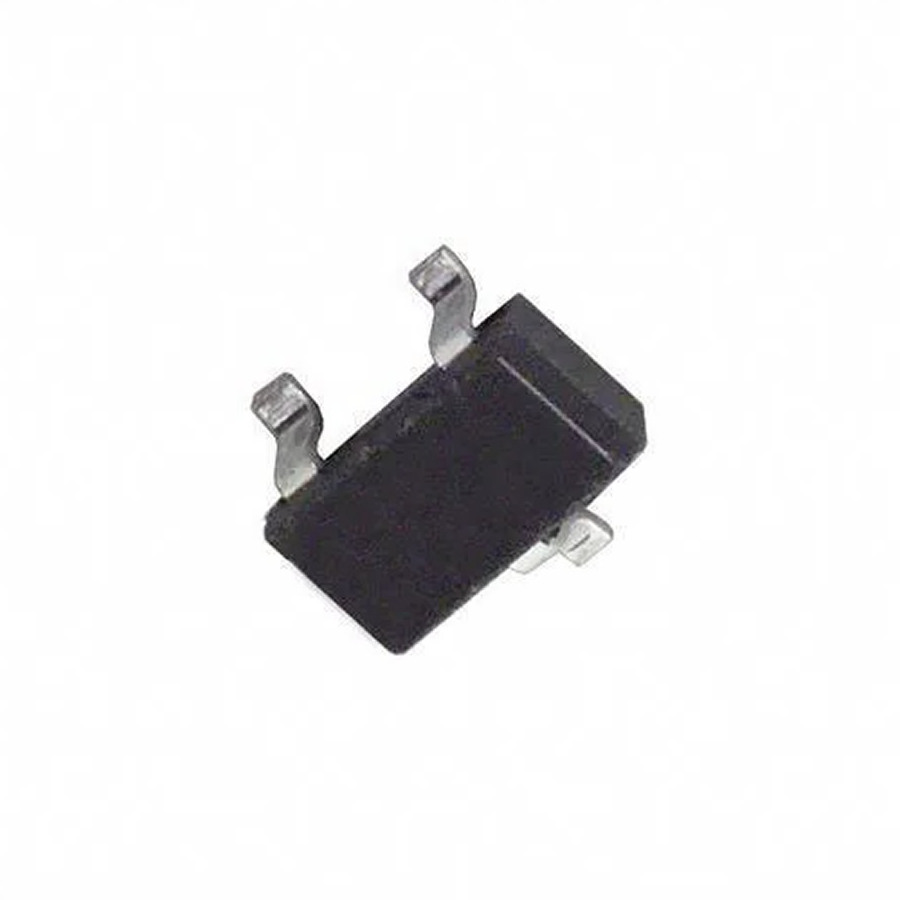

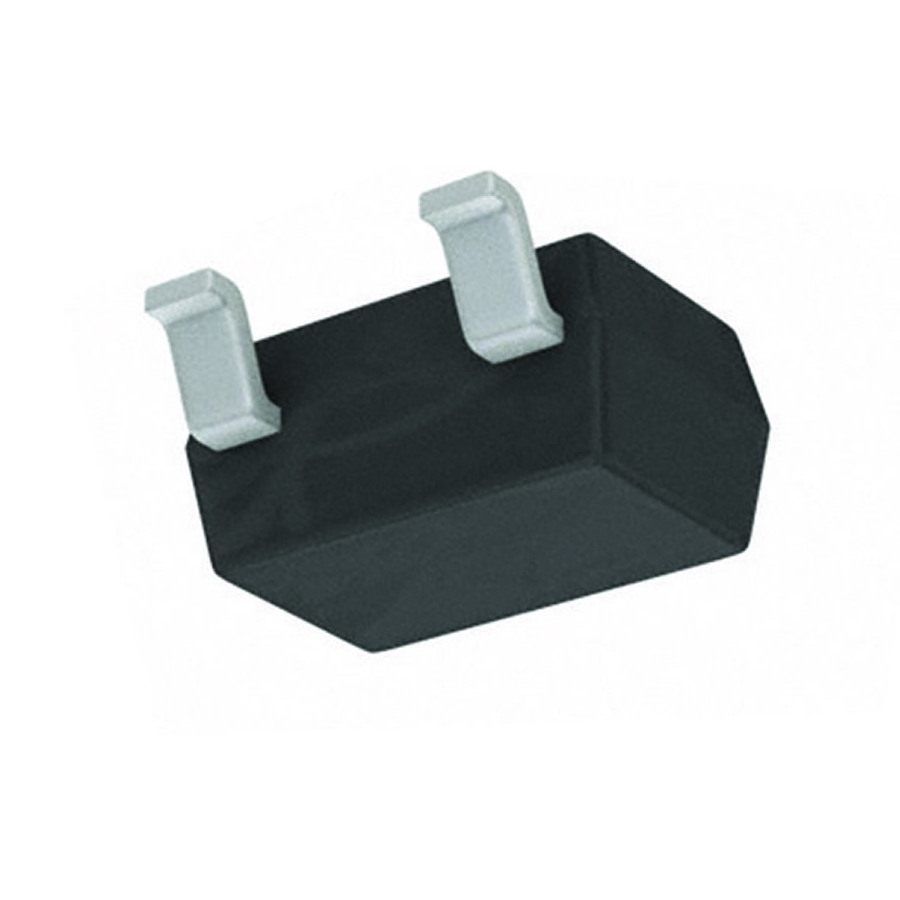

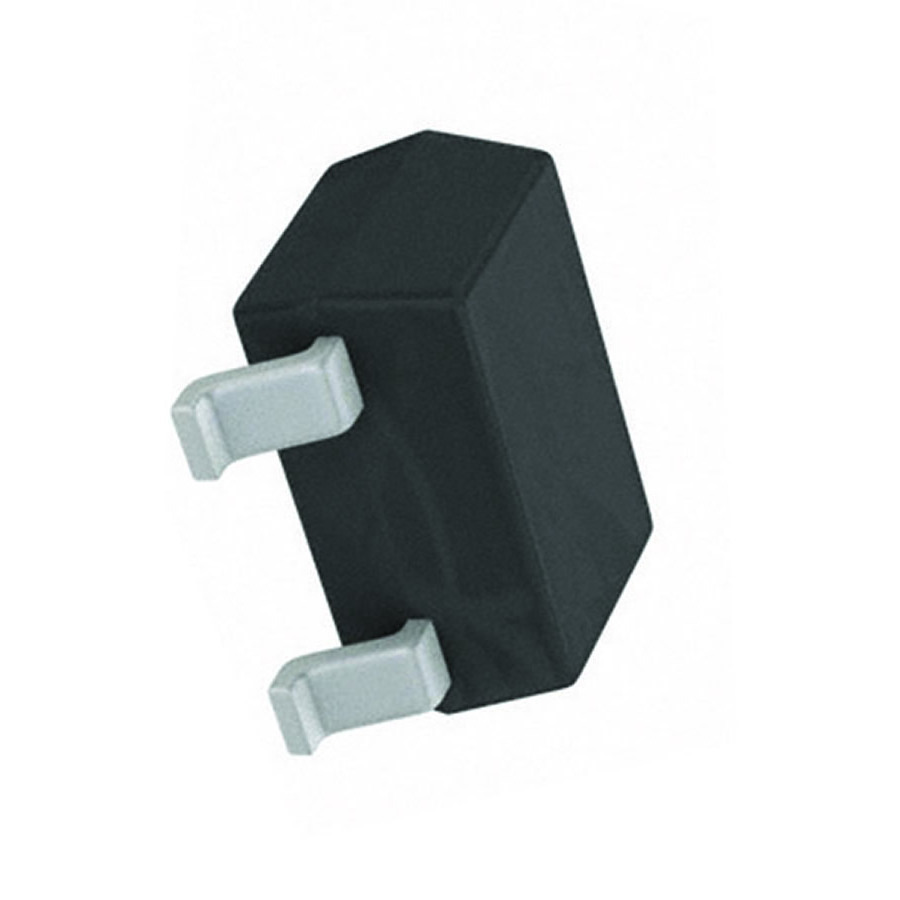

RN2307 Transistor Silicon NPN CASE: SOT323 MAKE: Toshiba
Price:
£4.79 Inc. VAT (£3.99 Ex. VAT)
£4.79 Inc. VAT (£3.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Datasheet
RN2307 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT323
Manufacturer Toshiba
Polarity Pre-Biased-PNP
Maximum Collector Power Dissipation (Pc) 0.1 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 3 pF
Transition Frequency (ft): 200 MHz
Forward Current Transfer Ratio (hFE), MIN 80
SMD Transistor Code YH
Built in Bias Resistor R1 10 kOhm
Built in Bias Resistor R2 47 kOhm
Typical Resistor Ratio R1/R2 0.21
SKU 361721
