RN2314
View detailed images (12)

RN2314

SKU: RN2314

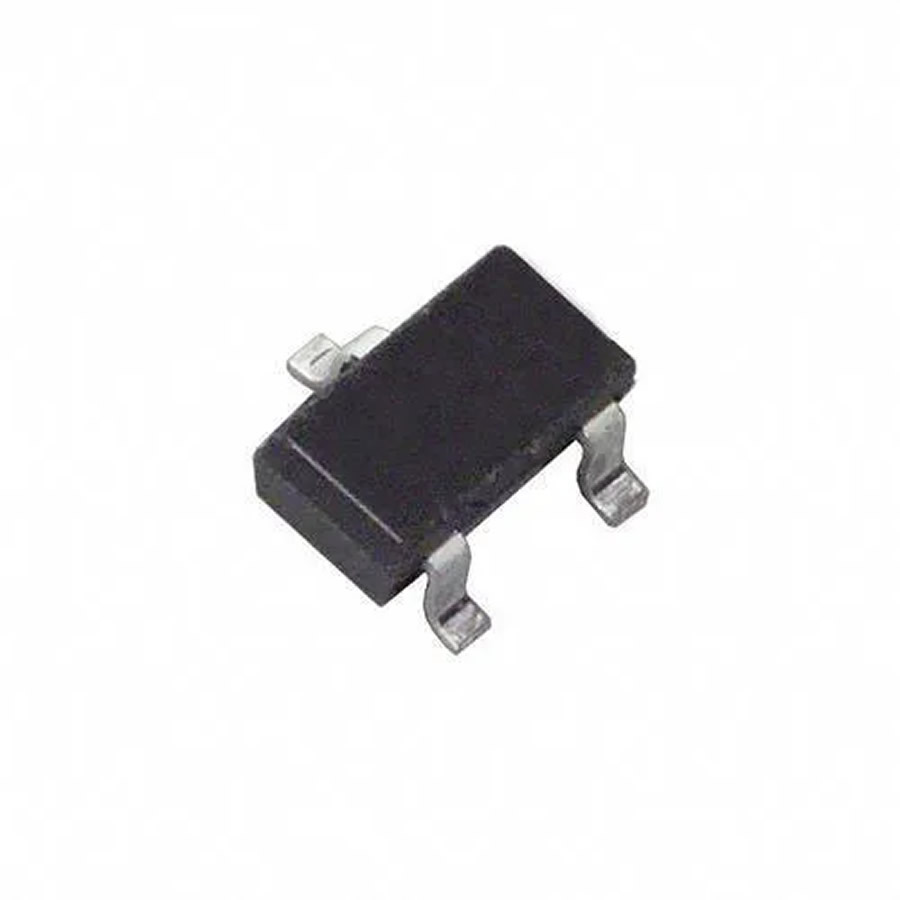

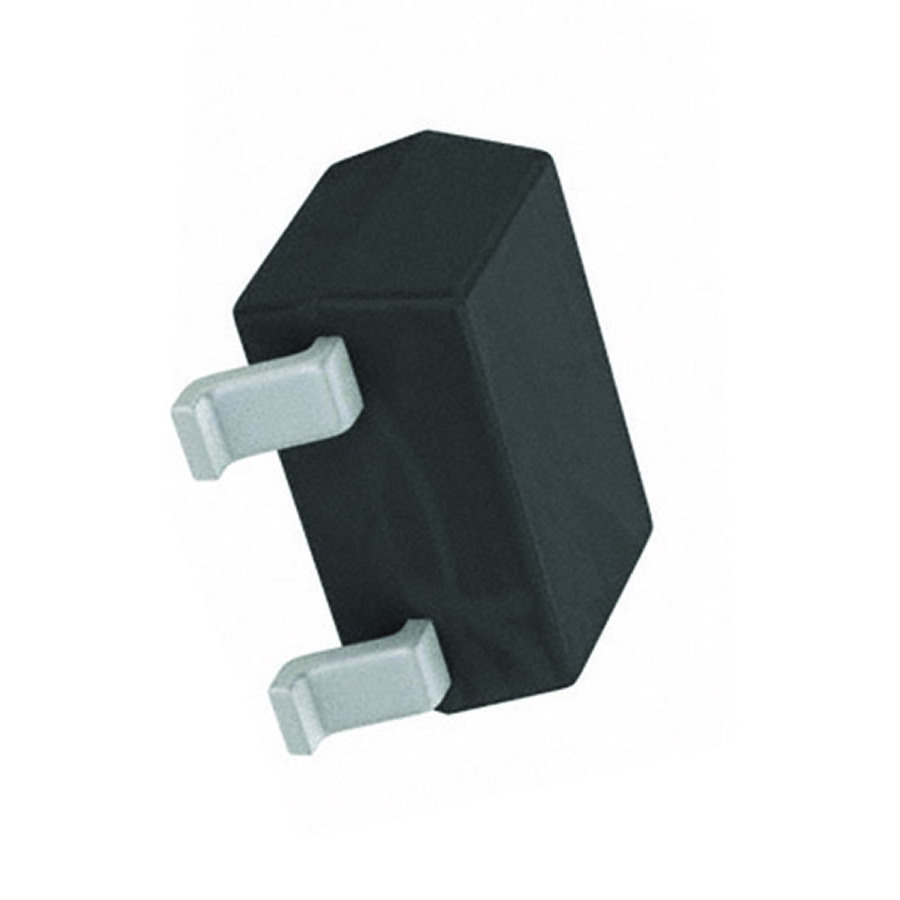

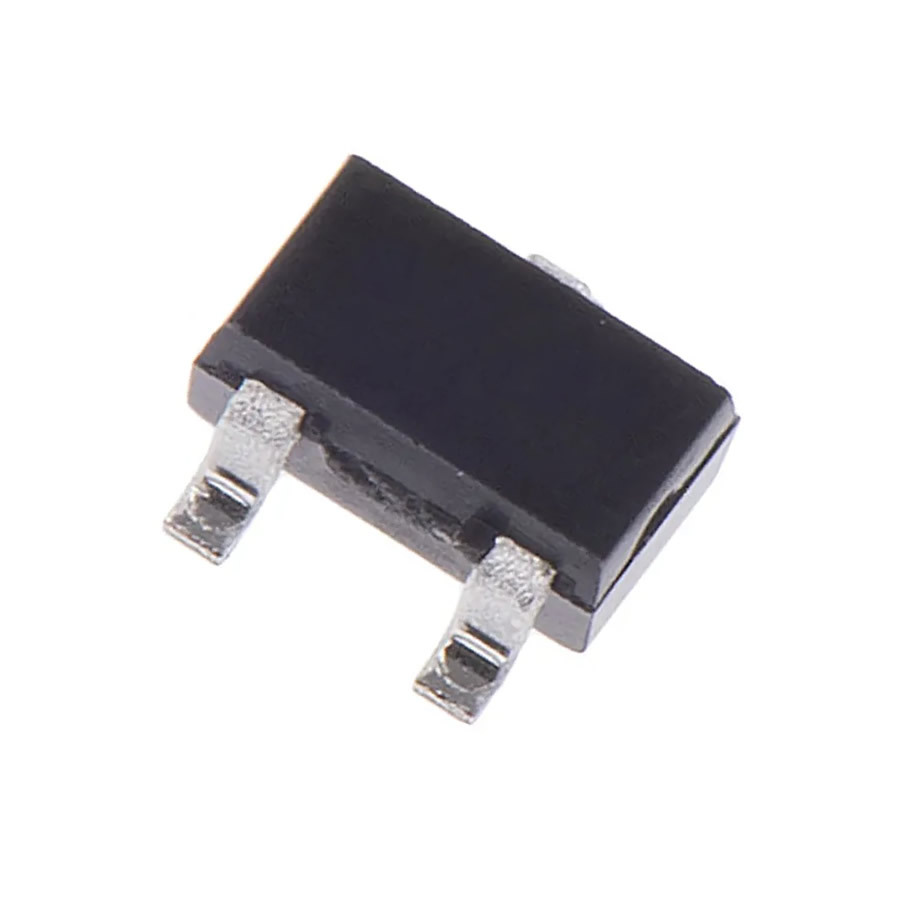

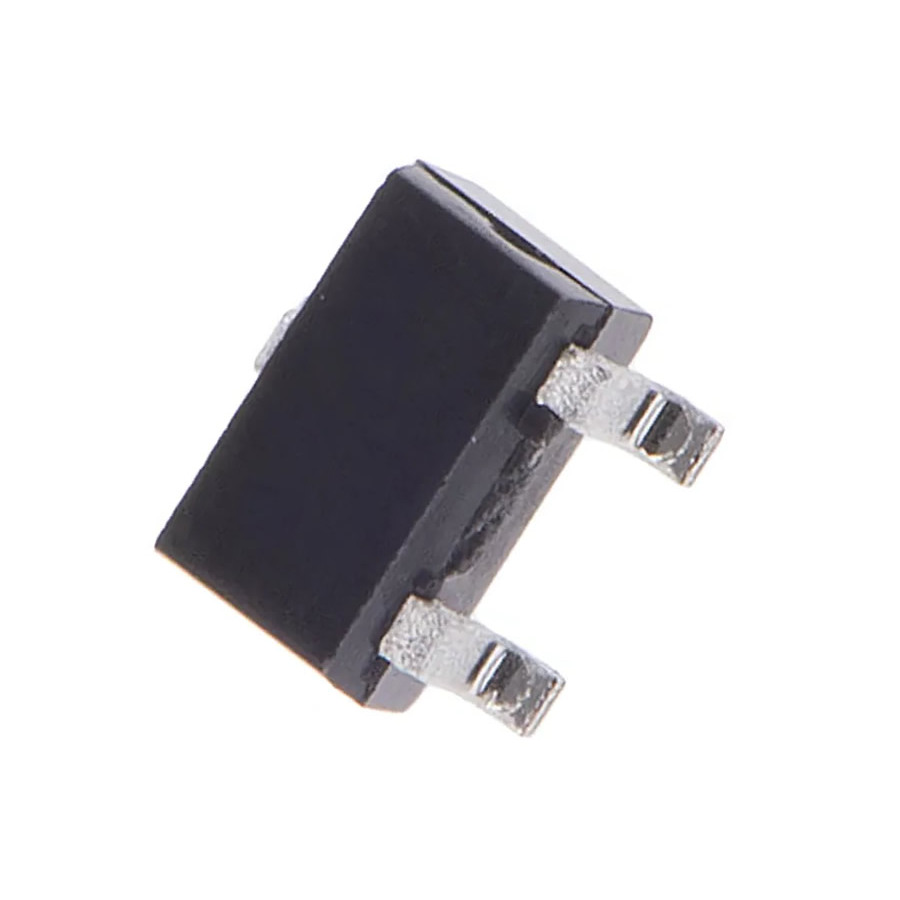

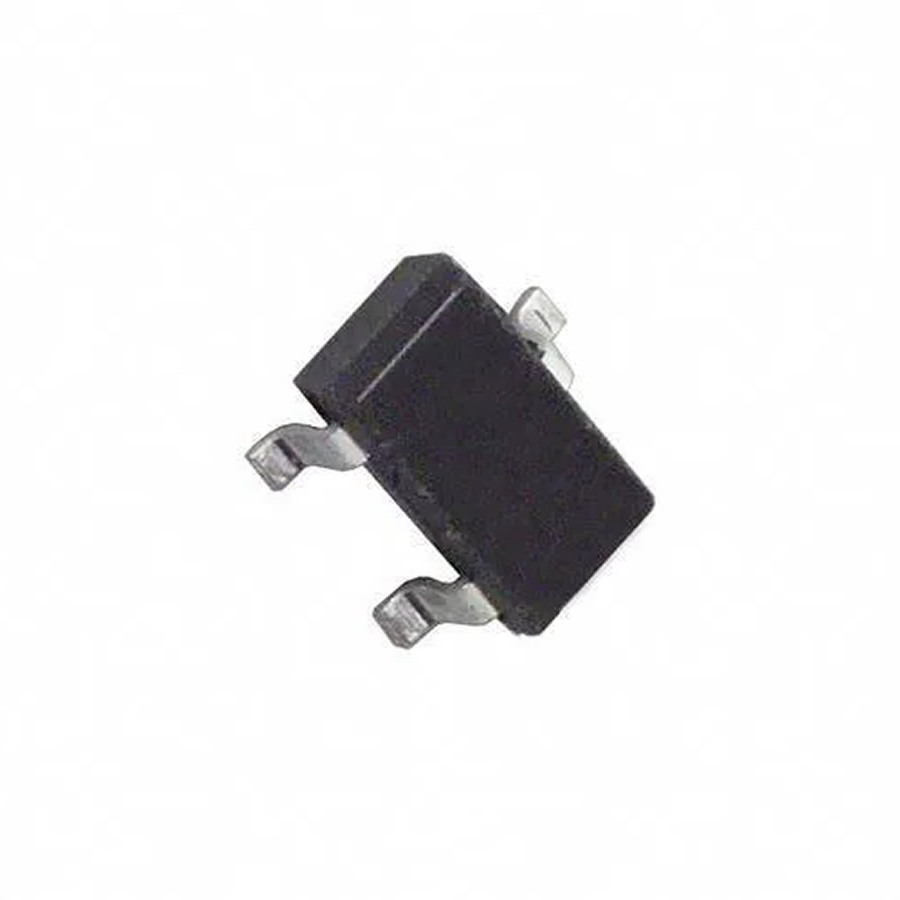

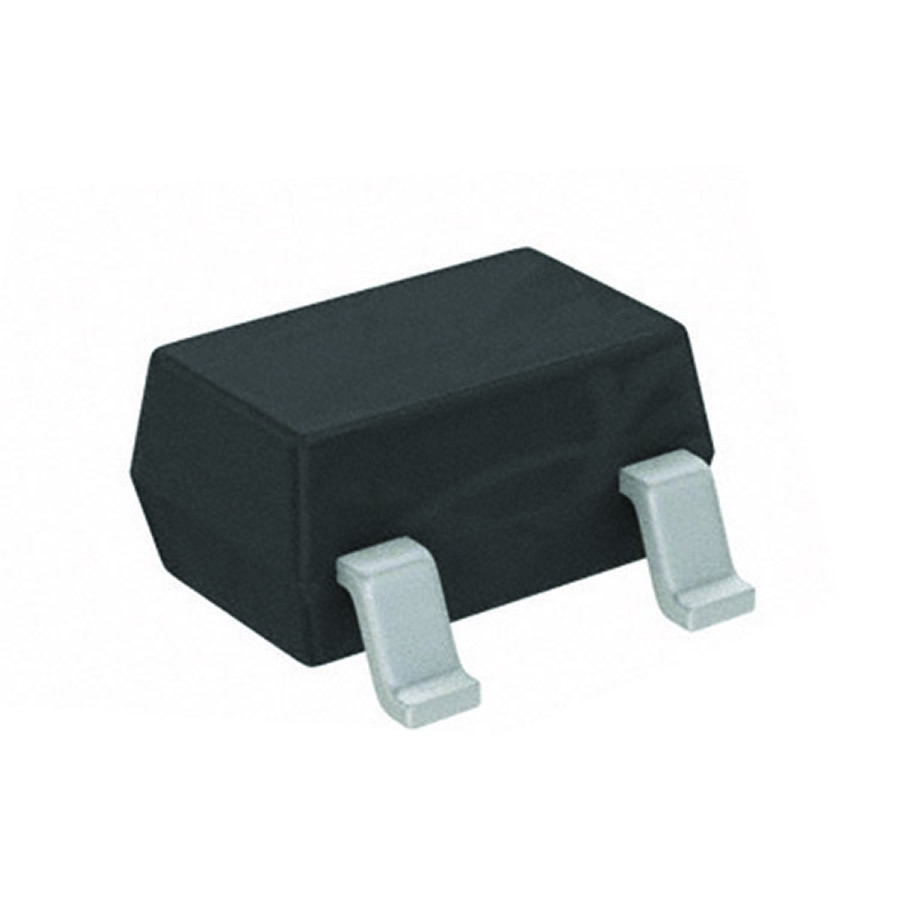

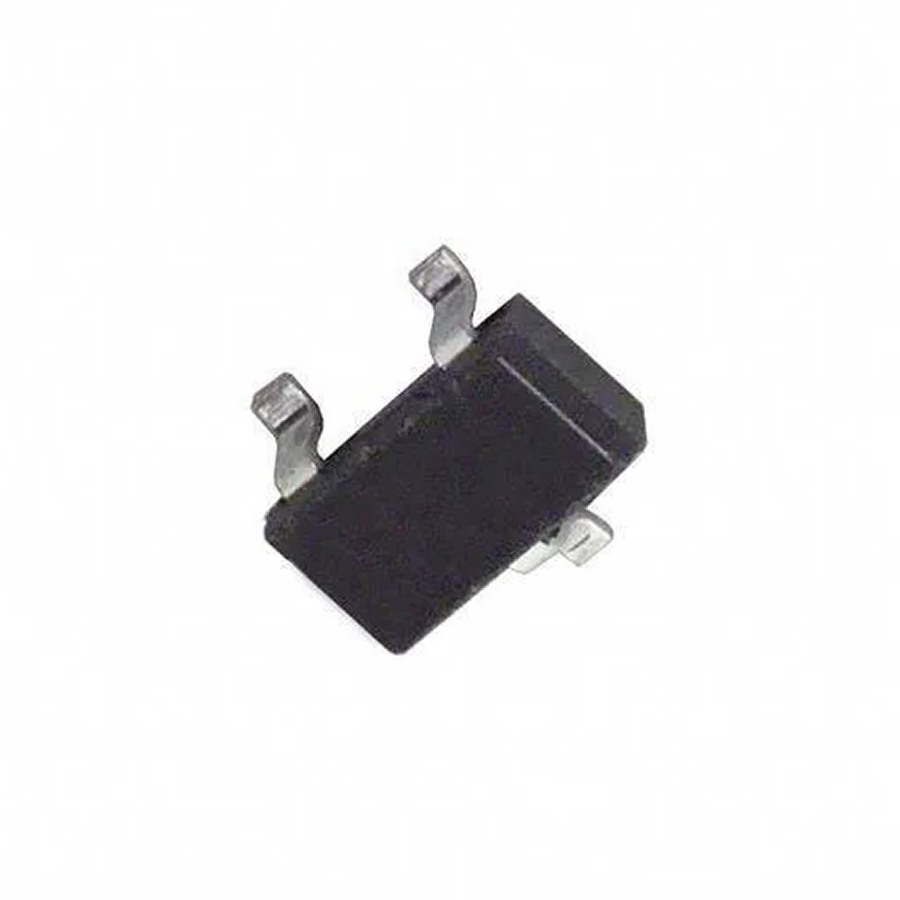

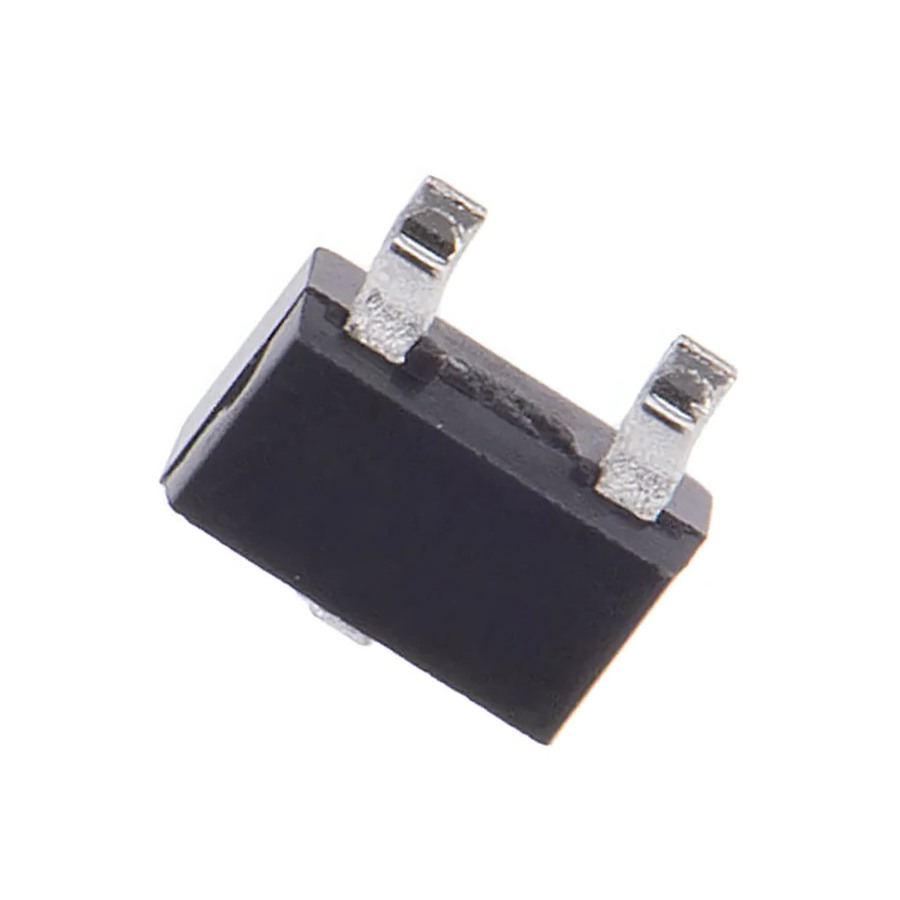

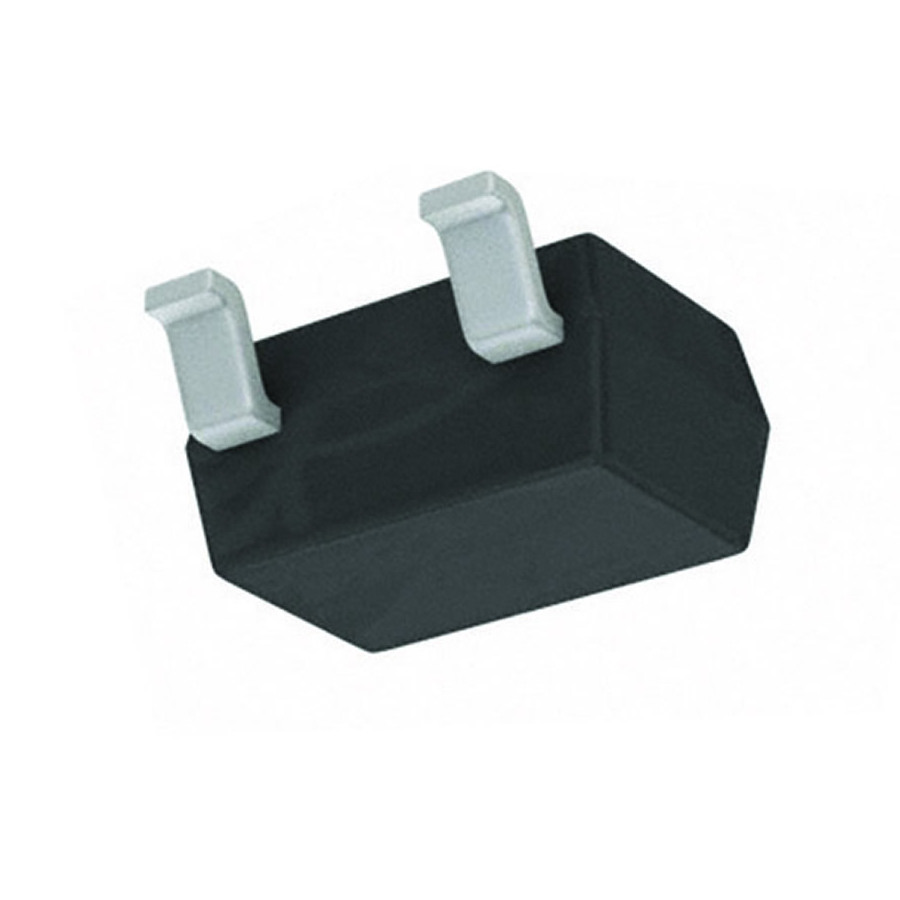

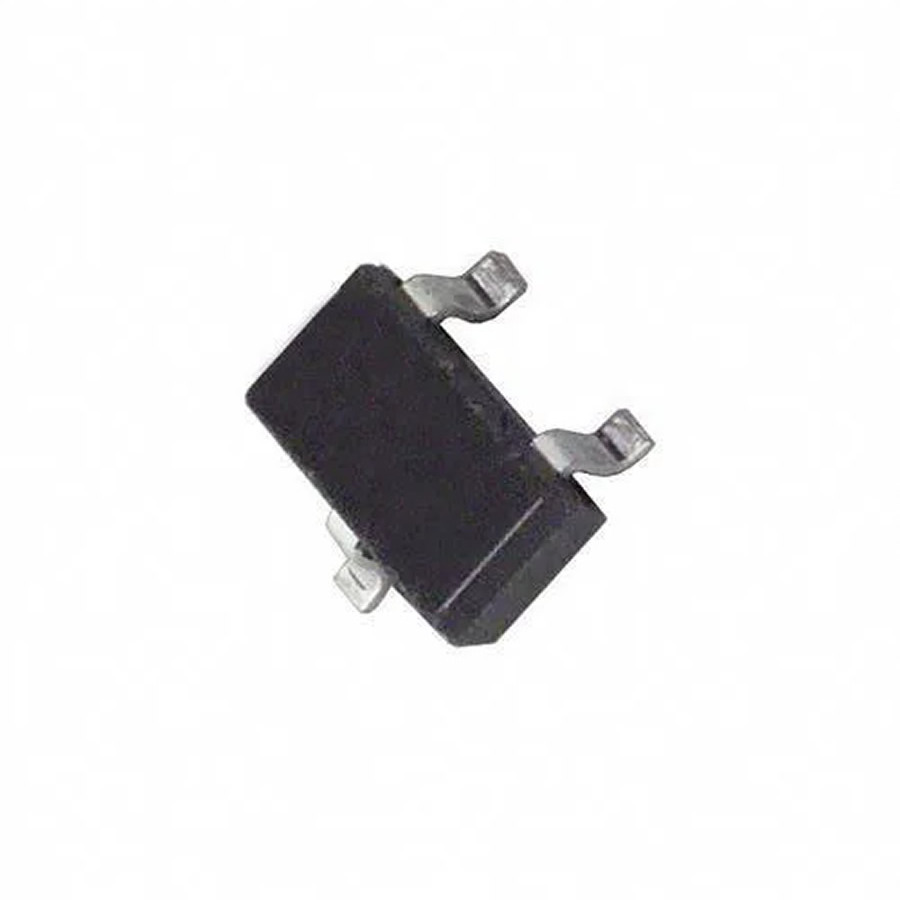

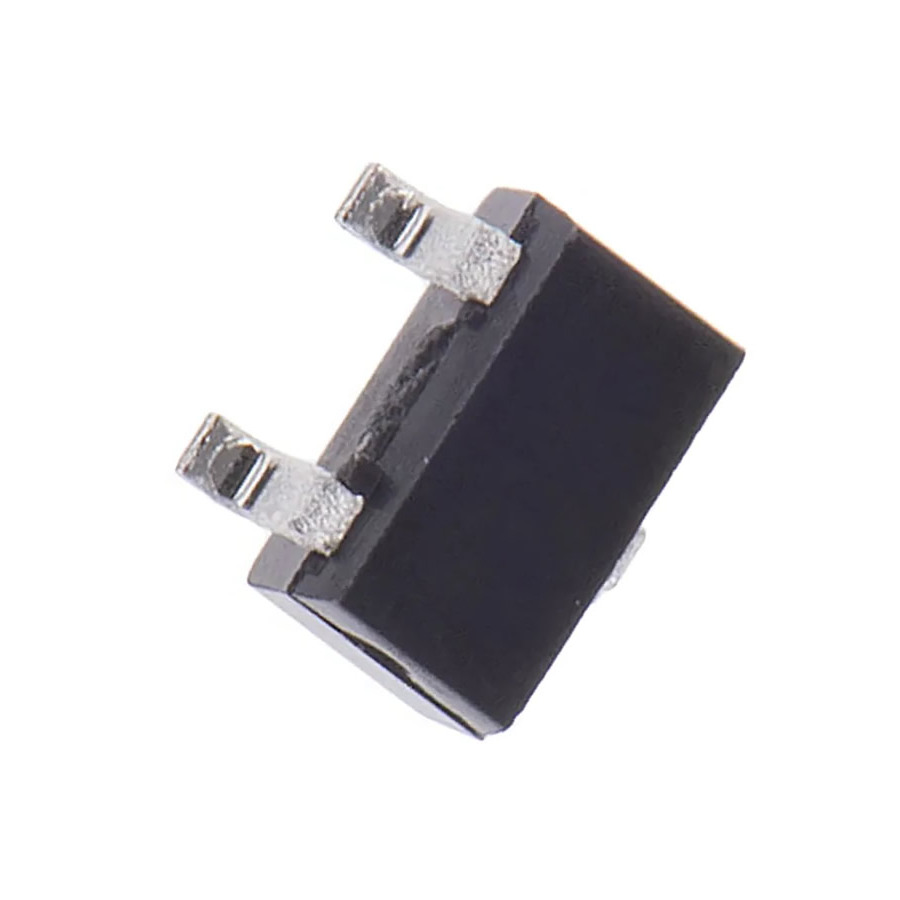

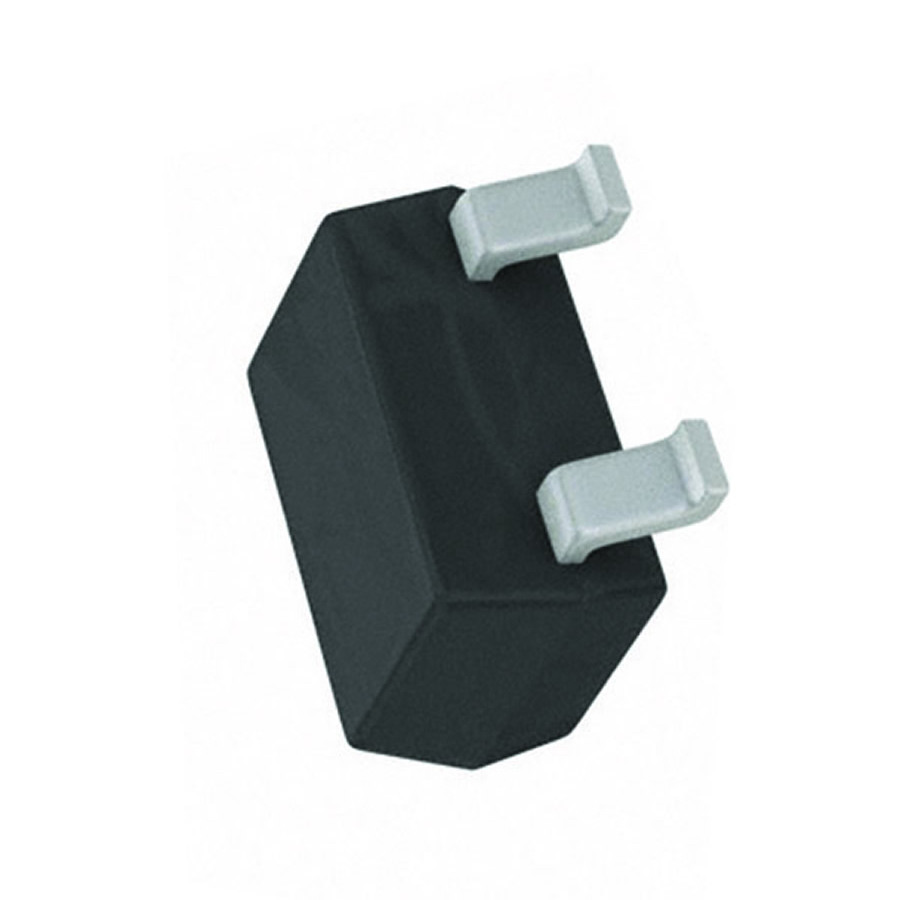

RN2314 Transistor Silicon NPN CASE: SOT323 MAKE: Toshiba
Datasheet
RN2314 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT323
Manufacturer Toshiba
Polarity Pre-Biased-PNP
Maximum Collector Power Dissipation (Pc) 0.1 W
Maximum Collector-Base Voltage |Vcb| 50 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.1 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 3 pF
Transition Frequency (ft): 200 MHz
Forward Current Transfer Ratio (hFE), MIN 50
SMD Transistor Code YQ
Built in Bias Resistor R1 1 kOhm
Built in Bias Resistor R2 10 kOhm
Typical Resistor Ratio R1/R2 0.1
SKU 361728
