RT2A00AM1
View detailed images (5)

RT2A00AM1

SKU: RT2A00AM1
RT2A00AM1 Transistor Silicon PNP CASE: SOT353 MAKE: Generic
Product specifications
Type Transistor Silicon PNP

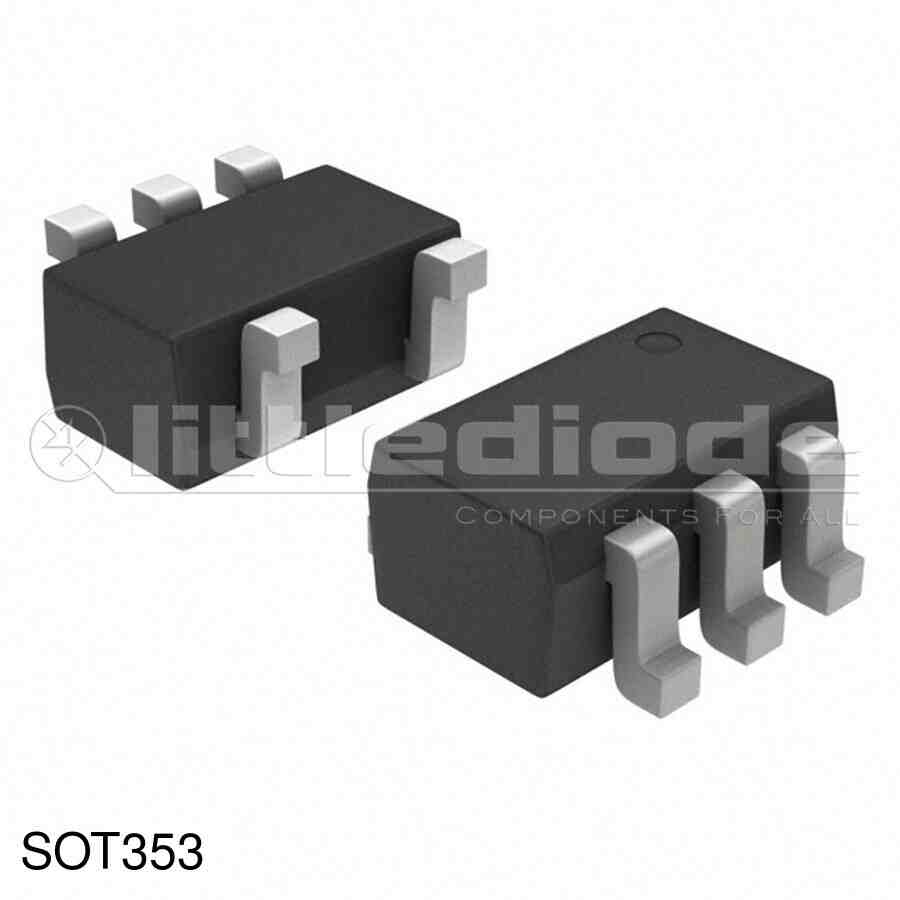

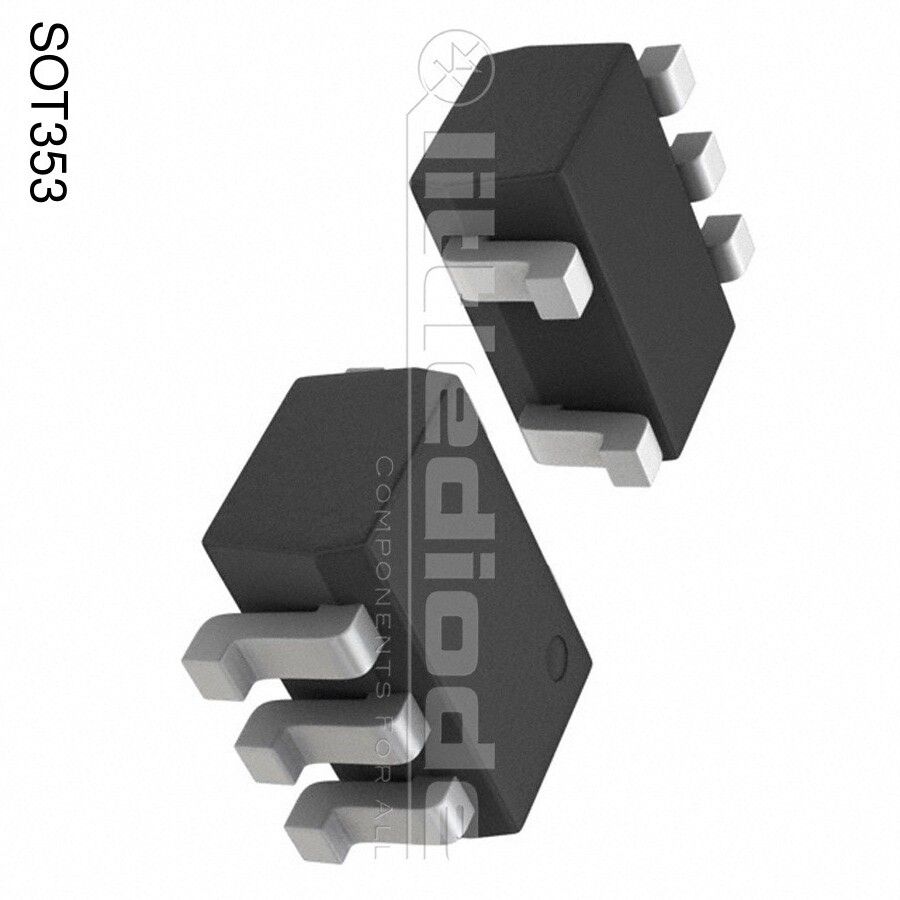

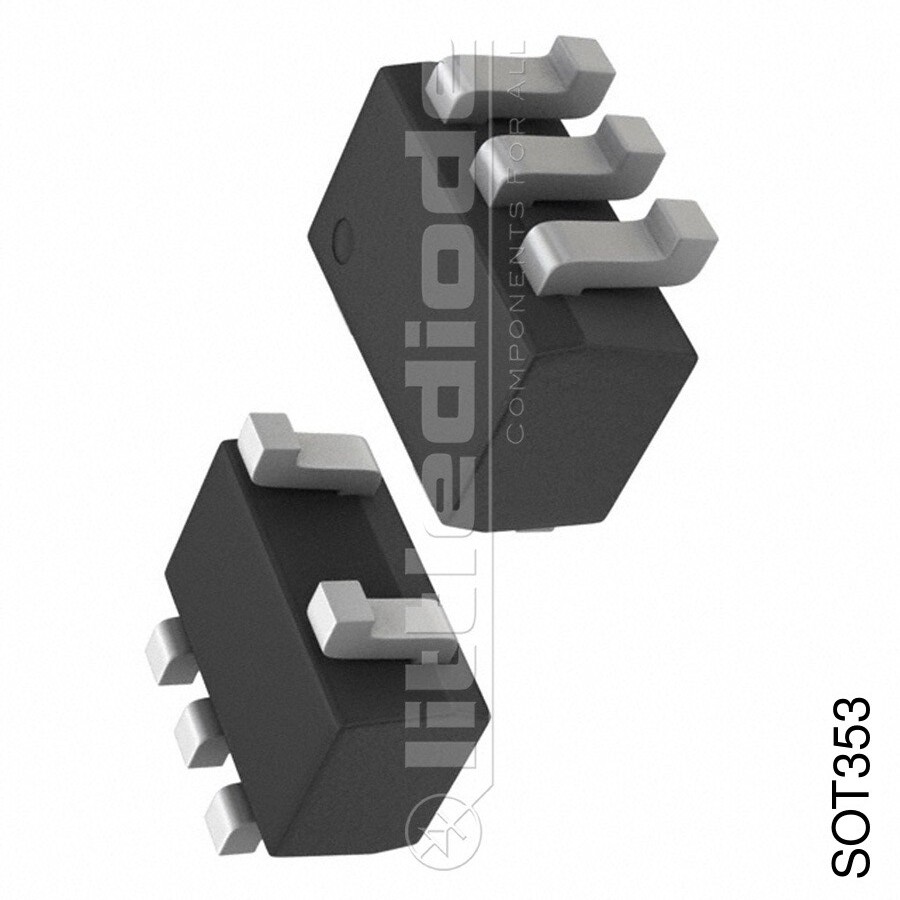

Case SOT353
Manufacturer Generic
Polarity PNP
Maximum Collector Power Dissipation (Pc) 0.15 W
Maximum Collector-Base Voltage |Vcb| 60 V
Maximum Collector-Emitter Voltage |Vce| 50 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 0.2 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 4 pF
Transition Frequency (ft): 200 MHz
Forward Current Transfer Ratio (hFE), MIN 150
SMD Transistor Code ME_MF
SKU 1440446
