S1000

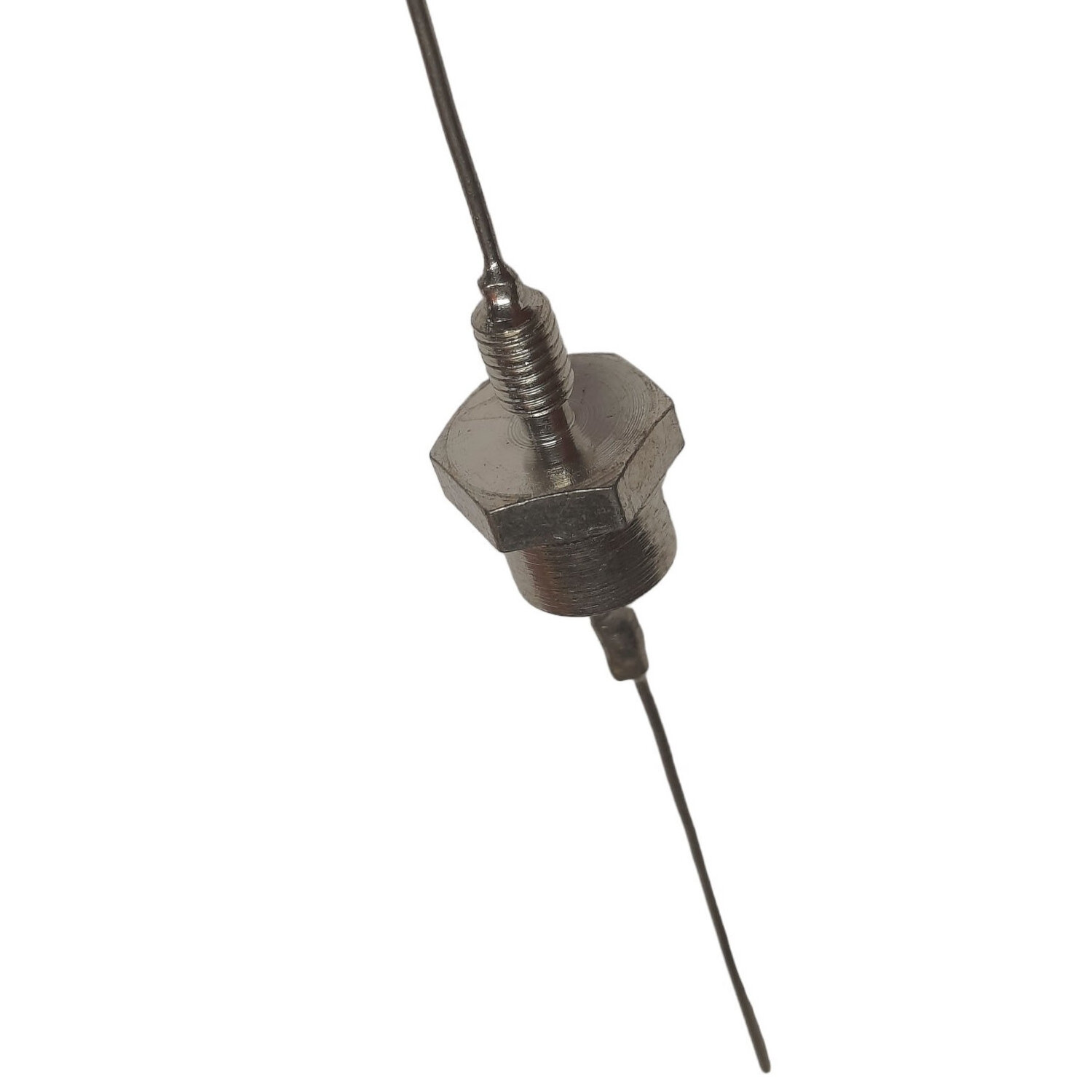

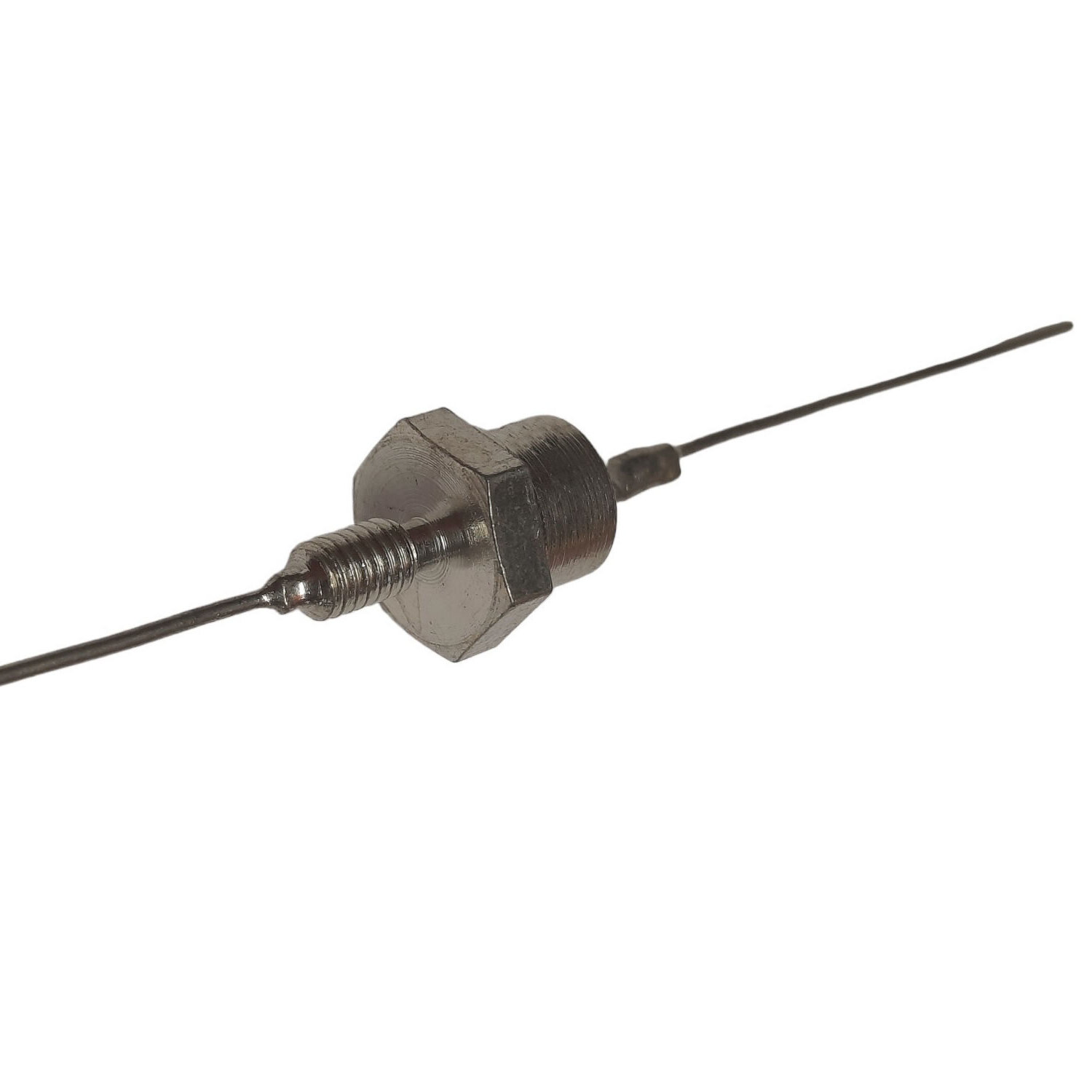

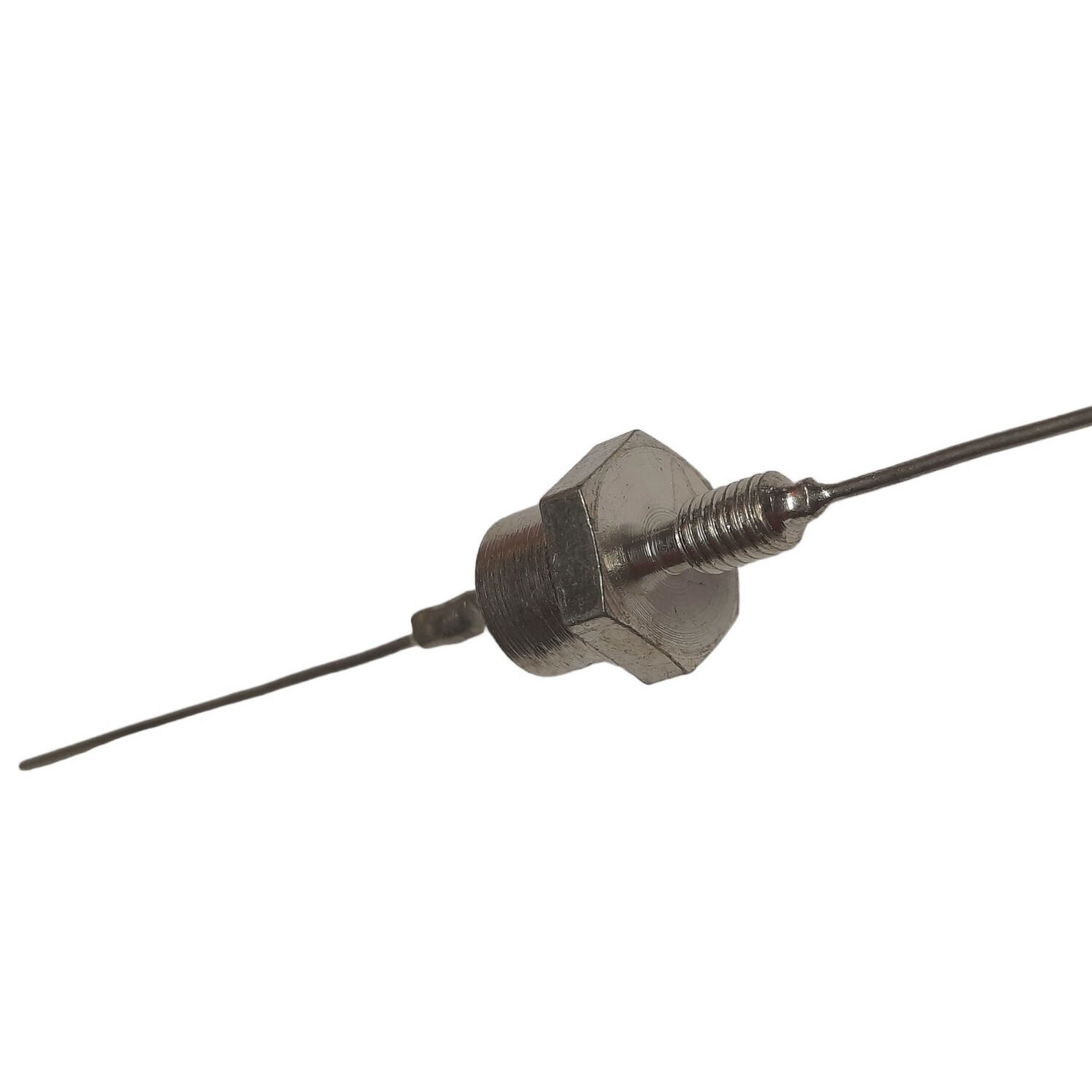

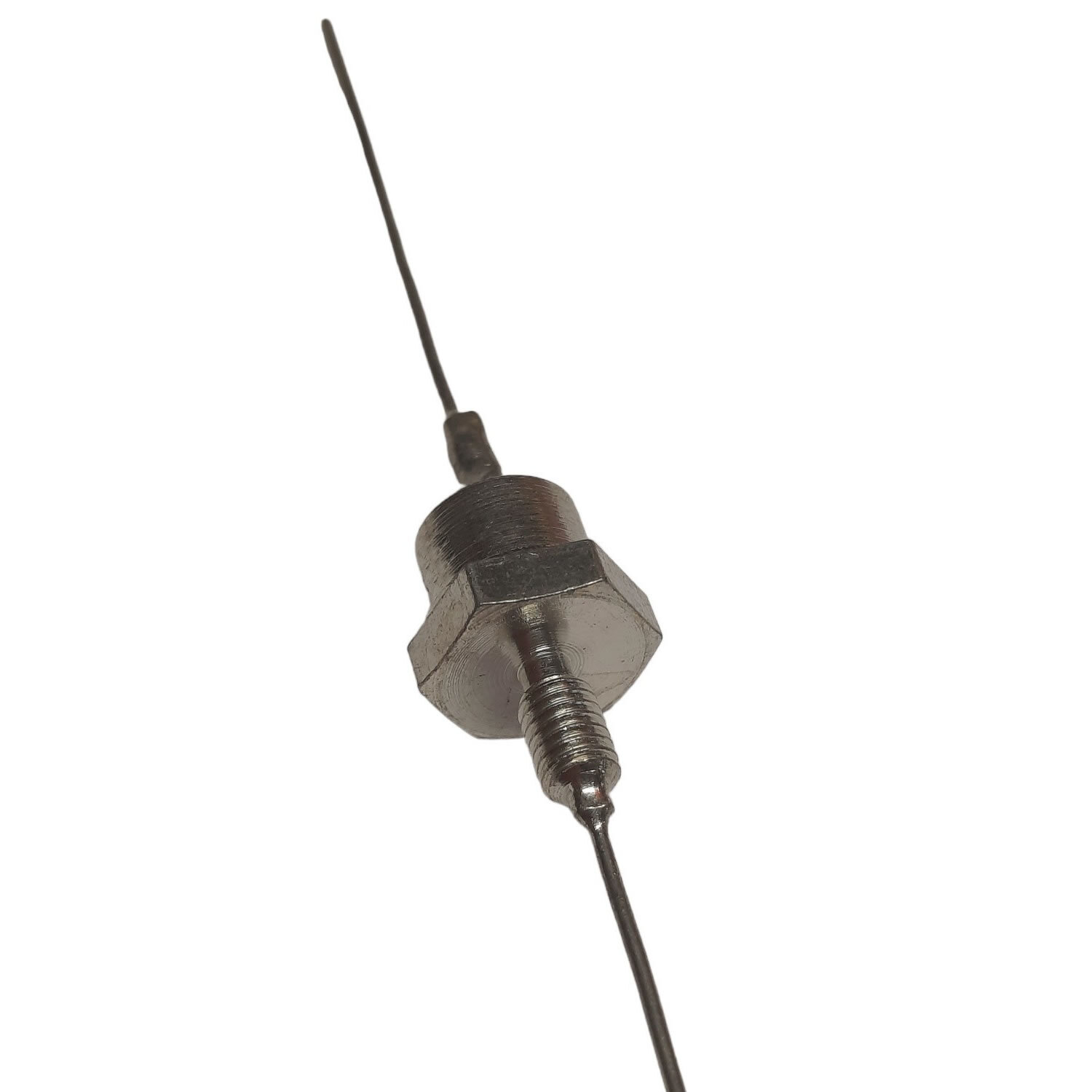

View detailed images (4)

S1000

SKU: S1000
S1000 SemiConductor CASE: DO4 MAKE: Solitron Devices
Product specifications
Type SemiConductor
Case DO4
Manufacturer Solitron Devices
Vbr CBO 40
Vbr CEO 30
Max. PD (W) 17
Min hFE 20
Ic Max. (A) 1.0
@Ic (test) (A) 100n
Icbo Max. @Vcb Max. (A) 2.0m
@Temp. (test) (°C) 50
VRRM 1.0k
1-Cycle Surge Current (A) 25
@Temp. (test) for Vf) 25
Derate Above 25°C 100m
Vf Max. 1.0
Ir @25°C 5.0u
I(out) (If AVG) Max. 3.0
Trans. Freq (Hz) Min. 1.2G
@If (test) 1.0
Oper. Temp (°C) Max. 175
@VCE (V) 5.0
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
SKU 652532
