S1016B
View detailed images (13)

S1016B

SKU: S1016B

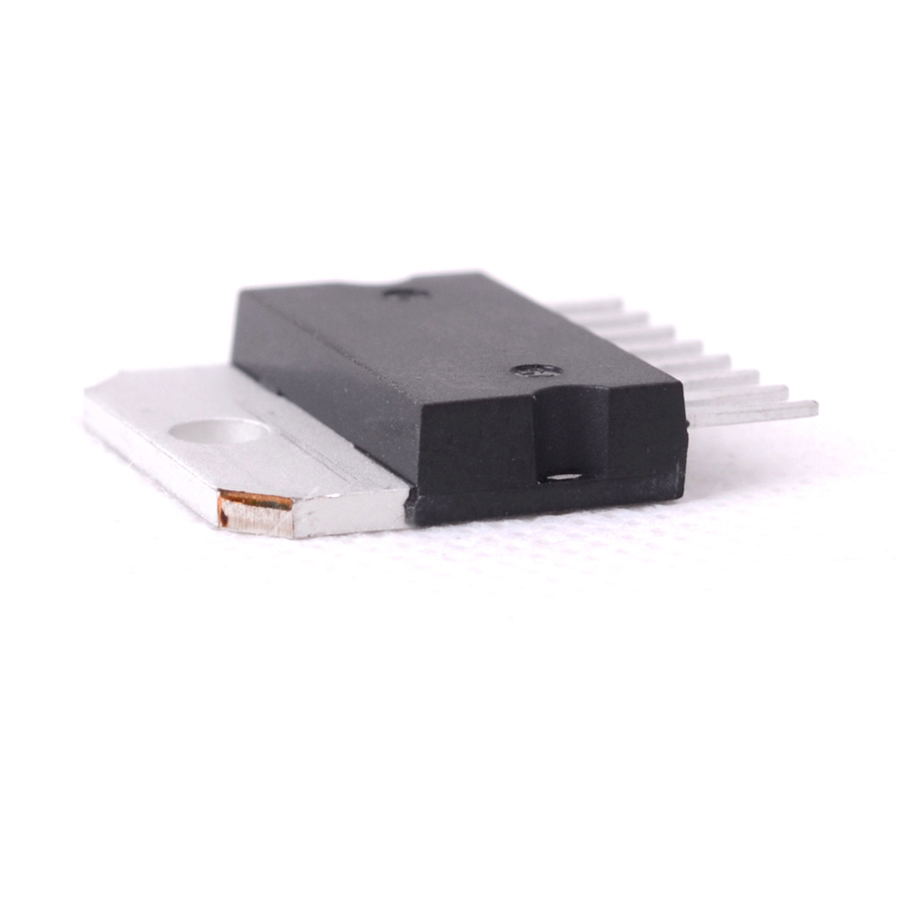

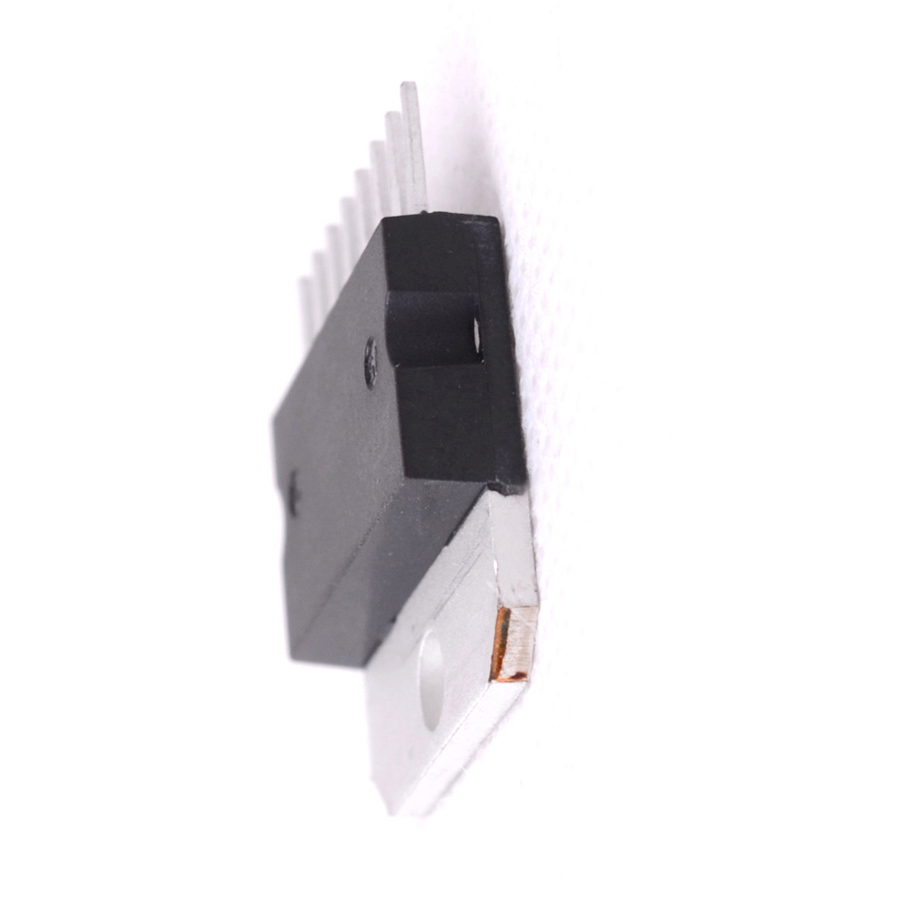

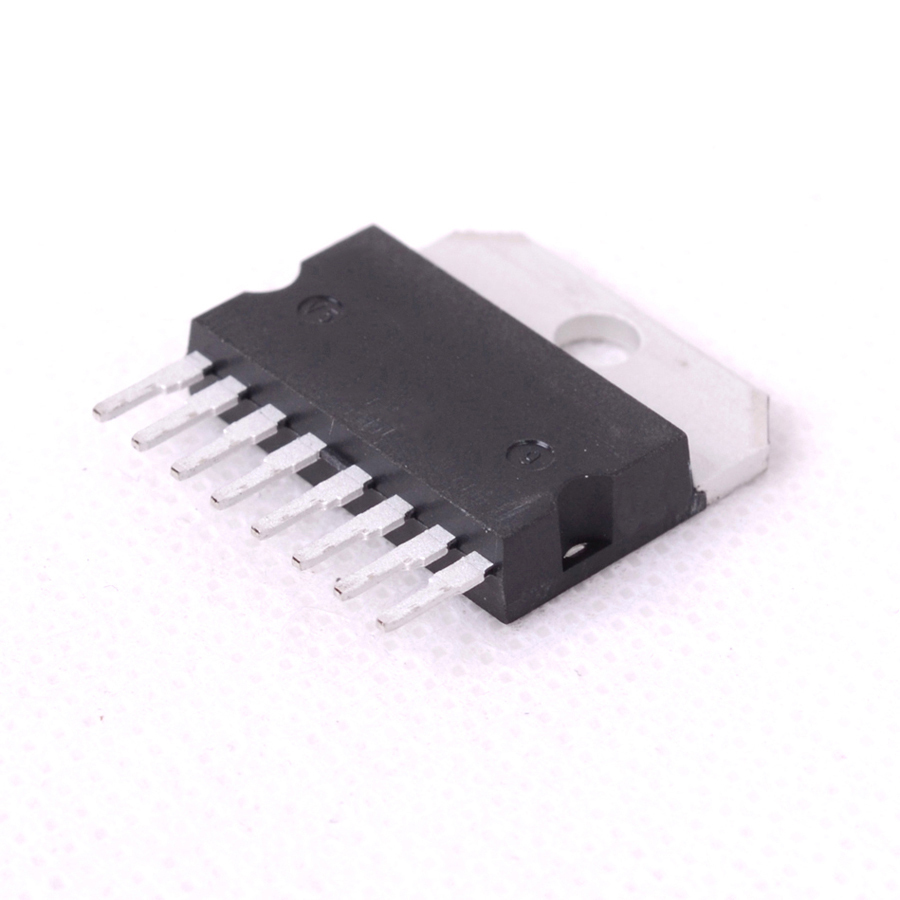

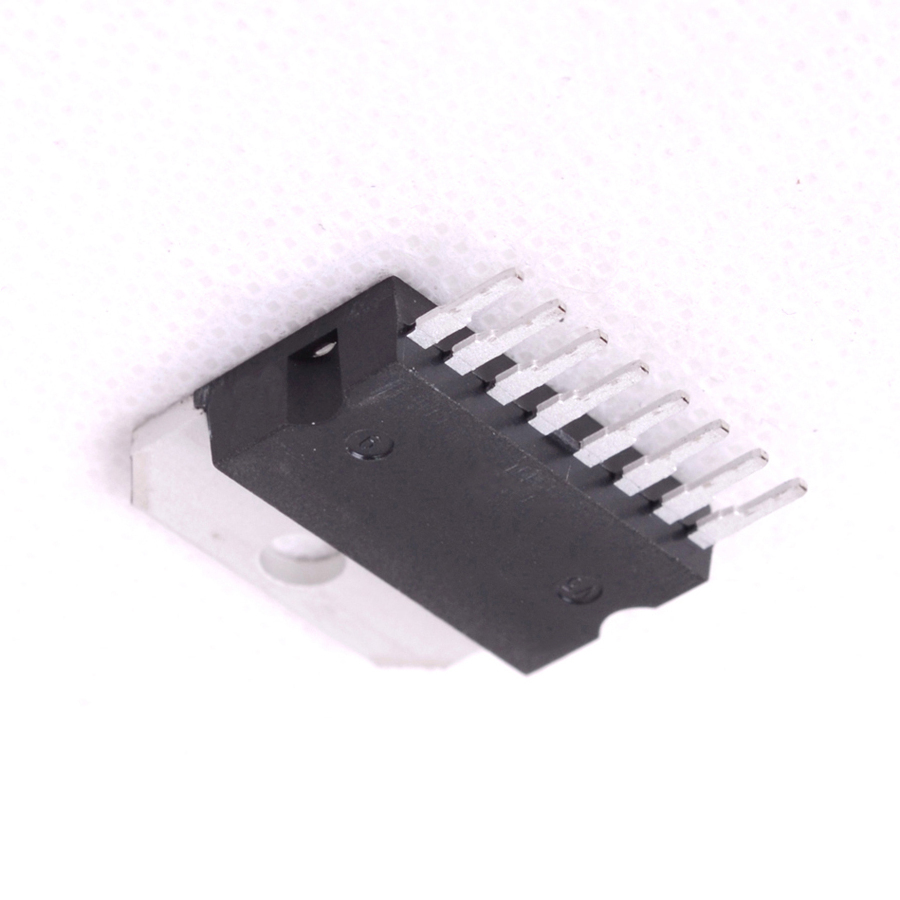

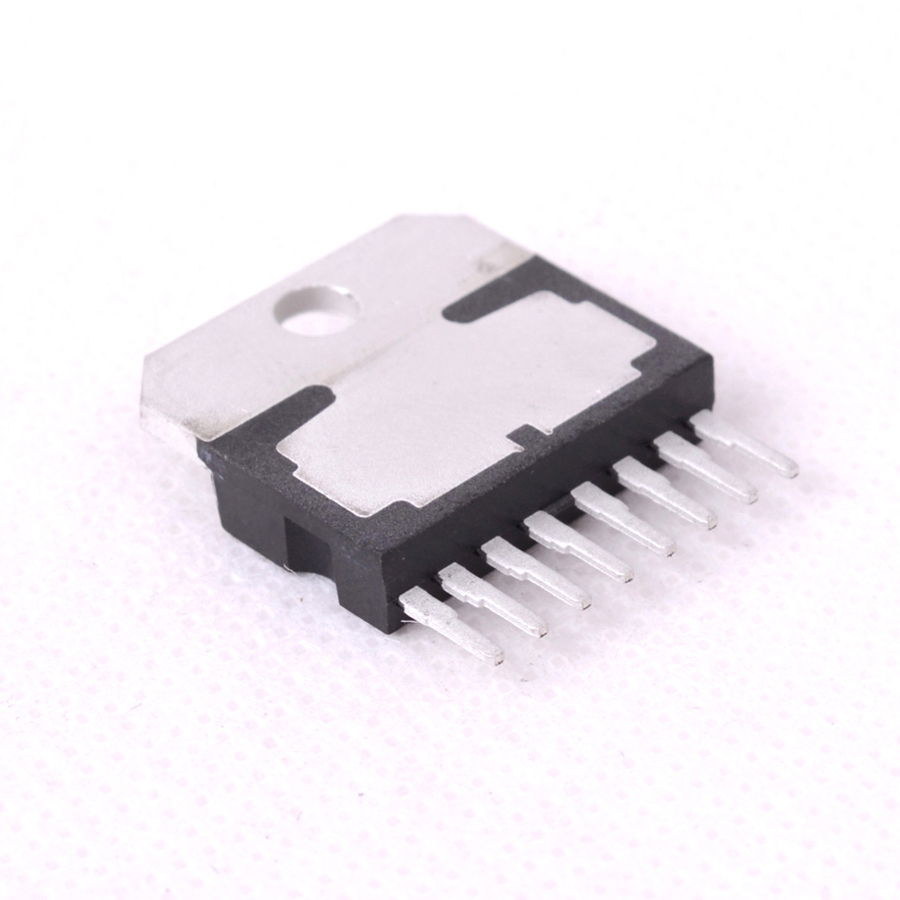

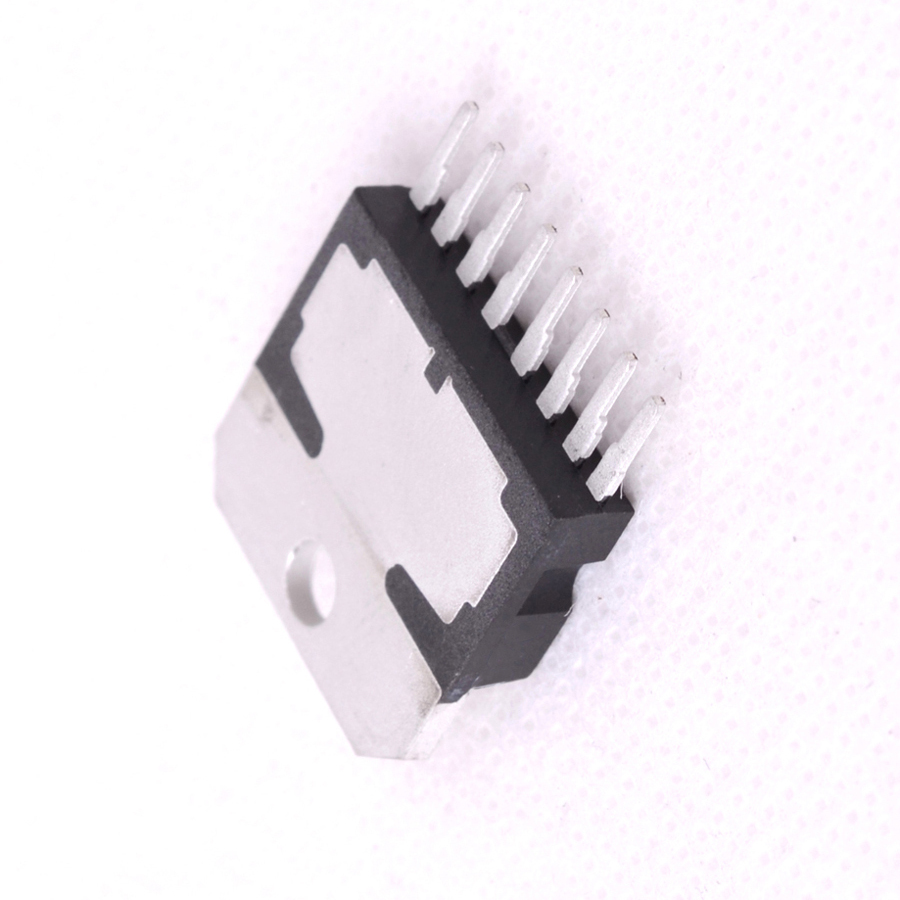

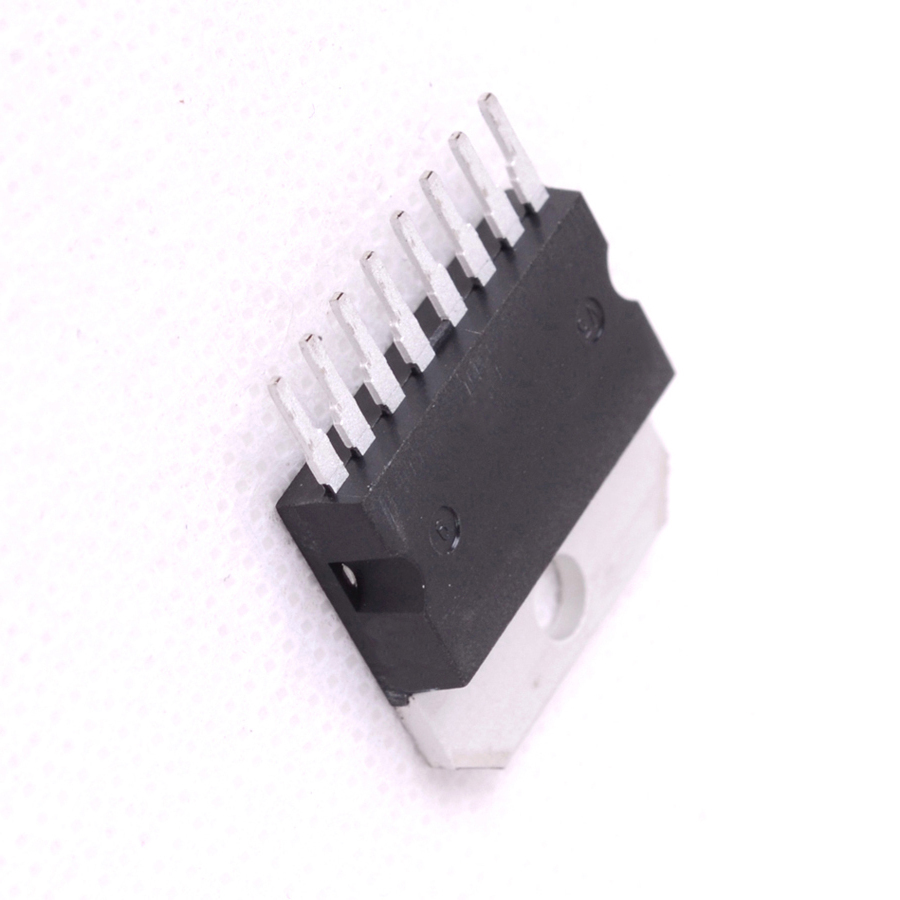

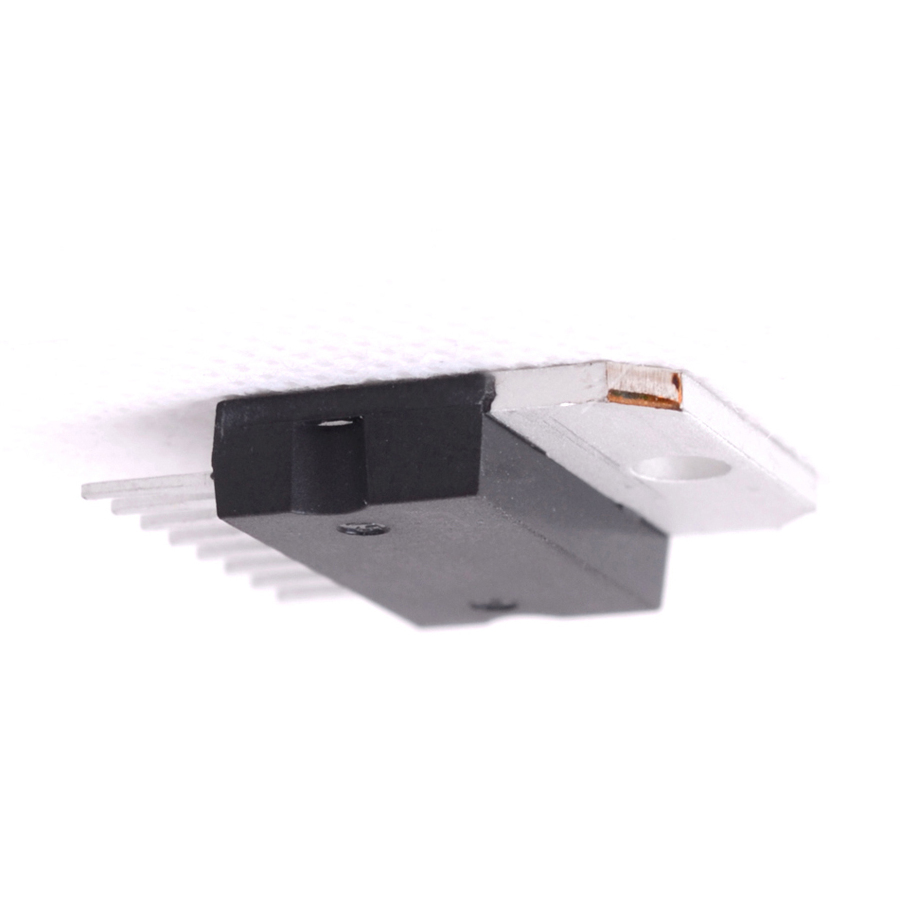

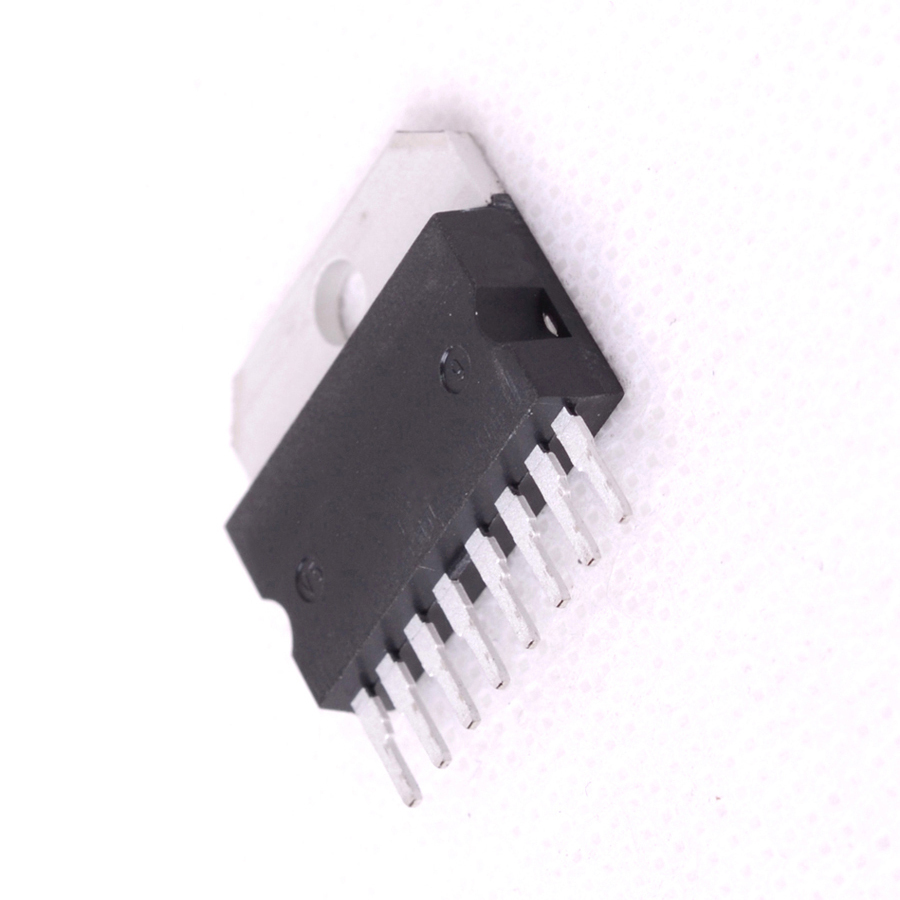

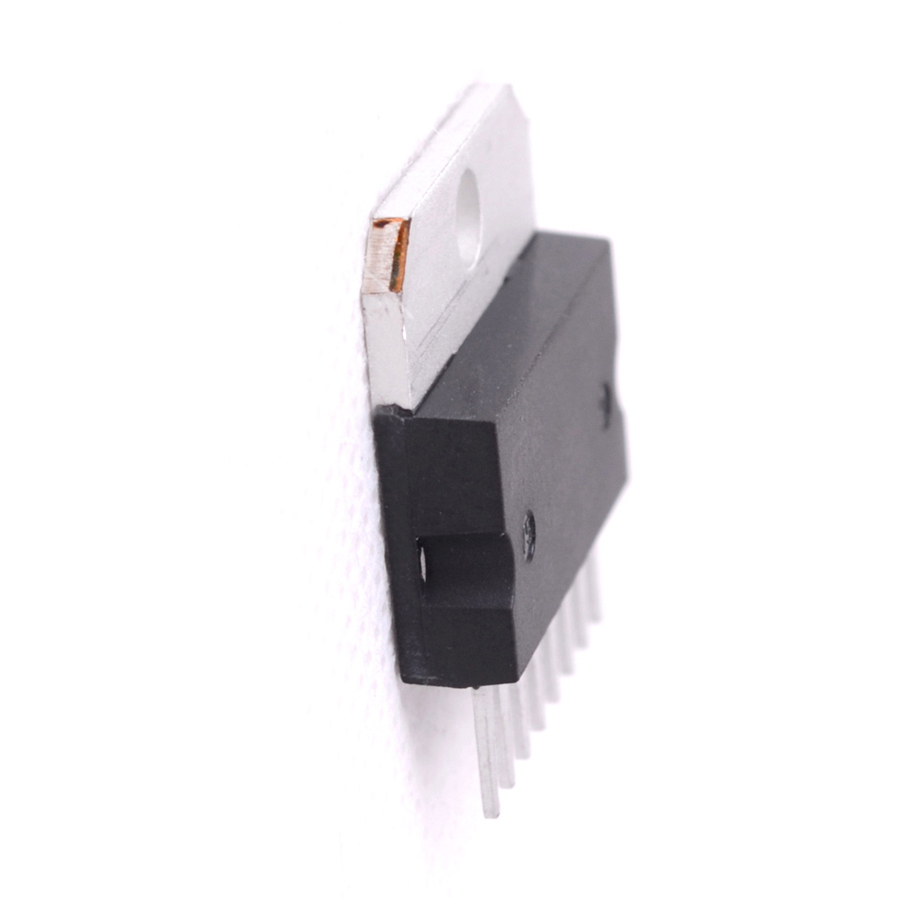

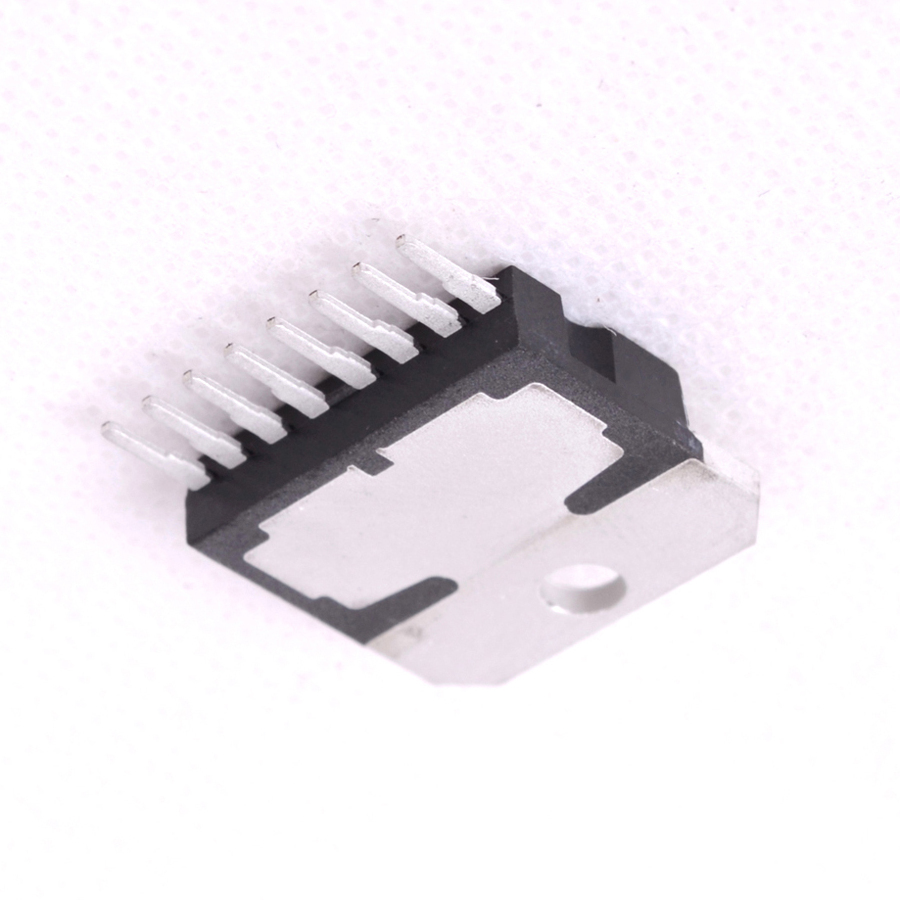

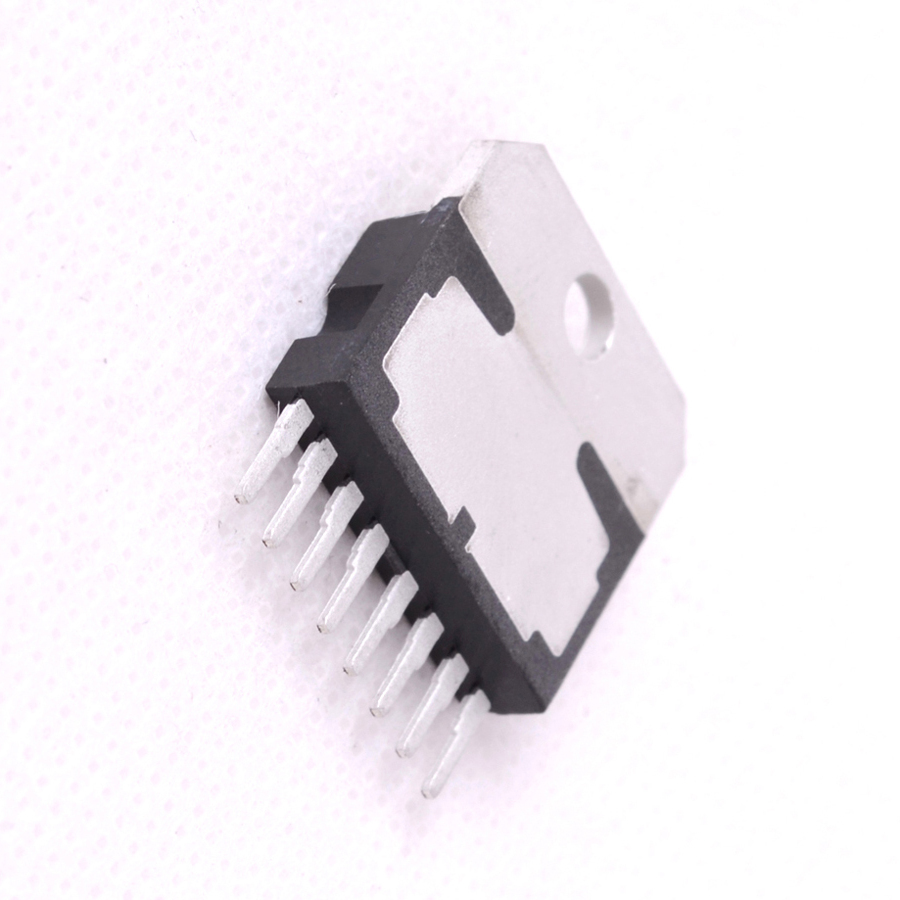

S1016B Semiconductor CASE: SIP8 MAKE: AMCC
Product specifications
Type Semiconductor
Case SIP8
Manufacturer AMCC
Dv/Dt Worst Case 30
Firing Char-Igt Max. 20m
Firing Char-Vgt Max. 1.5
I(h) Max. (A) 20m
Id(off) Max. (A) 1.0m
@It (test) (A) 16
It(stat) Max. (A) 16
Nom. Neg Supp 2.0
Supp Curr. I(TSM) 150
t(switch) Off Typ. Time (S) 35u=
t(switch) Off Typ. Time (S) 2.0u=
Tech. ECL - Emitter-Coupled Logic Semiconductor
V(drm) Max. 100
V(T) Max. 1.6
@Temp. (test) (°C) 100#
@Temp. (test) (°C) 80#
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 110
@It (A) 32
Pinout Equivalence Number 8-395
No. of Pins 8
Surface Mounted Yes/No NO
SKU 1046290
