S1G40Z

S1G40Z

SKU: S1G40Z

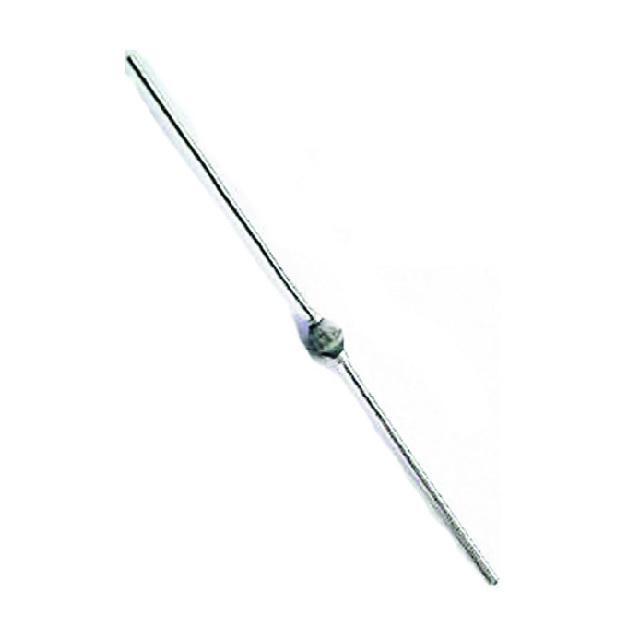

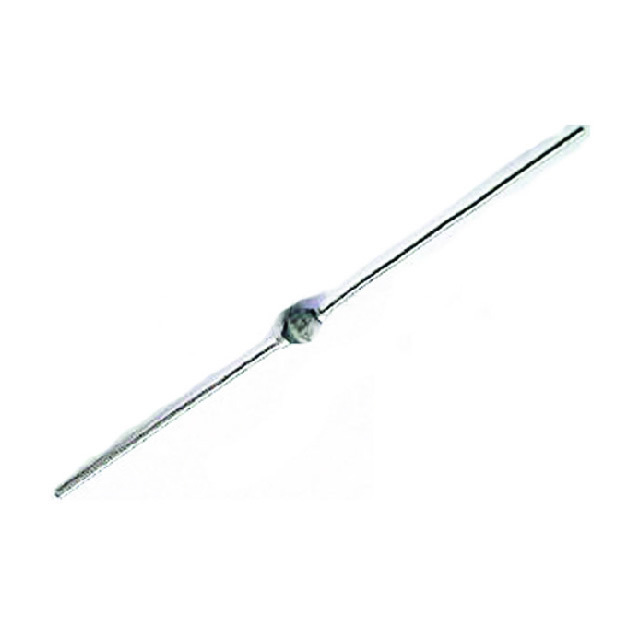

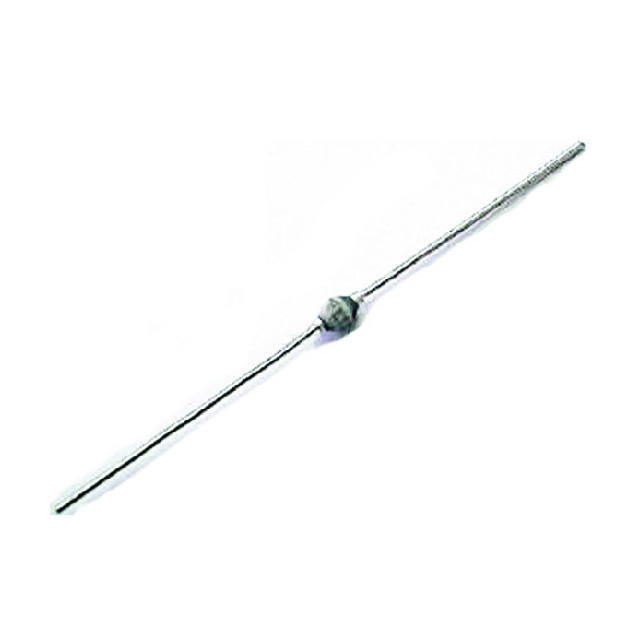

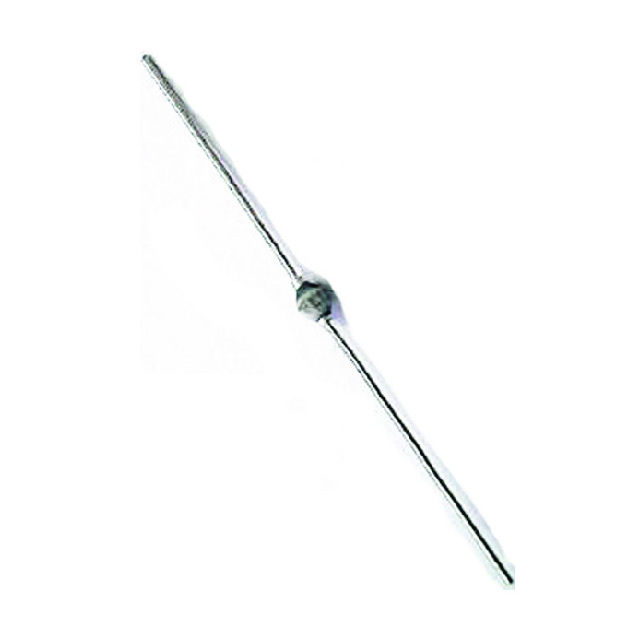

S1G40Z SemiConductor CASE: DO204AP MAKE: Shindengen
Product specifications
Equivalent S1G40
Type SemiConductor
Case DO204AP
Manufacturer Shindengen
@Temp. (test) (°C) 100
VRRM 400
1-Cycle Surge Current (A) 40
@Temp. (test) for Vf) 25
Vf Max. 1.05
Ir @25°C 5u
I(out) (If AVG) Max. 1.0
@Volts (test) (V) 400
@If (test) 1.0
Oper. Temp (°C) Max. 175
Surface Mounted Yes/No NO
SKU 577027
