S1M

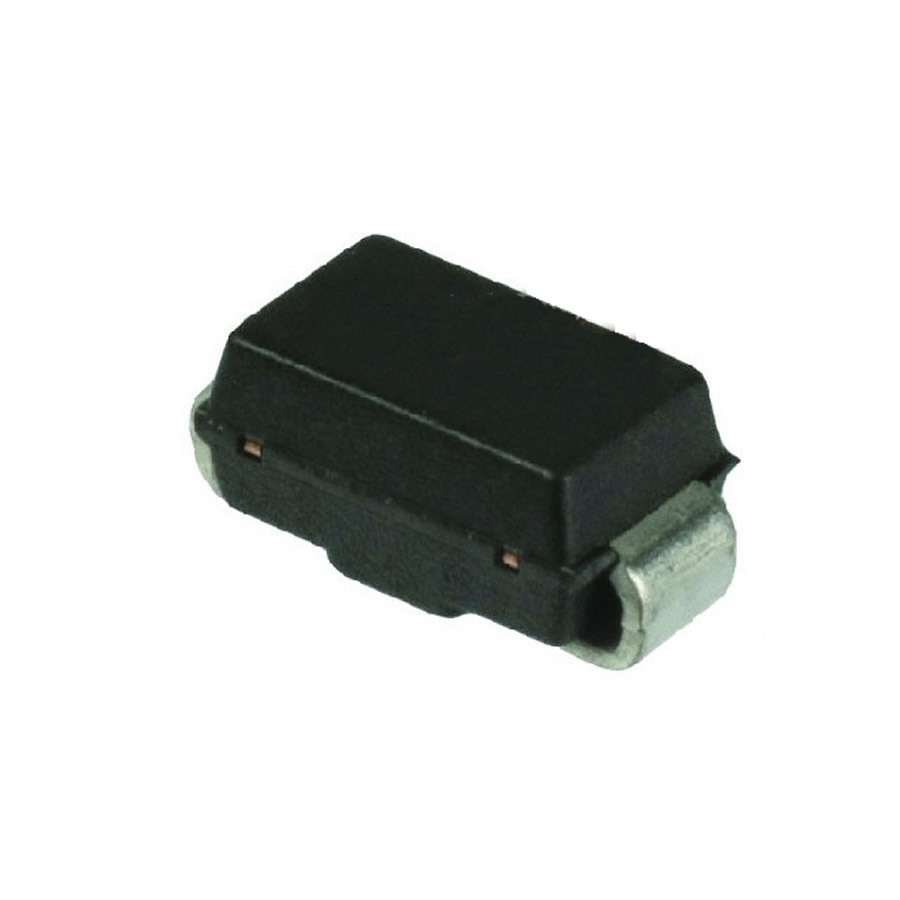

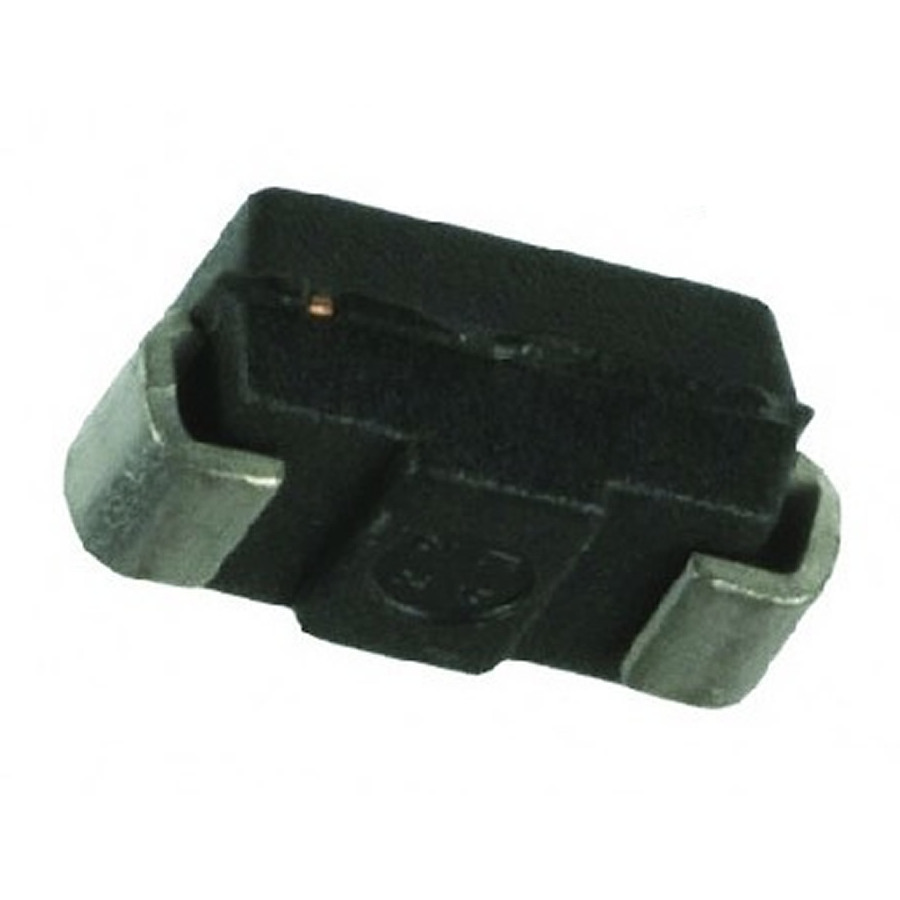

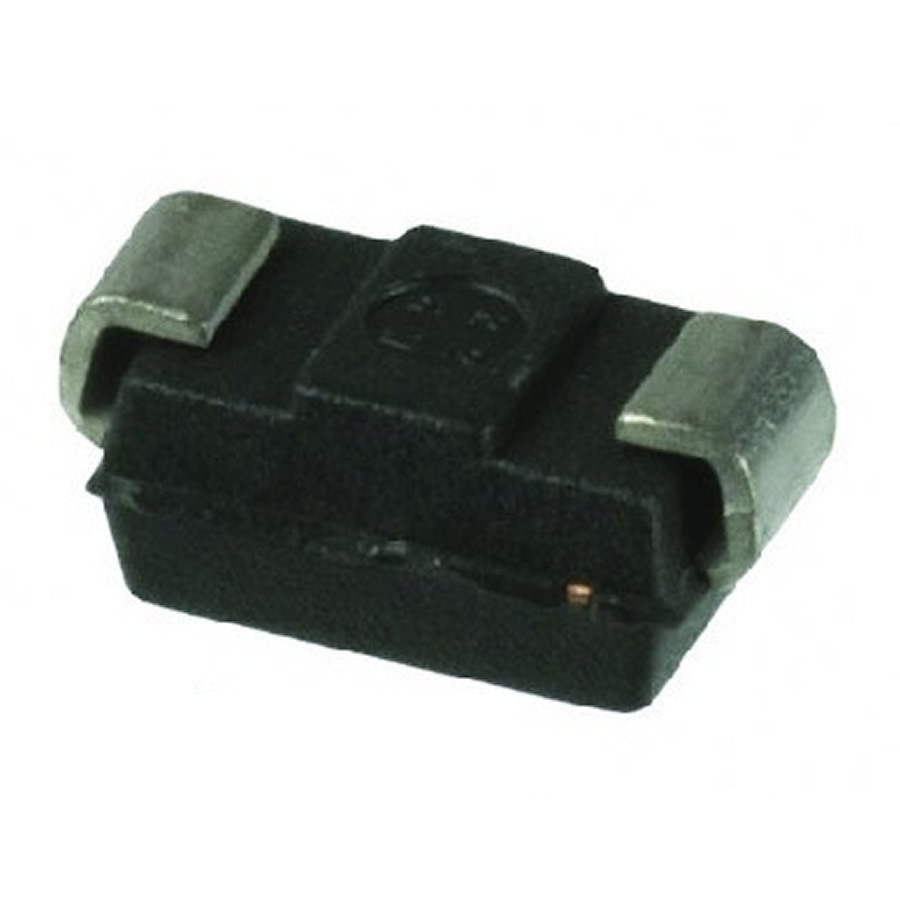

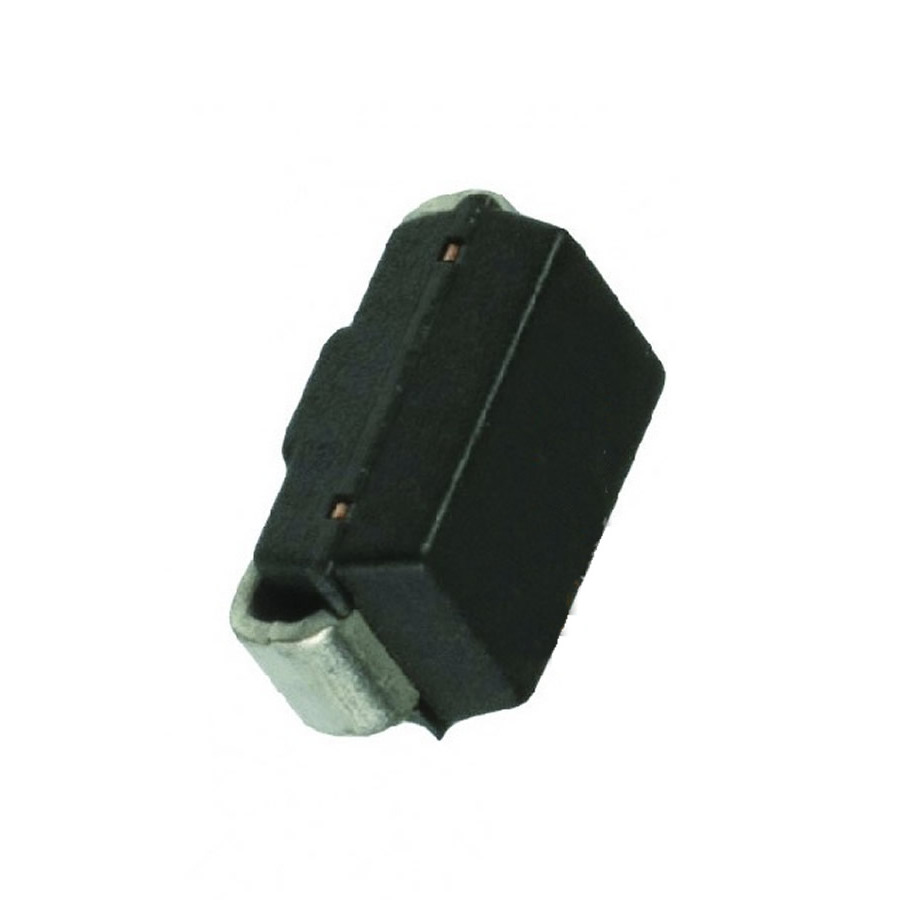

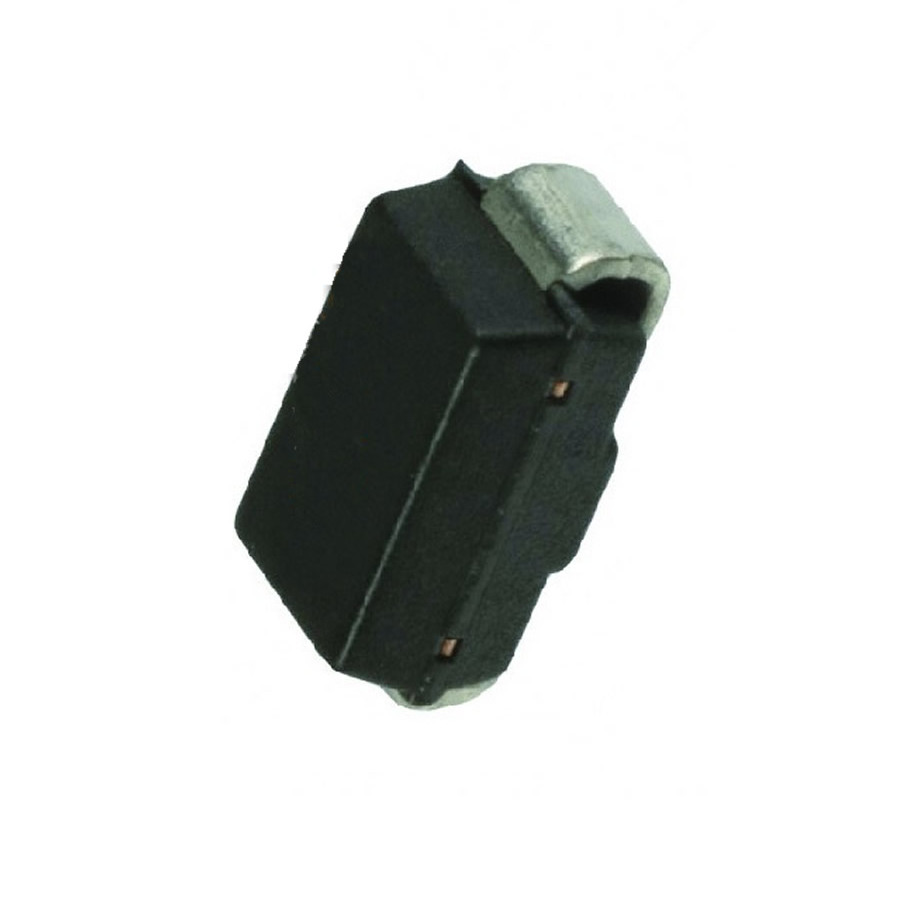

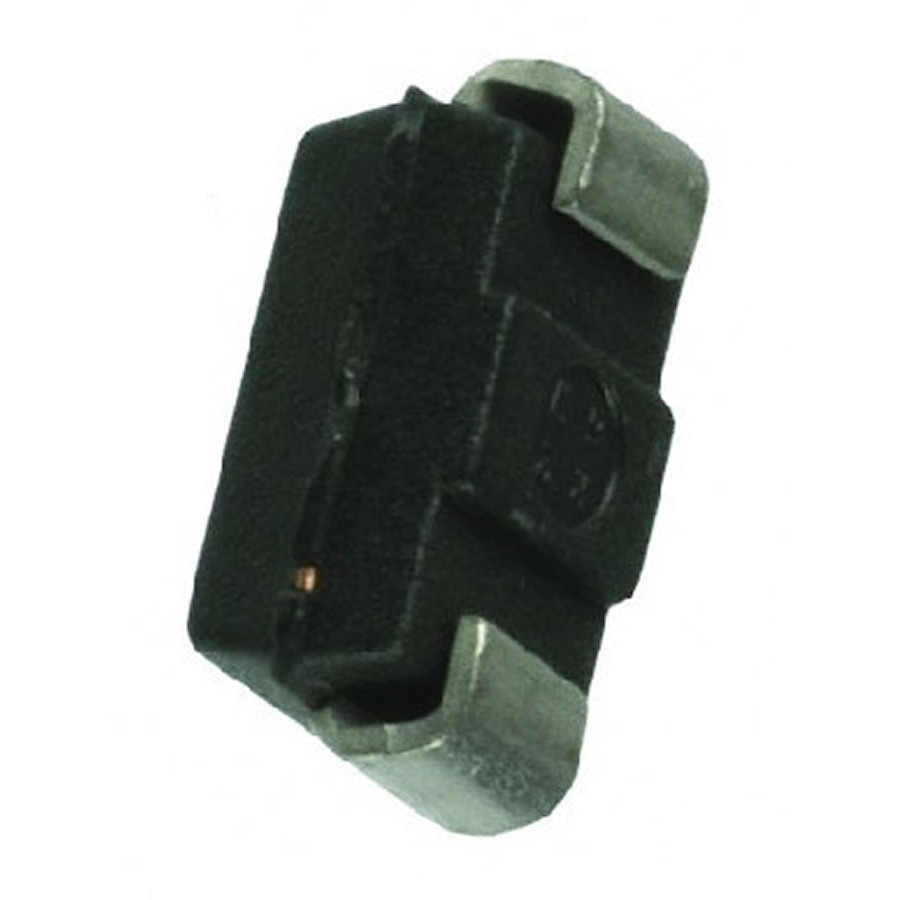

View detailed images (8)

S1M

SKU: S1M
S1M SemiConductor - CASE: DO214AC MAKE: DIOTEC
Price: £4.79
+ VAT 20% for UK purchases
£4.79
Qty
+ VAT 20% for UK purchases
  • 38 pieces in 1-2 Days
  • More pieces shipped in 14 days
Product specifications
Case DO214AC
Equivalent S1M-SMD
Type Silicon Diode
Manufacturer Diotec
Dv/Dt Worst Case 5.0-
Firing Char-Igt Max. 200u
Firing Char-Vgt Max. 800m
I(h) Max. (A) 5.0m
@Temp. (test) (°C) 75
Id(off) Max. (A) 100u
Ir @ Diff. Temp (A) 50
@It (test) (A) 10m
It(stat) Max. (A) 1.2
VRRM 1.0k
Supp Curr. I(TSM) 20
1-Cycle Surge Current (A) 30
t(switch) Off Typ. Time (S) 2.2u
@Temp (test) (°C) 125
@Temp. (test) for Vf) 25
V(drm) Max. 600
Vf Max. 1.1
Ir @25°C 10u
V(T) Max. 1.6
I(out) (If AVG) Max. 1.0
@Volts (test) (V) 1.0k
@If (test) 1.0
@Temp. (test) (°C) 110#
@Temp. (test) (°C) 50#
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 110
@It (A) 1.2
Surface Mounted Yes/No NO
SKU 487273
