S2055AF
View detailed images (4)

S2055AF

SKU: S2055AF

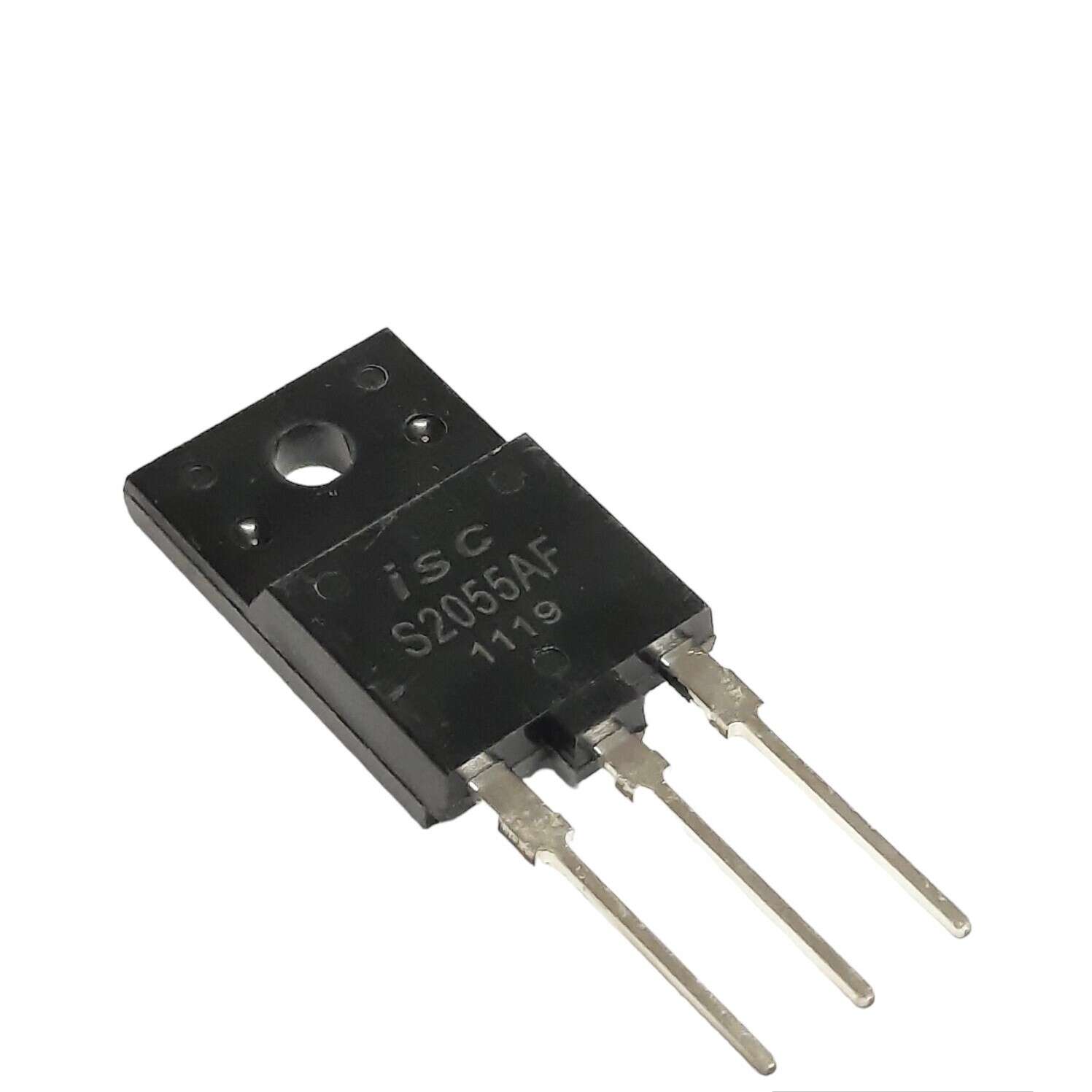

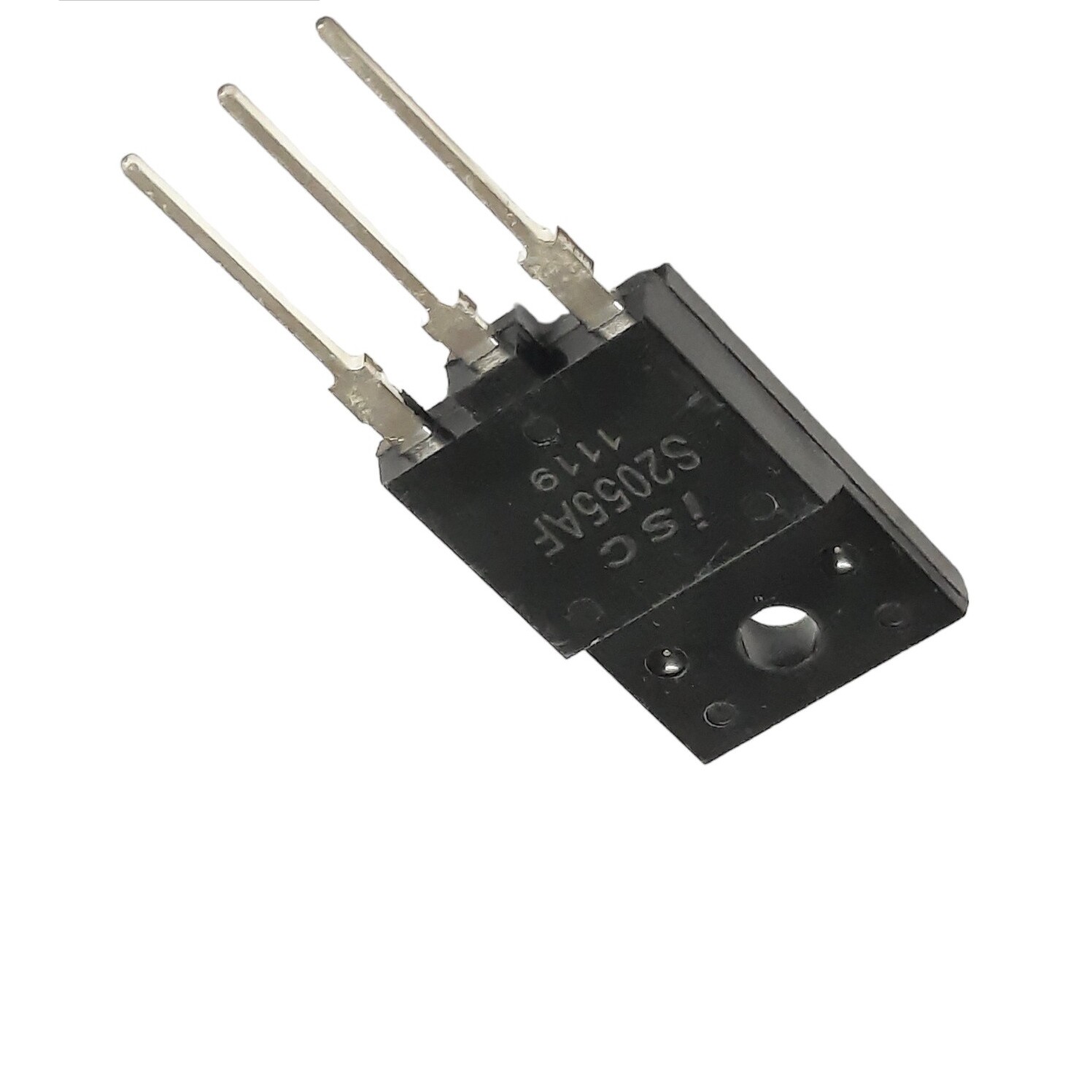

S2055AF Transistor Silicon NPN - CASE: Standard MAKE: Toshiba
Price: £4.79
+ VAT 20% for UK purchases
£4.79
Qty
+ VAT 20% for UK purchases
  • 56 pieces in 1-2 Days
  • More pieces shipped in 14 days
Product specifications
Type Transistor Silicon NPN
Manufacturer Inchange Semiconductor - ISC
Case TO218F
Polarity NPN
Maximum Collector Power Dissipation (Pc) 50 W
Maximum Collector-Emitter Voltage |Vce| 1500 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 8 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 125 pF
Transition Frequency (ft): 3 MHz
Forward Current Transfer Ratio (hFE), MIN 2.2
SKU 80521
