S220

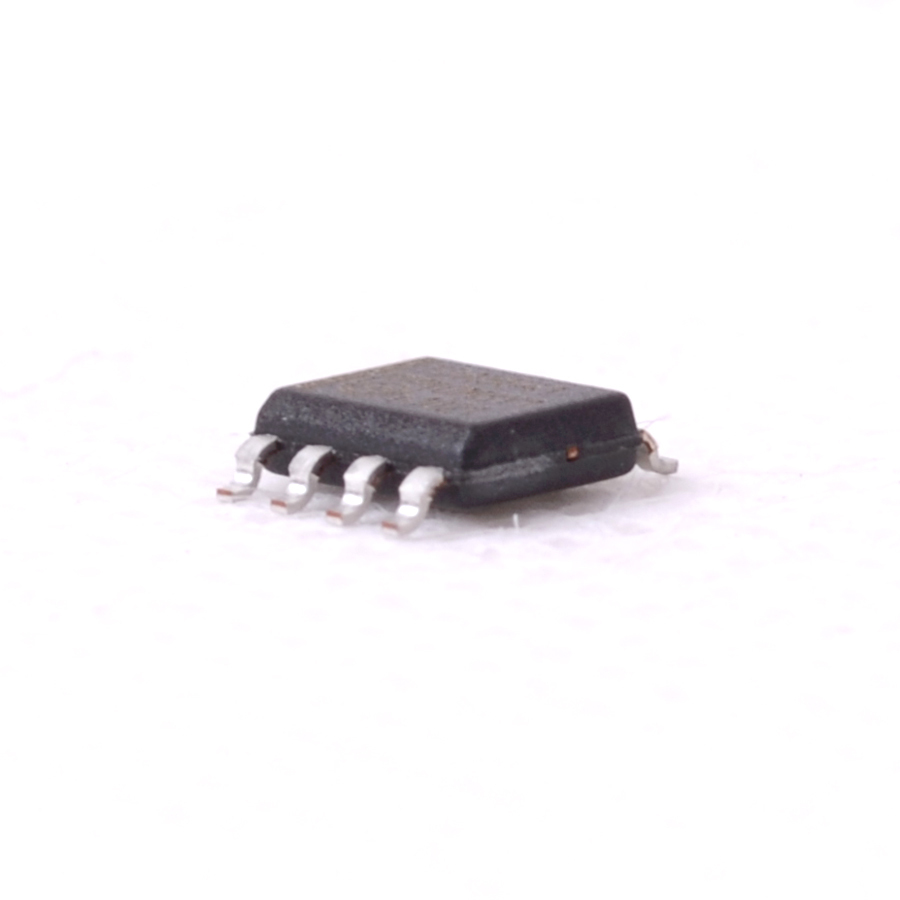

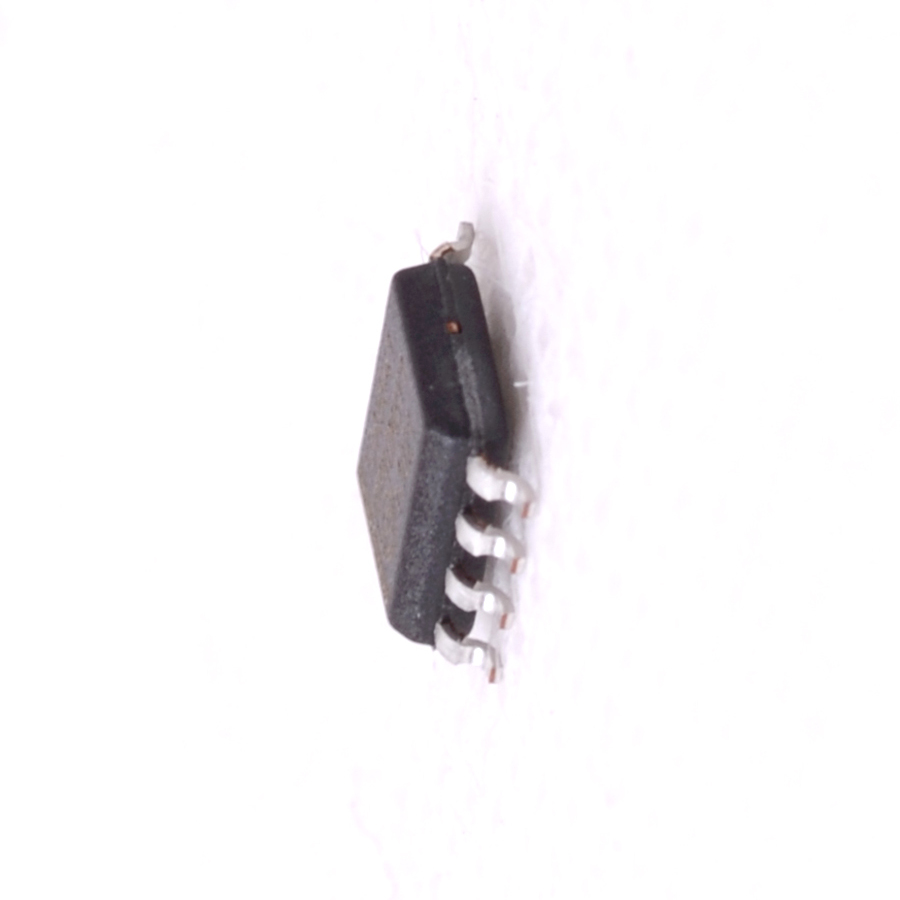

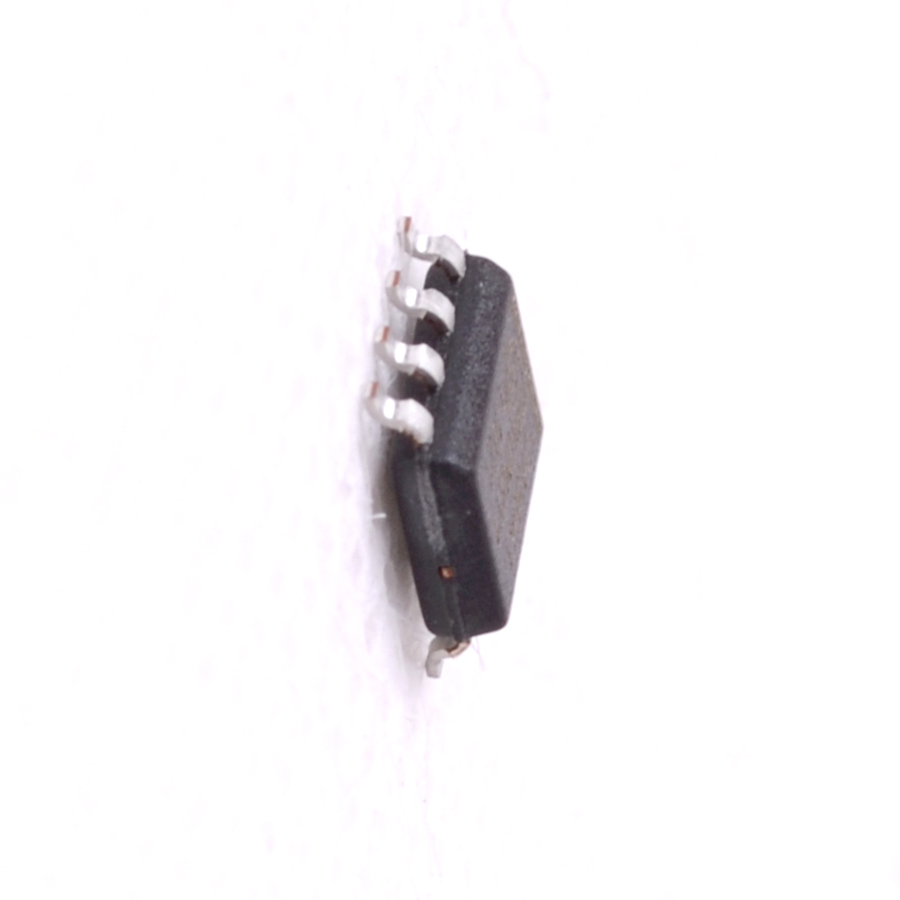

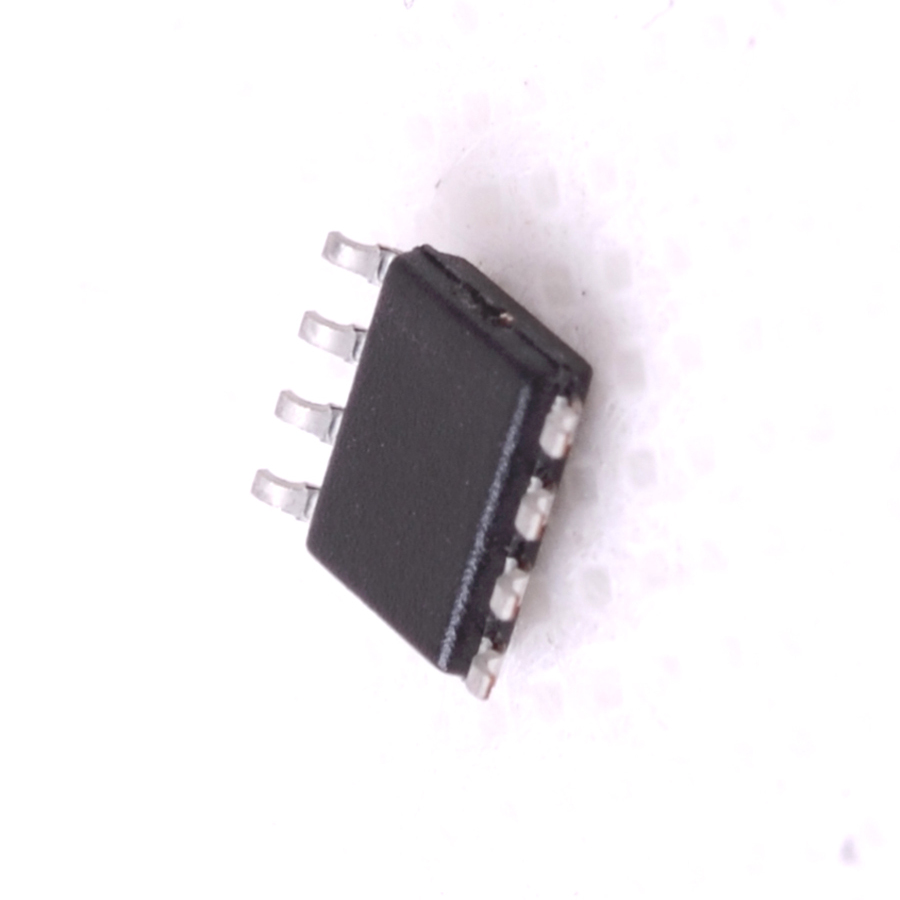

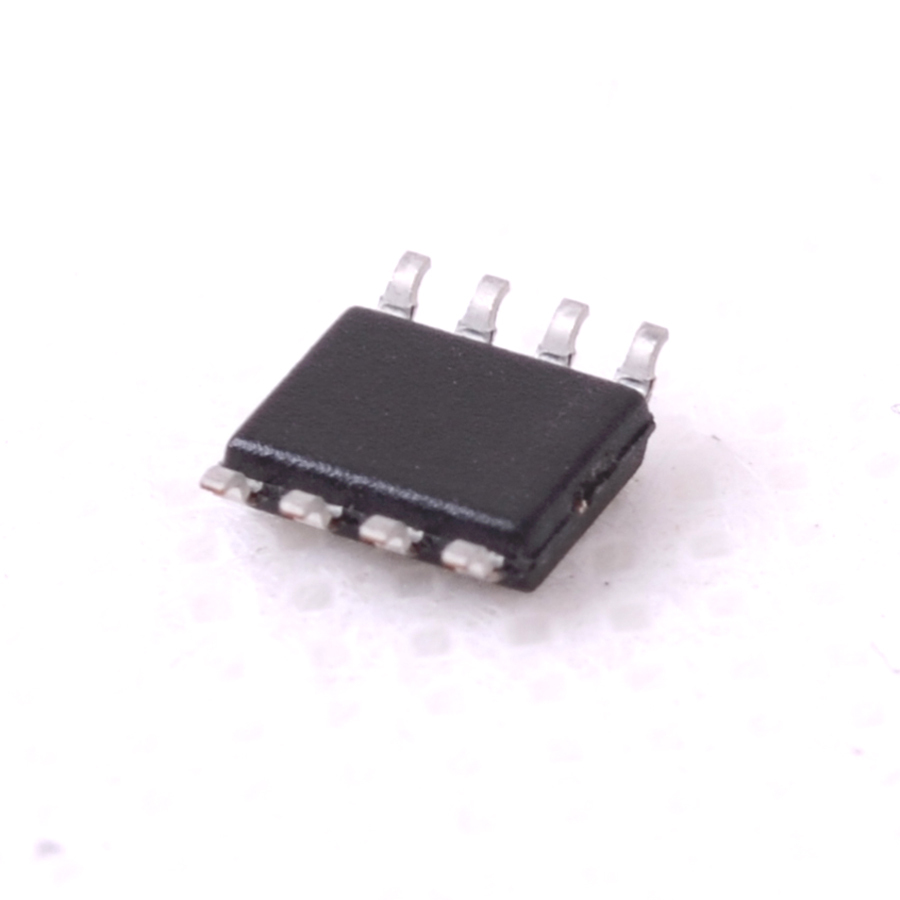

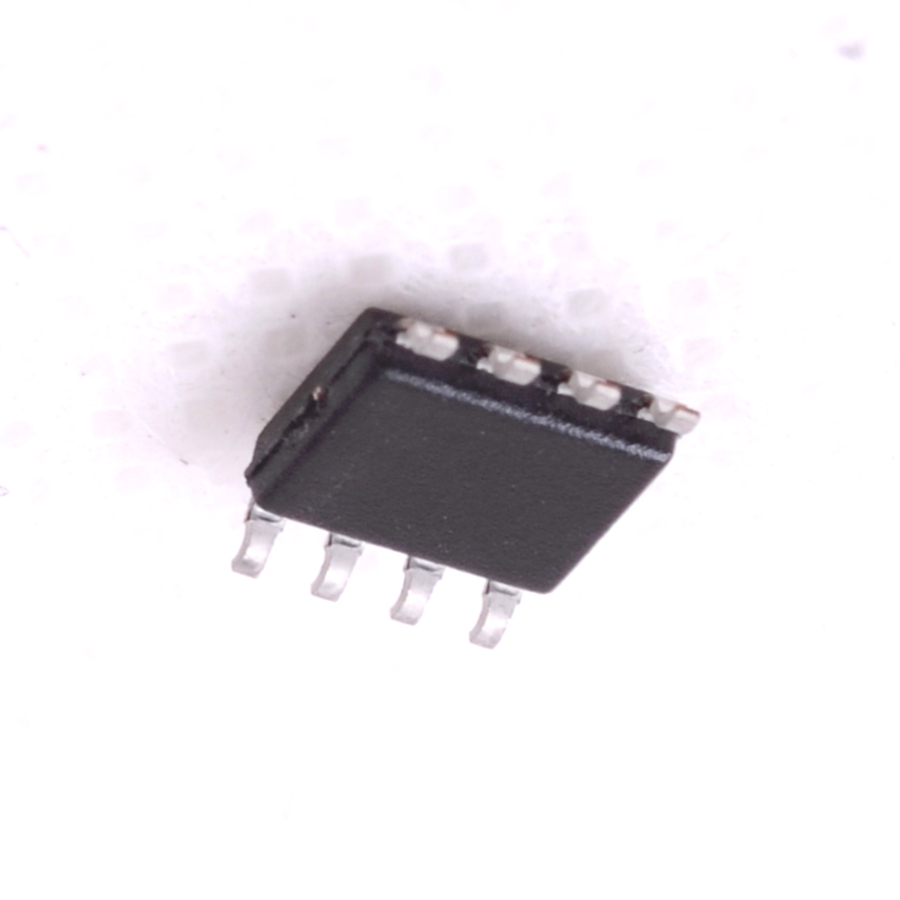

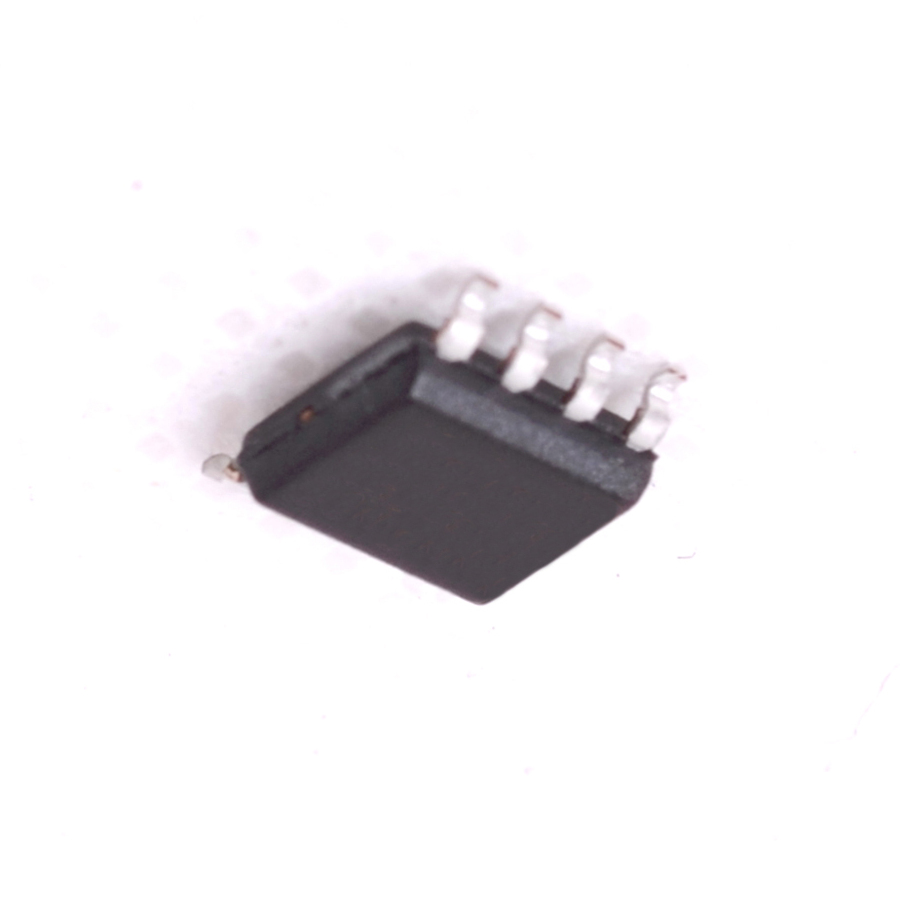

View detailed images (13)

S220

SKU: S220

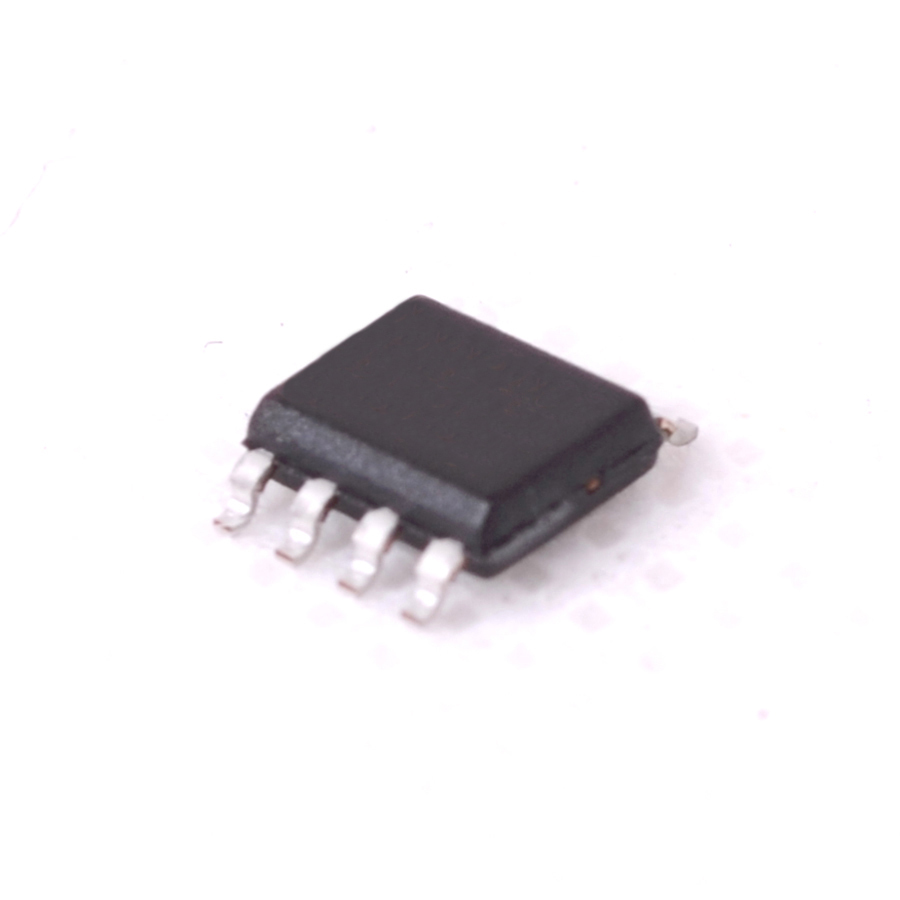

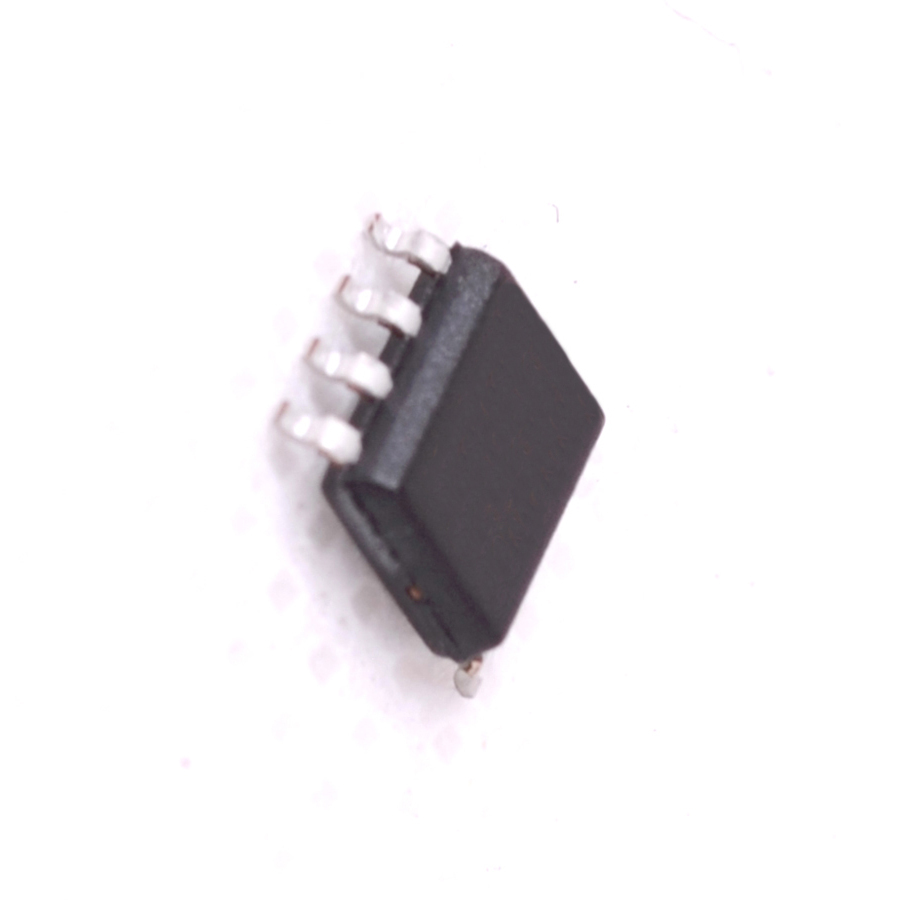

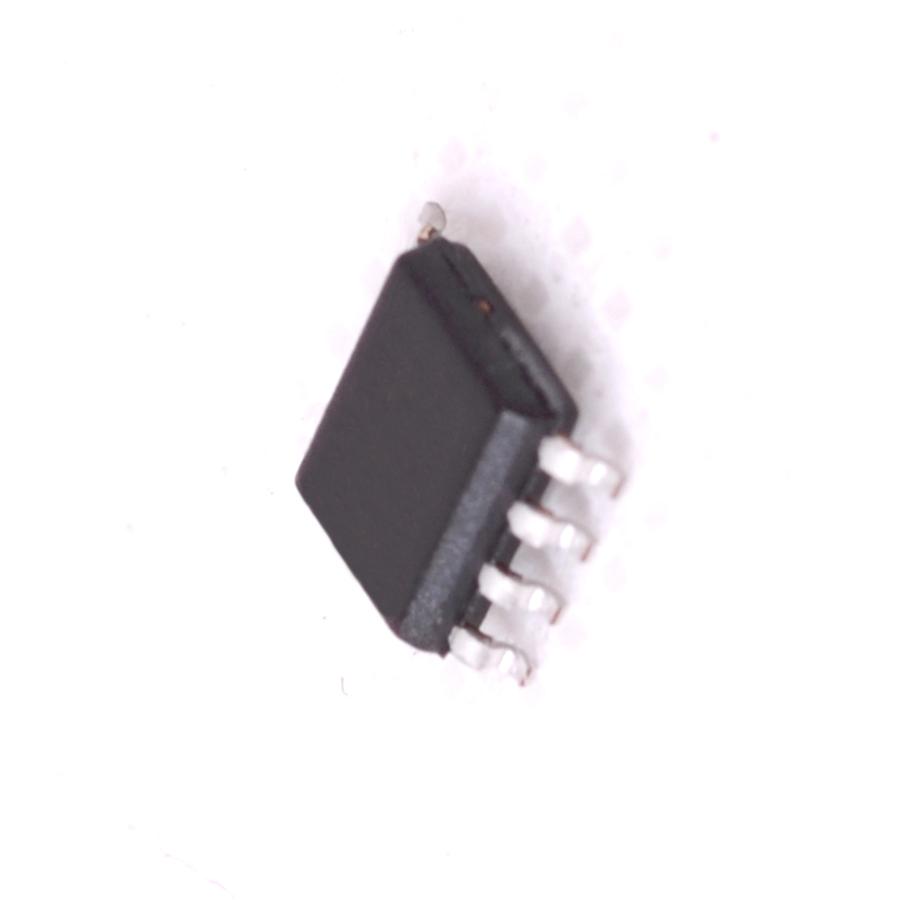

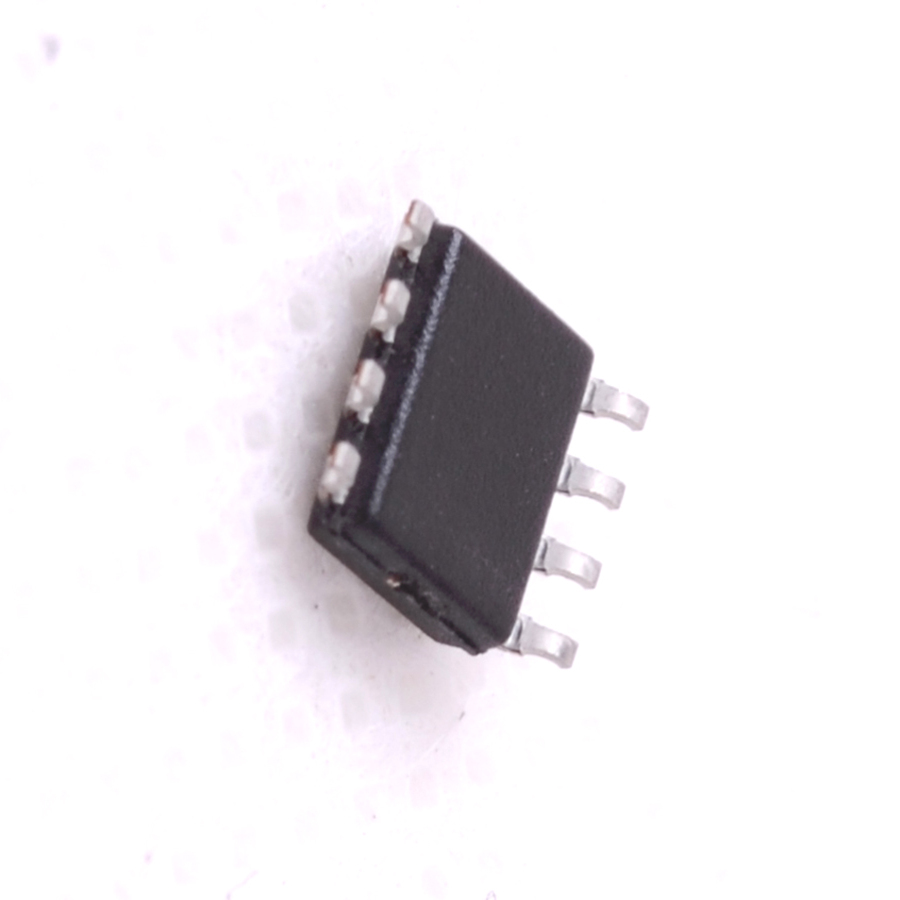

S220 SemiConductor CASE: SOP8 MAKE: HUT
Product specifications
Type SemiConductor
Case SOP8
Manufacturer HUT
Dv/Dt Worst Case 100-
Firing Char-Igt Max. 25m
Firing Char-Vgt Max. 2.0
I(h) Max. (A) 50m
@Temp. (test) (°C) 100
Id(off) Max. (A) 2.0m
Ir @ Diff. Temp (A) 300u
It(stat) Max. (A) 20
VRRM 50
Supp Curr. I(TSM) 200
1-Cycle Surge Current (A) 15
t(switch) Off Typ. Time (S) 2.5u
@Temp (test) (°C) 150
@Temp. (test) for Vf) 25
V(drm) Max. 200
Vf Max. 1.0
Ir @25°C 2.0u
V(T) Max. 1.9
I(out) (If AVG) Max. 500m
@Volts (test) (V) 50
@If (test) .80
@Temp. (test) (°C) 100
@Temp. (test) (°C) 75#
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 100
@It (A) 40
Surface Mounted Yes/No NO
SKU 286659
