S2K

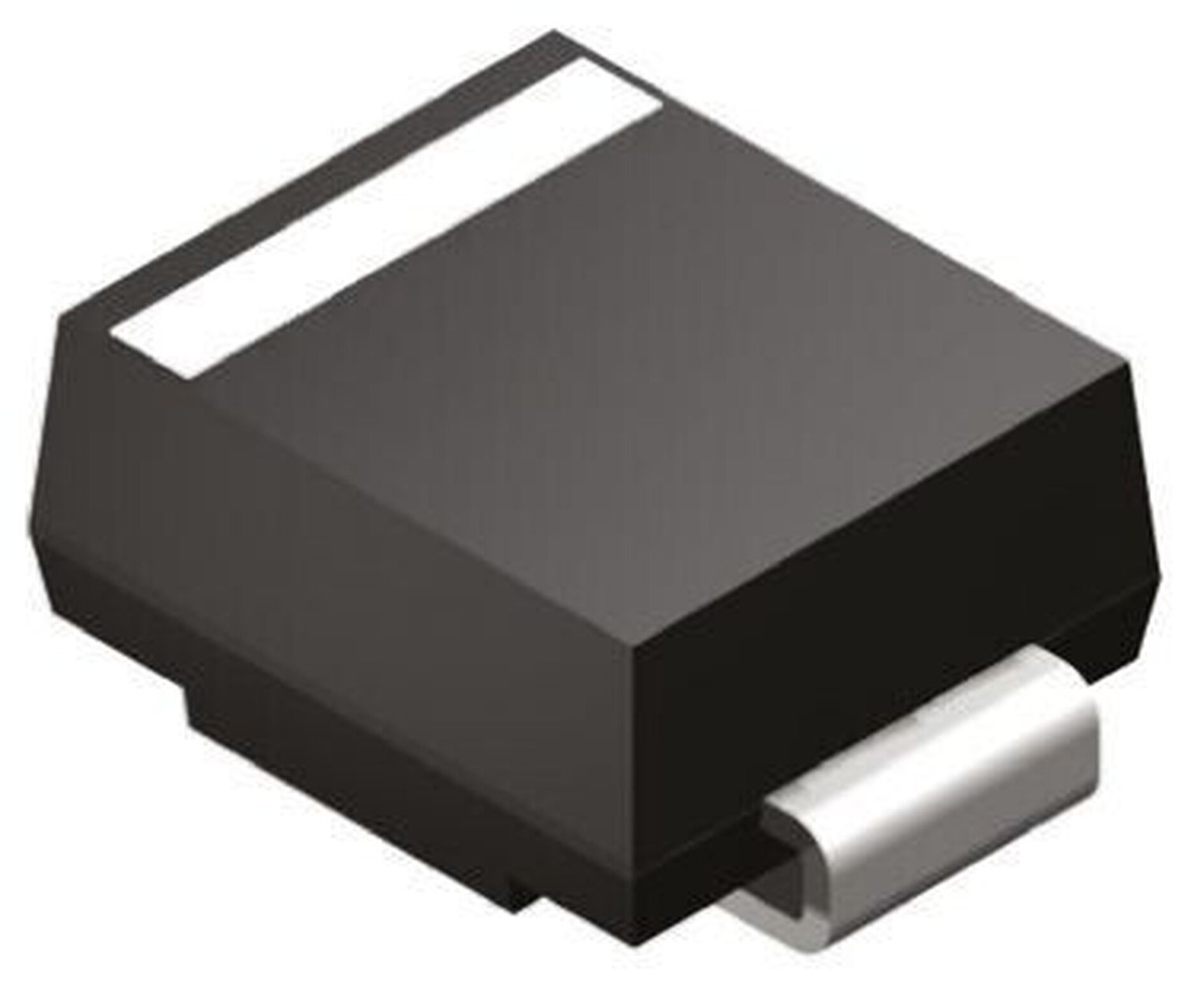

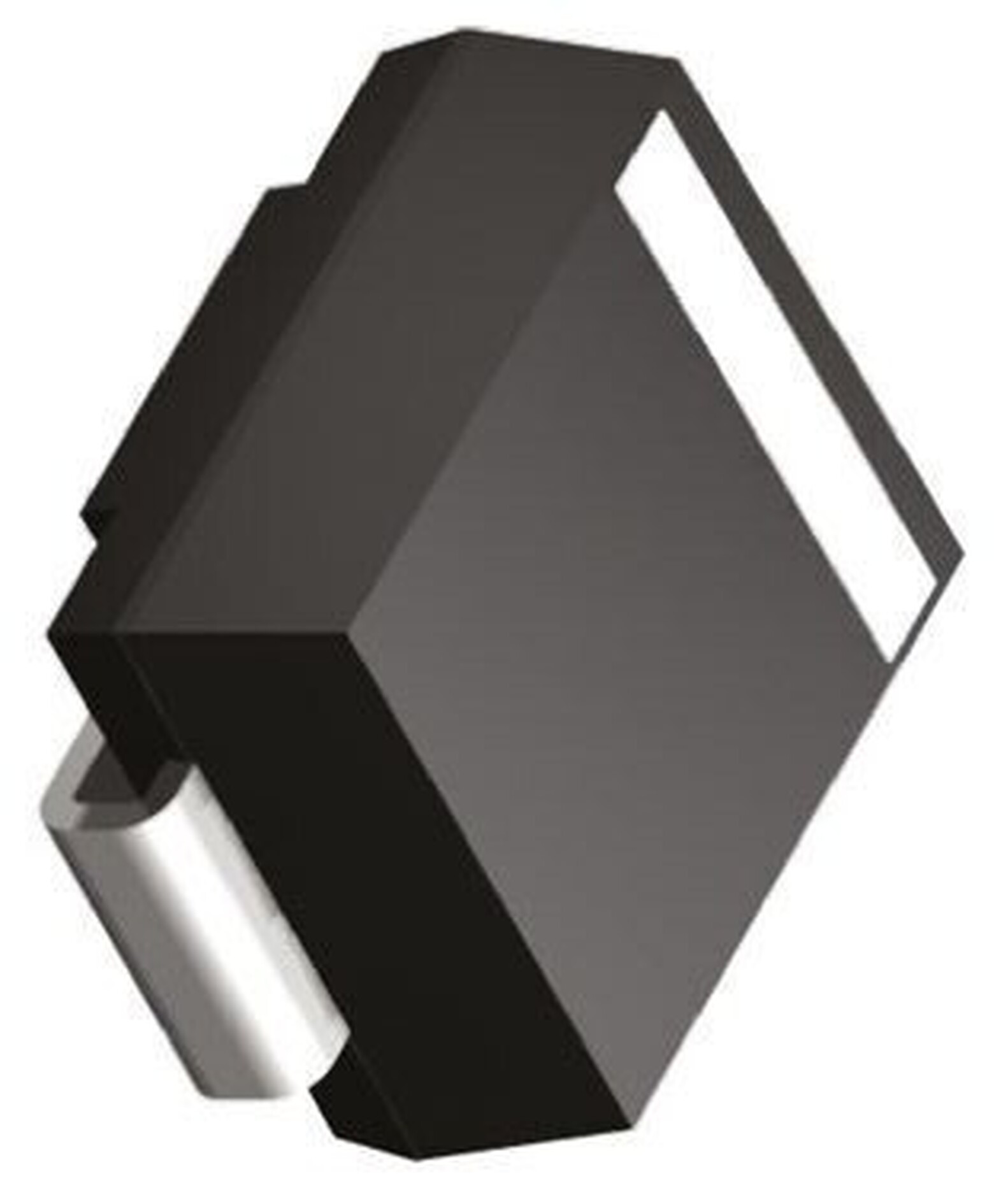

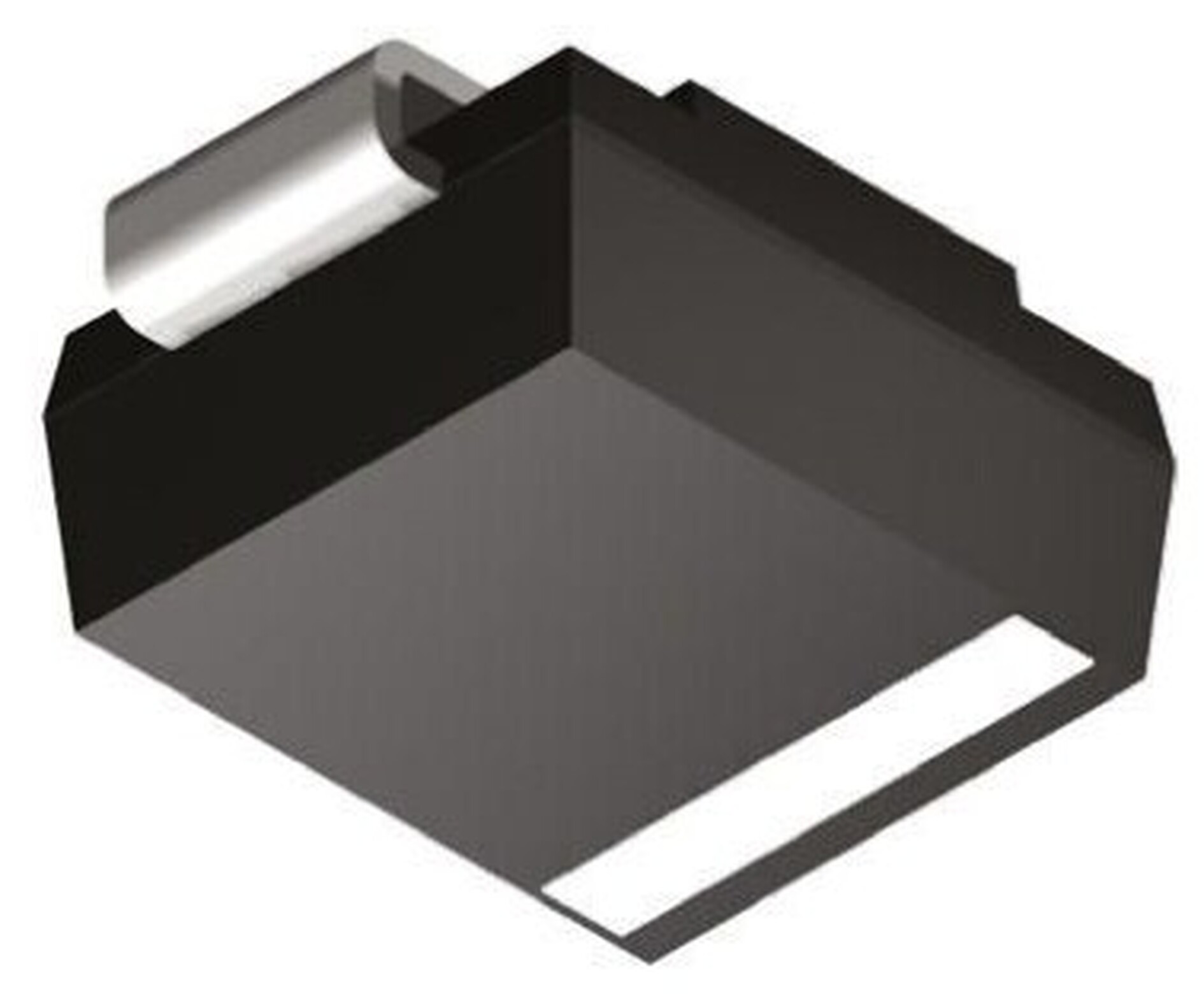

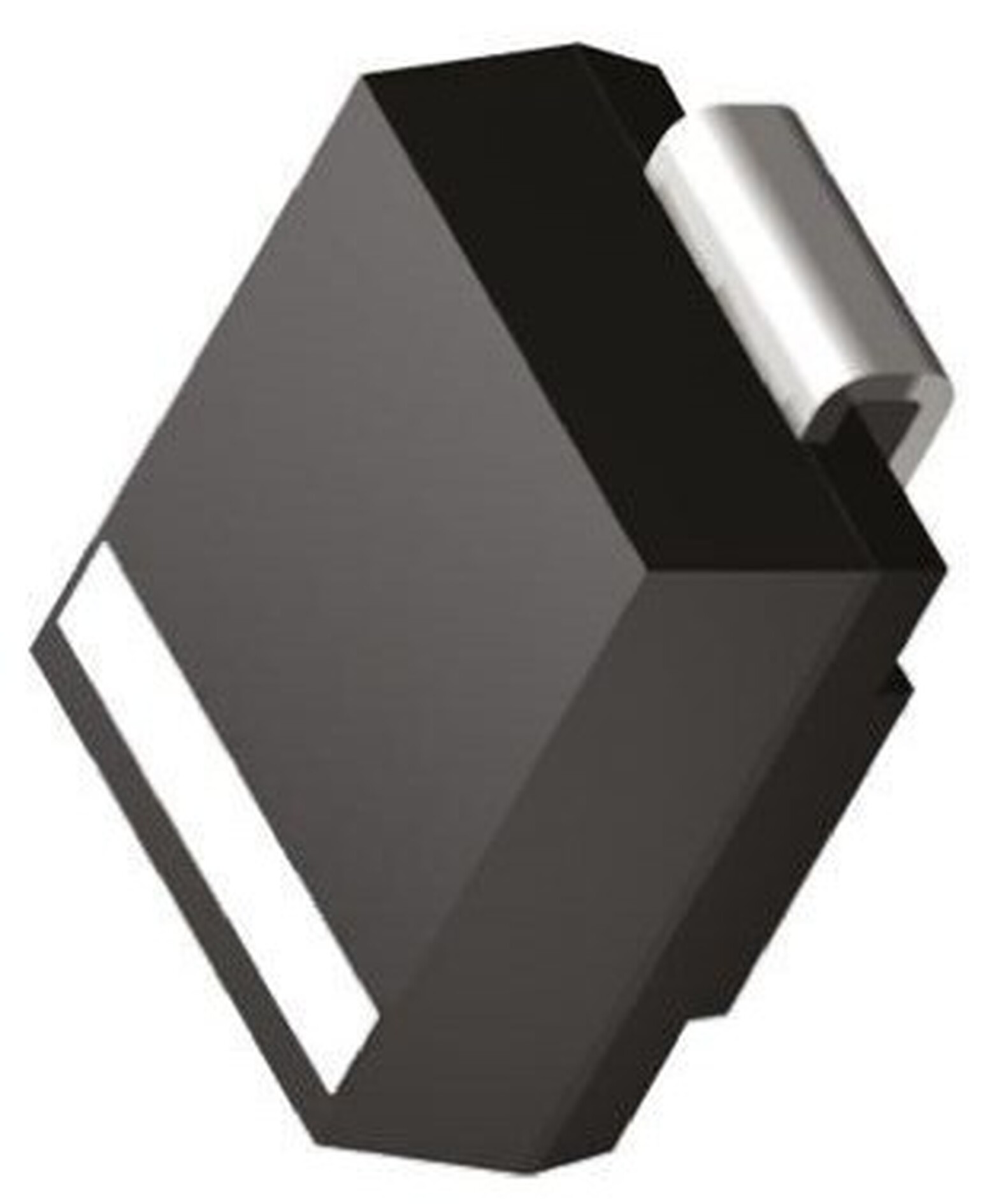

View detailed images (4)

S2K

SKU: S2K
S2K SemiConductor CASE: DO214AA MAKE: Fairchild Semiconductor
Product specifications
Type SemiConductor
Case DO214AA
Manufacturer Fairchild Semiconductor
@Temp. (test) (°C) 100
Ir @ Diff. Temp (A) 125u
VRRM 800
1-Cycle Surge Current (A) 50
@Temp (test) (°C) 125
@Temp. (test) for Vf) 25
Vf Max. 1.15
Ir @25°C 1.0u
I(out) (If AVG) Max. 1.5
@Volts (test) (V) 800
@If (test) 1.5
Oper. Temp (°C) Max. 150
Surface Mounted Yes/No YES
SKU 513134
