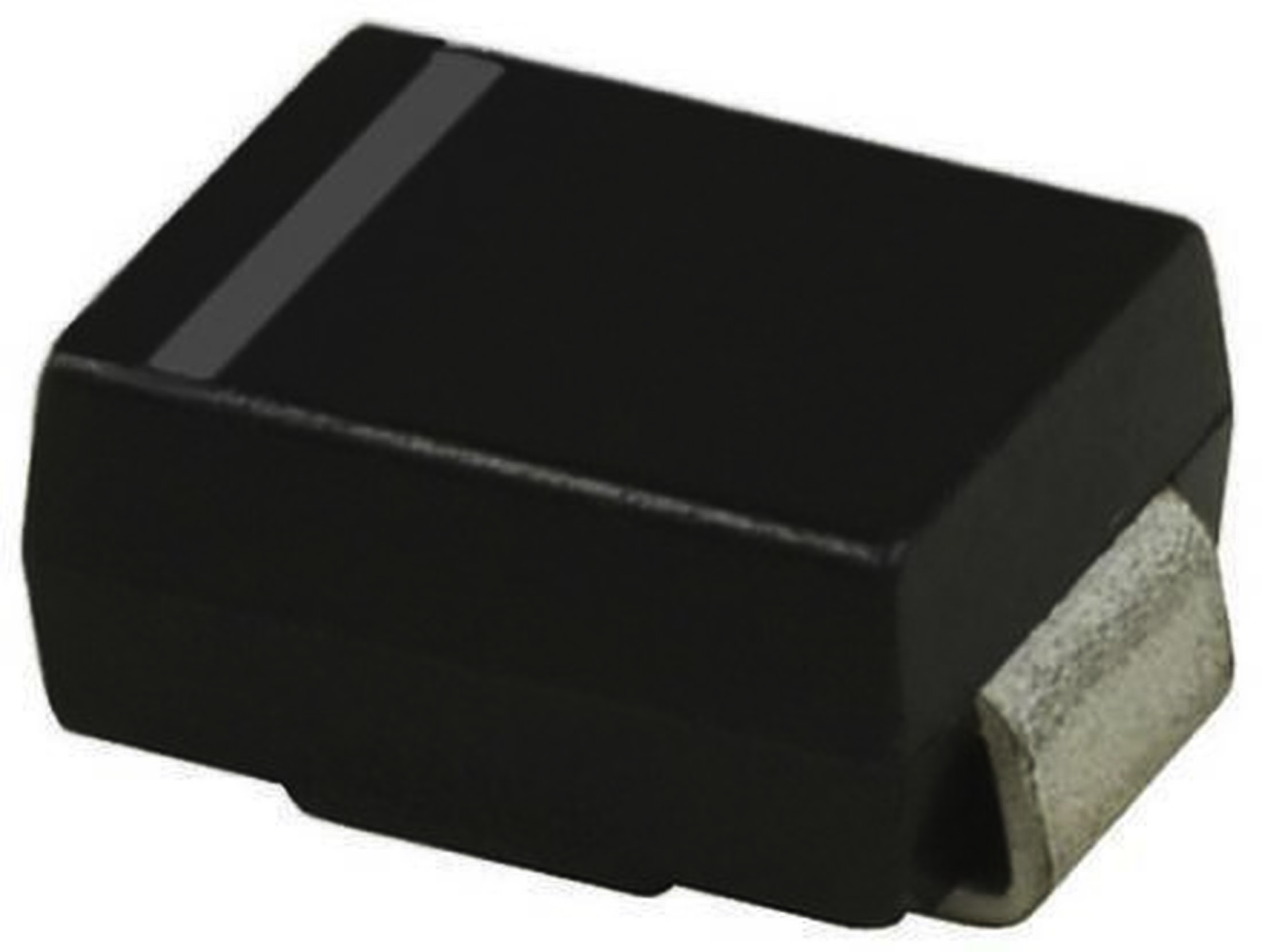

S2M

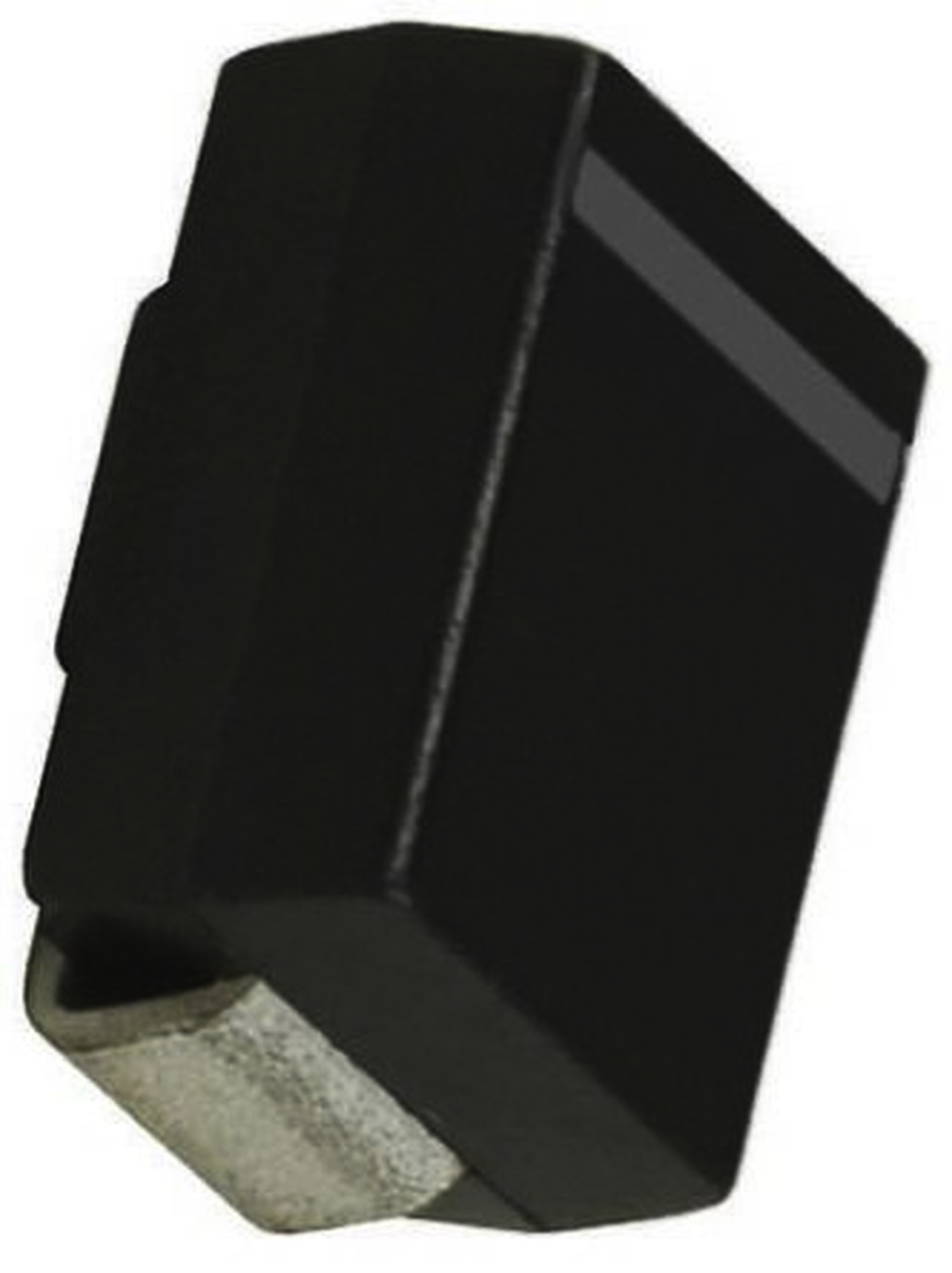

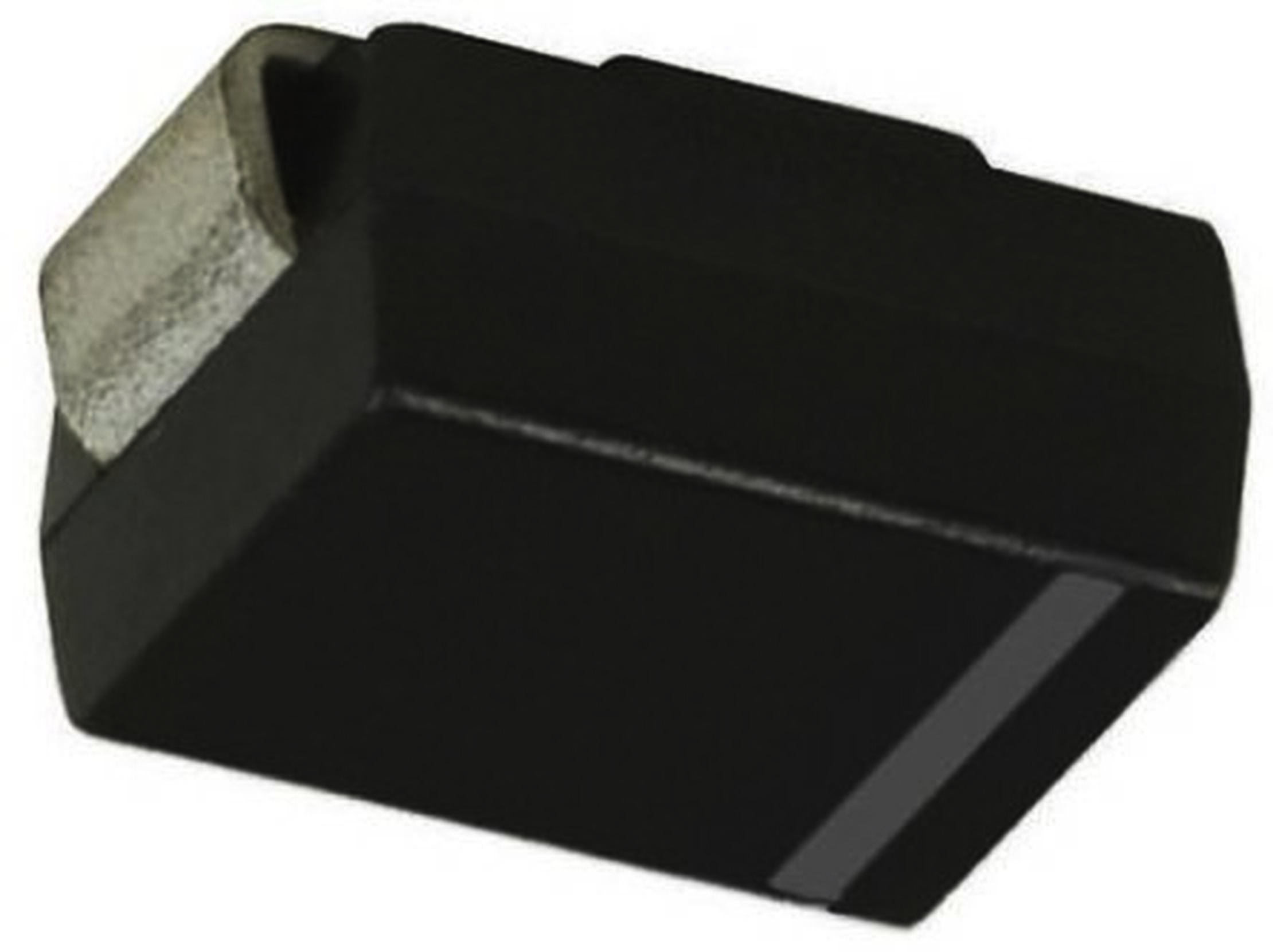

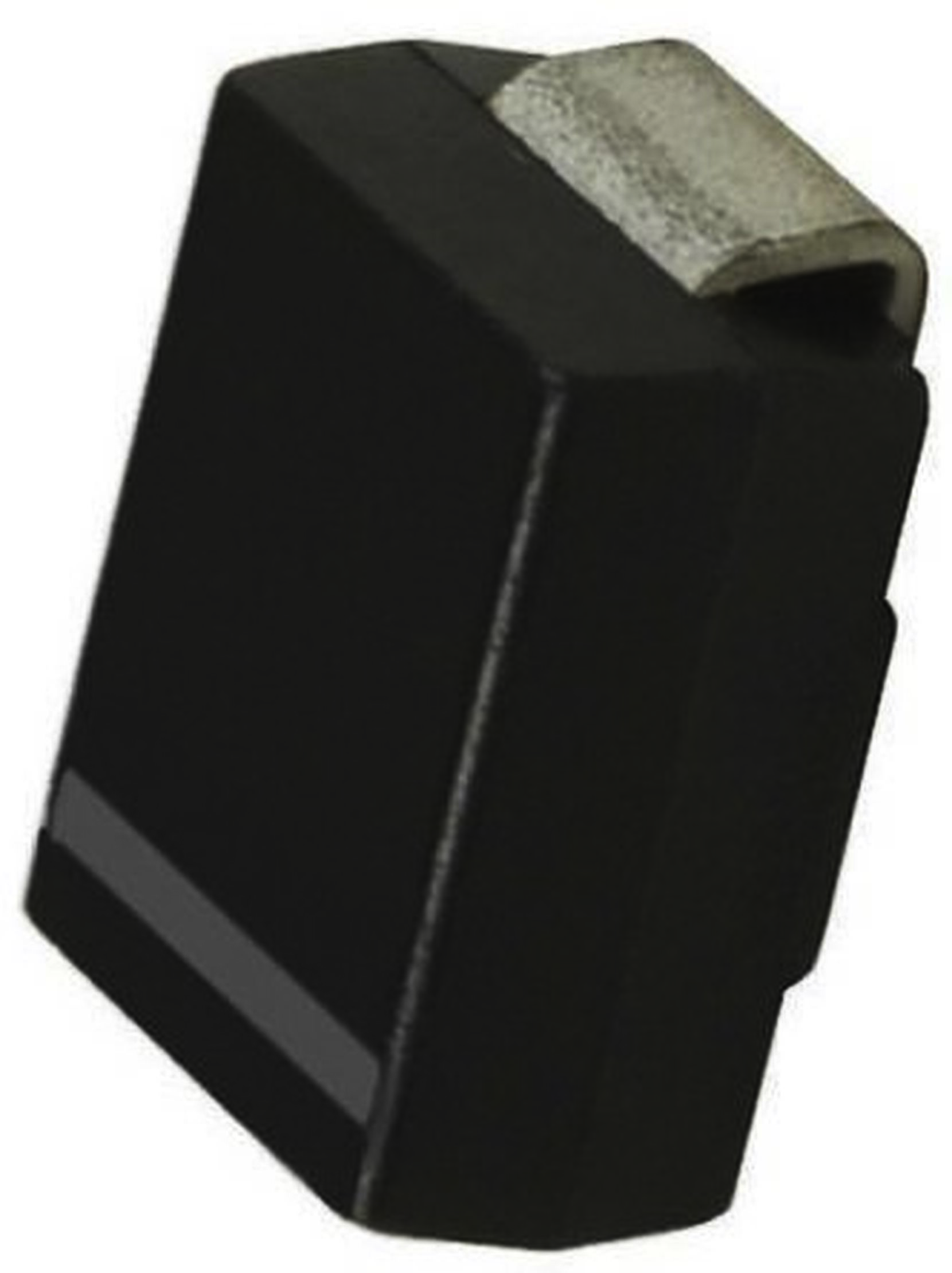

View detailed images (4)

S2M

SKU: S2M
S2M Silicon Diode CASE: DO214AA MAKE: Diotec
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Type Silicon Diode
Case DO214AA
Manufacturer Diotec
Dv/Dt Worst Case 5.0
Firing Char-Igt Max. 200u
Firing Char-Vgt Max. 800u
I(h) Max. (A) 5.0m
@Temp. (test) (°C) 100
Id(off) Max. (A) 100u
Ir @ Diff. Temp (A) 125u
@It (test) (A) 10m
It(stat) Max. (A) 1.5
VRRM 1.0k
Supp Curr. I(TSM) 20
1-Cycle Surge Current (A) 30
t(switch) Off Typ. Time (S) 2.2u
@Temp (test) (°C) 100
@Temp. (test) for Vf) 25
V(drm) Max. 600
Vf Max. 1.1
Ir @25°C 1.0u
V(T) Max. 1.6
I(out) (If AVG) Max. 1.5
@Volts (test) (V) 1.0k
@If (test) 1.0
@Temp. (test) (°C) 110#
@Temp. (test) (°C) 50#
Oper. Temp (°C) Min -40
Oper. Temp (°C) Max. 110
@It (A) 1.5
Surface Mounted Yes/No NO
SKU 488121
