Home / Semiconductors / S30DF12B0
S30DF12B0
View detailed images (5)

S30DF12B0

SKU: S30DF12B0

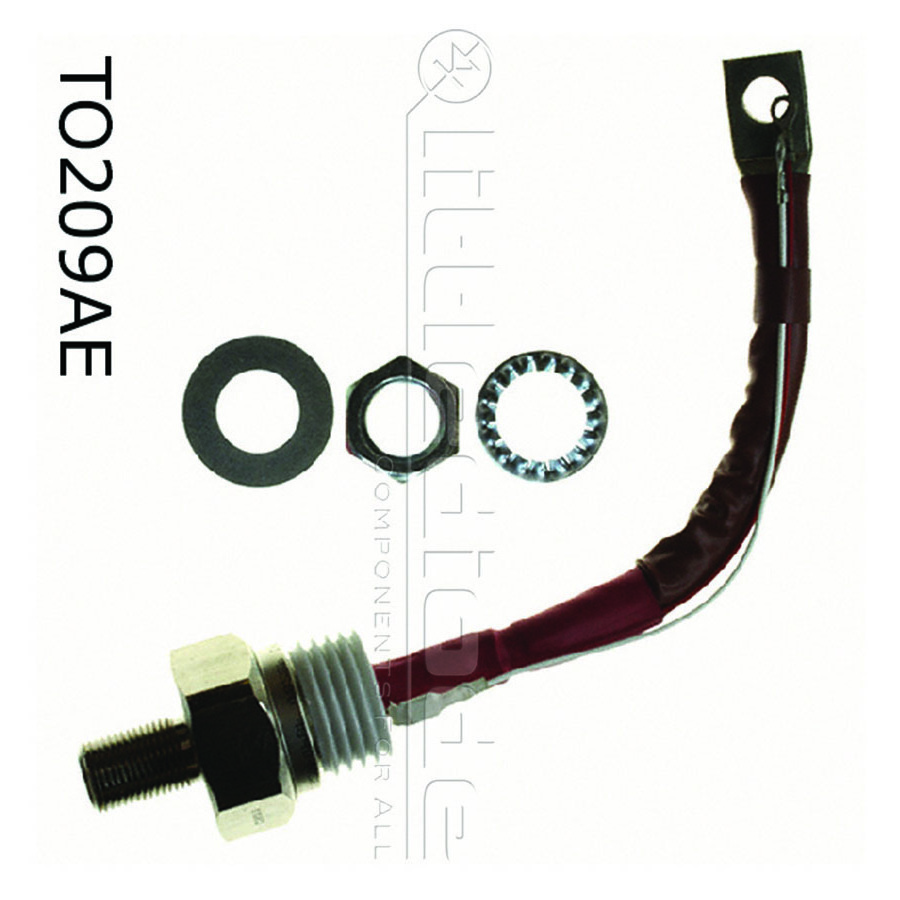

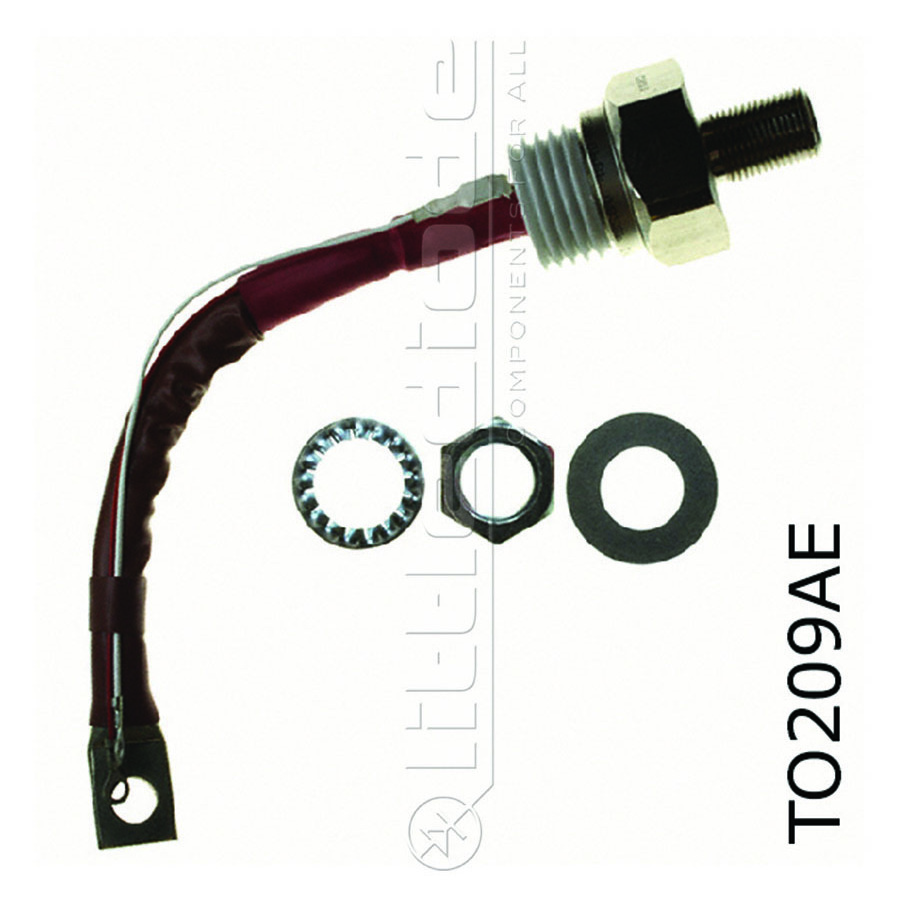

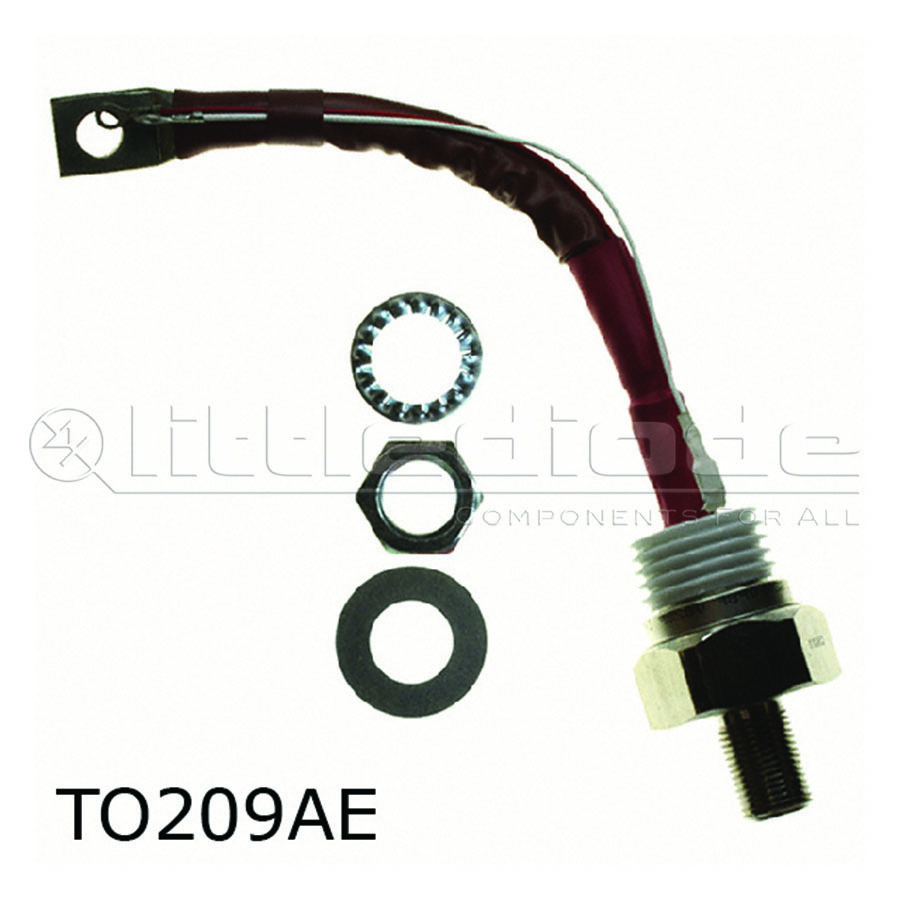

S30DF12B0 Semiconductor CASE: TO209AE MAKE: International Rectifier - IR
Product specifications
Type Semiconductor
Case TO209AE
Manufacturer International Rectifier - IR
Dv/Dt Worst Case 700-
Firing Char-Igt Max. 150m
Firing Char-Vgt Max. 2.5
I(h) Max. (A) 500m
Id(off) Max. (A) 40m
@It (test) (A) 500
It(stat) Max. (A) 180
Supp Curr. I(TSM) 7.7k
t(switch) Off Typ. Time (S) 20u
t(switch) Off Typ. Time (S) 500n
V(drm) Max. 1.2k
V(T) Max. 1.8
@Temp. (test) (°C) 125
@Temp. (test) (°C) 85#
Oper. Temp (°C) Min -45
Oper. Temp (°C) Max. 125
@It (A) 180
Surface Mounted Yes/No NO
SKU 1331109
