S30DF16B0

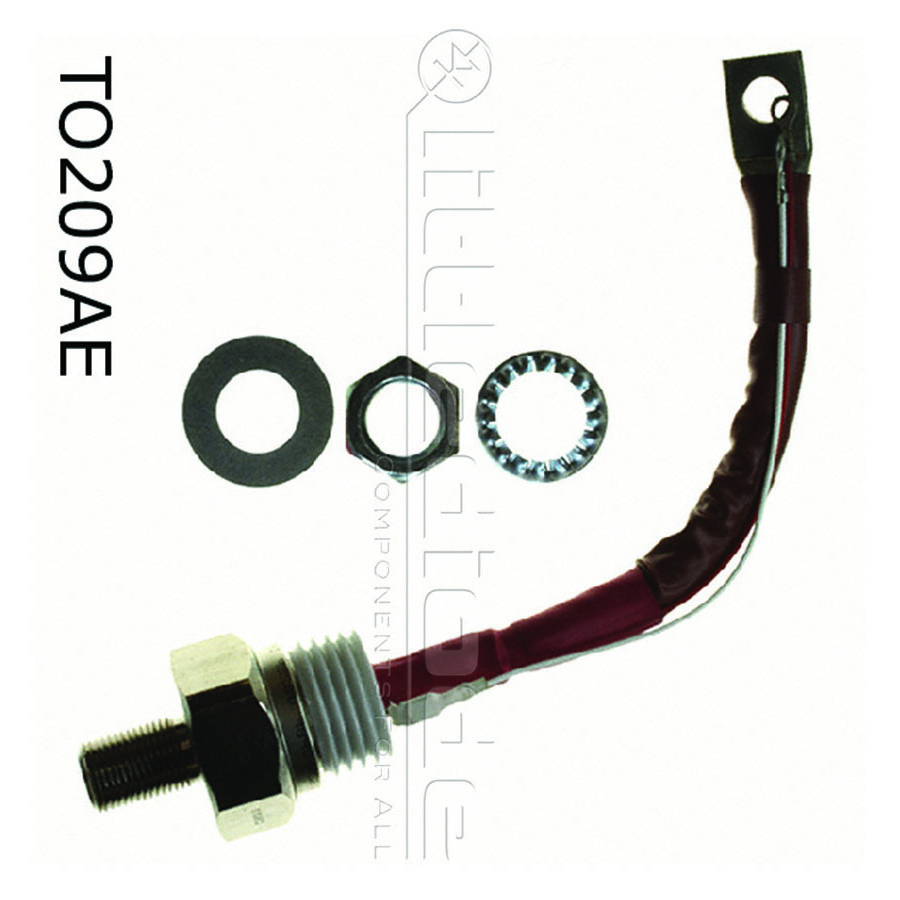

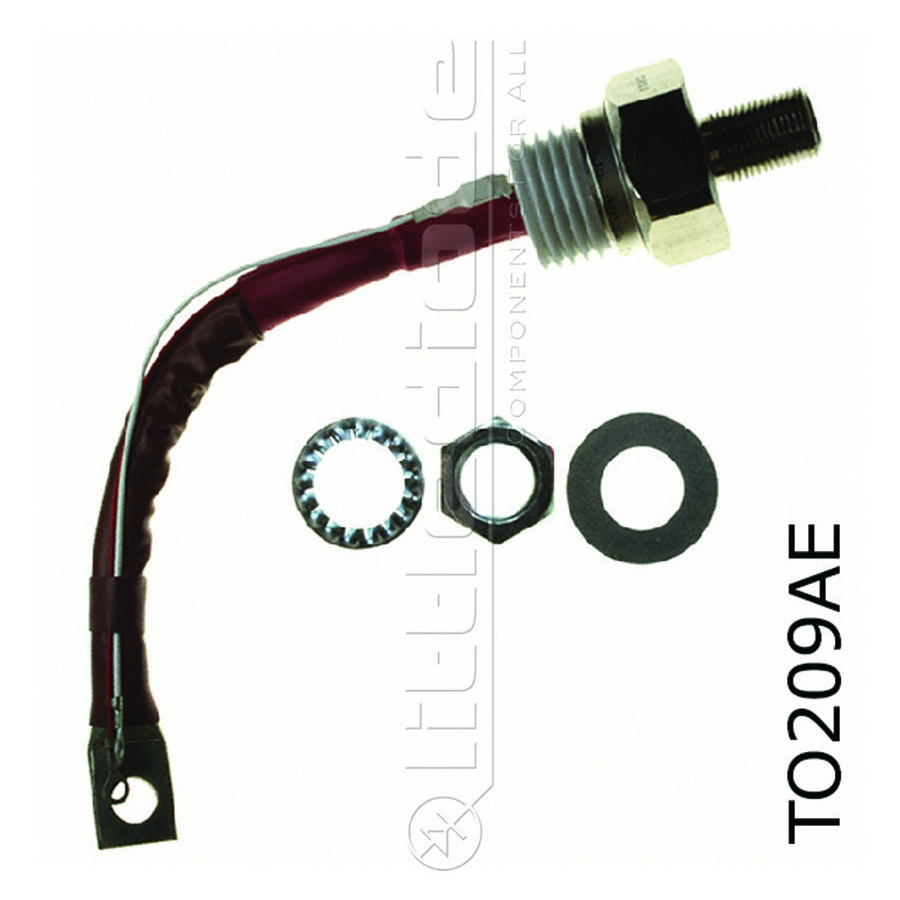

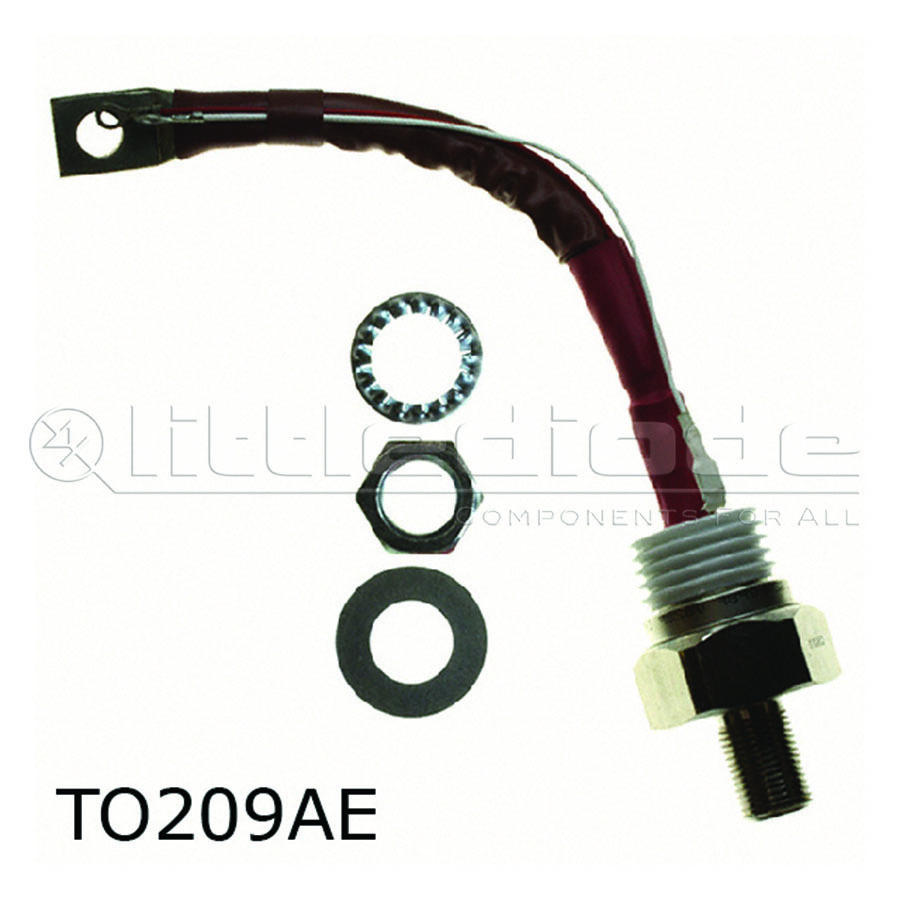

View detailed images (1)

S30DF16B0

SKU: S30DF16B0
S30DF16B0 Semiconductor - Case: Standard Make: INR
+ VAT 20% for UK purchases
Product specifications
Type Semiconductor
Case Standard
Manufacturer International Rectifier - IR
Dv/Dt Worst Case 700-
Firing Char-Igt Max. 150m
Firing Char-Vgt Max. 2.5
I(h) Max. (A) 500m
Id(off) Max. (A) 40m
@It (test) (A) 500
It(stat) Max. (A) 185
Supp Curr. I(TSM) 7.7k
t(switch) Off Typ. Time (S) 40u
t(switch) Off Typ. Time (S) 500n
V(drm) Max. 1.6k
V(T) Max. 1.8
@Temp. (test) (°C) 125
@Temp. (test) (°C) 85#
Oper. Temp (°C) Min -45
Oper. Temp (°C) Max. 125
@It (A) 185
Surface Mounted Yes/No NO
