S320

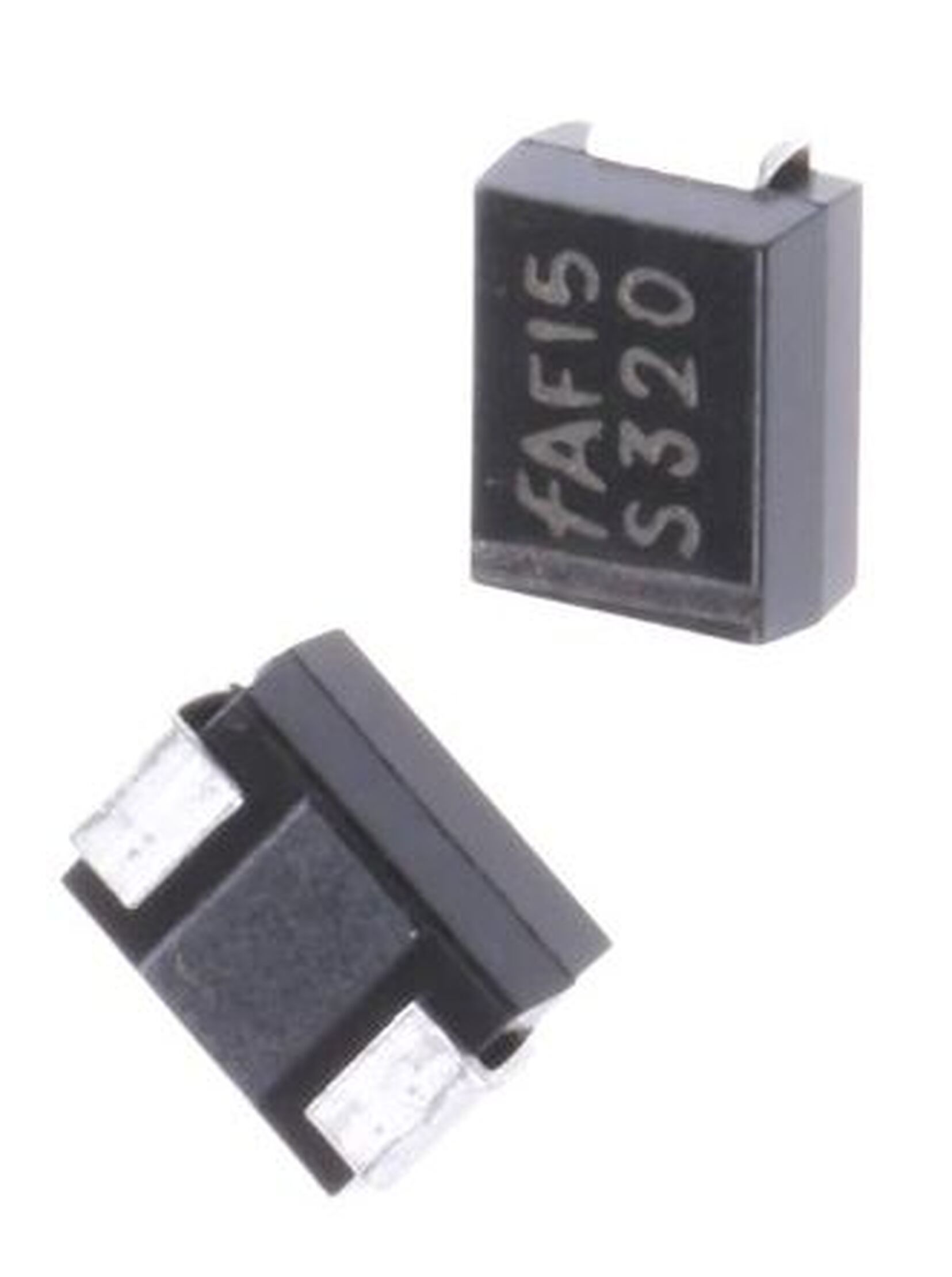

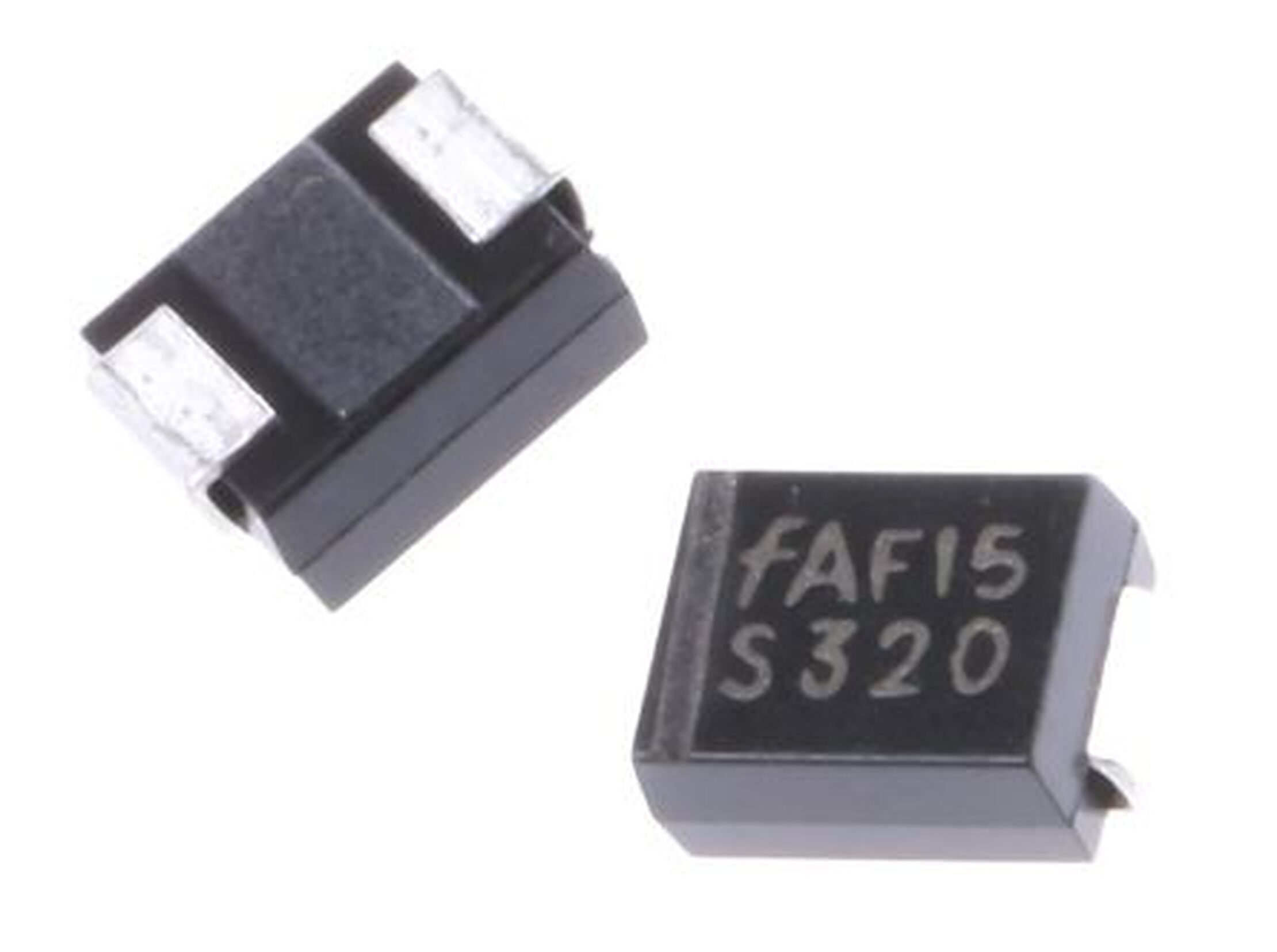

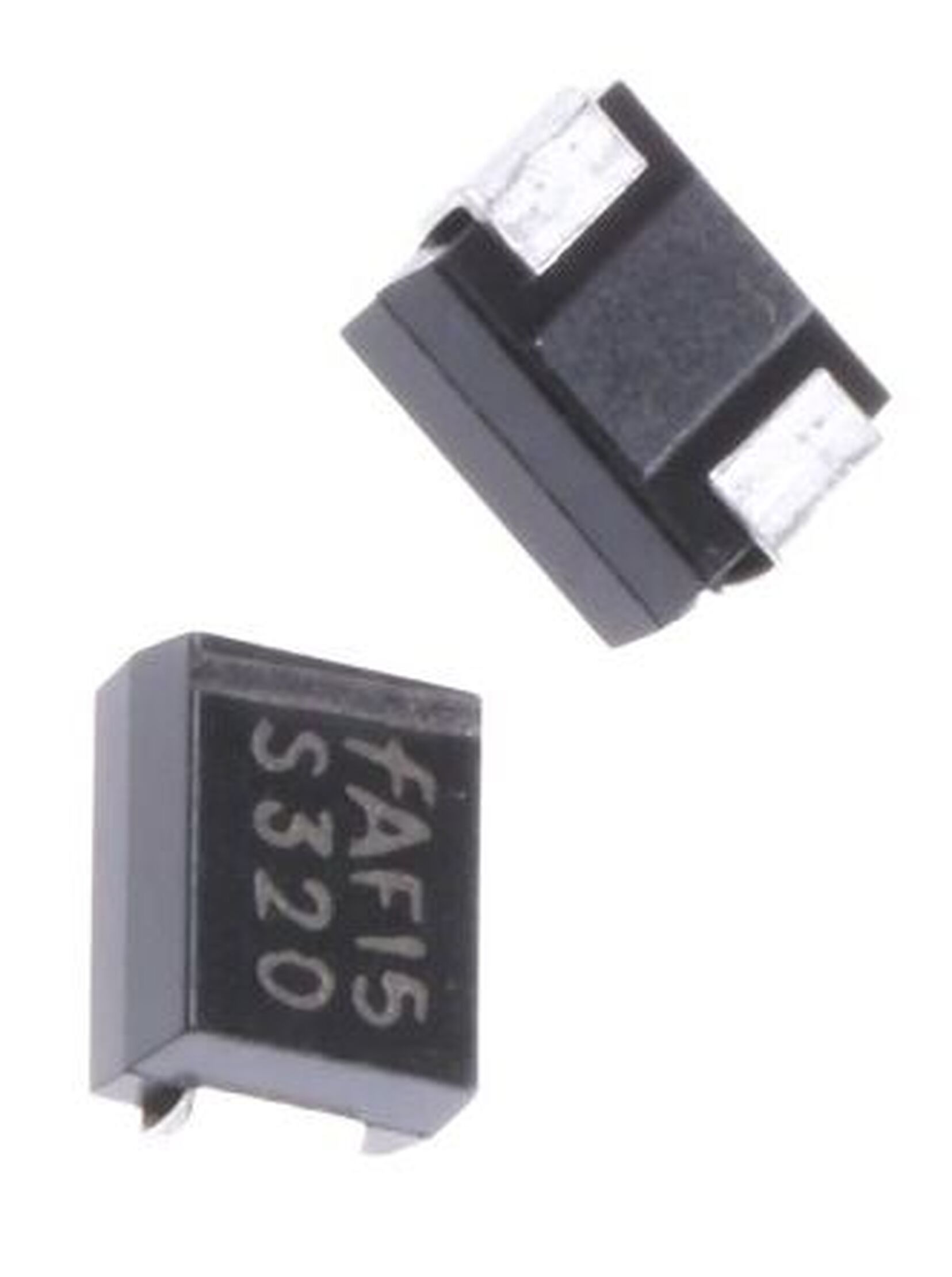

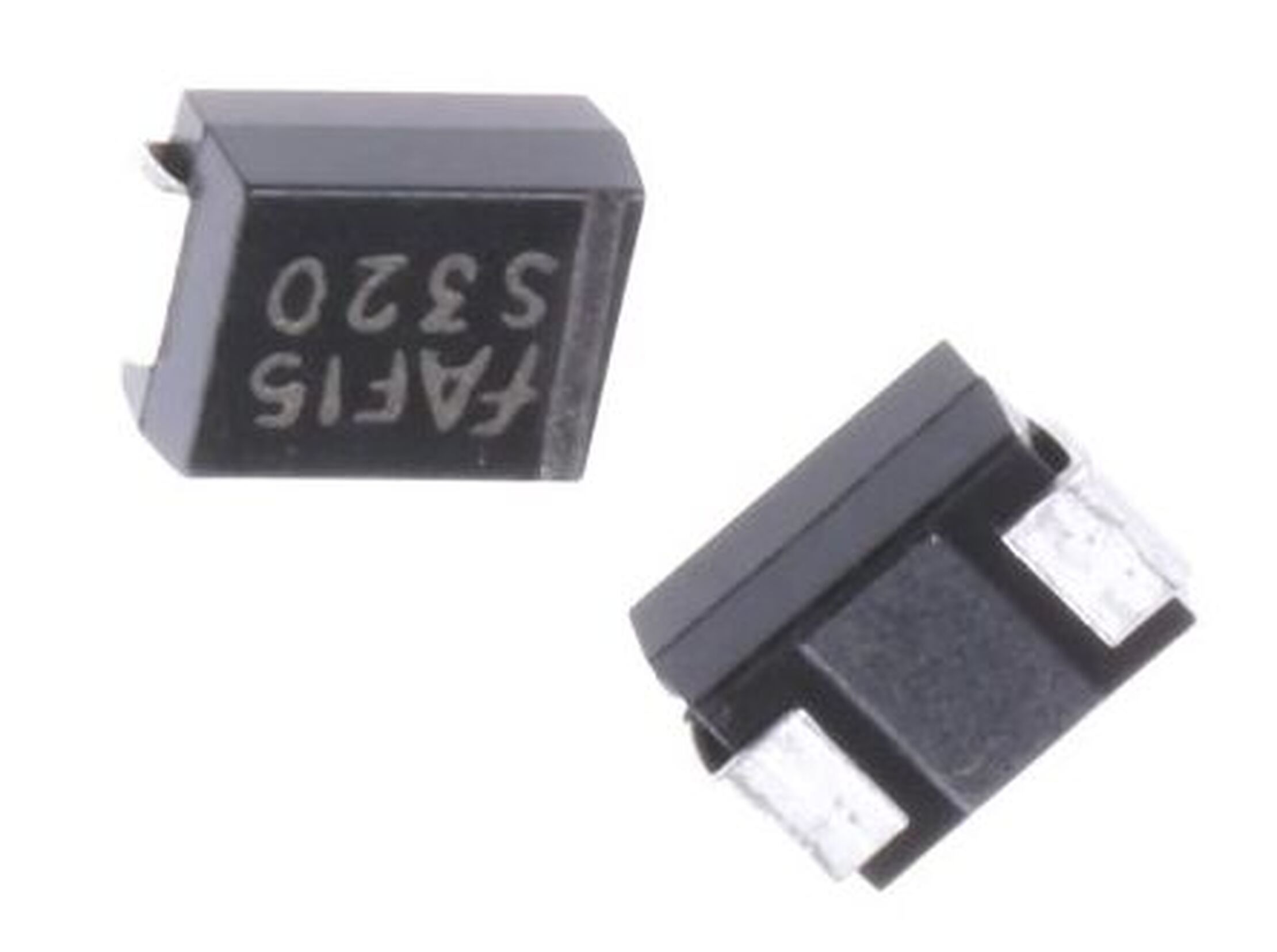

View detailed images (4)

S320

SKU: S320
S320 Semiconductor CASE: Standard MAKE: Texas Instruments
Product specifications
Type Semiconductor
Case Standard
Manufacturer Texas Instruments
Dv/Dt Worst Case 100-
Firing Char-Igt Max. 25m
Firing Char-Vgt Max. 2.0
V(isol) Max. (V) 2.5k
I(h) Max. (A) 50m
Id(off) Max. (A) 2.0
It(stat) Max. (A) 20
Outp Ckt Type Triac
Outp Type AC Output
Min On Current (Cntrl) 12m
Min On Volt (Cntrl) 3.5
Supp Curr. I(TSM) 200
Sw. Mode Zero-Xing
t(switch) Off Typ. Time (S) 2.5u
Type of Inp DC Input
V(drm) Max. 300
V(T) Max. 1.9
@Temp. (test) (°C) 100
@Temp. (test) (°C) 75#
Oper. Temp (°C) Min -30
Oper. Temp (°C) Max. 100
@It (A) 40
Number of Chan. 1
Overall Len (mm) 30
Overall Height (mm) 15
Outp Transis. Volt 600
Outp Transis. Curr. .3
Overall Width (mm) 20
Surface Mounted Yes/No NO
SKU 1327823
