Home / Semiconductors / S34DGF4B0
S34DGF4B0
View detailed images (1)

S34DGF4B0

SKU: S34DGF4B0
S34DGF4B0 Semiconductor - Case: Standard Make: INR
+ VAT 20% for UK purchases
Product specifications
Type Semiconductor

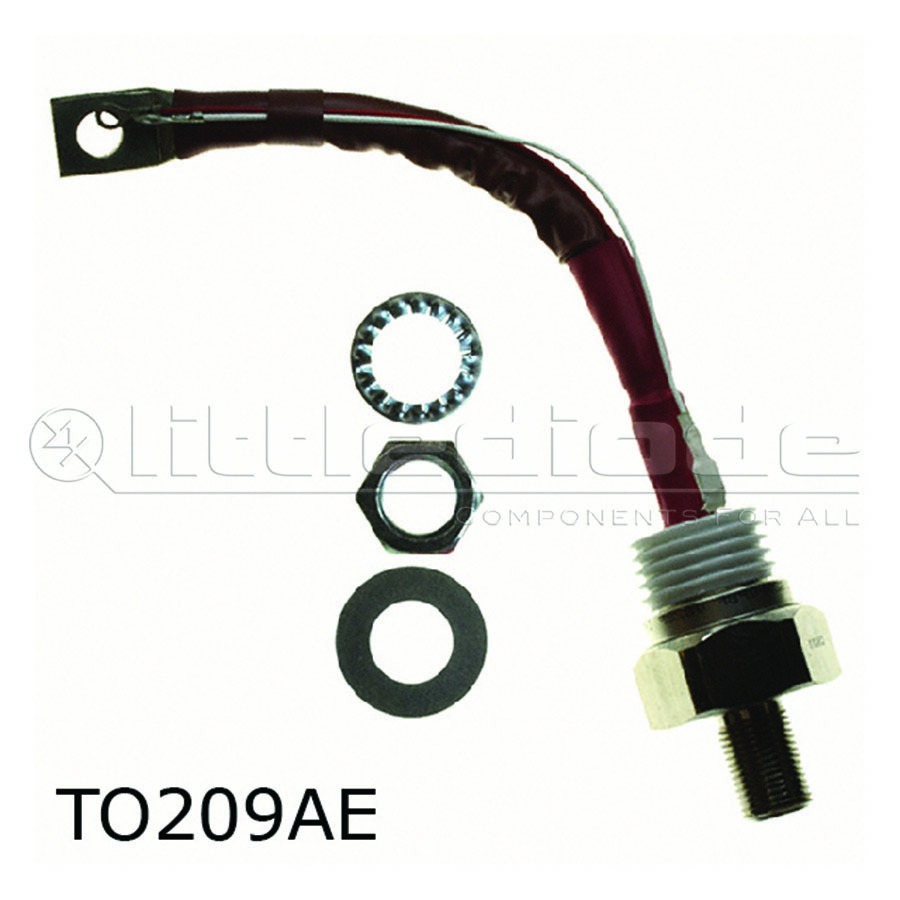

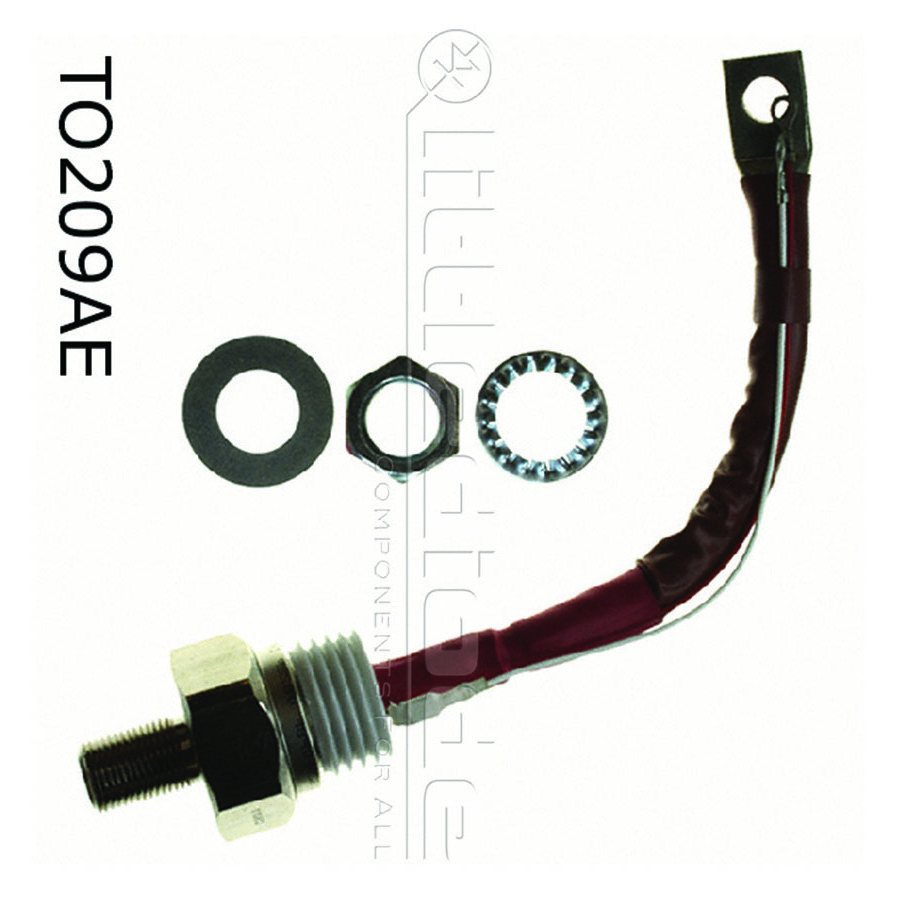

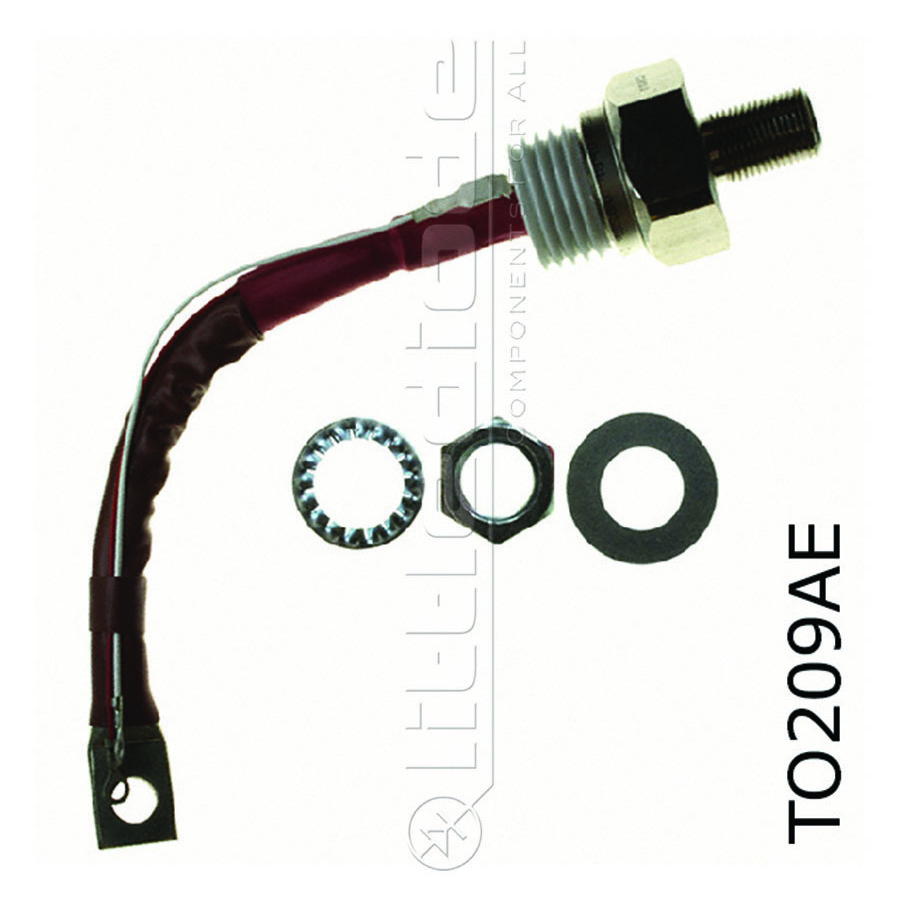

Case TO209AE
Manufacturer International Rectifier - IR
Dv/Dt Worst Case 700-
Firing Char-Igt Max. 150m
Firing Char-Vgt Max. 2.5
I(h) Max. (A) 500m
Id(off) Max. (A) 50m
@It (test) (A) 500
It(stat) Max. (A) 280
Supp Curr. I(TSM) 11k
t(switch) Off Typ. Time (S) 10u
t(switch) Off Typ. Time (S) 500n
V(drm) Max. 400
V(T) Max. 1.5
@Temp. (test) (°C) 125
@Temp. (test) (°C) 85#
Oper. Temp (°C) Min -45
Oper. Temp (°C) Max. 125
@It (A) 280
Surface Mounted Yes/No NO
SKU 1341442
