S4001
View detailed images (12)

S4001

SKU: S4001

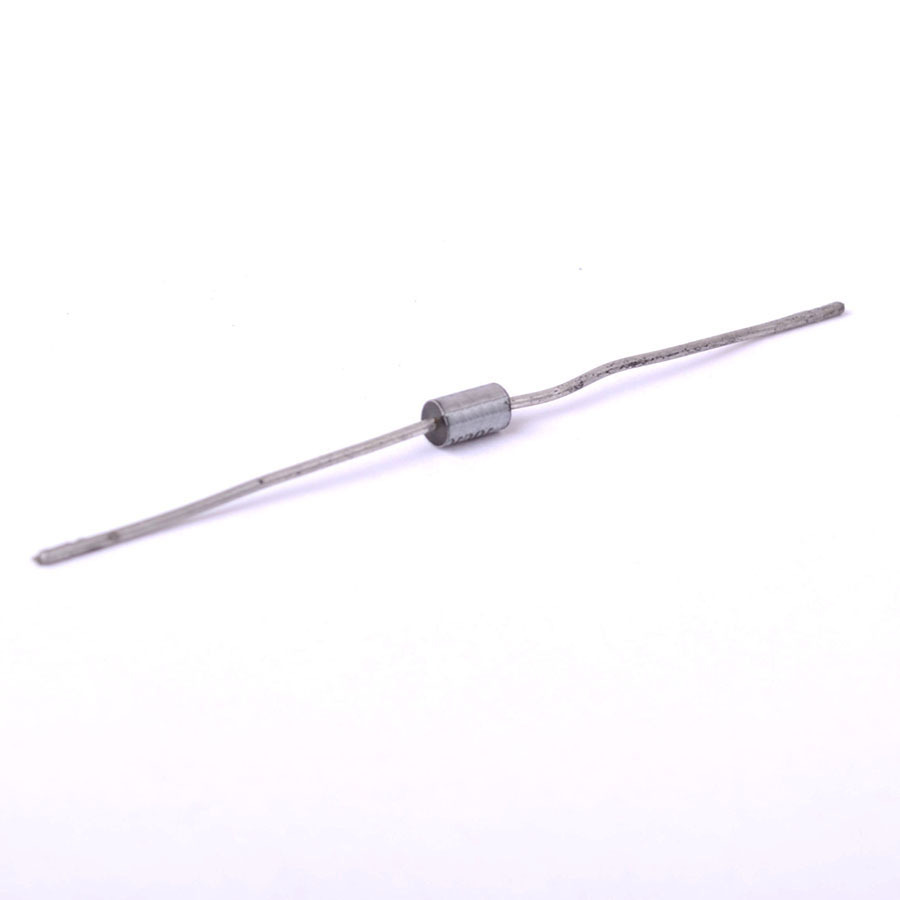

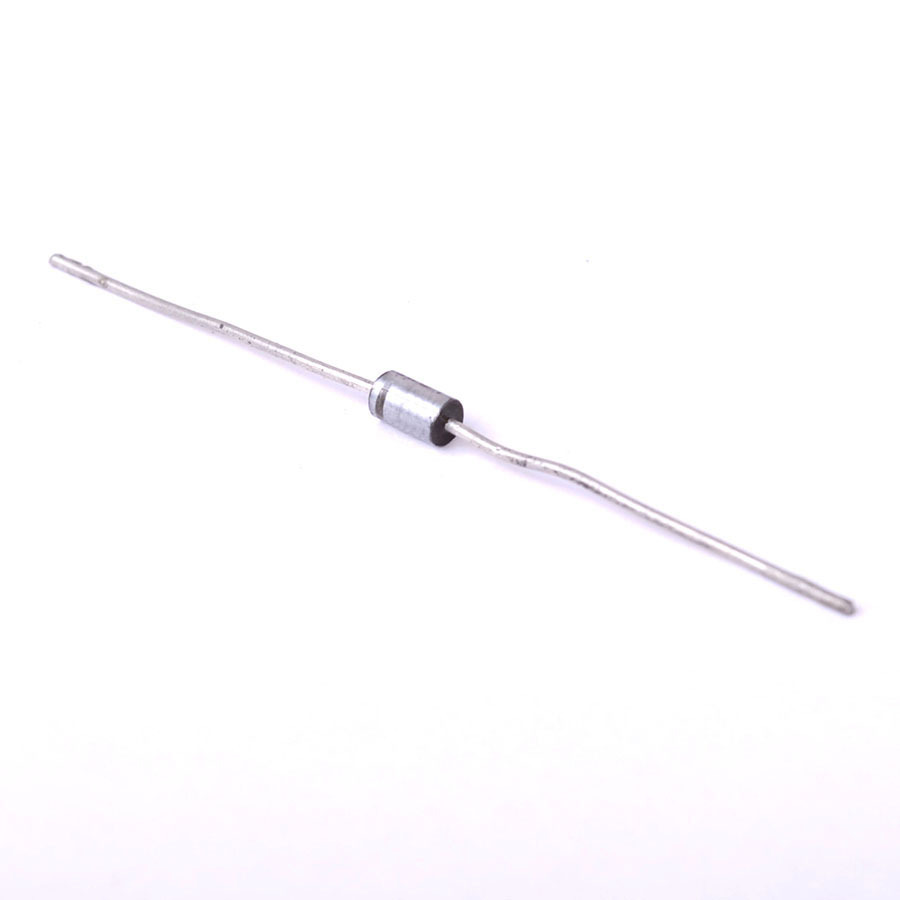

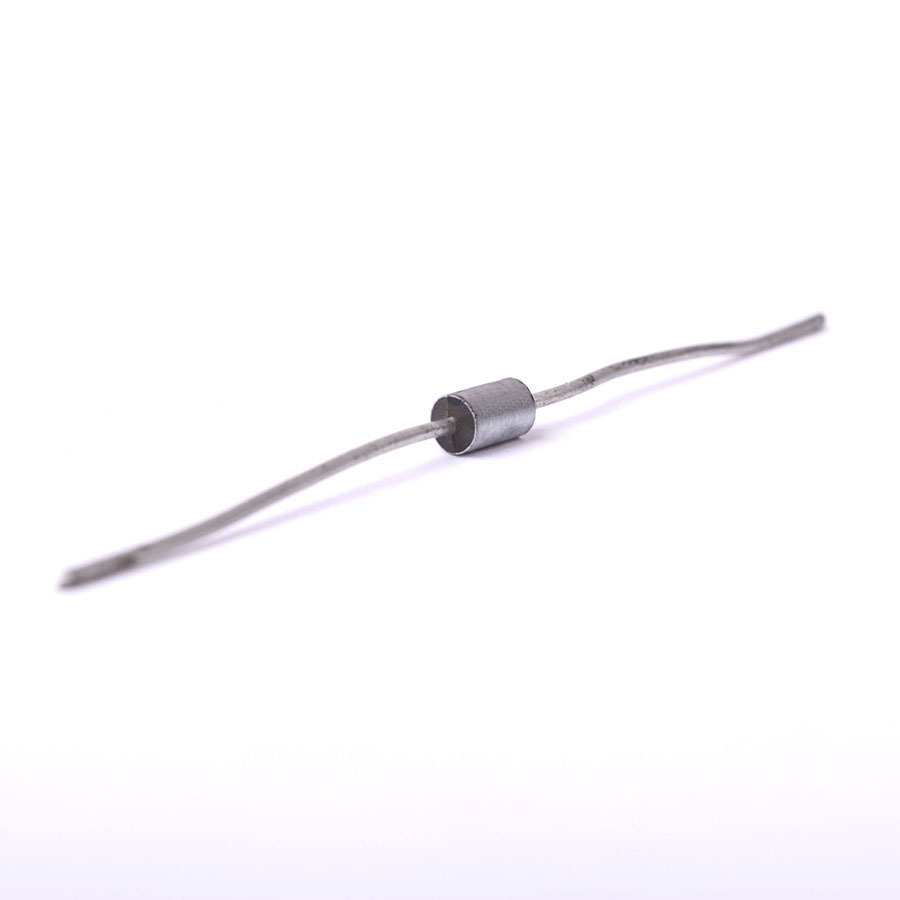

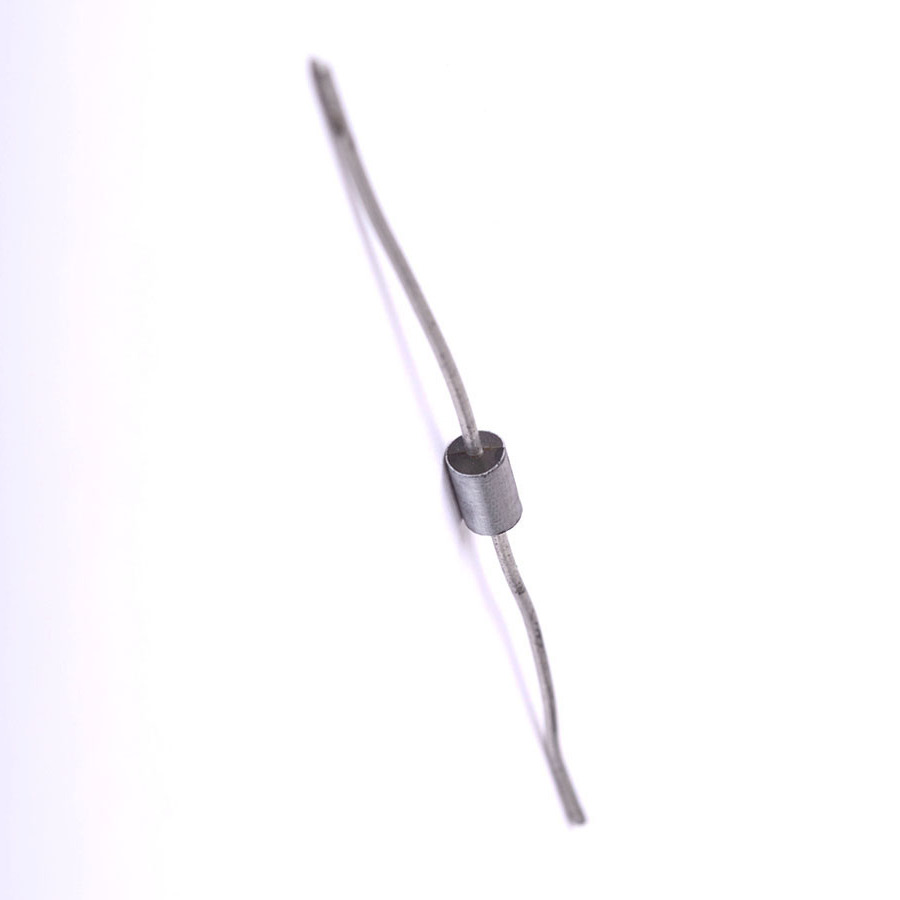

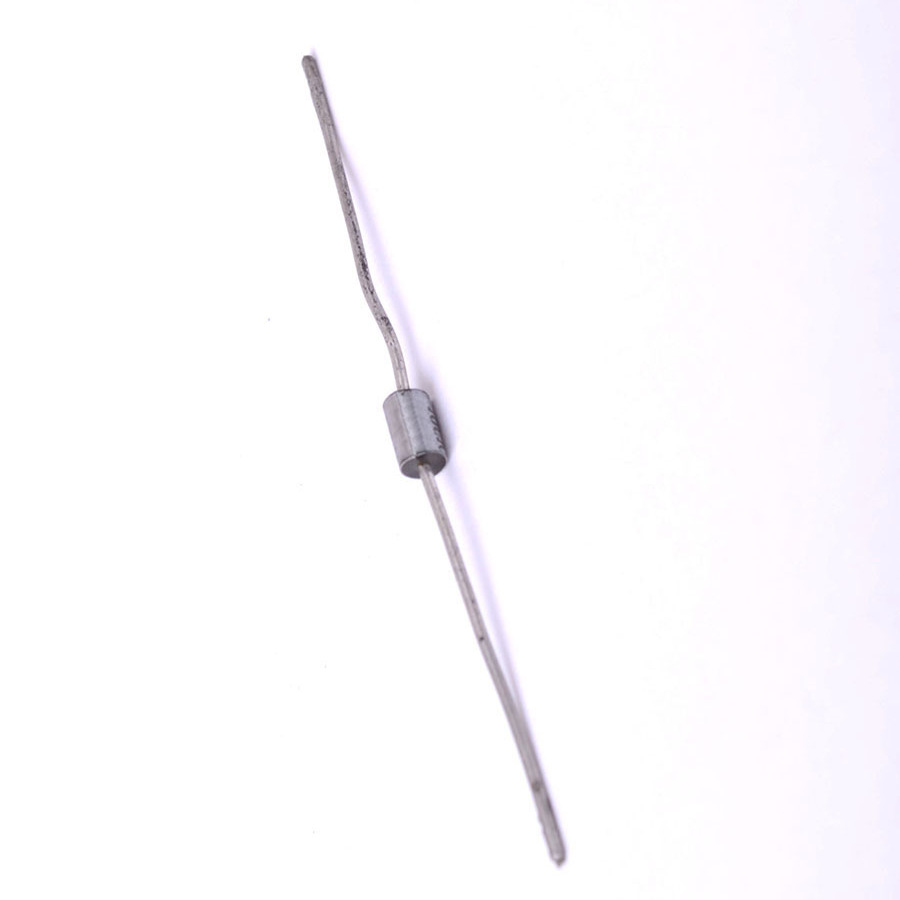

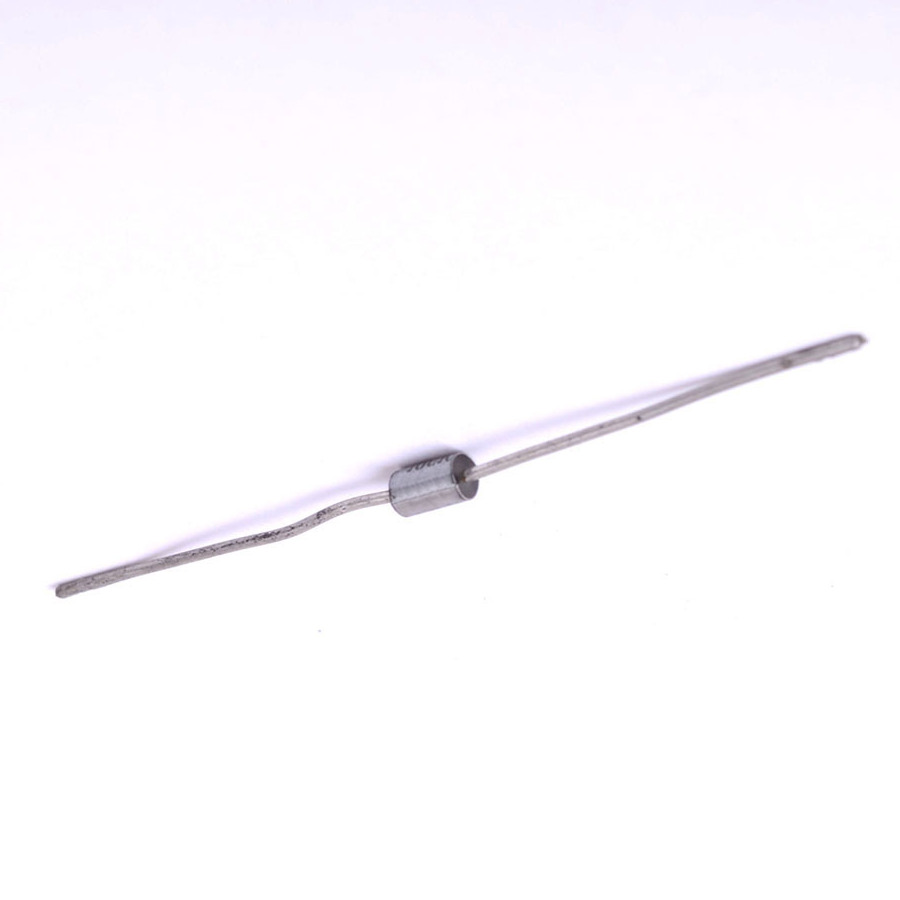

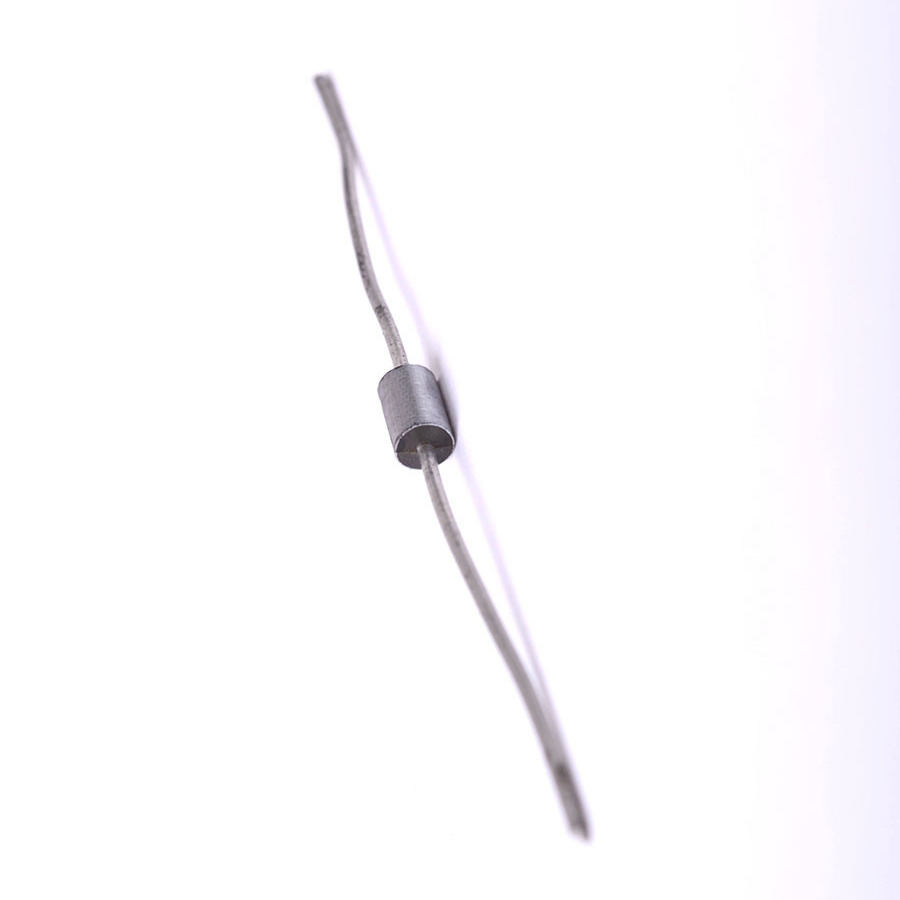

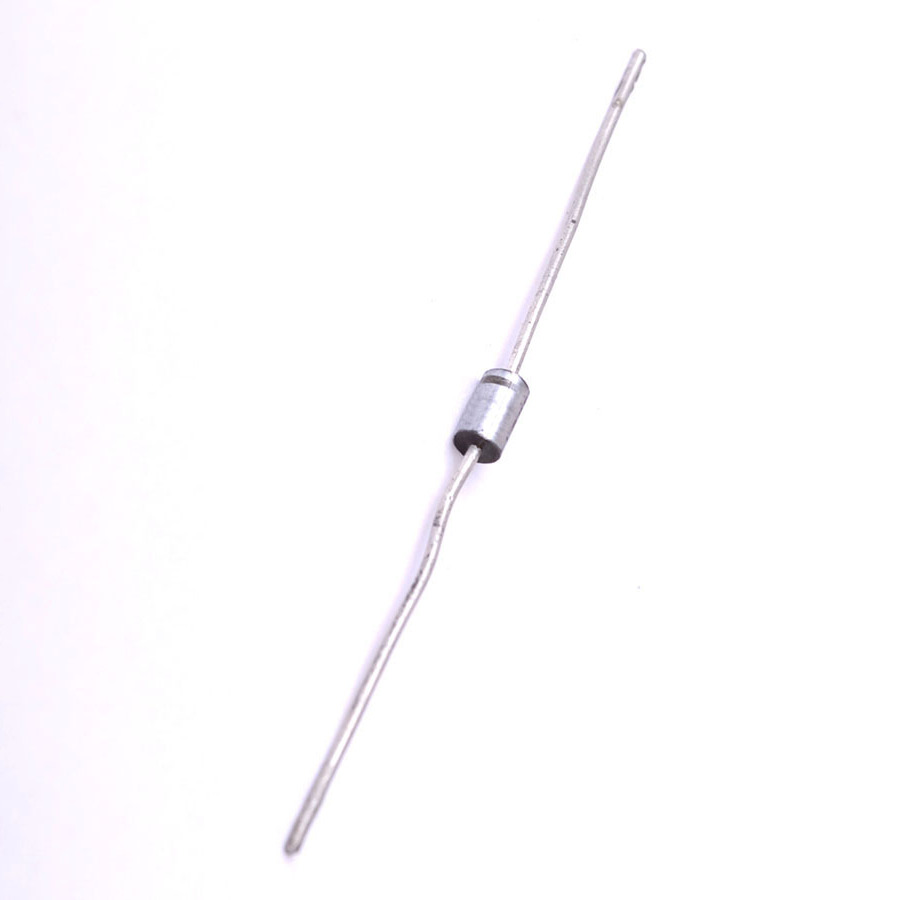

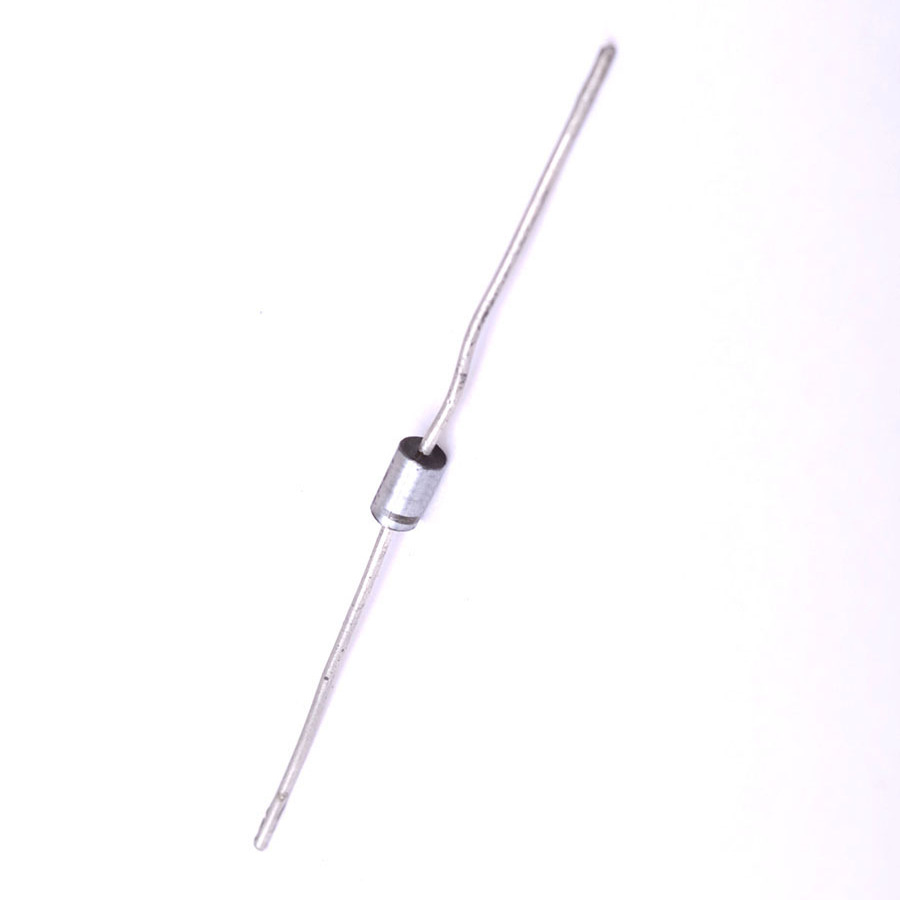

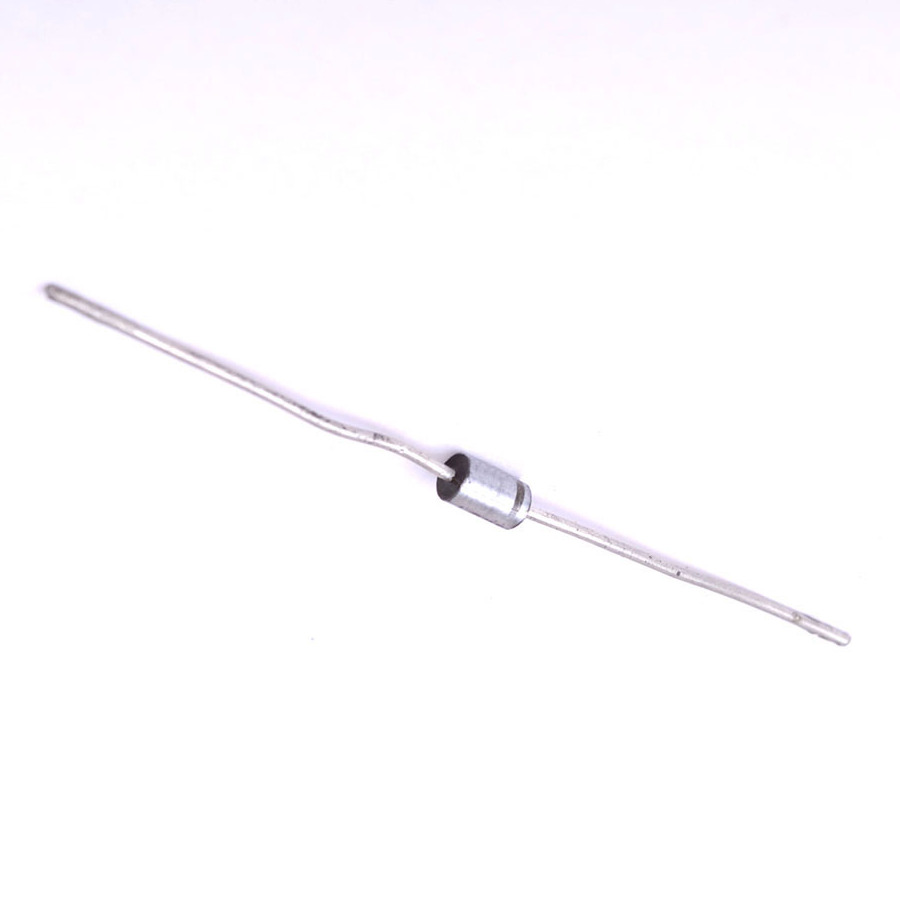

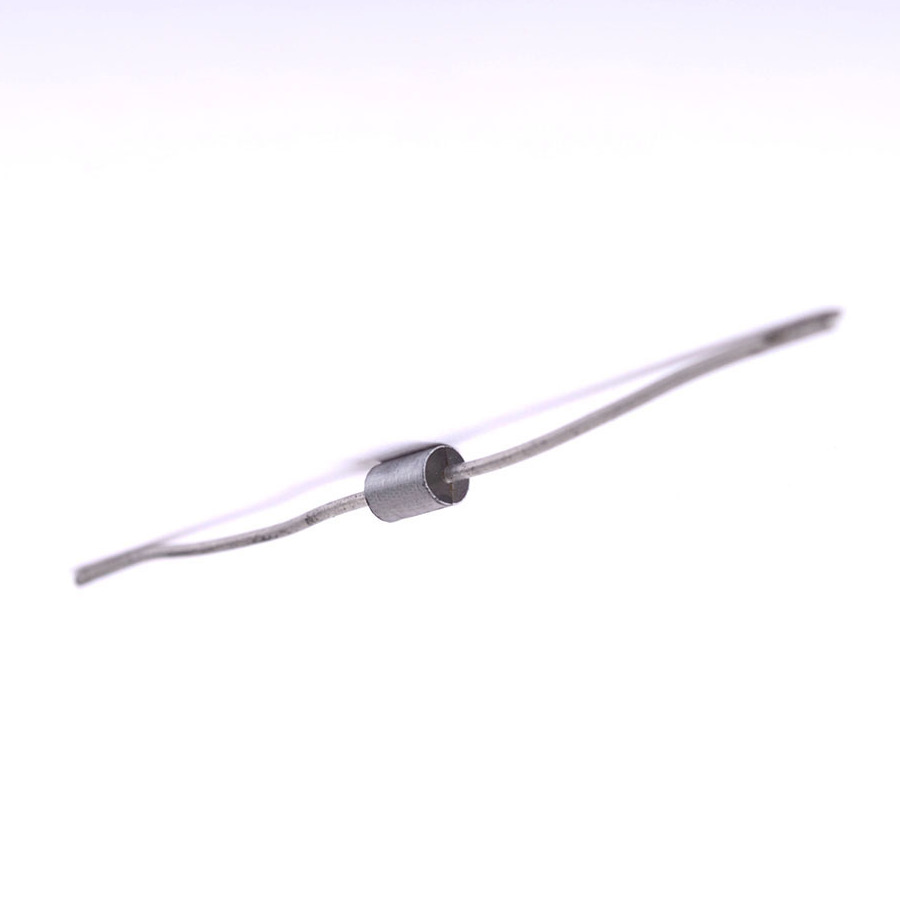

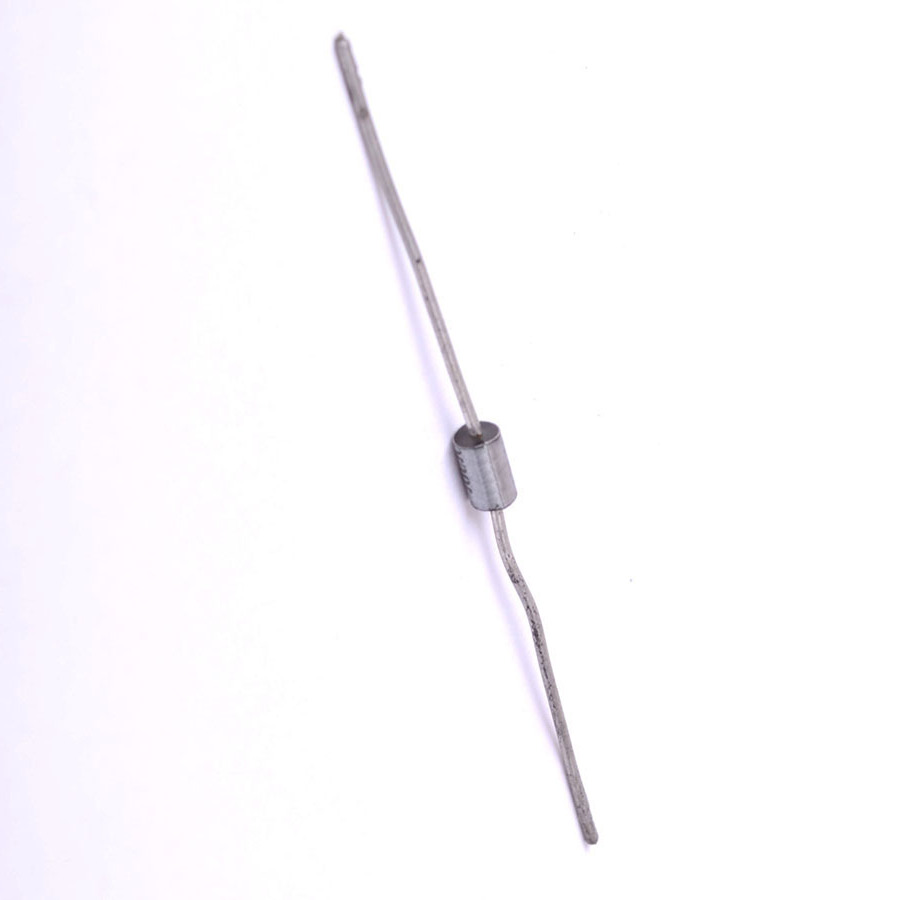

S4001 SemiConductor CASE: DO41 MAKE: Solitron Devices
Product specifications
Type SemiConductor
Case DO41
Manufacturer Solitron Devices
Vbr CBO 40
Vbr CEO 40
Max. PD (W) 25
Max. hFE 150
Min hFE 50
Ic Max. (A) 5.0
@Ic (test) (A) 500m
Icbo Max. @Vcb Max. (A) 1.0m
@Temp. (test) (°C) 40
VRRM 50
Tr Max. (s) 2.0u
R(sat) (Û) 1.5
1-Cycle Surge Current (A) 50
@Temp. (test) for Vf) 25
Derate Above 25°C 500m
Vf Max. 1.0
Ir @25°C 5.0u
I(out) (If AVG) Max. 1.0
Trans. Freq (Hz) Min. 1.5M
@Volts (test) (V) 50
@If (test) 1.0
Oper. Temp (°C) Max. 125
@VCE (V) 10
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
SKU 651728
