S4002
View detailed images (12)

S4002

SKU: S4002

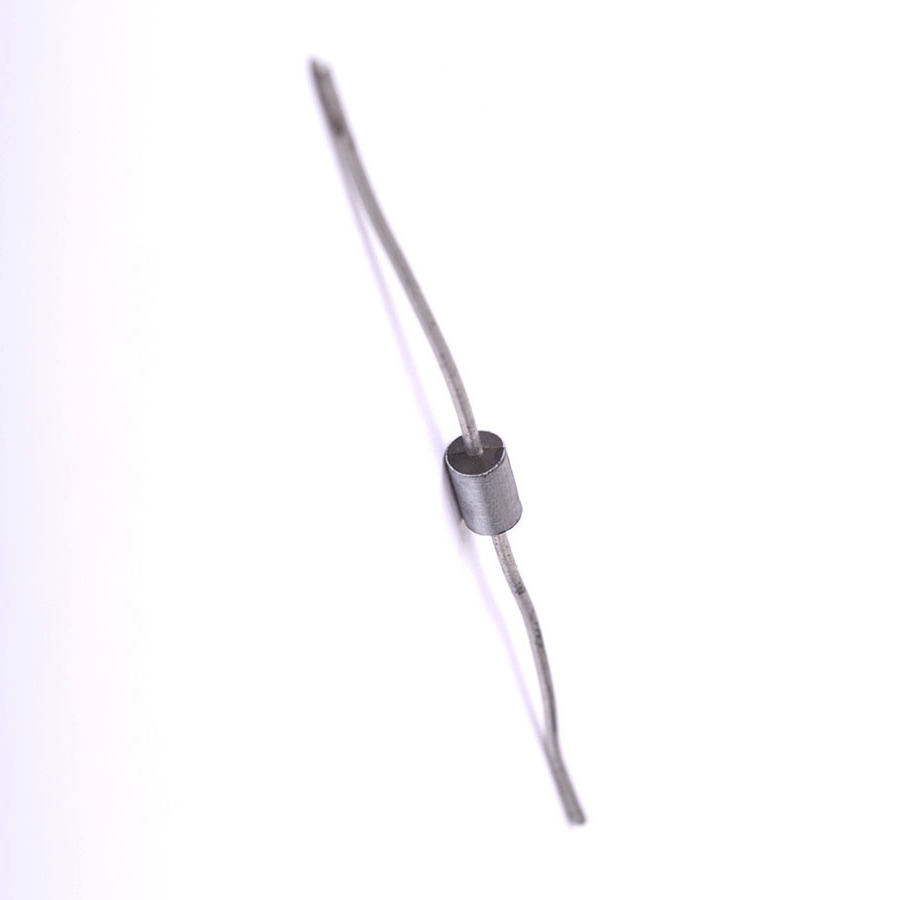

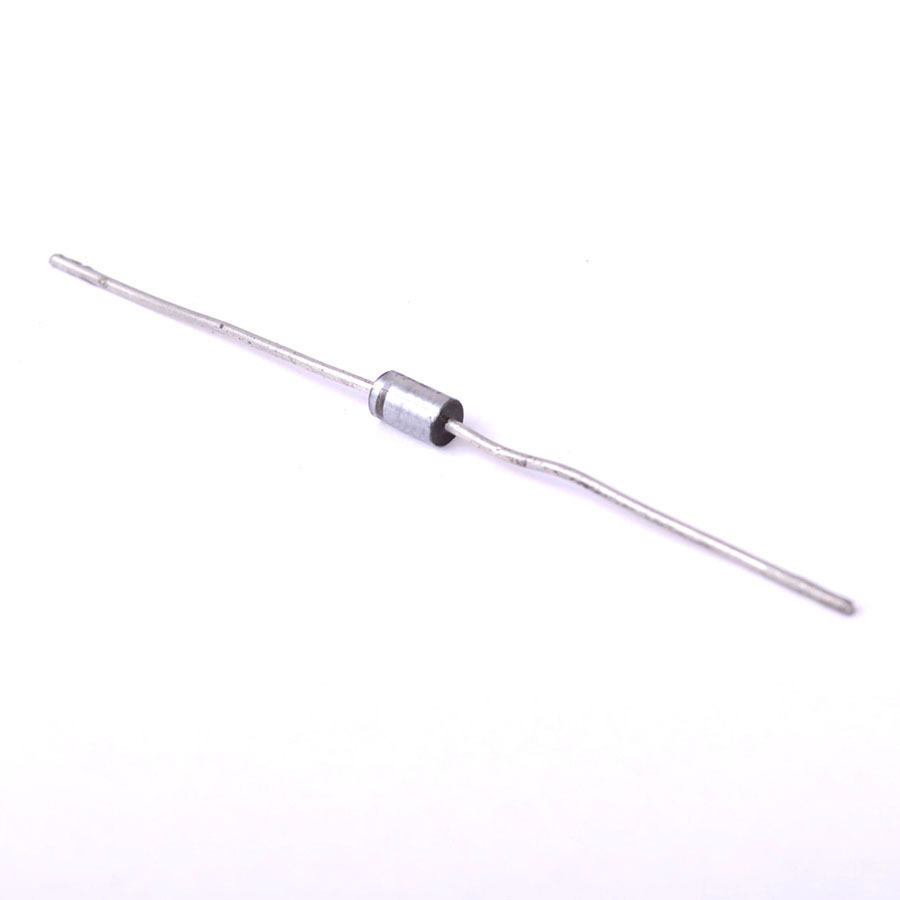

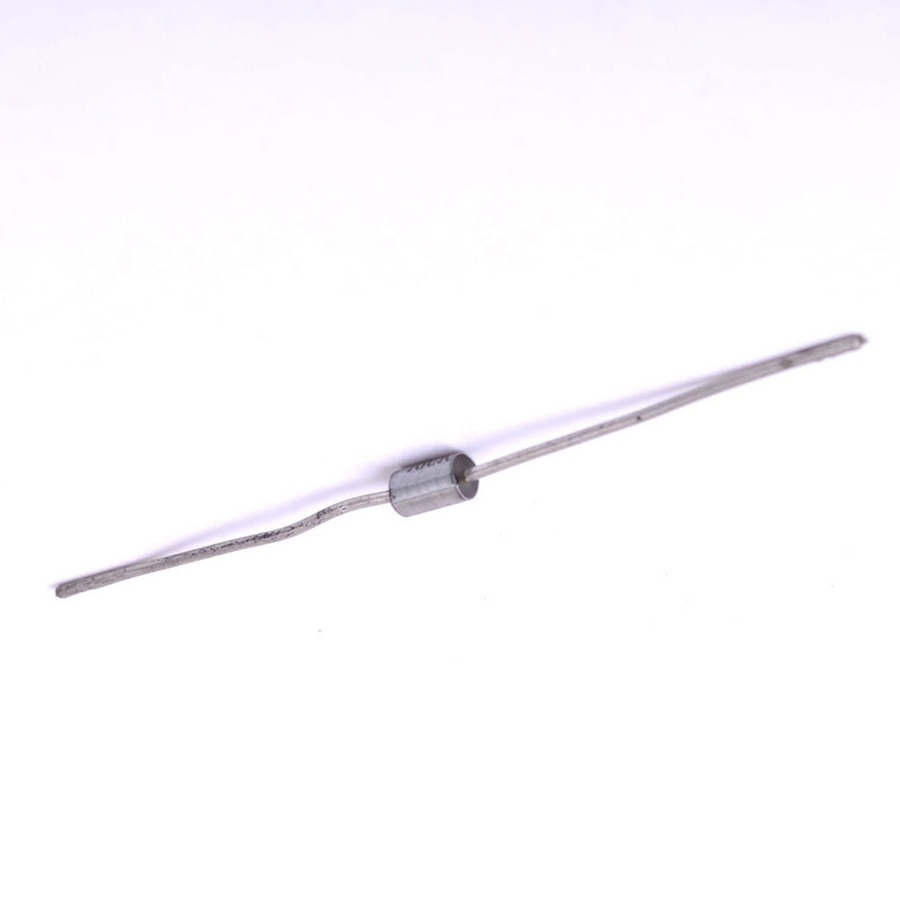

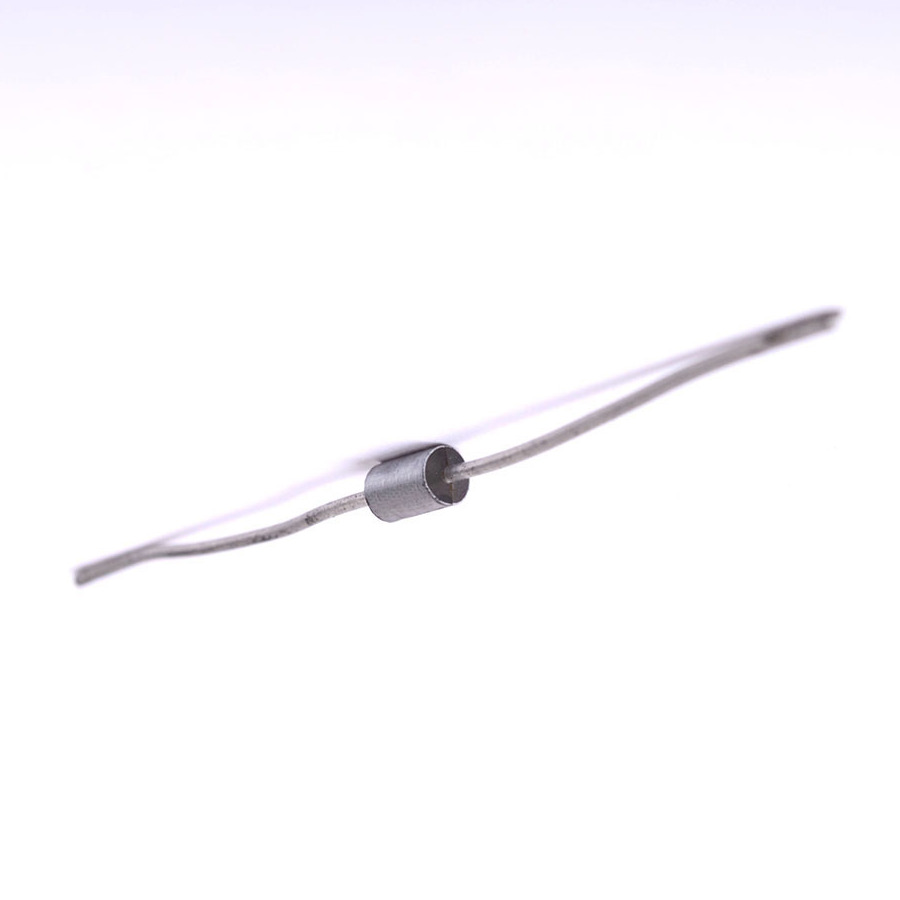

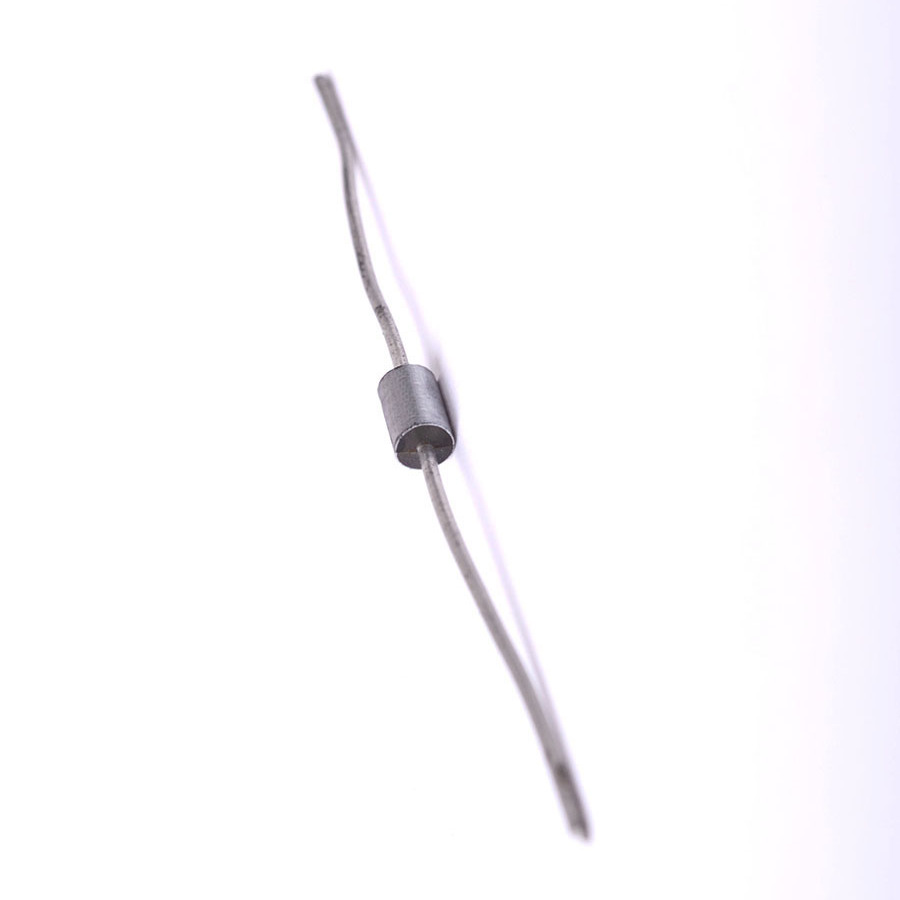

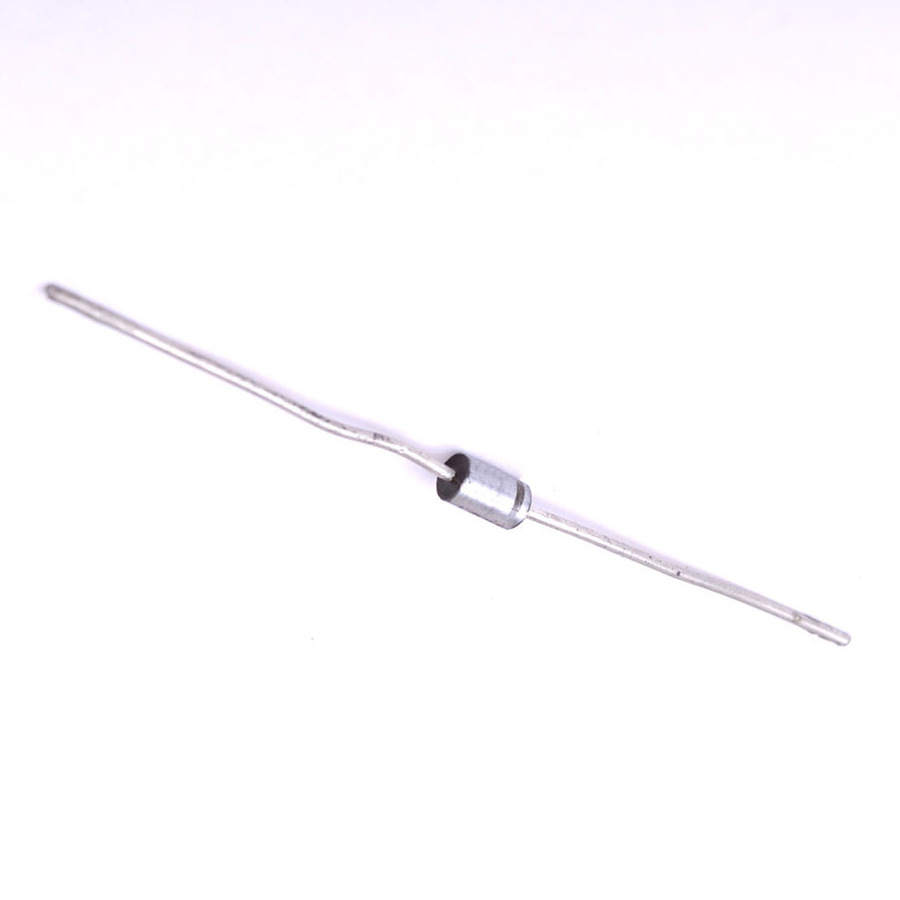

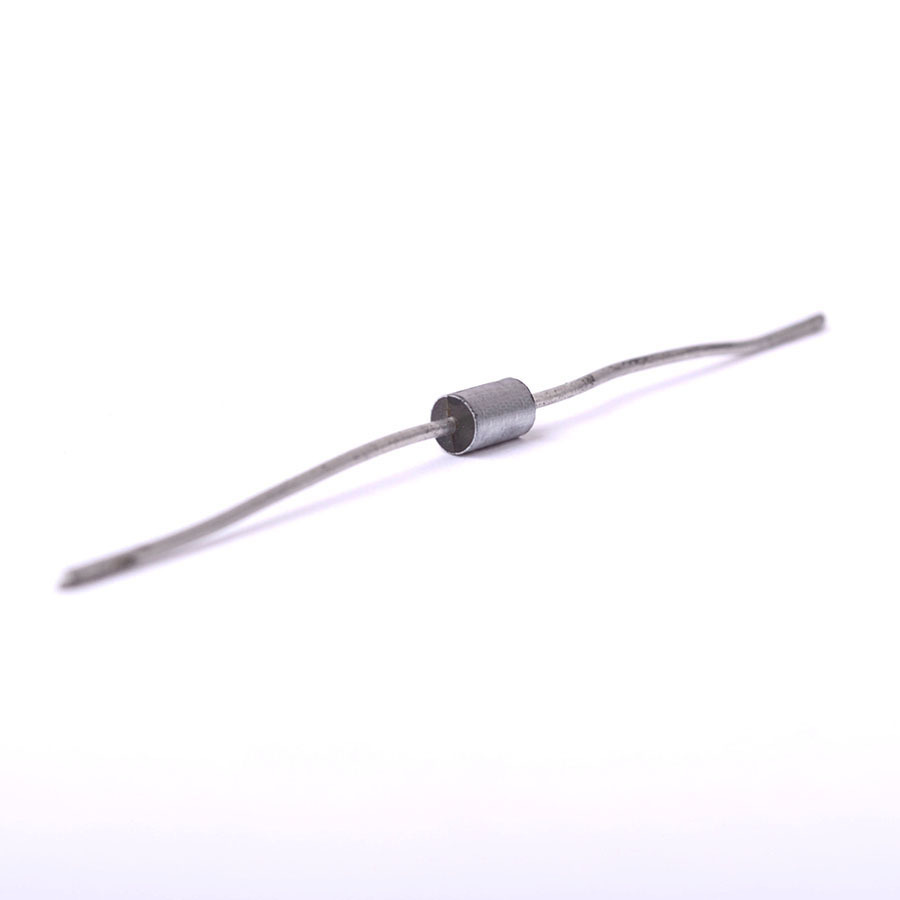

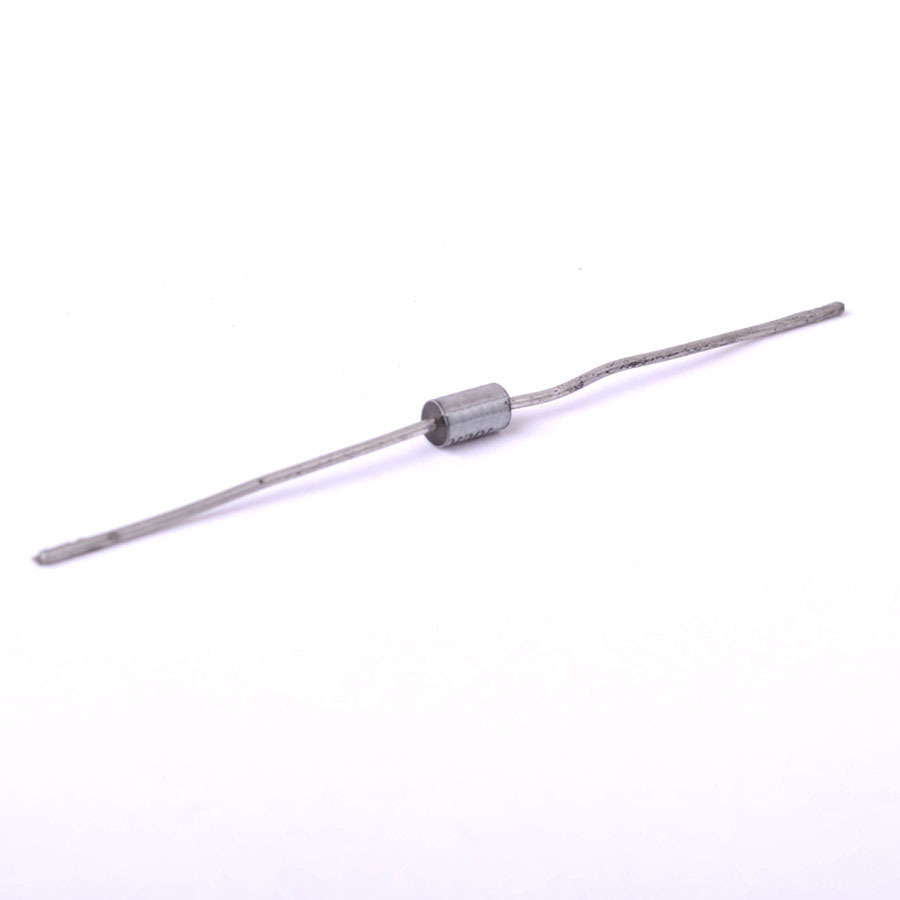

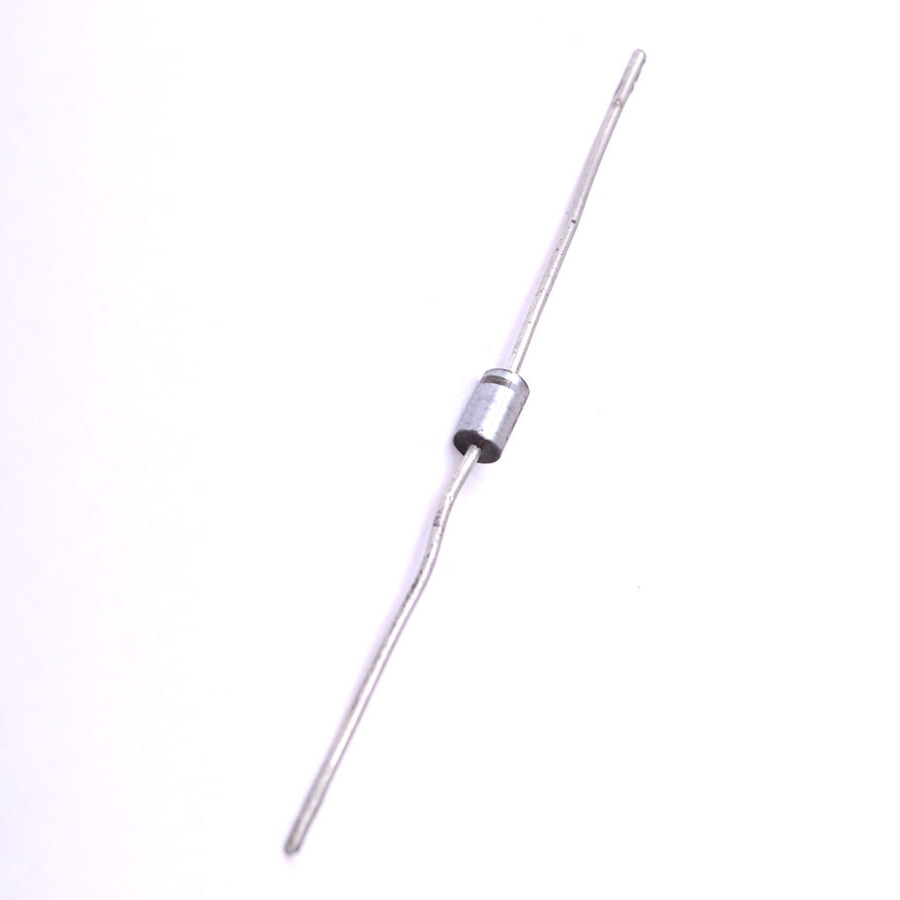

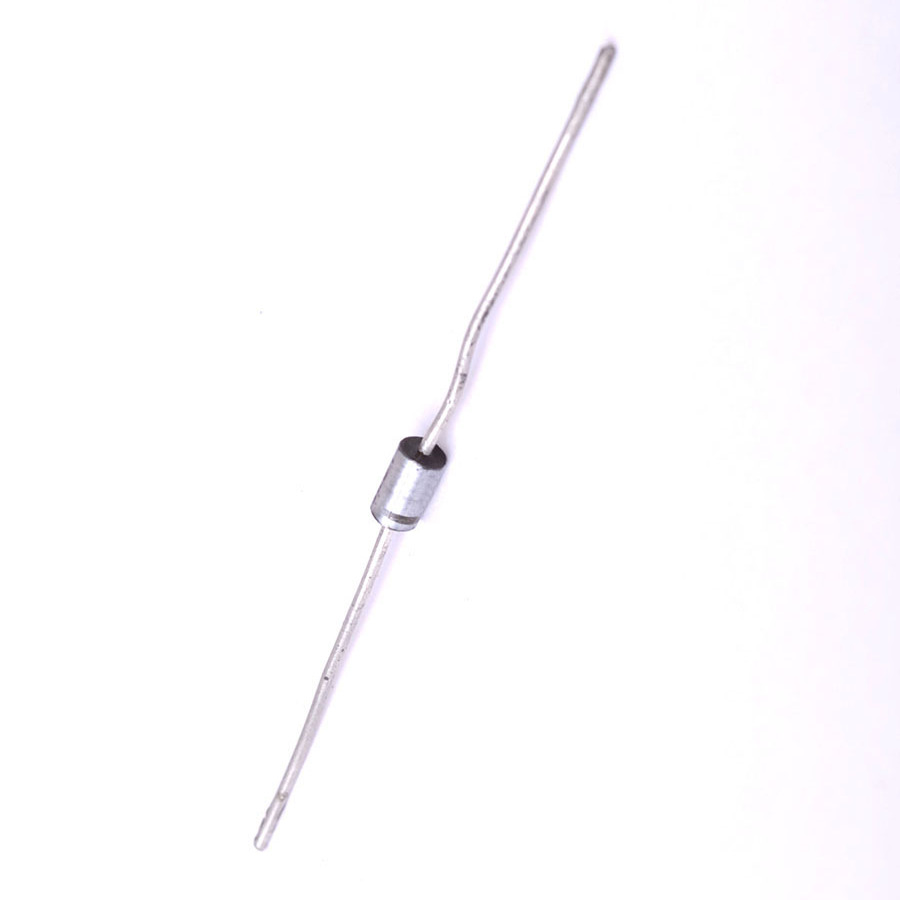

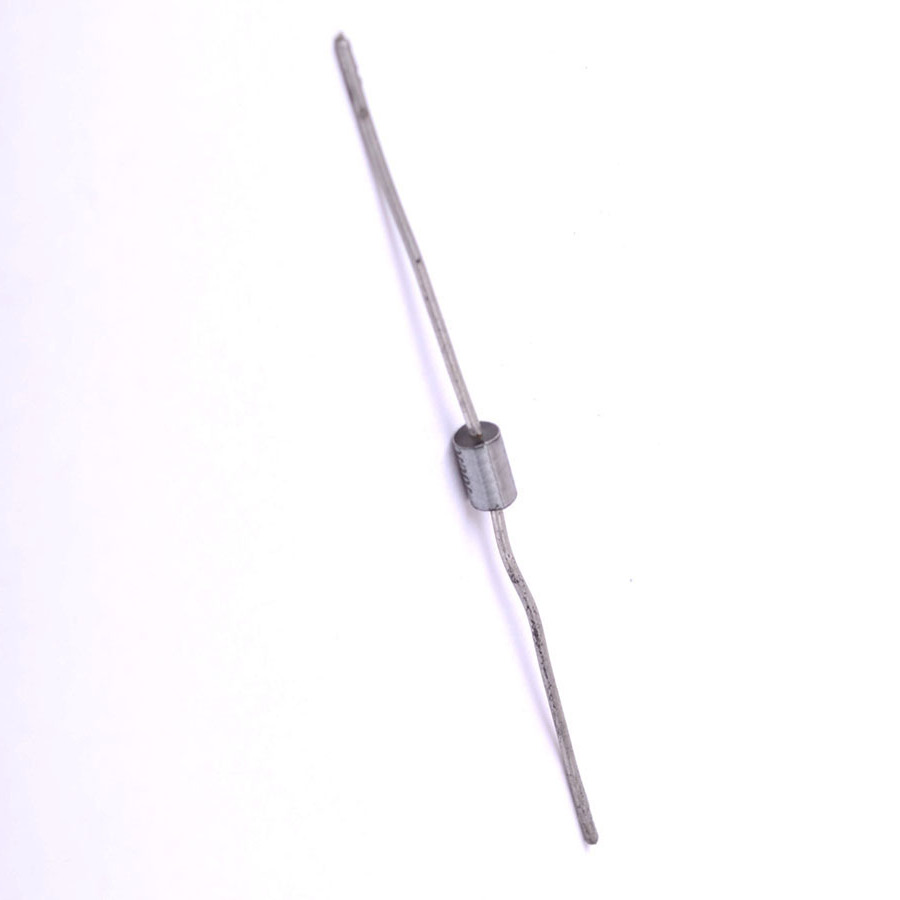

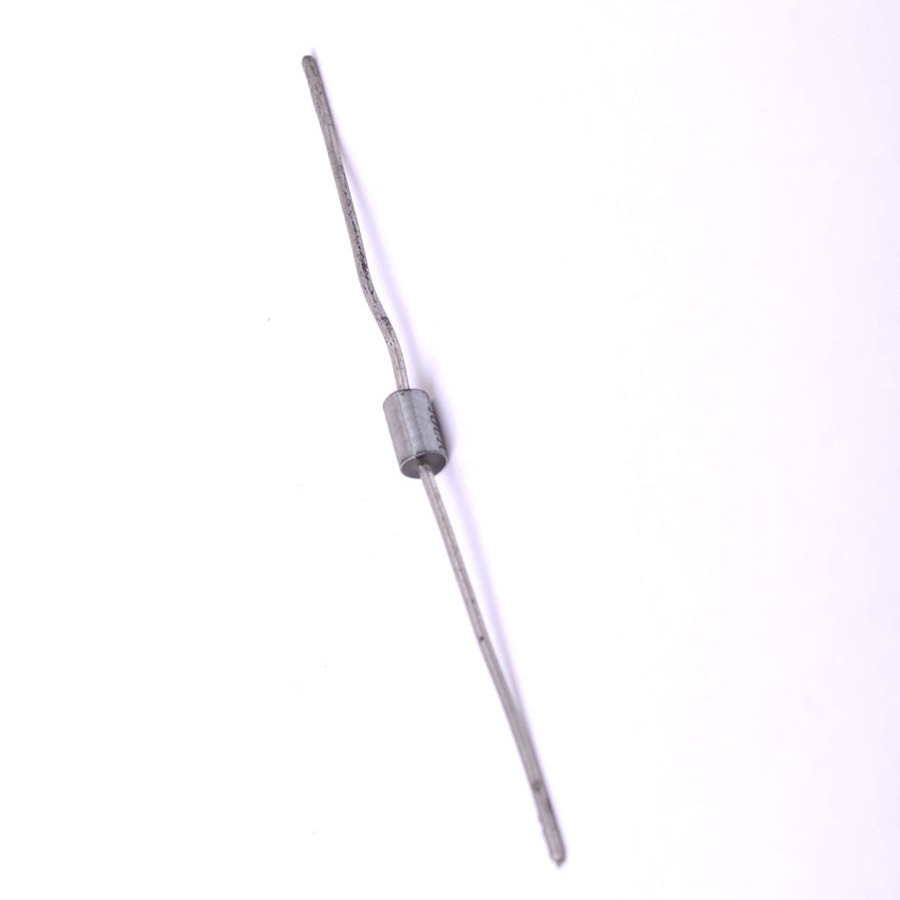

S4002 SemiConductor CASE: DO41 MAKE: Solitron Devices
Product specifications
Type SemiConductor
Case DO41
Manufacturer Solitron Devices
Vbr CBO 40
Vbr CEO 40
Max. PD (W) 25
Min hFE 125
Ic Max. (A) 5.0
@Ic (test) (A) 500m
Icbo Max. @Vcb Max. (A) 1.0m
@Temp. (test) (°C) 40
VRRM 100
Tr Max. (s) 2.0u
R(sat) (Û) 1.5
1-Cycle Surge Current (A) 50
@Temp. (test) for Vf) 25
Derate Above 25°C 500m
Vf Max. 1.0
Ir @25°C 5.0u
I(out) (If AVG) Max. 1.0
Trans. Freq (Hz) Min. 1.5M
@Volts (test) (V) 100
@If (test) 1.0
Oper. Temp (°C) Max. 125
@VCE (V) 10
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
SKU 651727
