S500

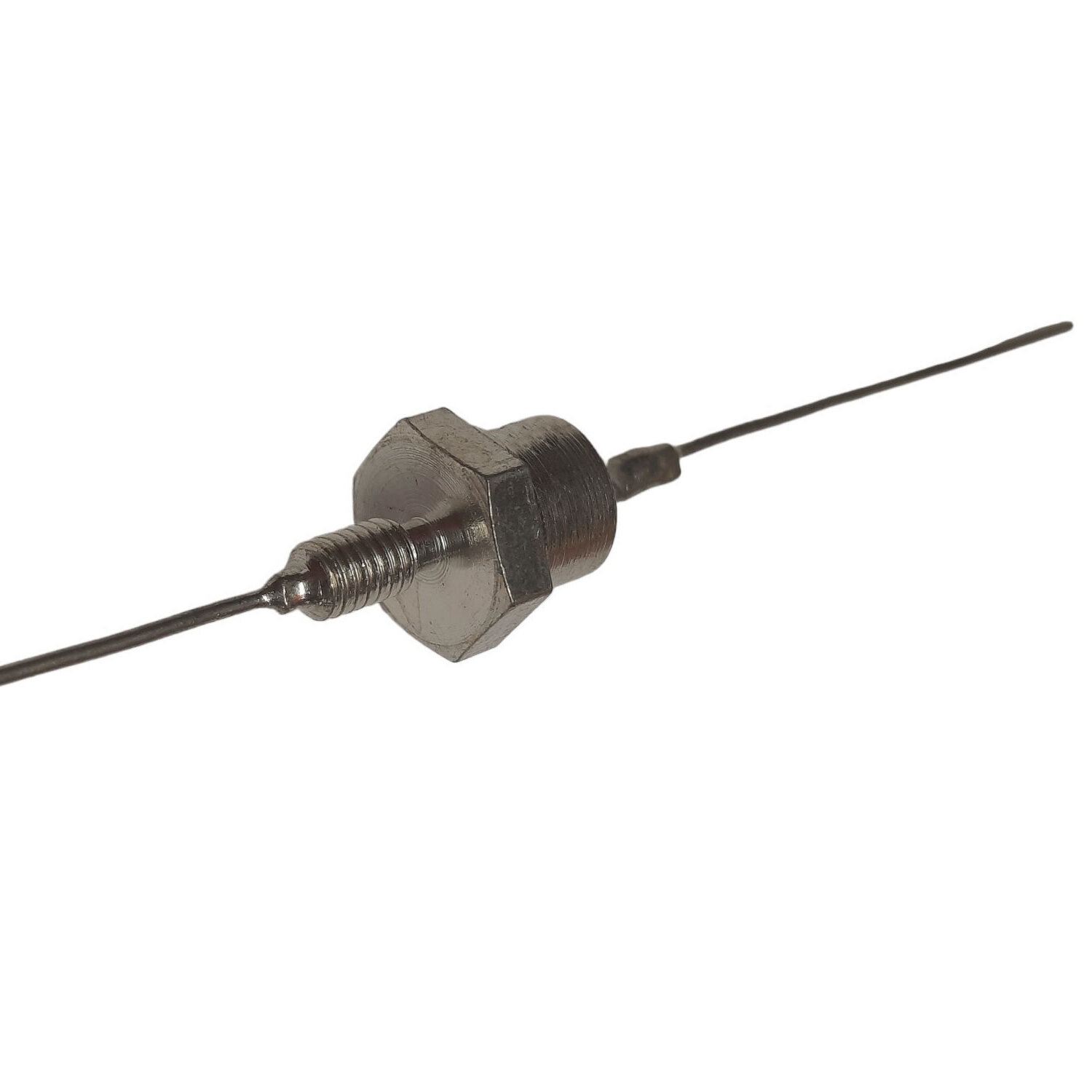

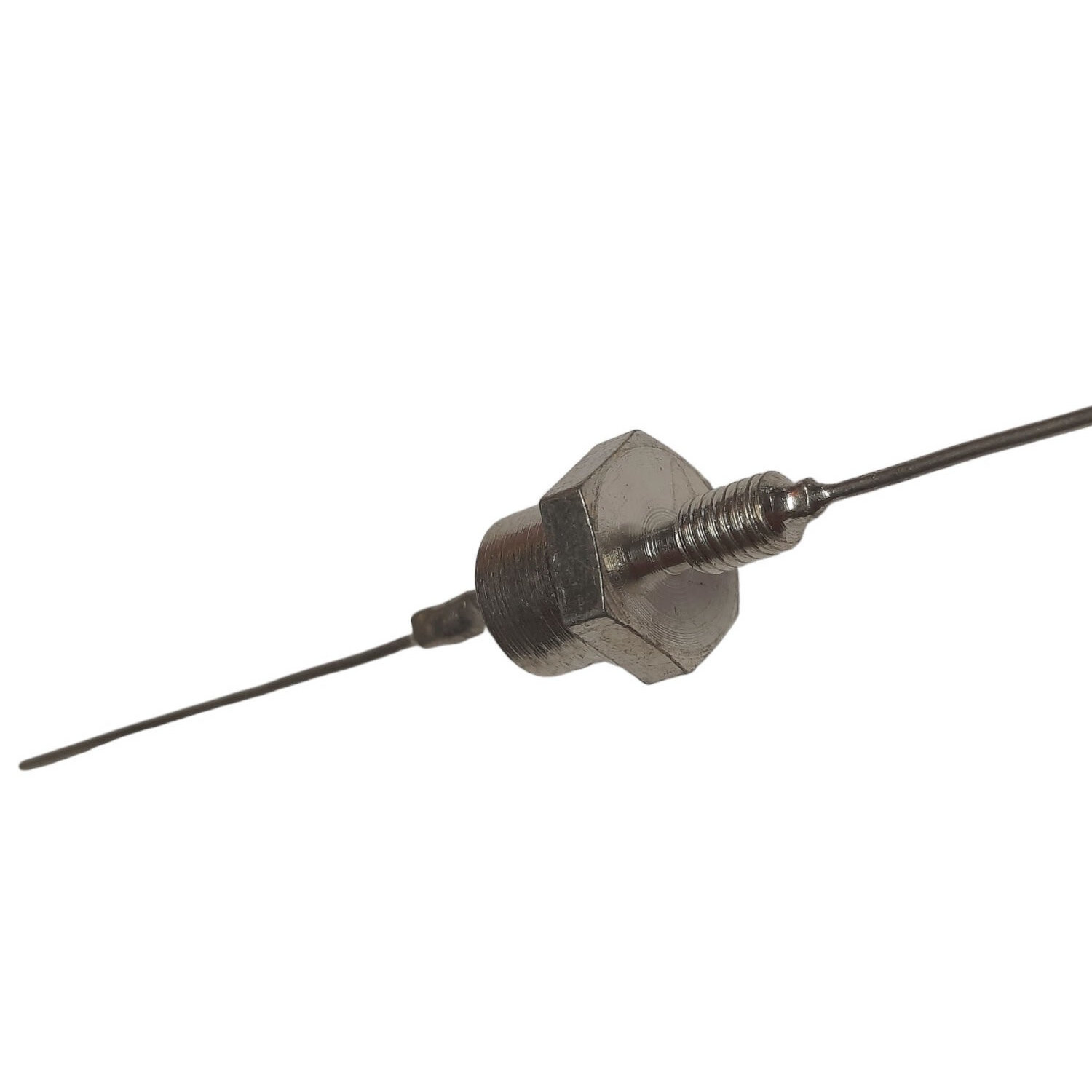

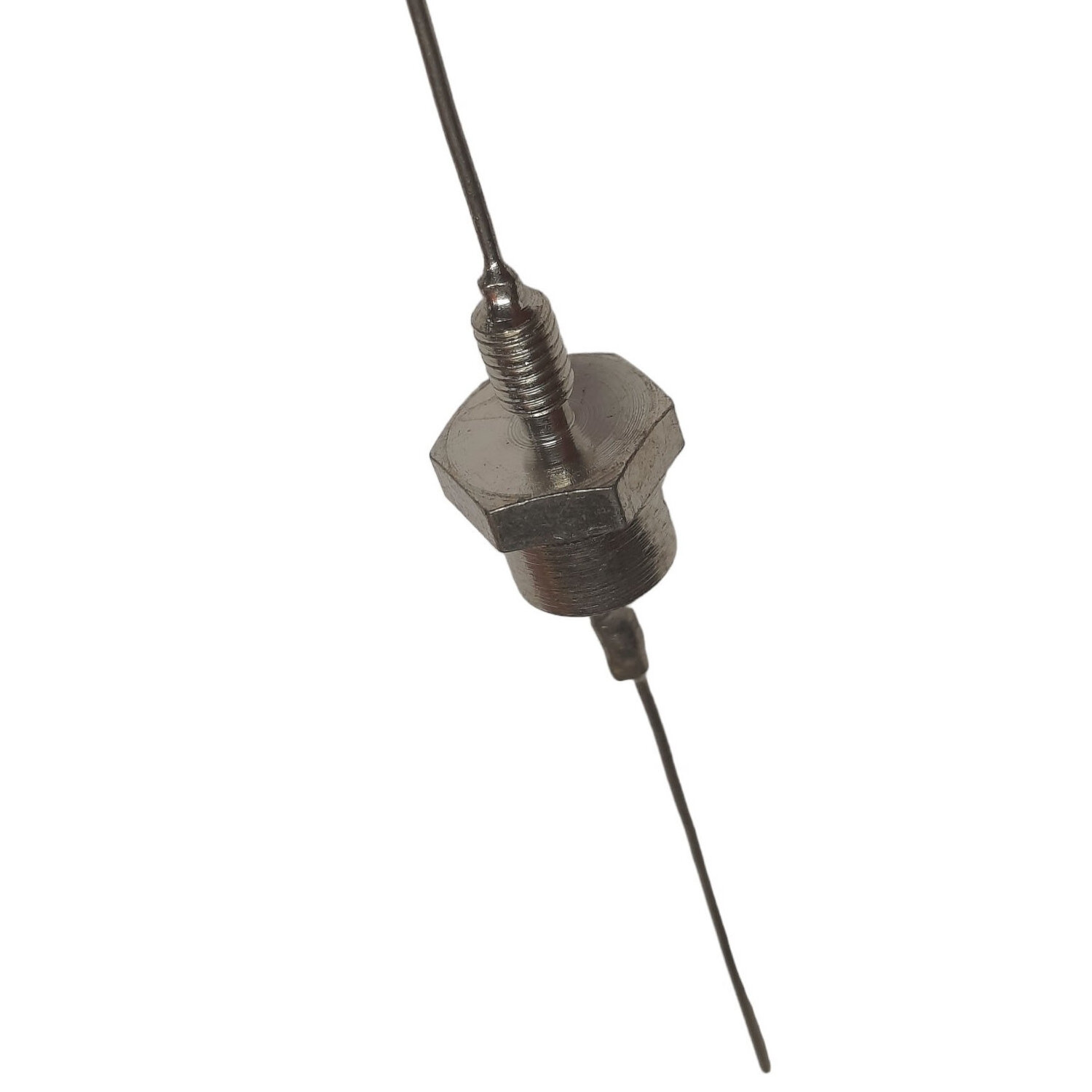

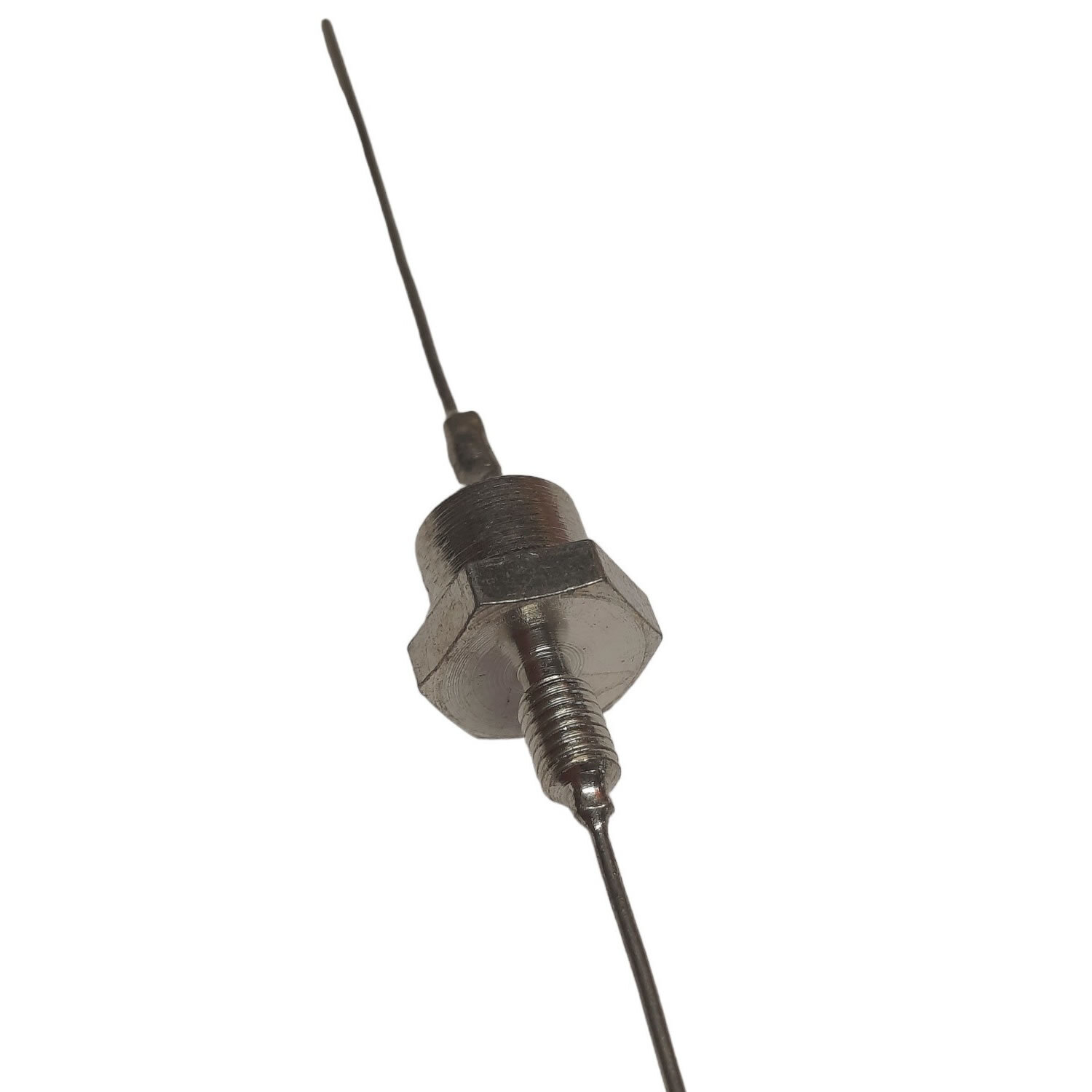

View detailed images (4)

S500

SKU: S500
S500 SemiConductor CASE: DO4 MAKE: Diotec
Product specifications
Type SemiConductor
Case DO4
Manufacturer Diotec
Vbr CBO 25
Max. PD (W) 150m
C(ob) (F) 7.0p
Derate (Amb) (W/°C) 3.0m
hfe 18
Ic Max. (A) 50m
@Temp. (test) (°C) 50
Mat. Silicon Logic
VRRM 1k
t(rr) (S) 15n
1-Cycle Surge Current (A) 25
@Temp. (test) for Vf) 25
Vf Max. 1.0
Ir @25°C .10u
I(out) (If AVG) Max. 3.0
Trans. Freq (Hz) Min. 15.M
@VCE (test) (V) 6.0i
@Volts (test) (V) 1k
@If (test) 500m
@If (test) 1.0
Oper. Temp (°C) Max. 150
@Ic (A) 1.0m
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
SKU 651642
