S83C196KD
View detailed images (9)

S83C196KD

SKU: S83C196KD

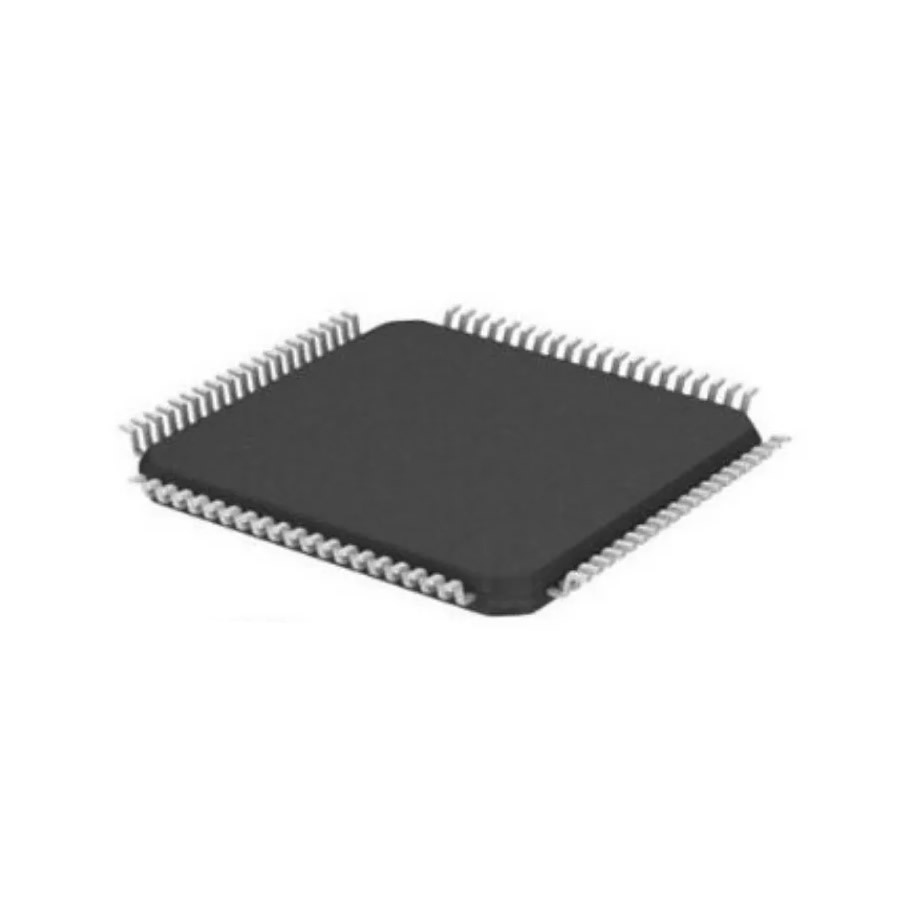

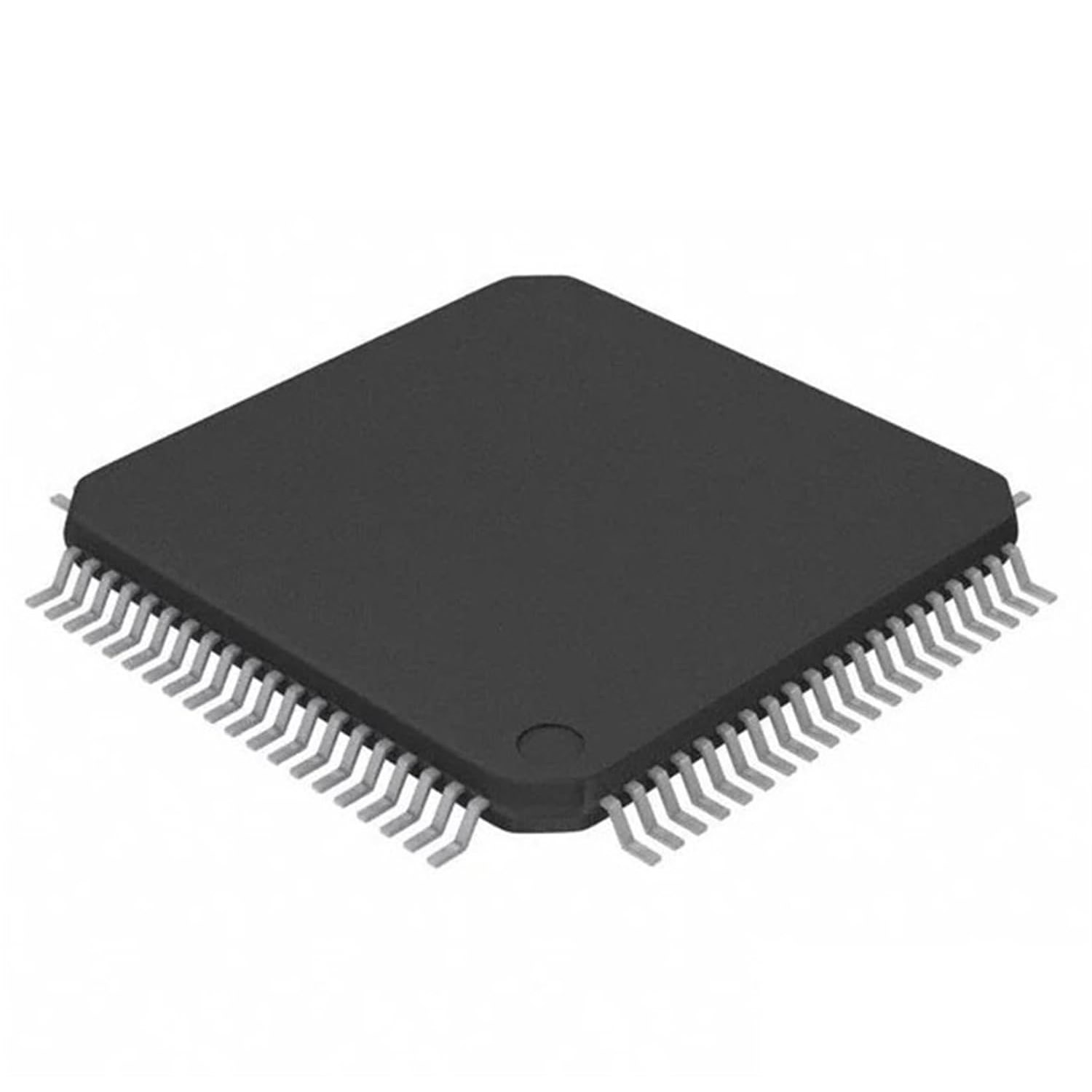

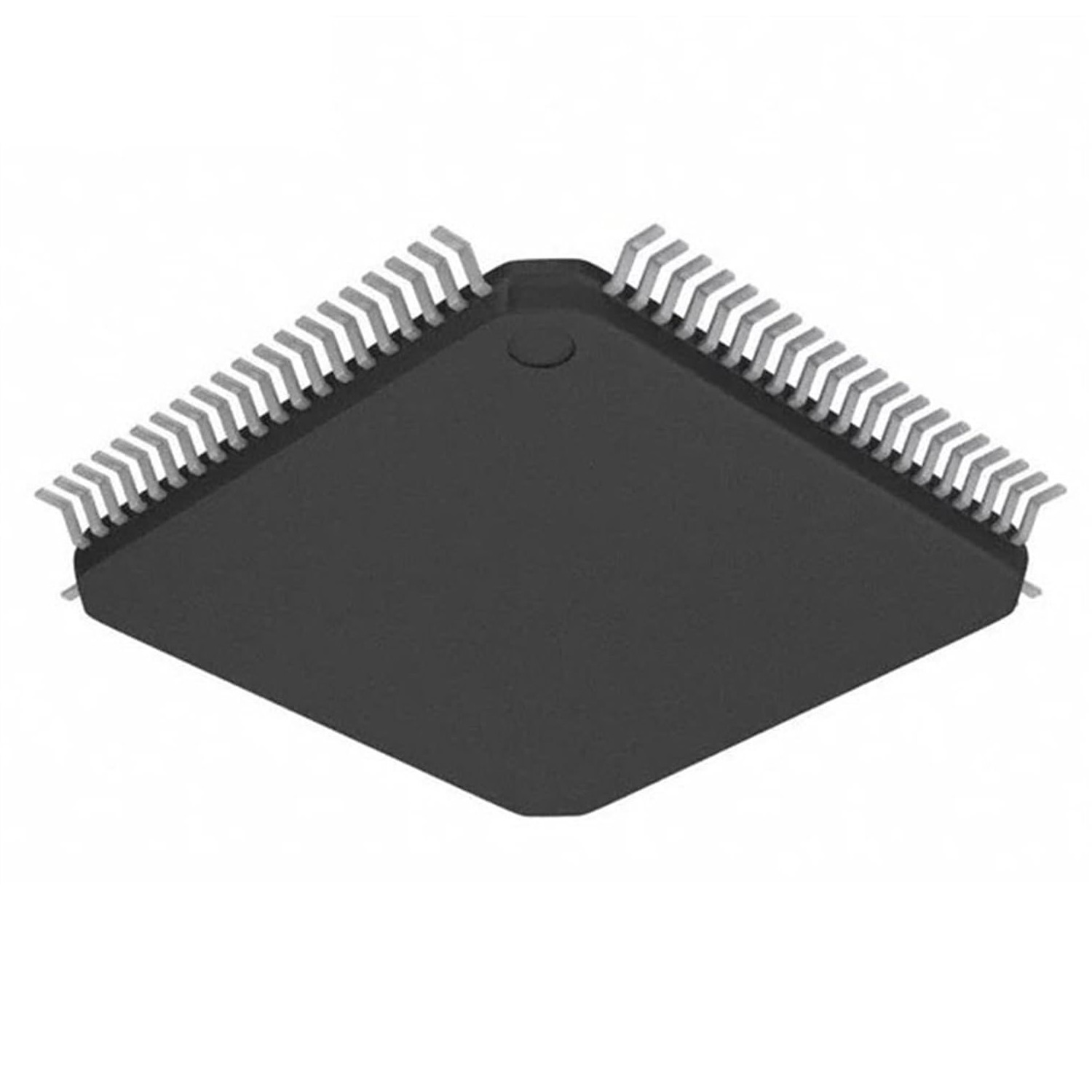

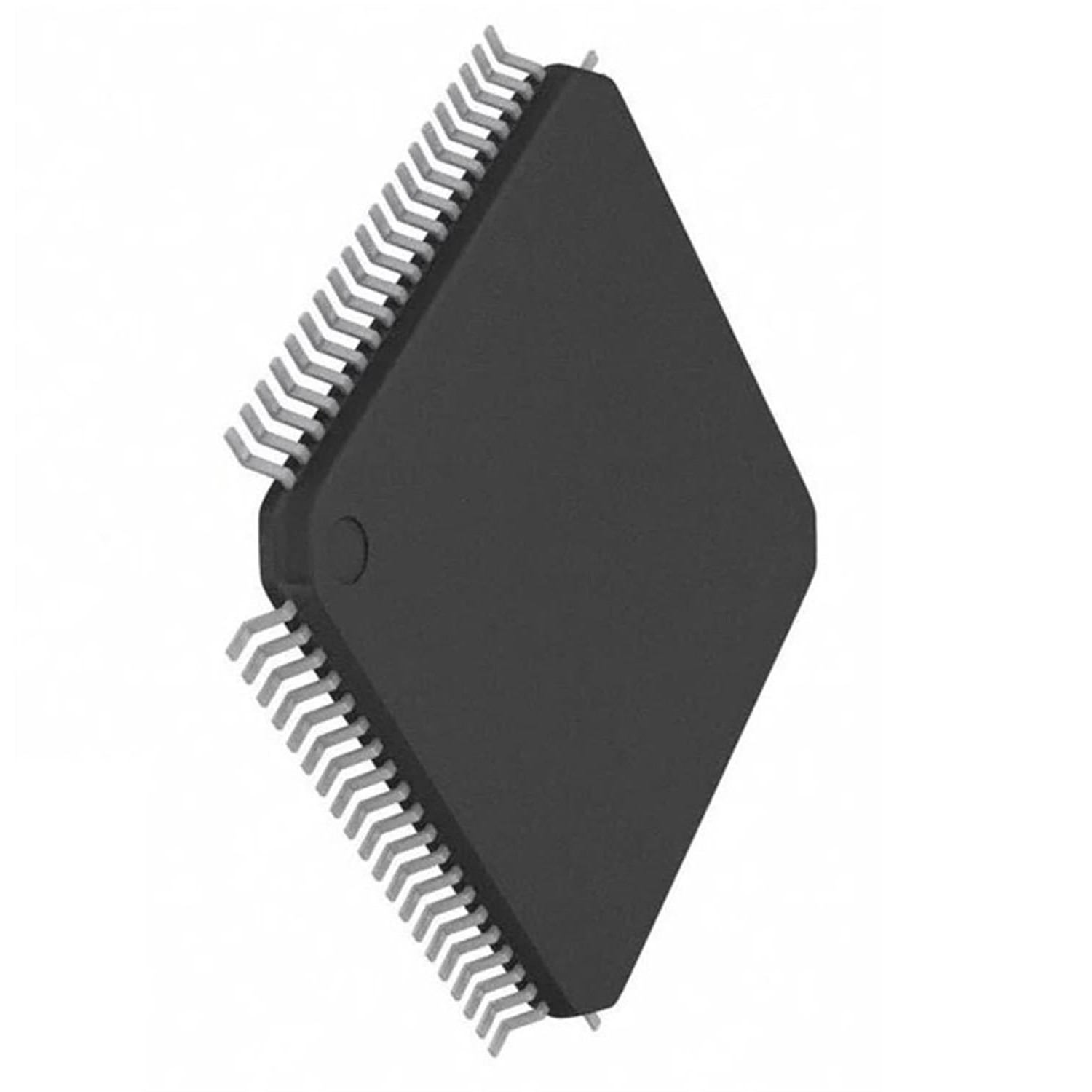

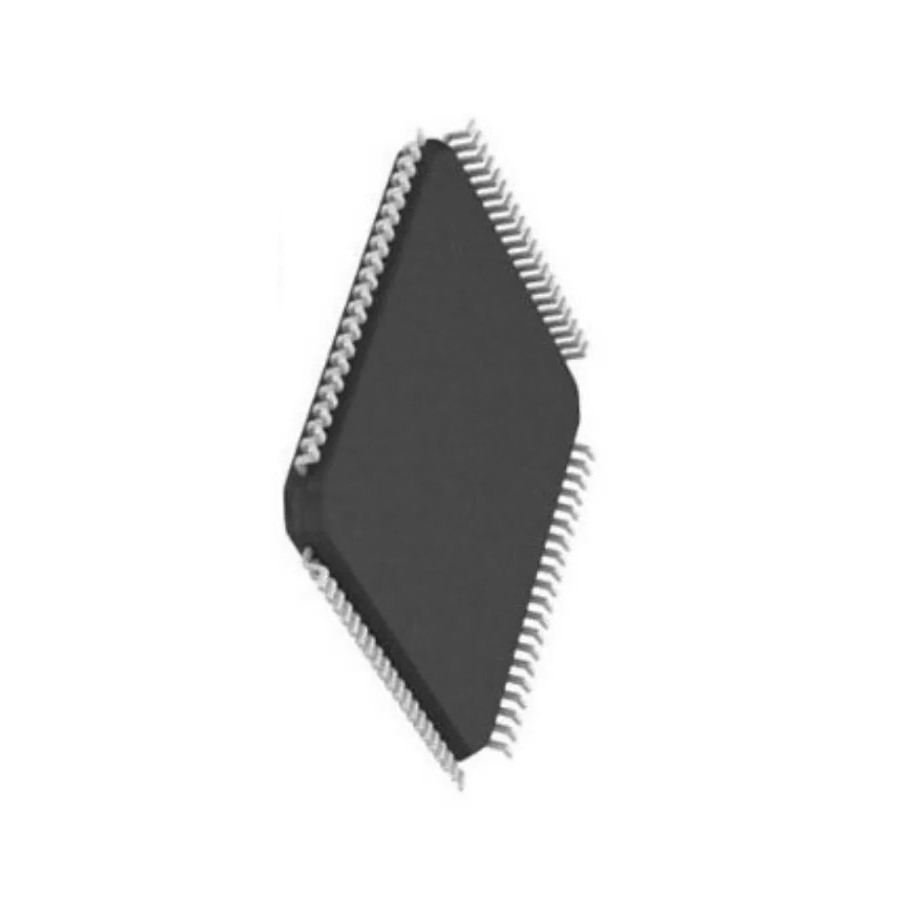

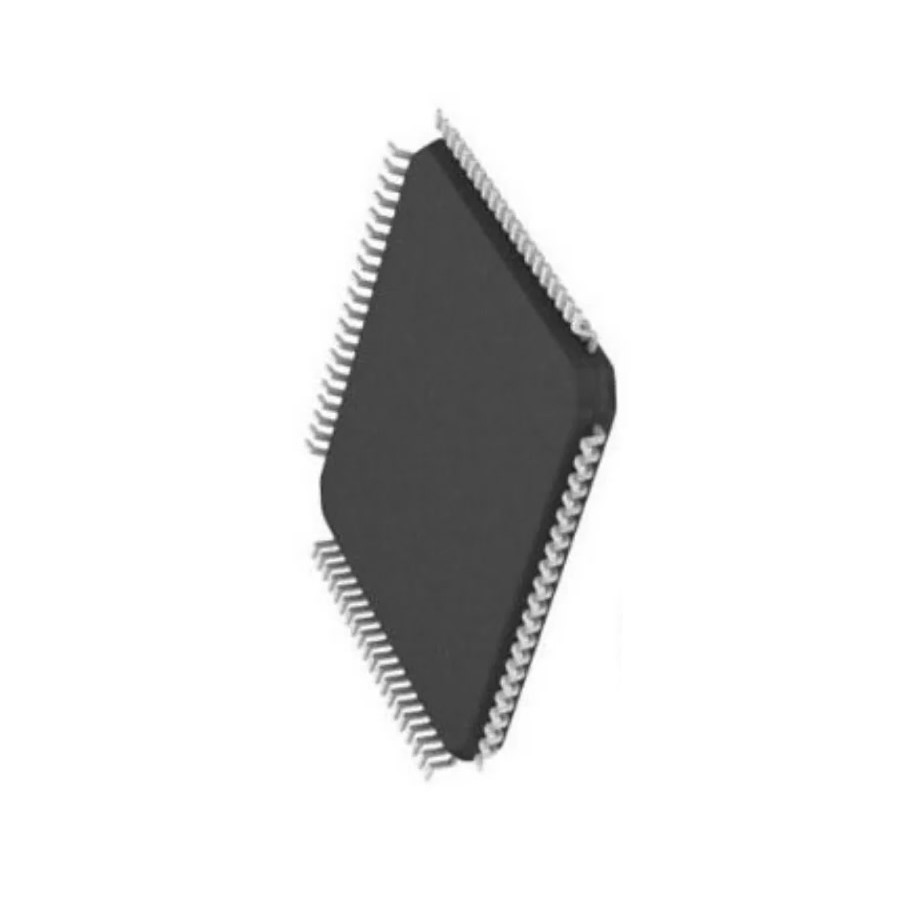

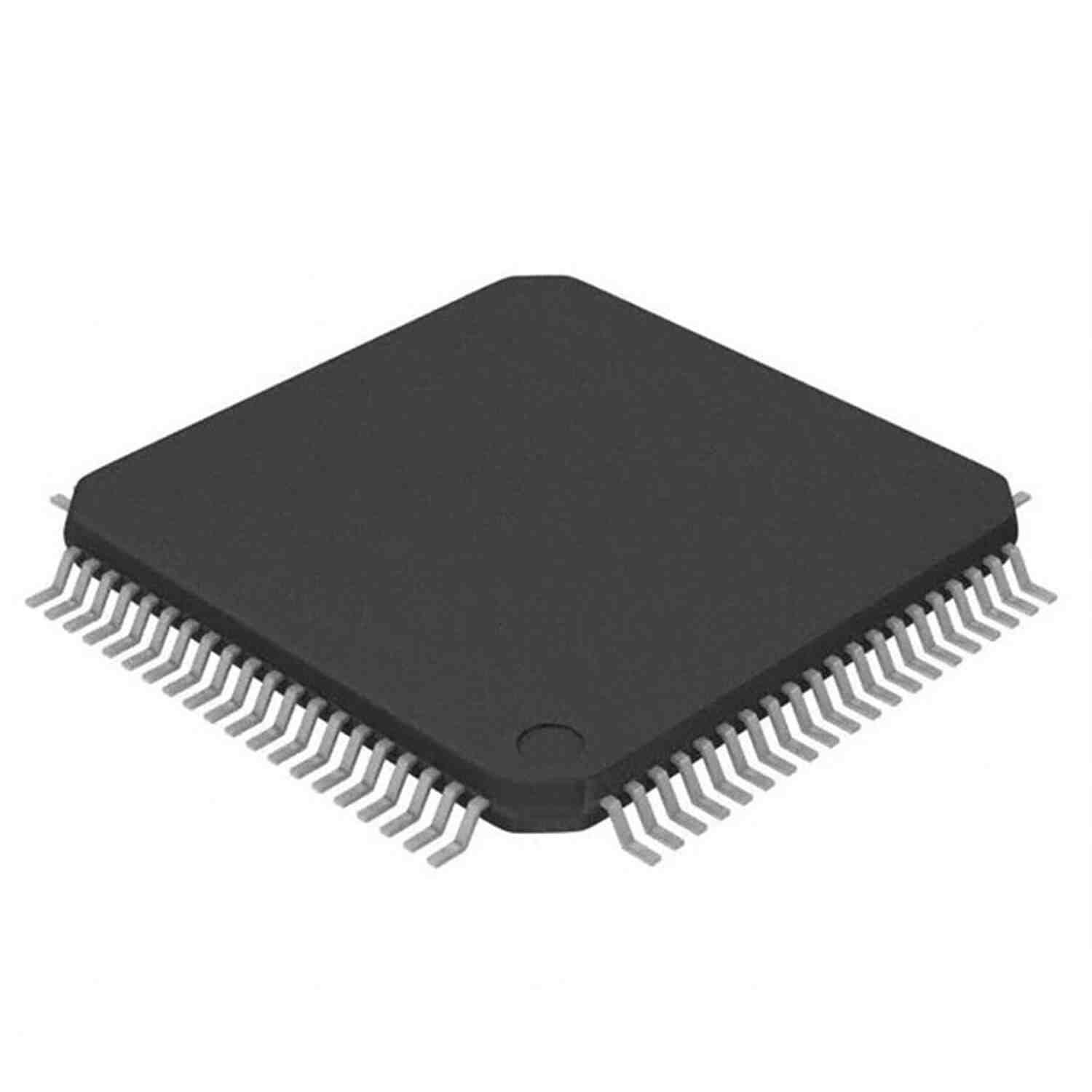

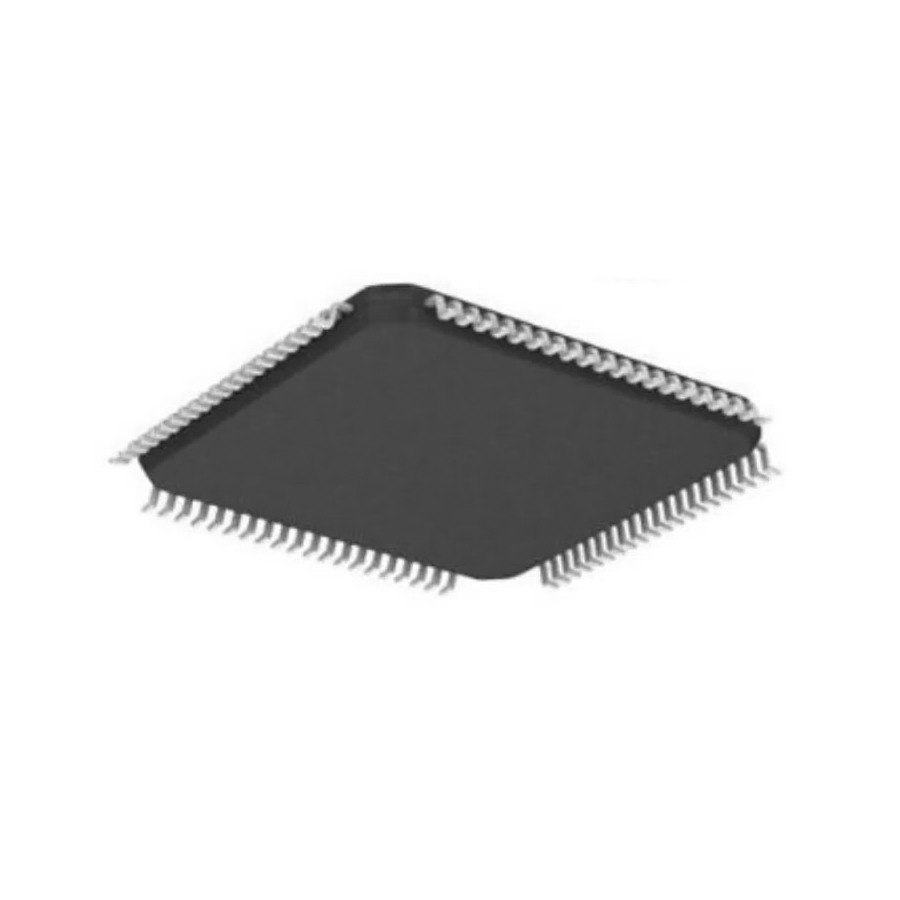

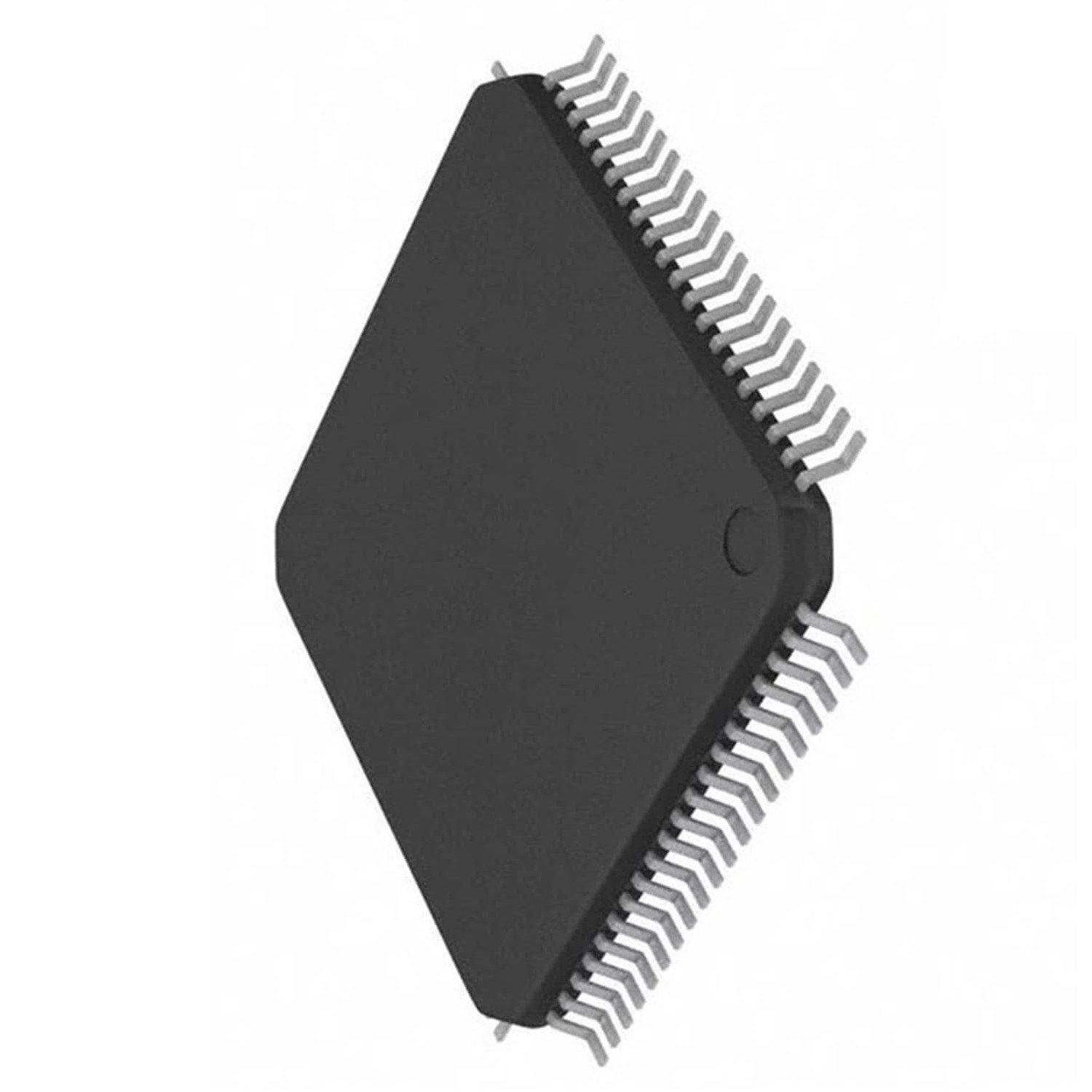

S83C196KD Integrated Circuit CASE: QFP80 MAKE: Intersil
Product specifications
Type Integrated Circuit
Case QFP80
Manufacturer Intersil
Mem. Addr Rnge 64k
No.of Addr. Modes 6
No. of I/O Lines 40
I/O Line Types ByteSerial
Max. Inst. Len (bits) 32
Min Inst. Len (bits) 8
No. of Intrpt Lines 2
No. of Intrpt (NMI) 1
No. of Intrpt (mask) 27
fClk Max. (Hz) 16M
fClk Min (Hz) 8M
No. of I/O Ports 5
On-Chip ROM (bytes) 32k
Nom. Supp Volt 5
Tech. CMOS Integrated Circuit
On-Chip RAM (Bytes) 1k
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Pinout Equivalence Number 80-71
No. of Pins 80
Surface Mounted Yes/No YES
SKU 1138358
