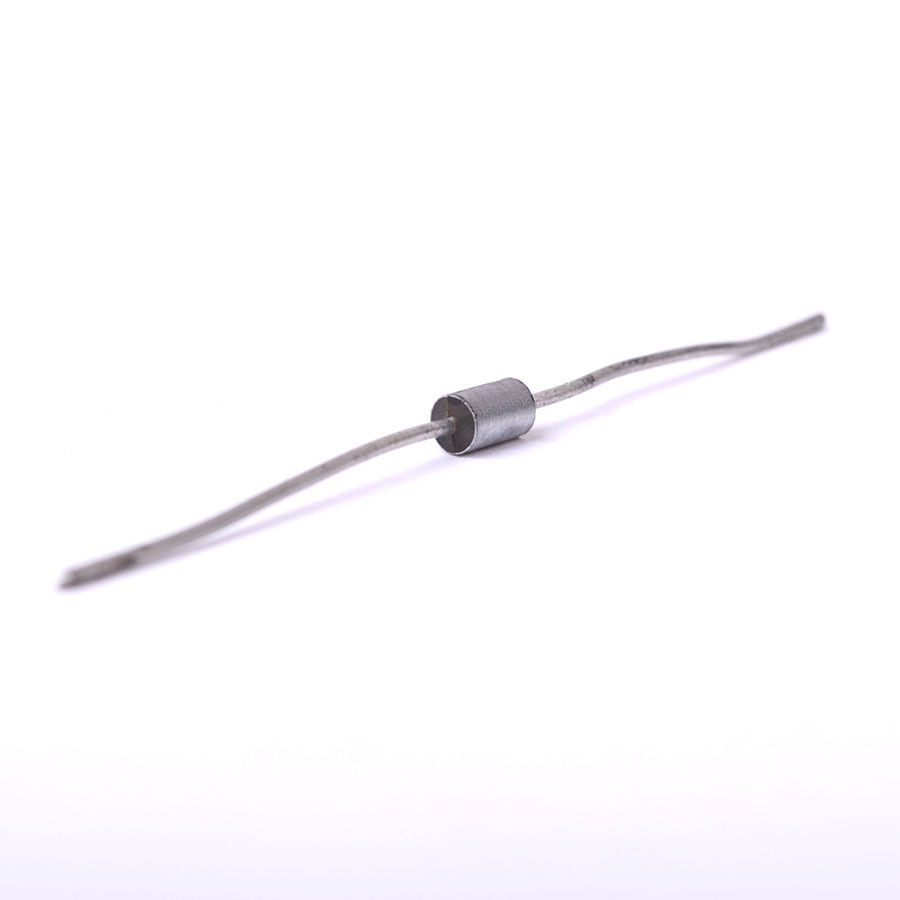

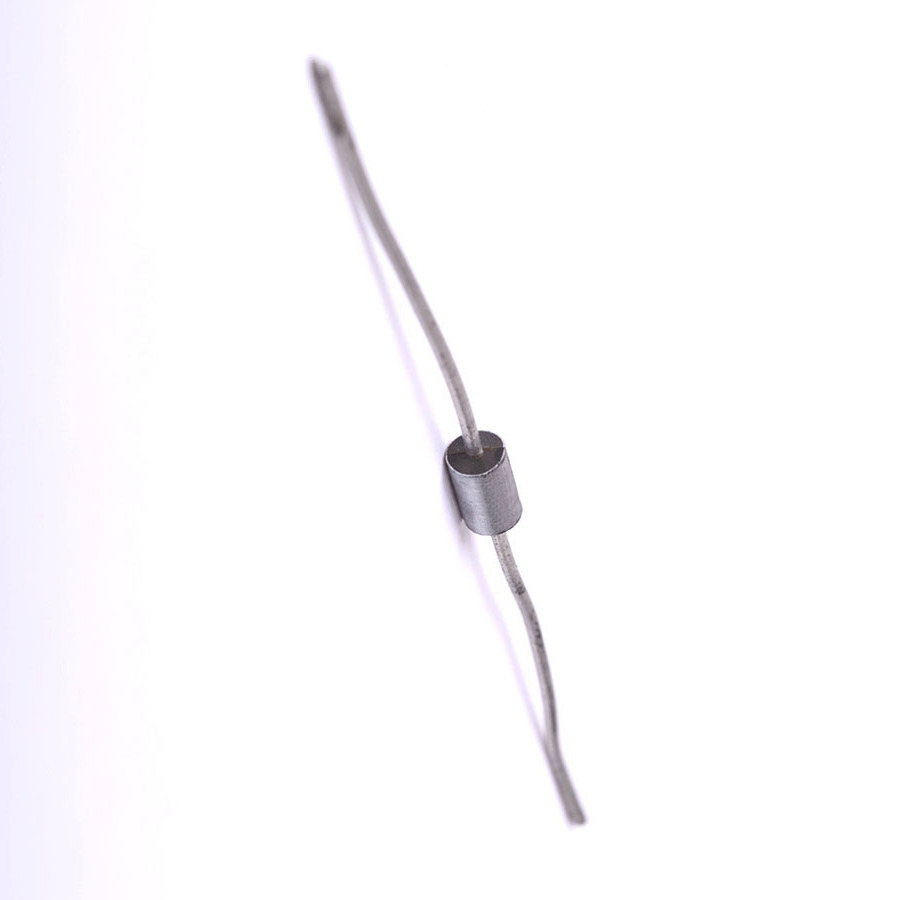

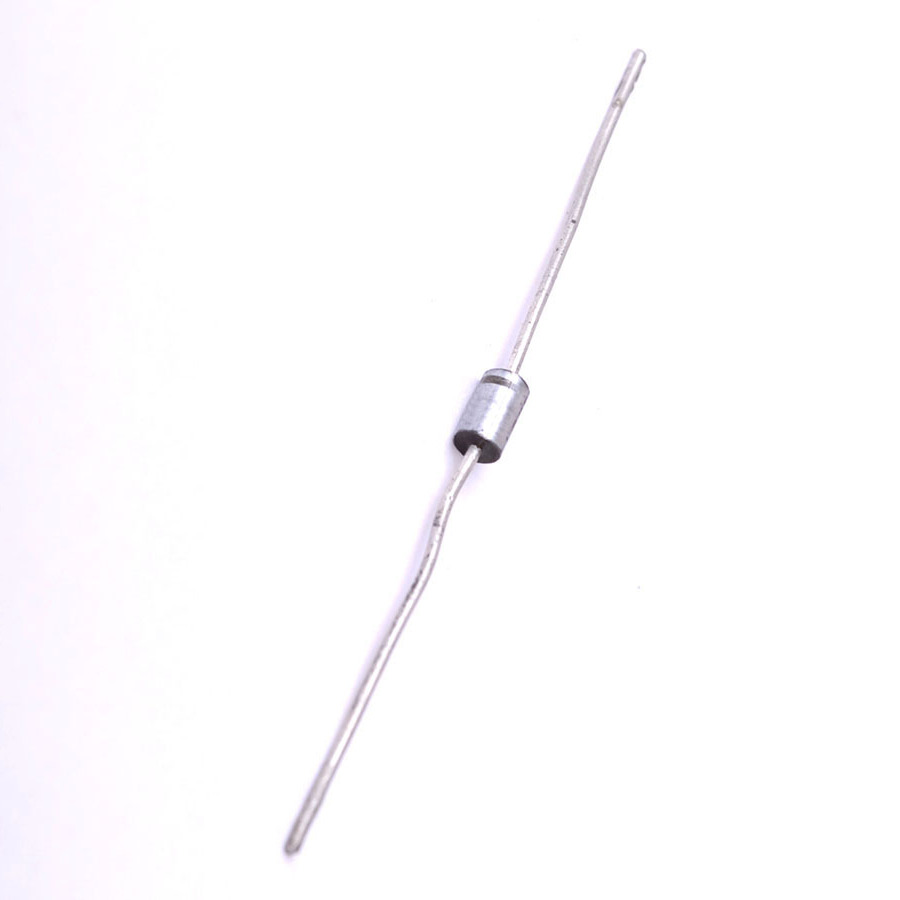

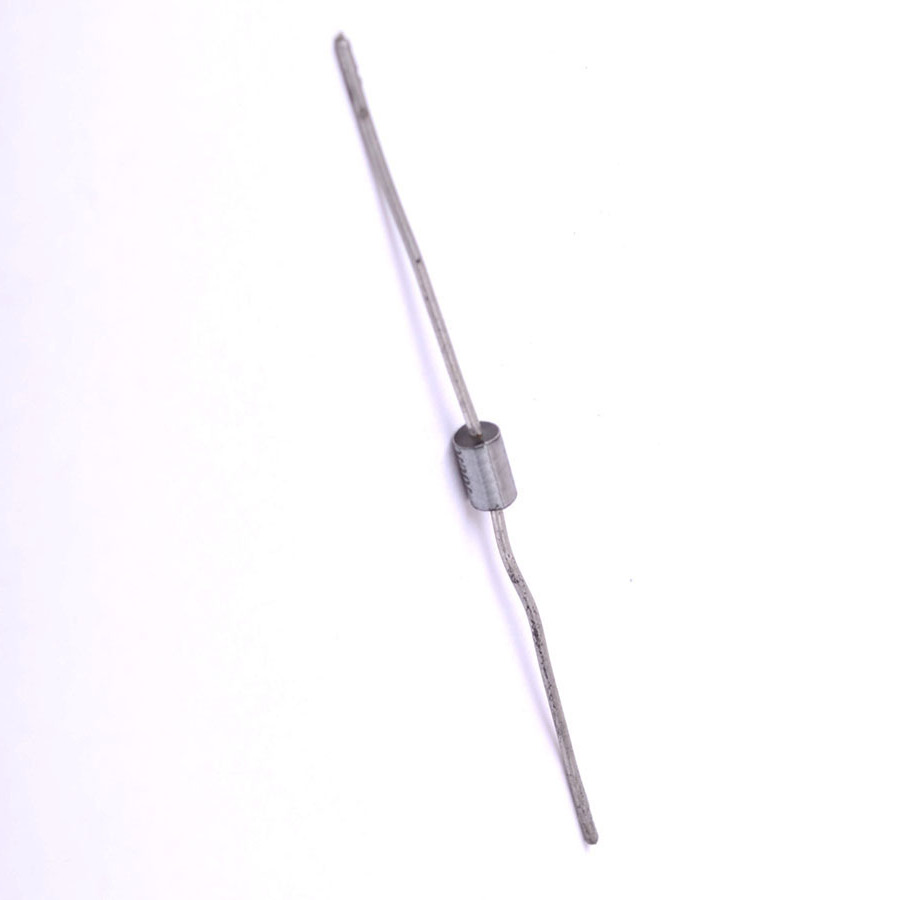

SA60A

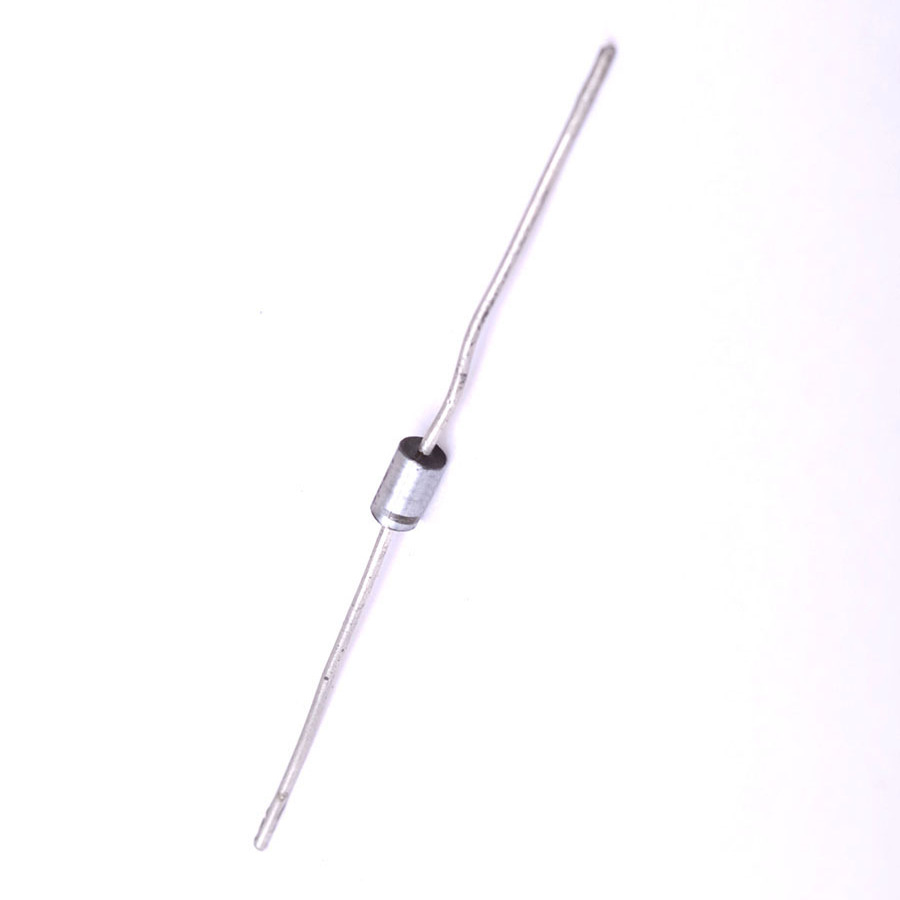

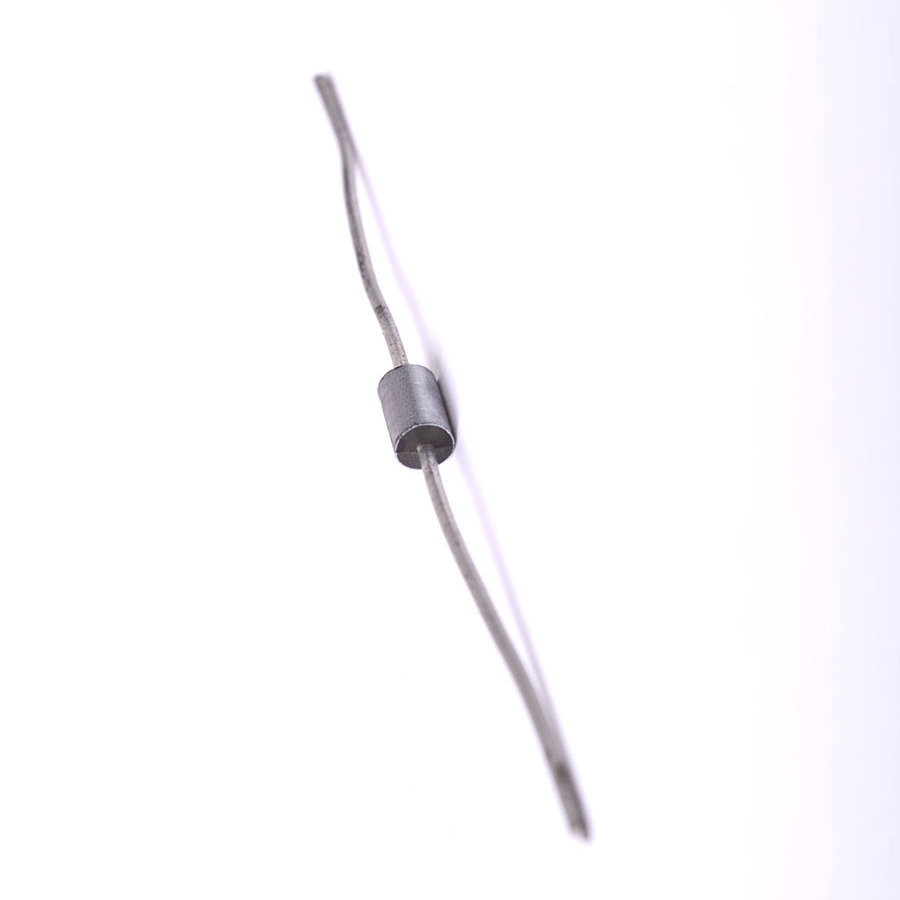

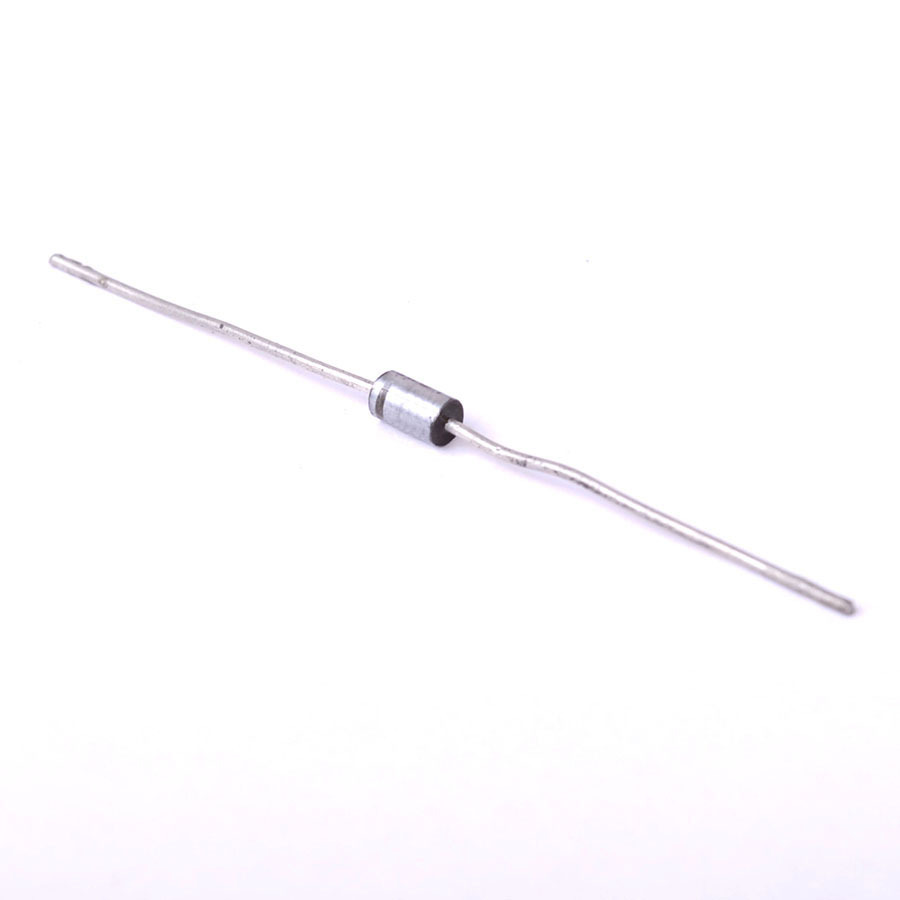

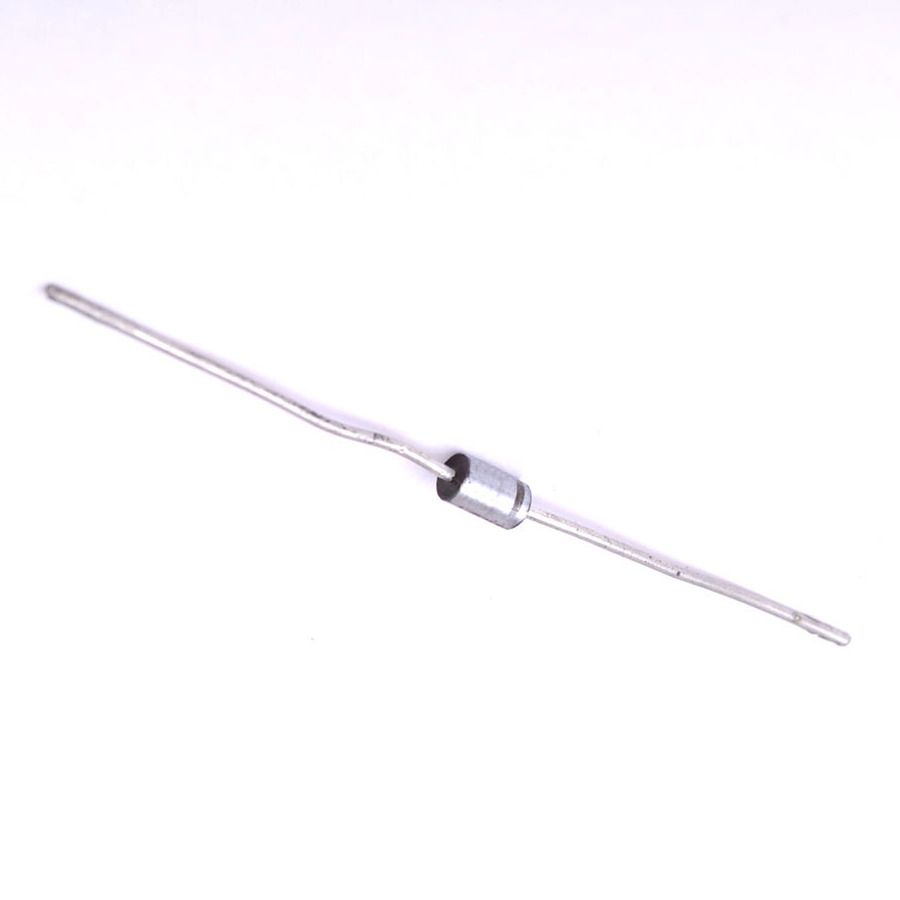

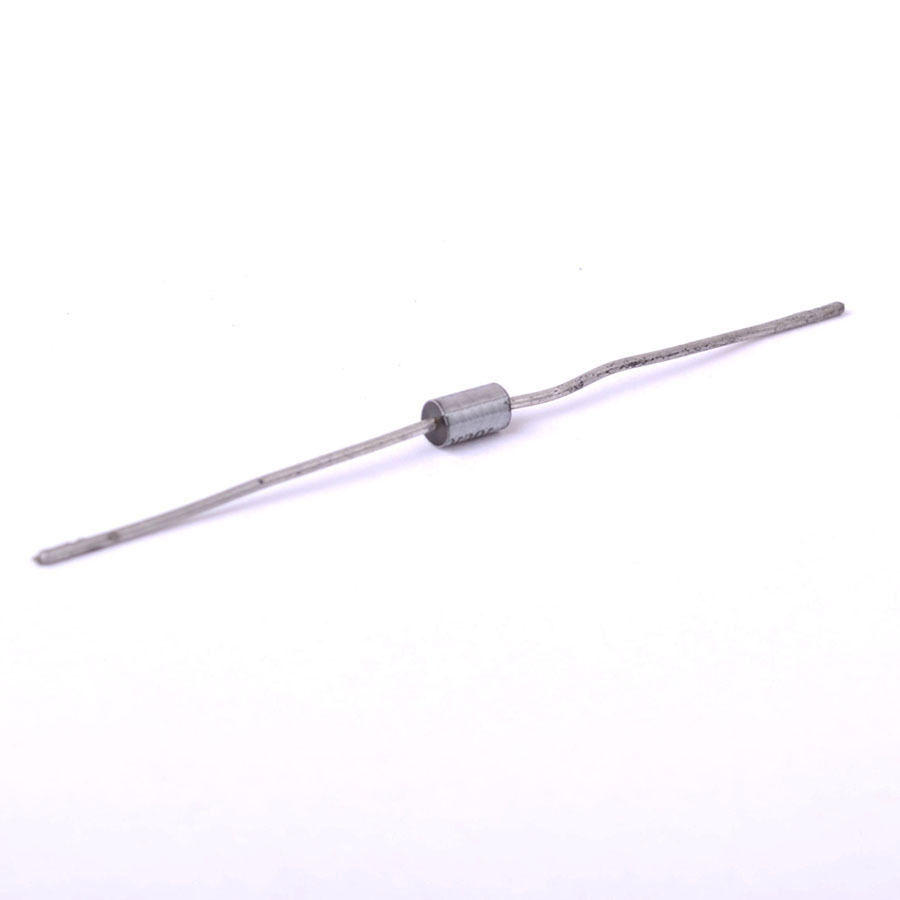

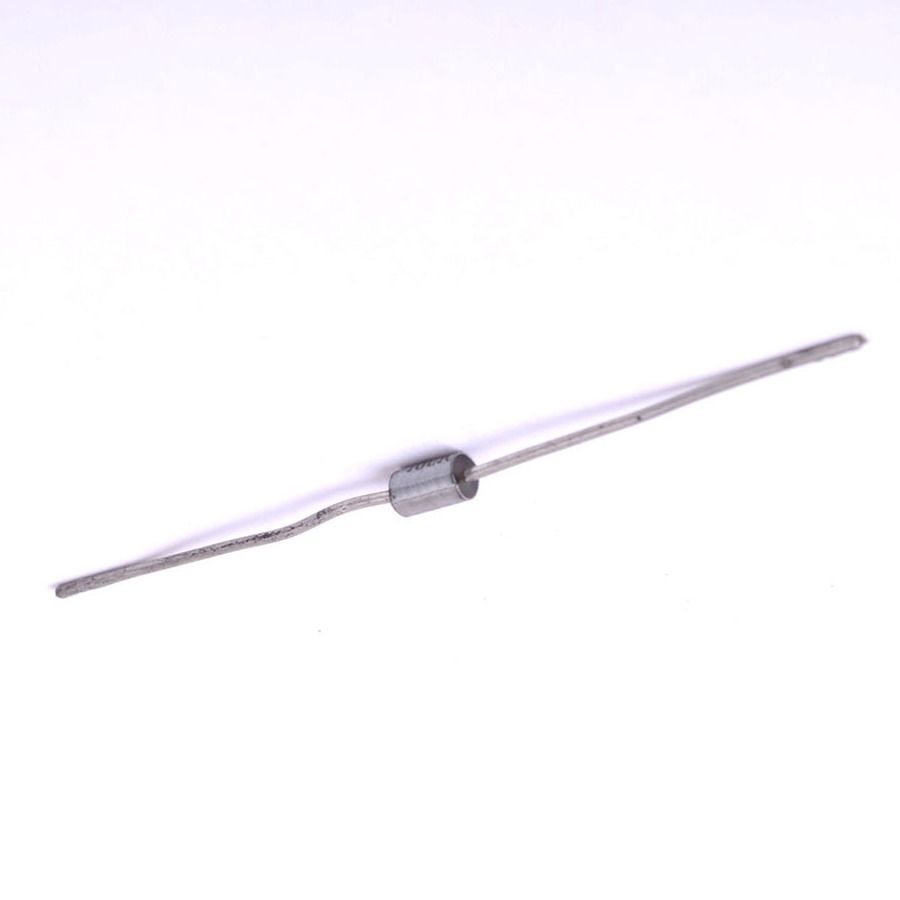

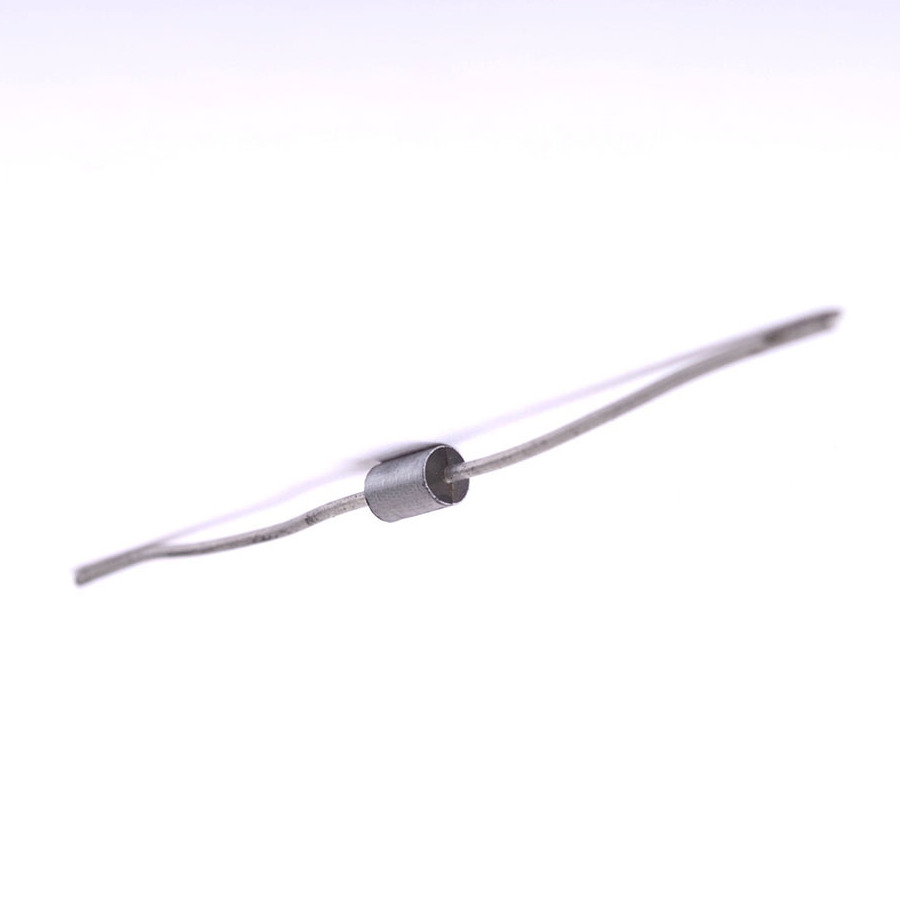

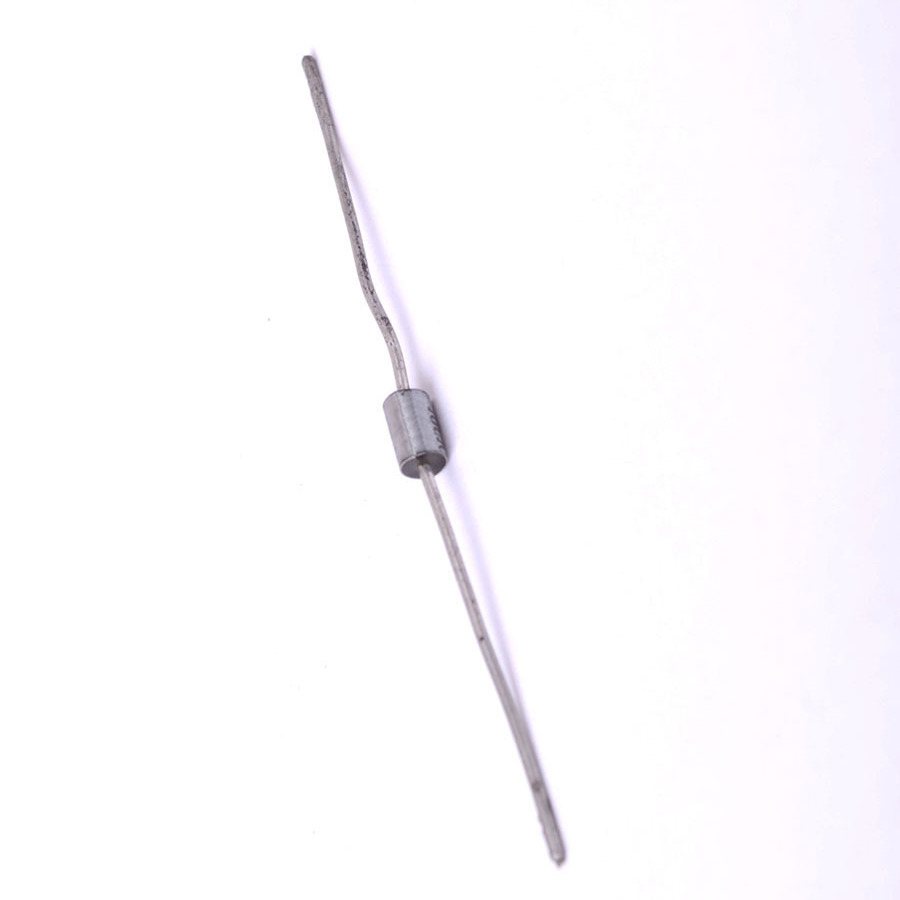

View detailed images (12)

SA60A

SKU: SA60A
SA60A SemiConductor CASE: DO41 MAKE: Motorola Semiconductor
Product specifications
Equivalent SA60
Type SemiConductor
Case DO41
Manufacturer Motorola Semiconductor
R(in) (Û) 500k-
Mat. Silicon Logic
PD Max. (W) 2.2
Nom. Supp (V) 75.0
t(resp) (S) 1.0p
Inp Bias Curr. Max. (A) 20n
Unity Gain BW (Hz) 2.0M
Com Mode Inp Range (VICR) 20
Temp Coef. of VIO 20u
Oper. Temp (°C) Min -25
Oper. Temp (°C) Max. 85
Vbr Nom. 70.2
@Ir (test) 1.0m
Ipp Max. (A) 5.2
Nom. Clamp Volt 96.8
@Ipp (test) 5.2
Reverse Standoff Voltage 60
Pinout Equivalence Number N/A
No. of Pins N/A
Surface Mounted Yes/No NO
SKU 553013
