SAB80C535-16N
View detailed images (9)

SAB80C535-16N

SKU: SAB80C535-16N

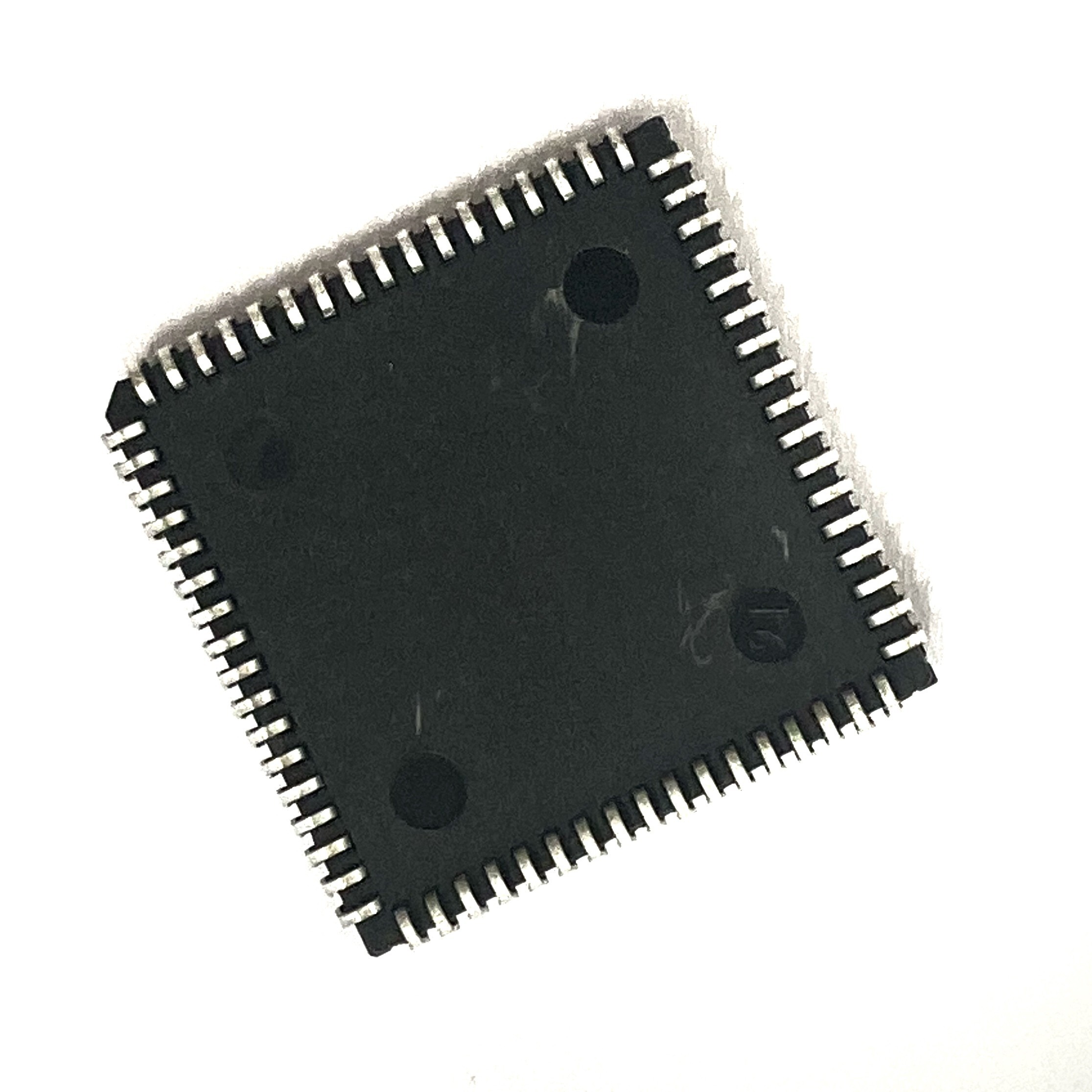

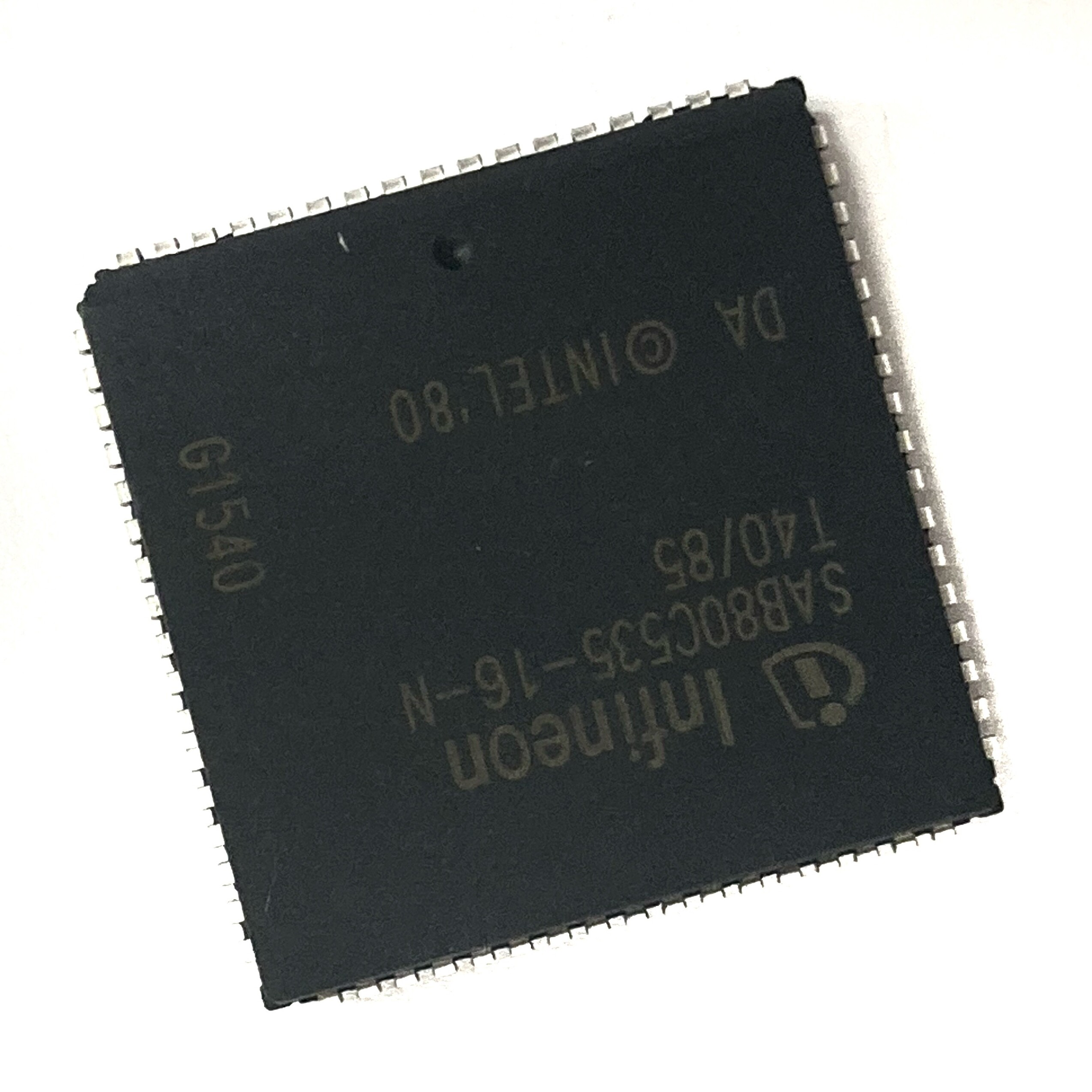

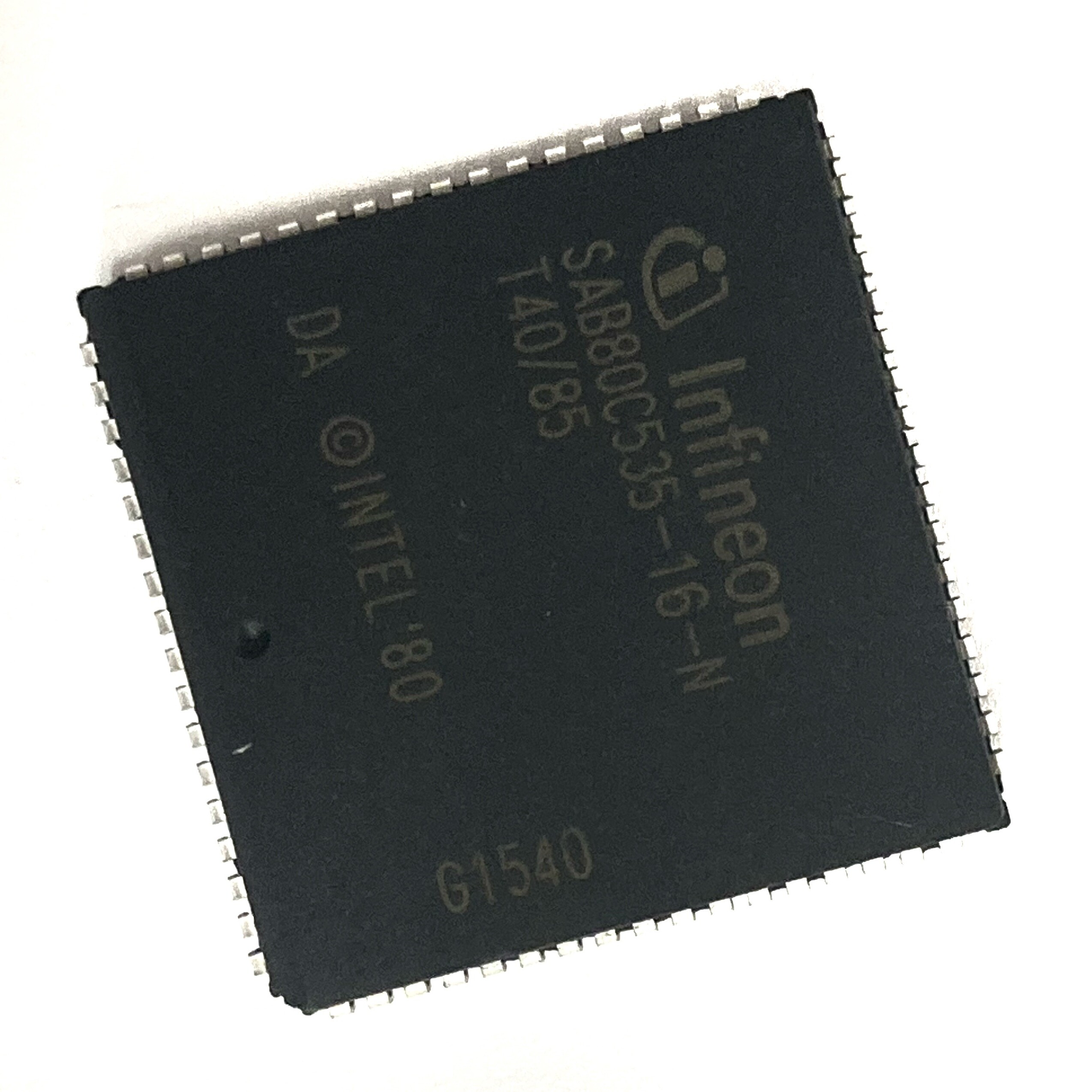

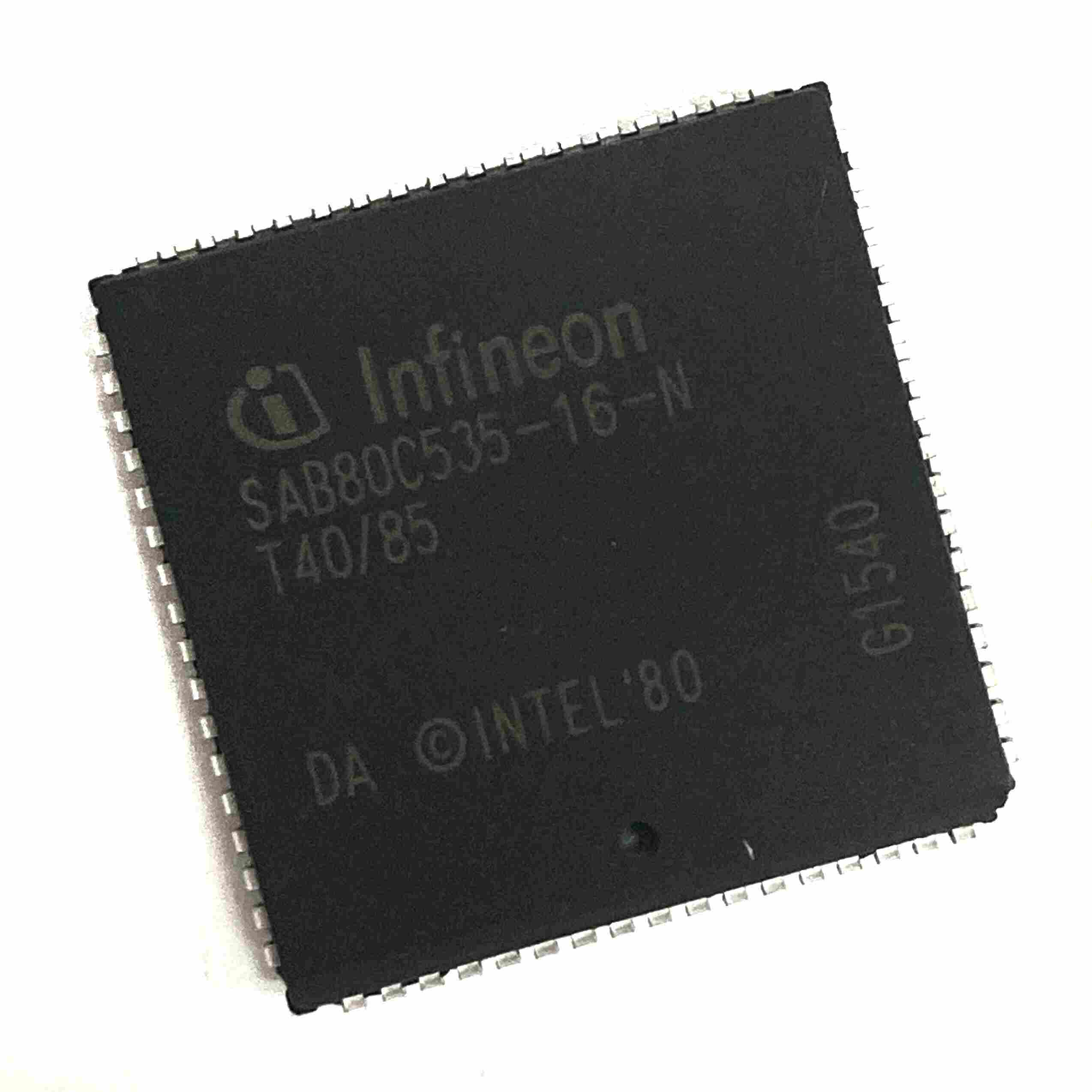

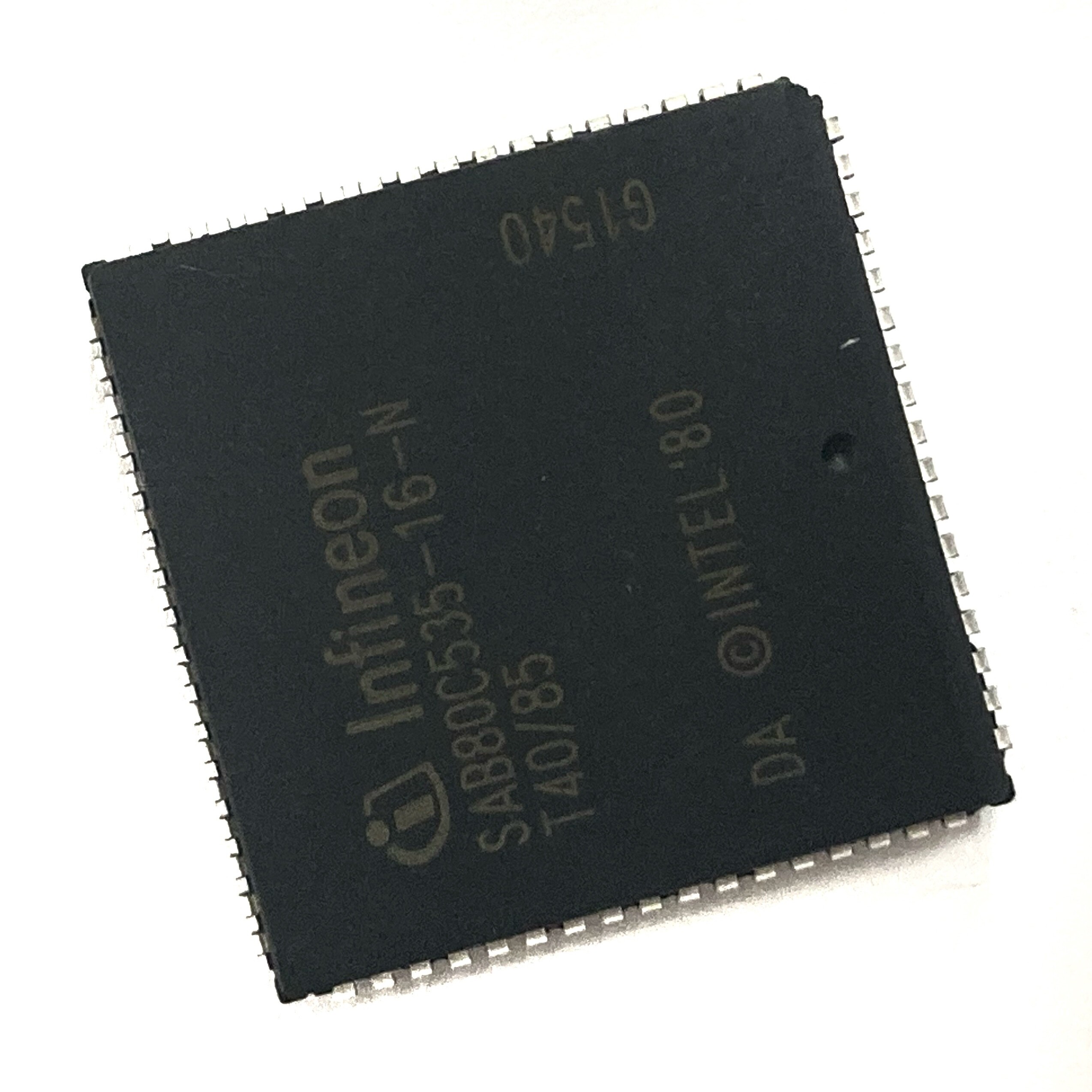

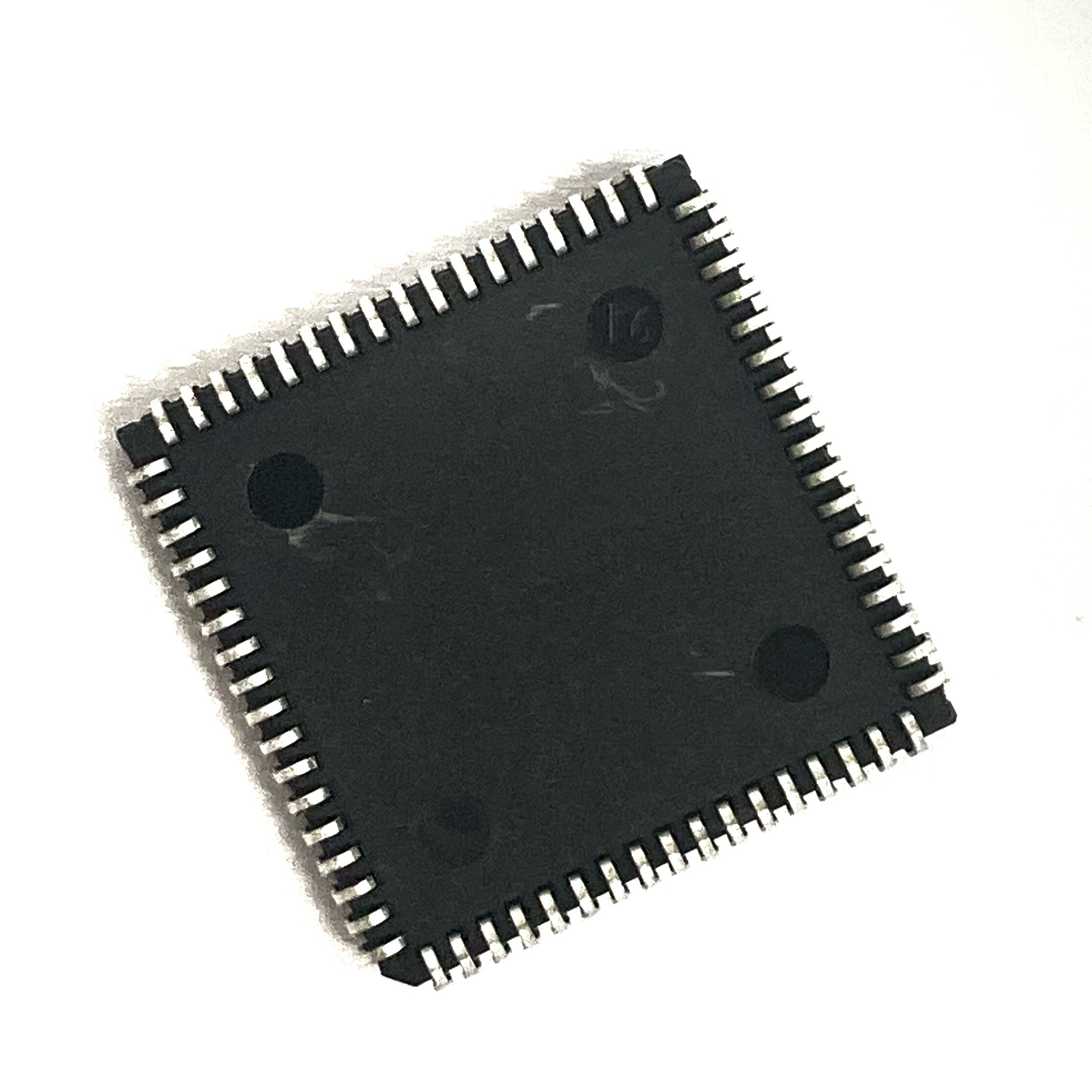

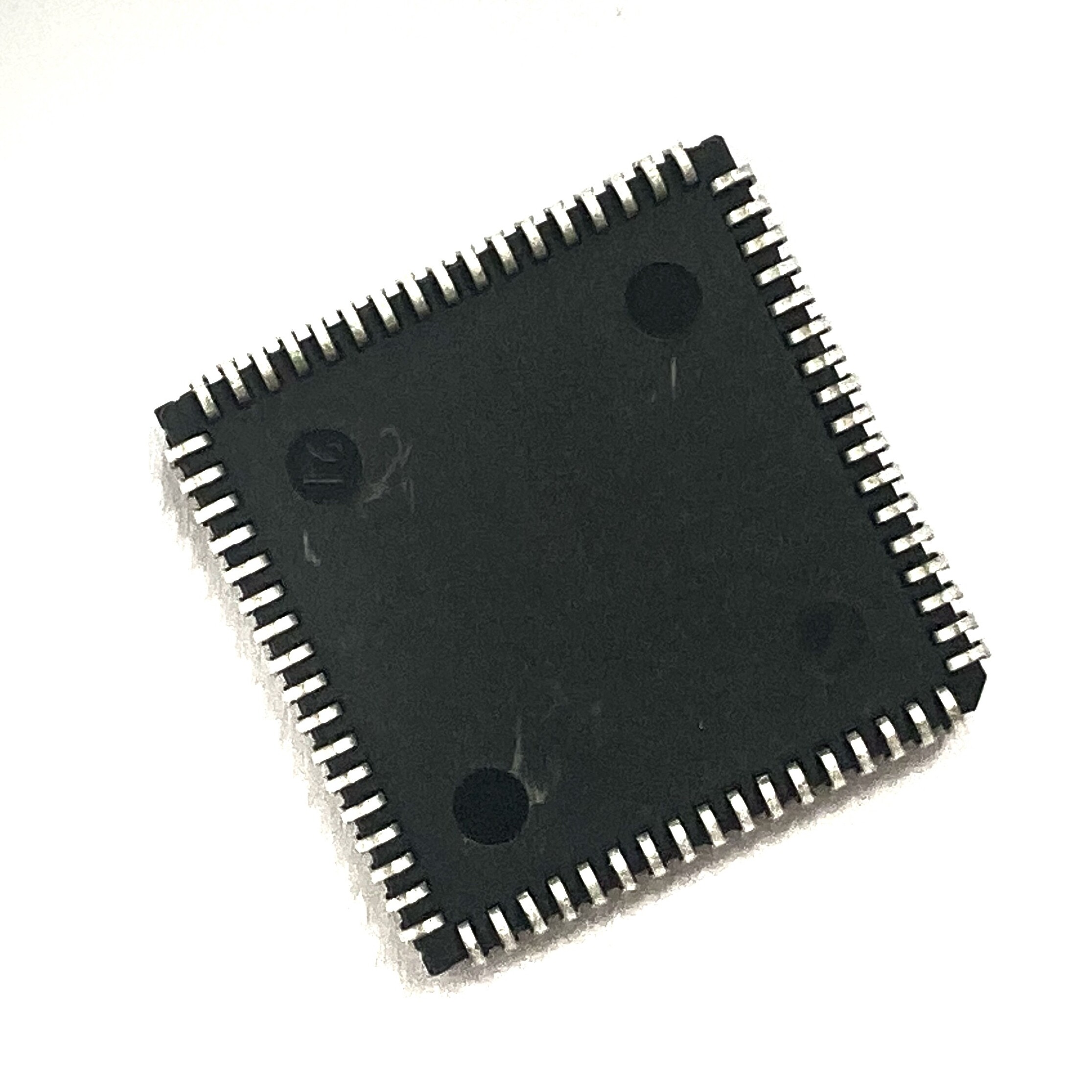

SAB80C535-16N Integrated Circuit - Case: PLCC68 Make: Siemens
Price: £19.99
+ VAT 20% for UK purchases
£19.99
Qty
+ VAT 20% for UK purchases
  • 2 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Product specifications
Type Integrated Circuit
Case PLCC68
Manufacturer Siemens Semiconductors
Mem. Addr Rnge 64k
No.of Addr. Modes 5
No. of I/O Lines 56
I/O Line Types ByteSerial
Max. Inst. Len (bits) 24
Min Inst. Len (bits) 8
No. of Intrpt Lines 7
No. of Intrpt (NMI) 0
Intrpt Types Prty/Ext V
No. of Intrpt (mask) 12
fClk Max. (Hz) 16M
fClk Min (Hz) 500k
No. of I/O Ports 7
Nom. Supp Volt 5.0
Tech. CMOS Integrated Circuit
On-Chip RAM (Bytes) 256
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Pinout Equivalence Number 68-431
No. of Pins 68
Surface Mounted Yes/No YES
SKU 386751
