Home / Integrated Circuit / SAB80C537N
SAB80C537N

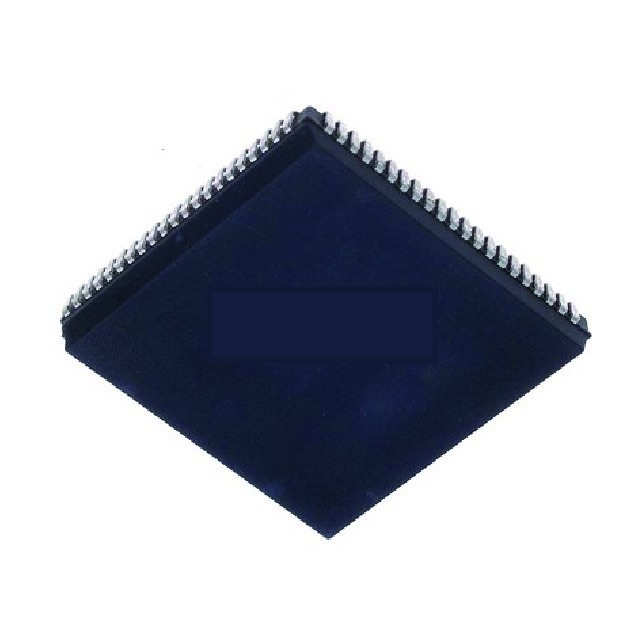

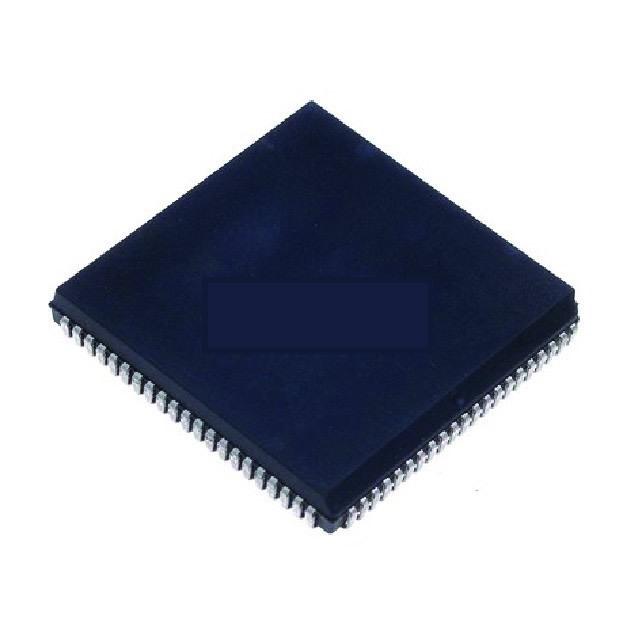

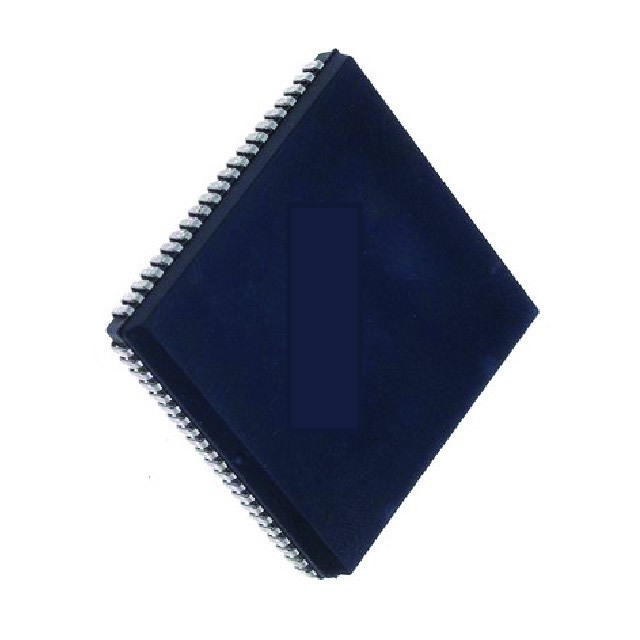

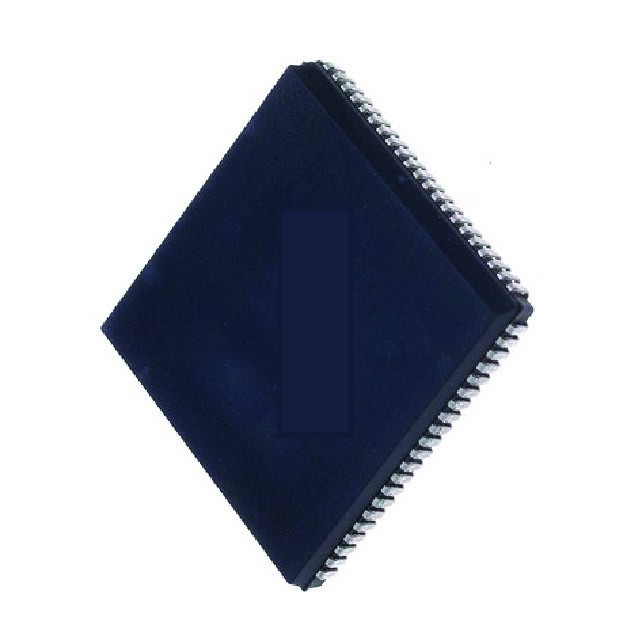

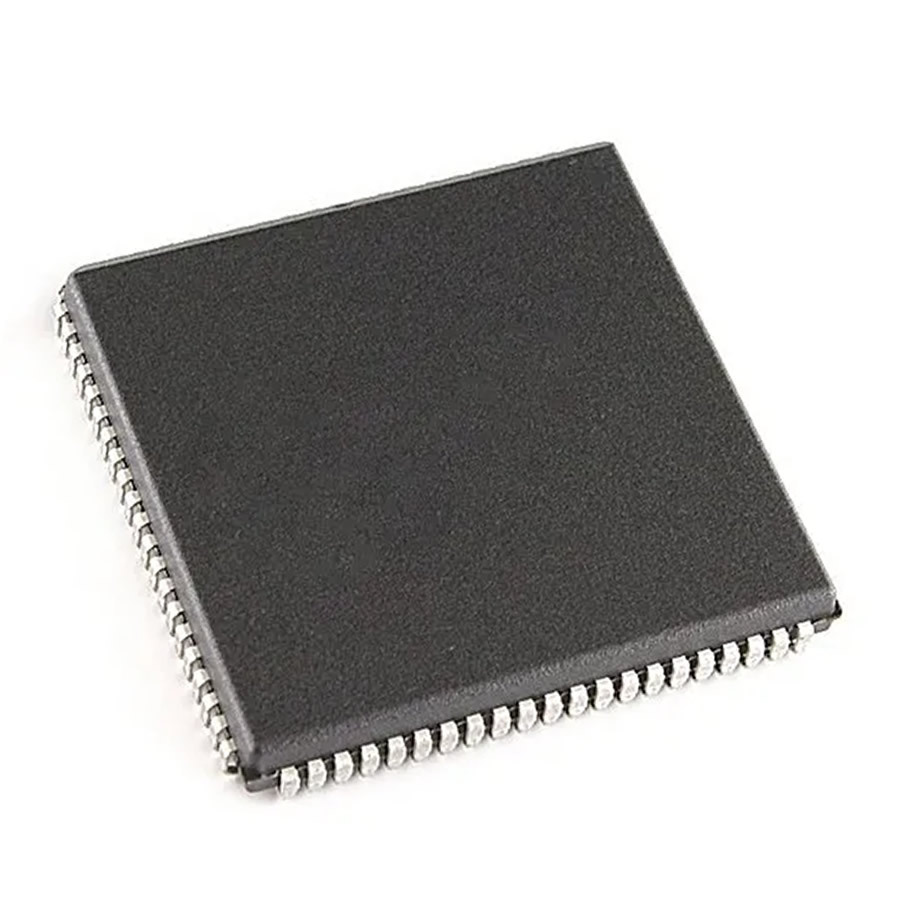

View detailed images (5)

SAB80C537N

SKU: SAB80C537N
SAB80C537N Integrated Circuit CASE: PLCC84 MAKE: Siemens Semiconductors
Price:
£62.39 Inc. VAT (£51.99 Ex. VAT)
£62.39 Inc. VAT (£51.99 Ex. VAT)
Qty
  • More pieces shipped in 14 days
?
Product specifications
Type Integrated Circuit
Case PLCC84
Manufacturer Siemens Semiconductors
Mem. Addr Rnge 64k
No.of Addr. Modes 5
No. of I/O Lines 68
I/O Line Types ByteSerial
Max. Inst. Len (bits) 24
Min Inst. Len (bits) 8
No. of Intrpt Lines 7
Intrpt Types Prty/Ext V
No. of Intrpt (mask) 14
fClk Max. (Hz) 12M
fClk Min (Hz) 1.0M
No. of I/O Ports 9
Nom. Supp Volt 5.0
Tech. CMOS Integrated Circuit
On-Chip RAM (Bytes) 256
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
Pinout Equivalence Number 84-175
No. of Pins 84
Surface Mounted Yes/No YES
SKU 441299
