SB520

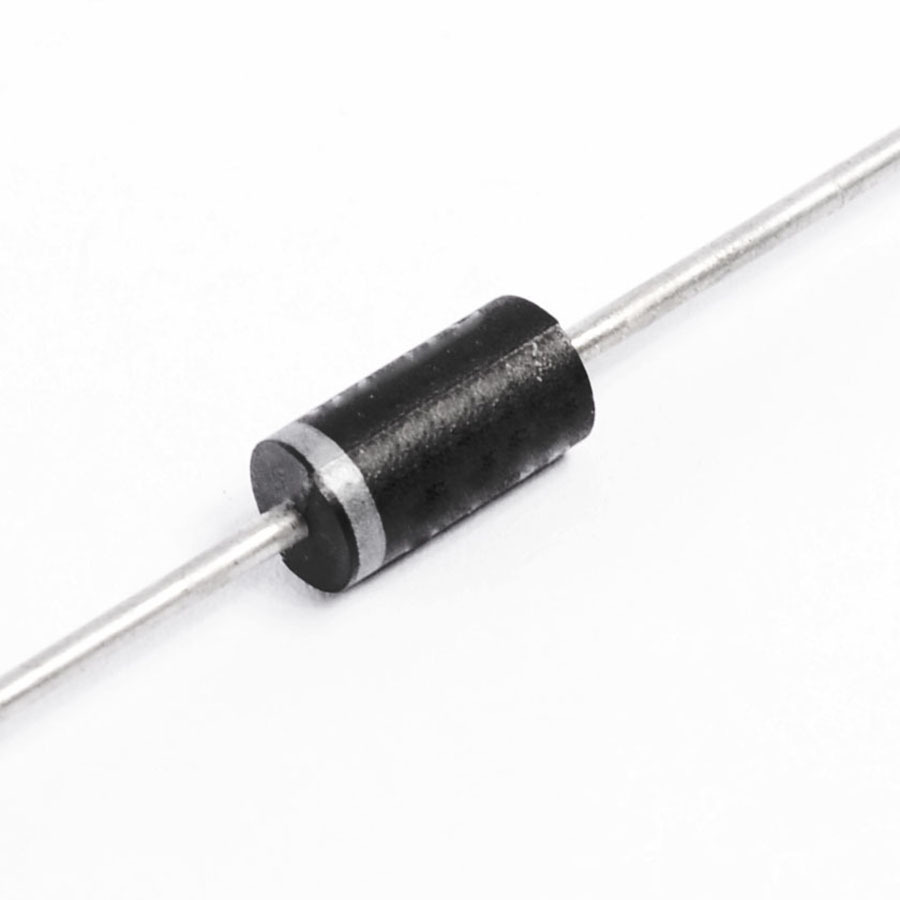

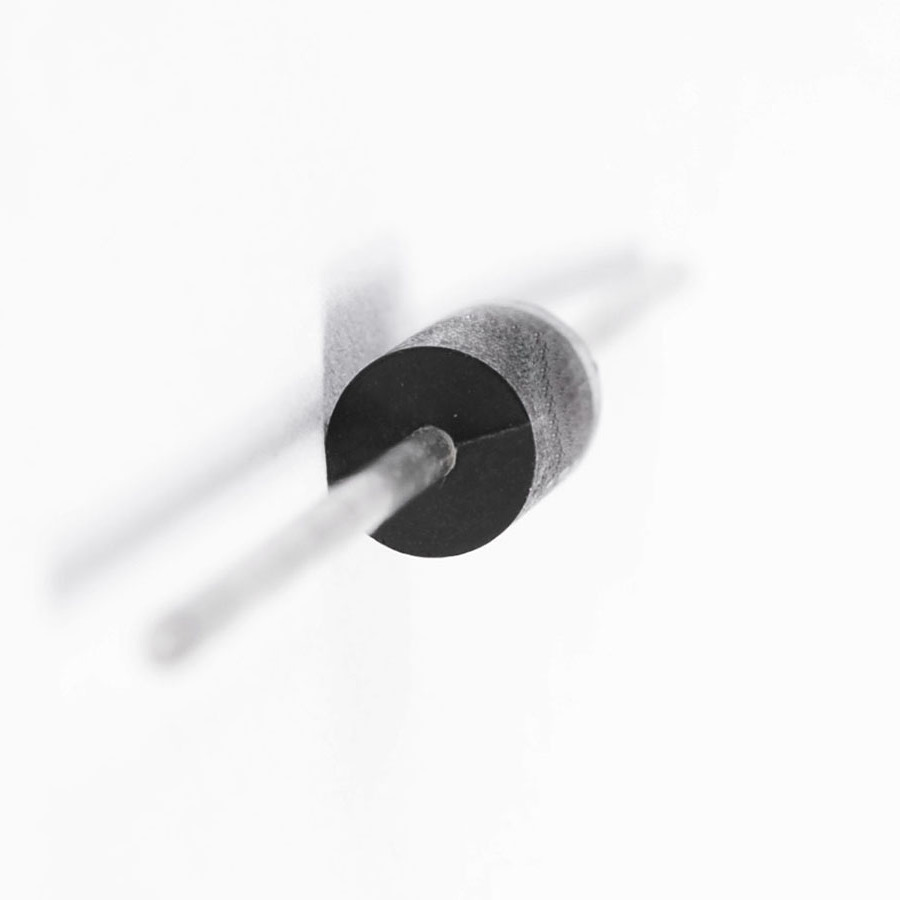

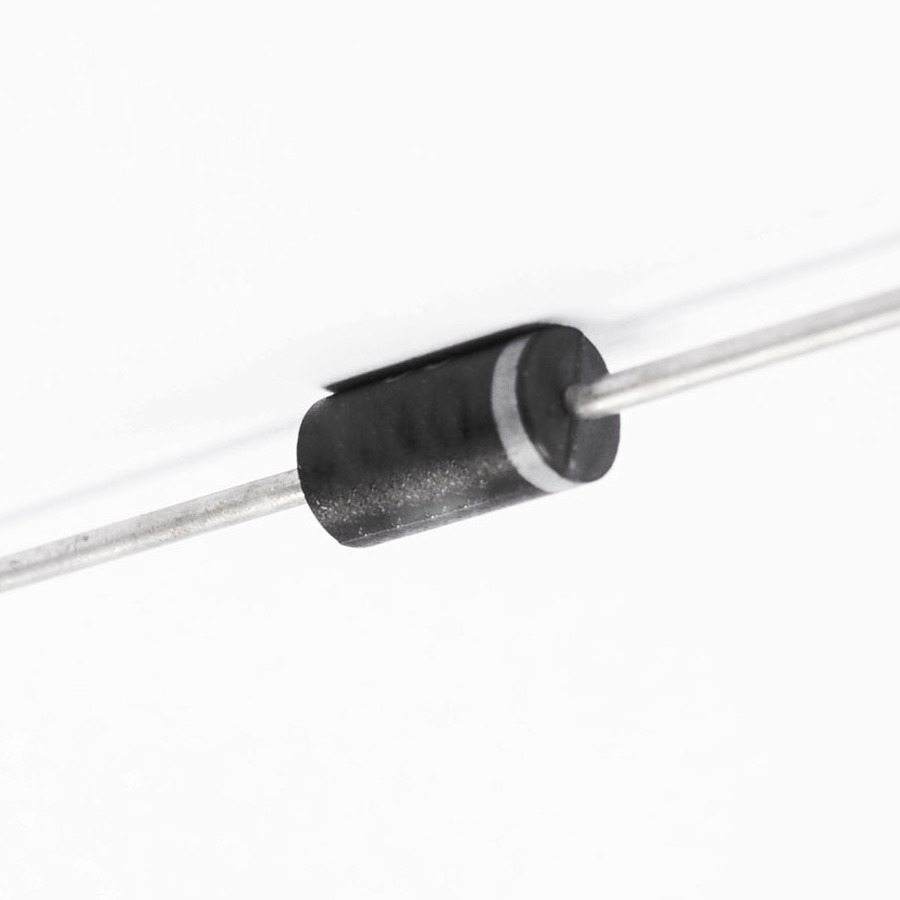

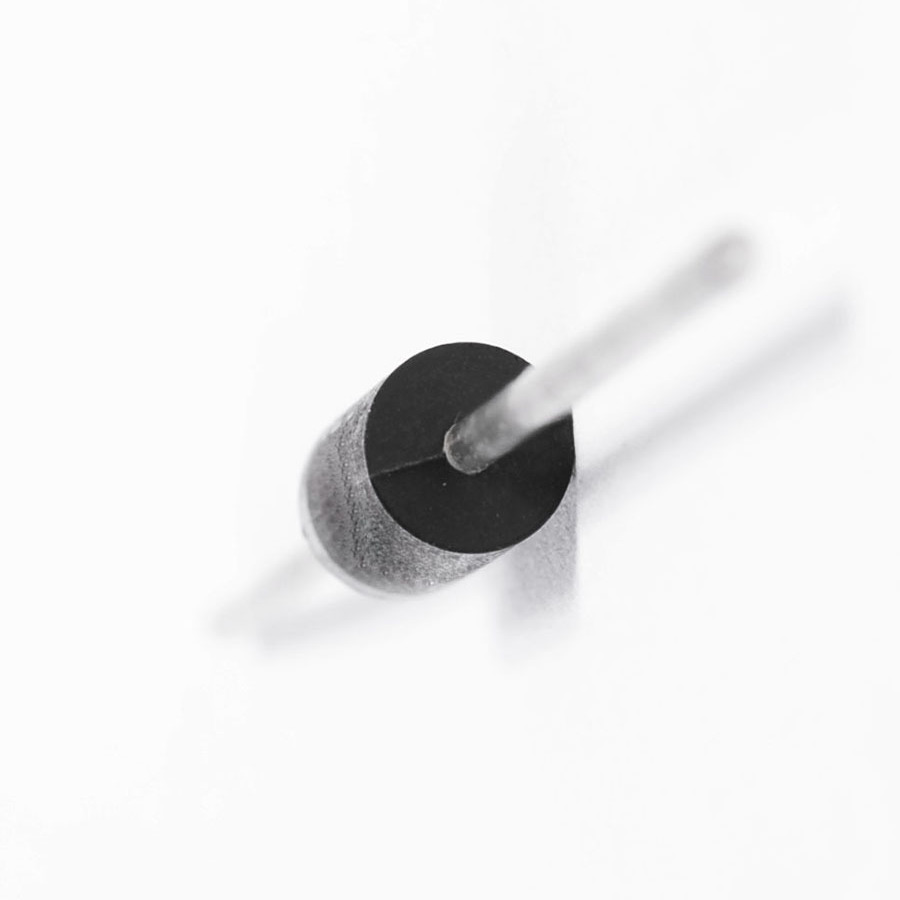

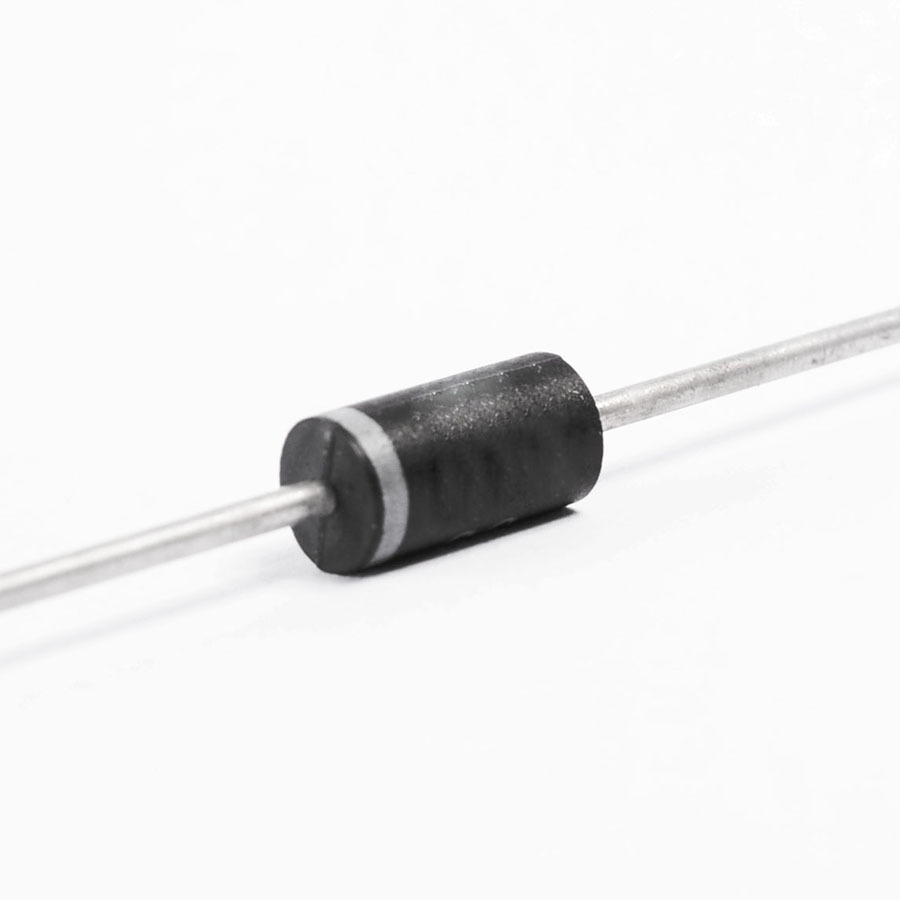

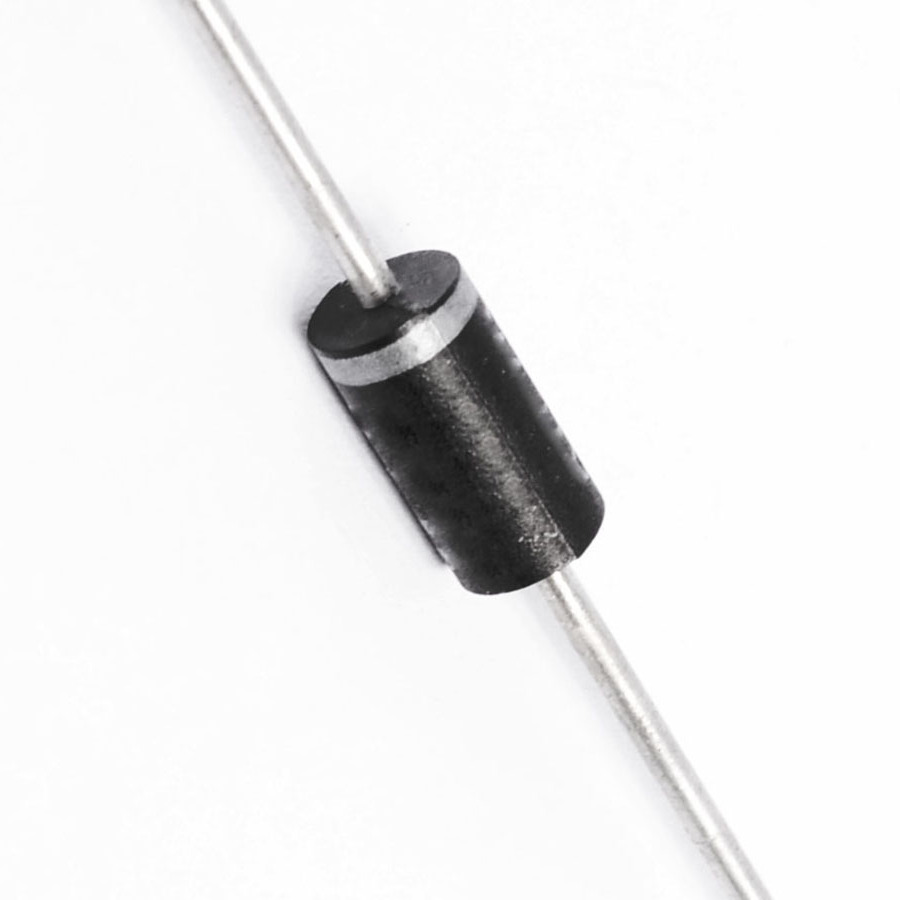

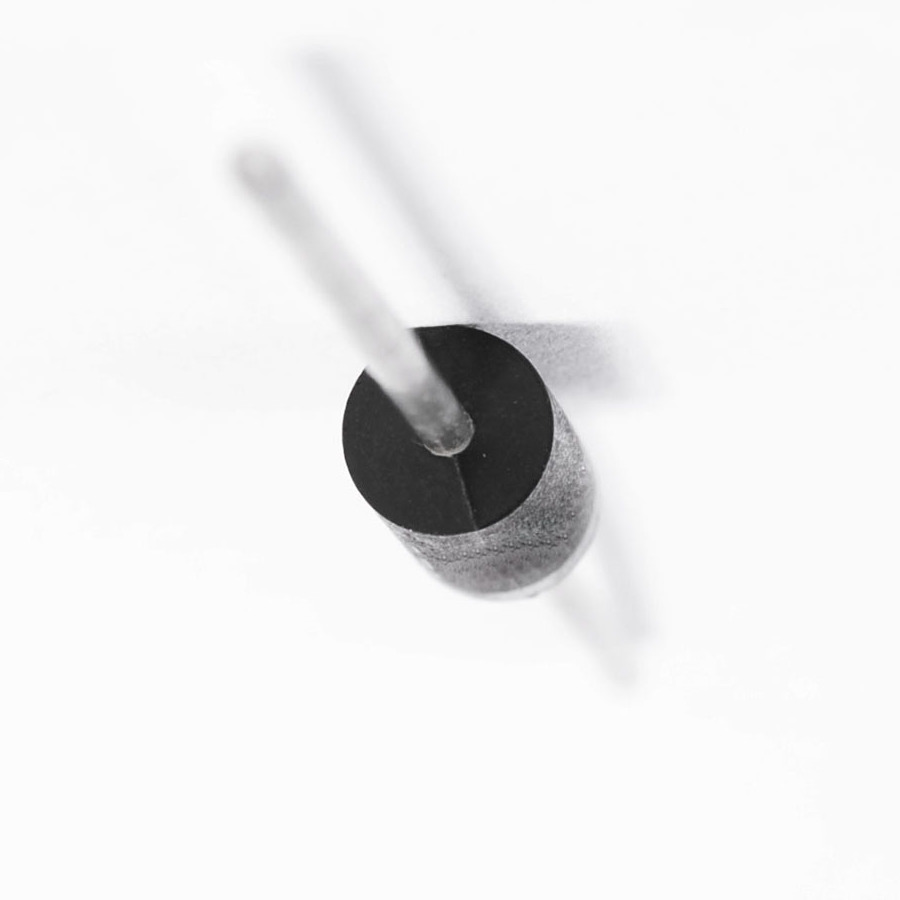

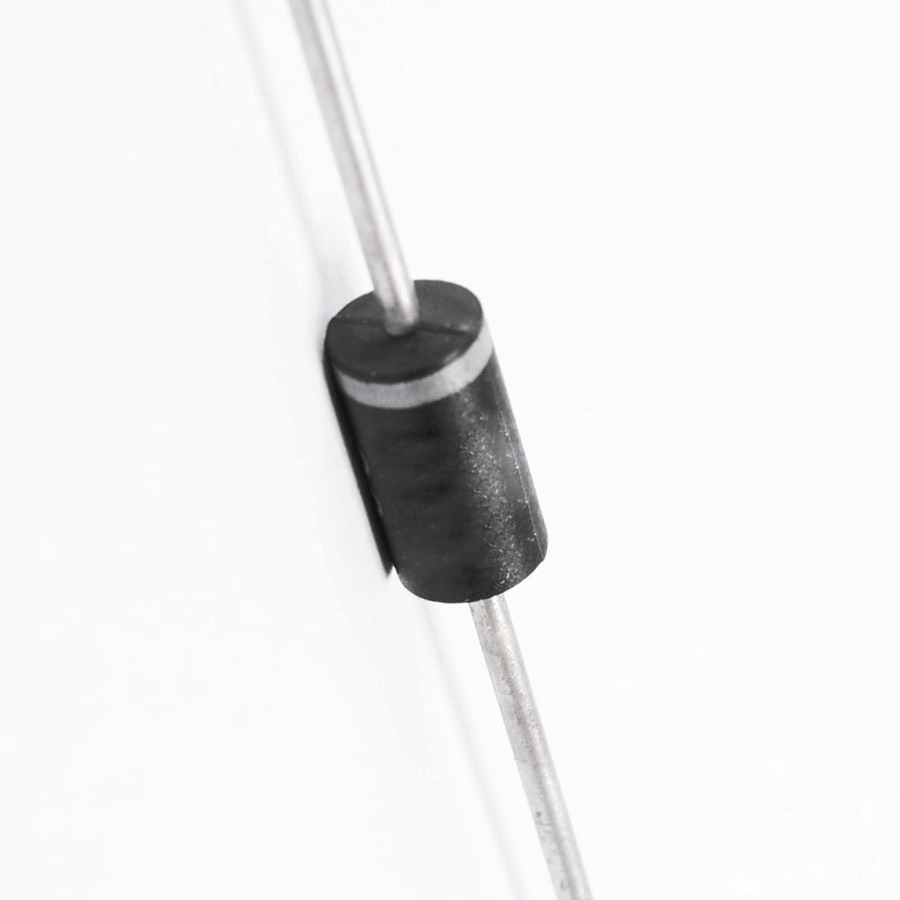

View detailed images (12)

SB520

SKU: SB520

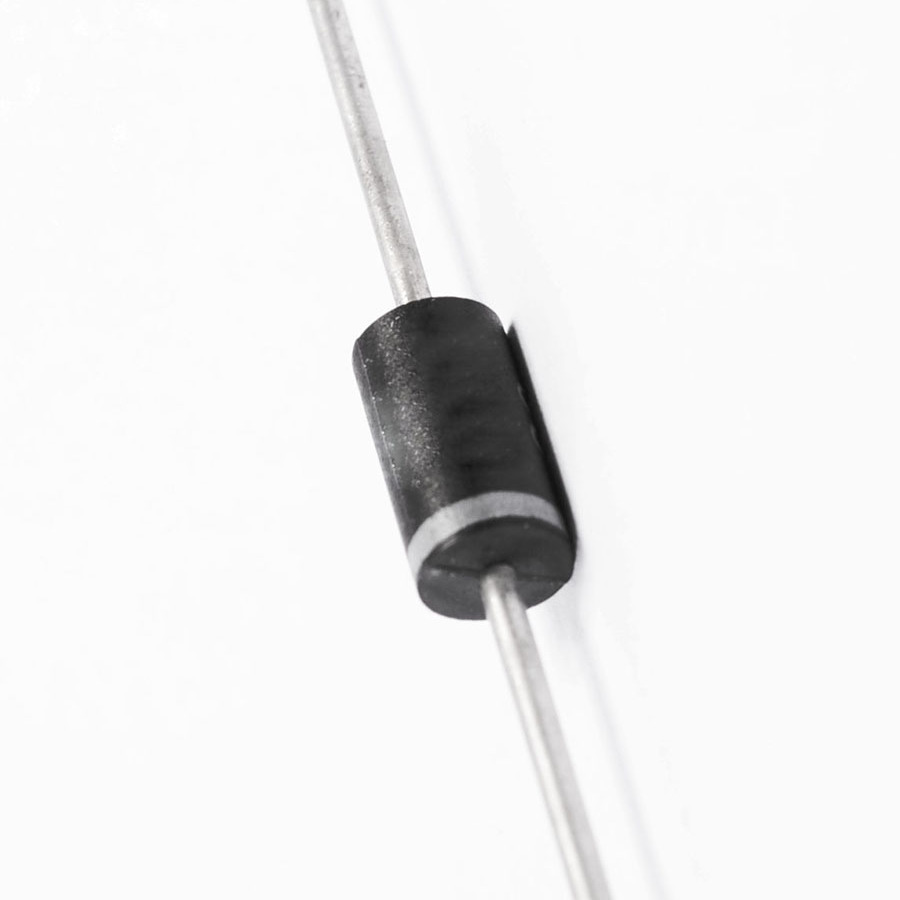

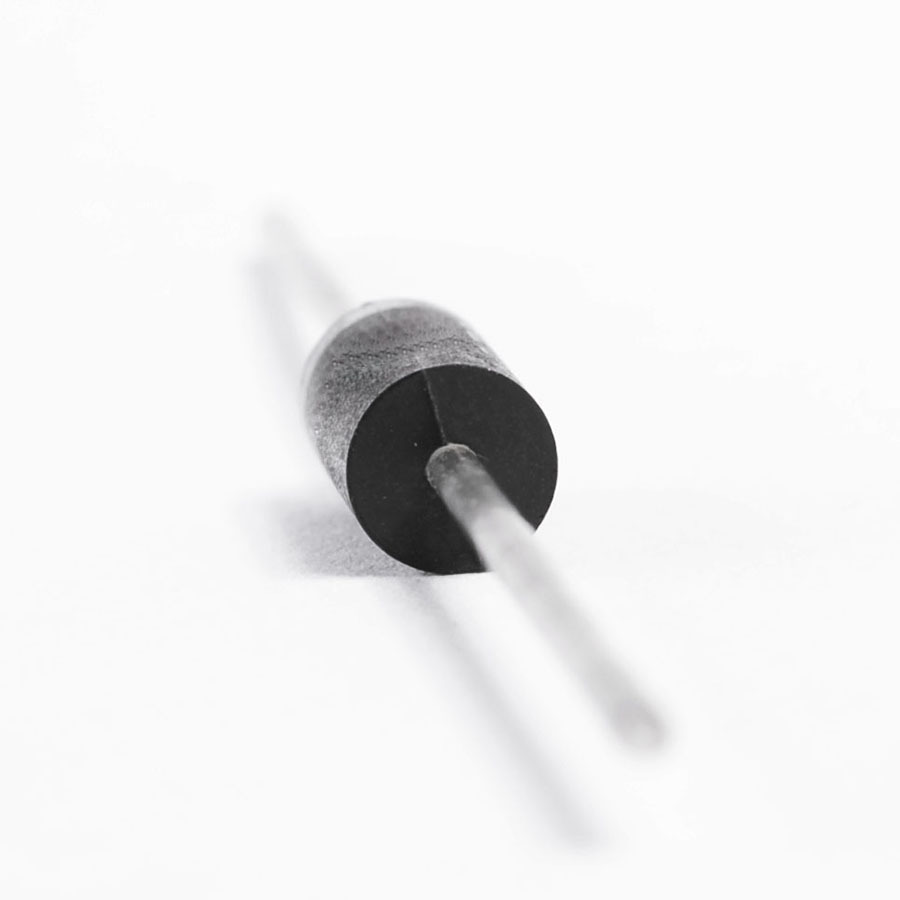

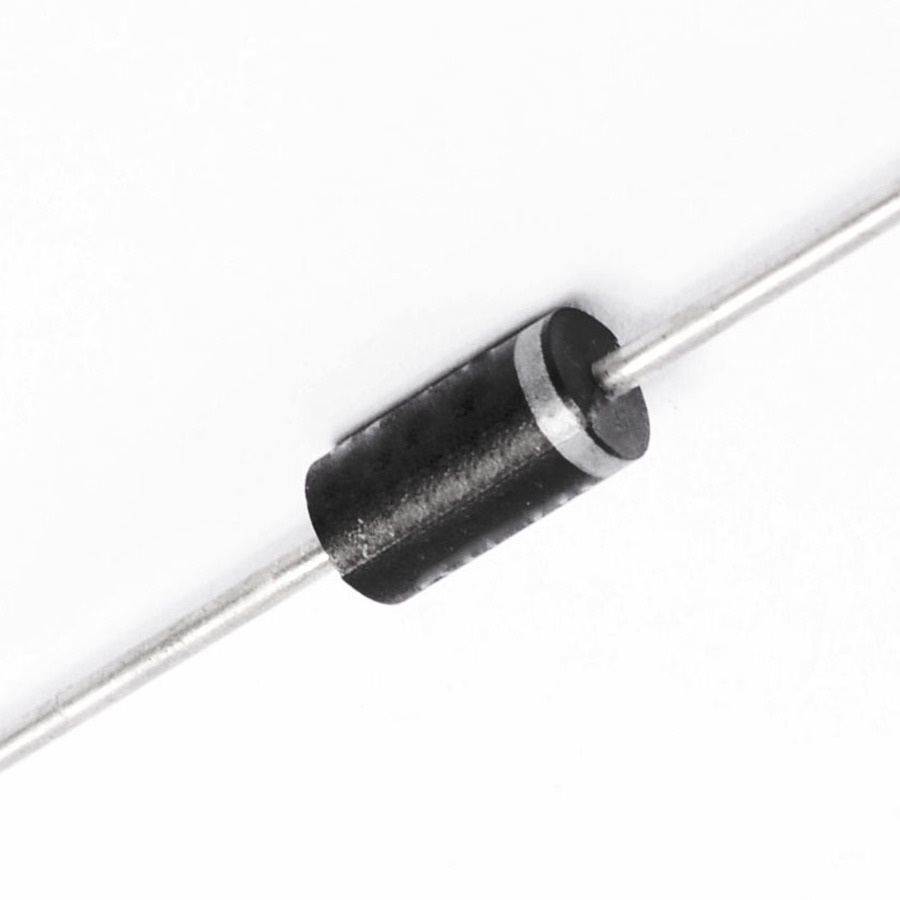

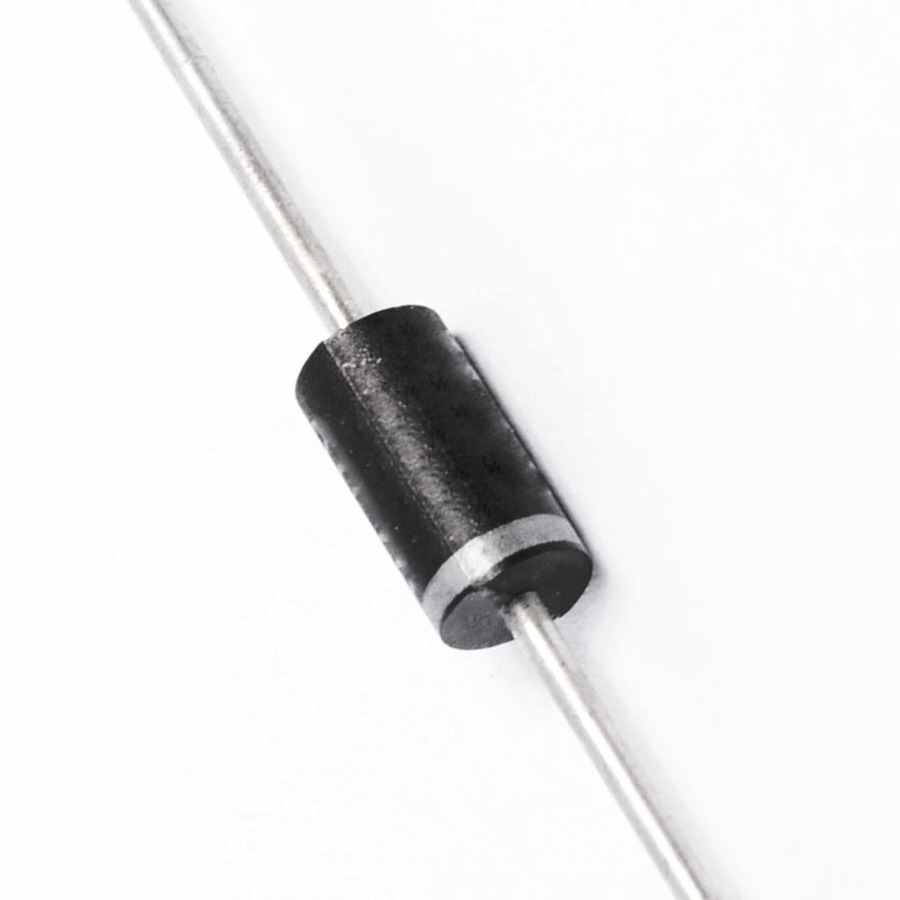

SB520 is a Schottky barrier rectifier diode designed for fast, low‑loss rectification. It comes in an axial DO-201AD package with 20 V repetitive reverse voltage, 5.0 A average rectified forward current, 0.55 V forward voltage at 5.0 A, and 150 A non‑repetitive peak forward surge current; manufactured by Fairchild Semiconductor.
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • Last 14 pieces Ready to Ship
  • More pieces shipped in 14 days
?
Datasheet
SB520 Datasheet
Product specifications
Type Silicon Diode
Case DO15
Manufacturer Fairchild Semiconductor
@Temp. (test) (°C) 60
Ir @ Diff. Temp (A) 50m
VRRM 20
1-Cycle Surge Current (A) 250
@Temp (test) (°C) 100
@Temp. (test) for Vf) 25
Vf Max. 570m
Ir @25°C 10m
I(out) (If AVG) Max. 5
@Volts (test) (V) 20
@If (test) 5
Oper. Temp (°C) Max. 150
Surface Mounted Yes/No NO
SKU 79542
