Home / Actives / Diode / SB560
SB560
View detailed images (12)

SB560

SKU: SB560

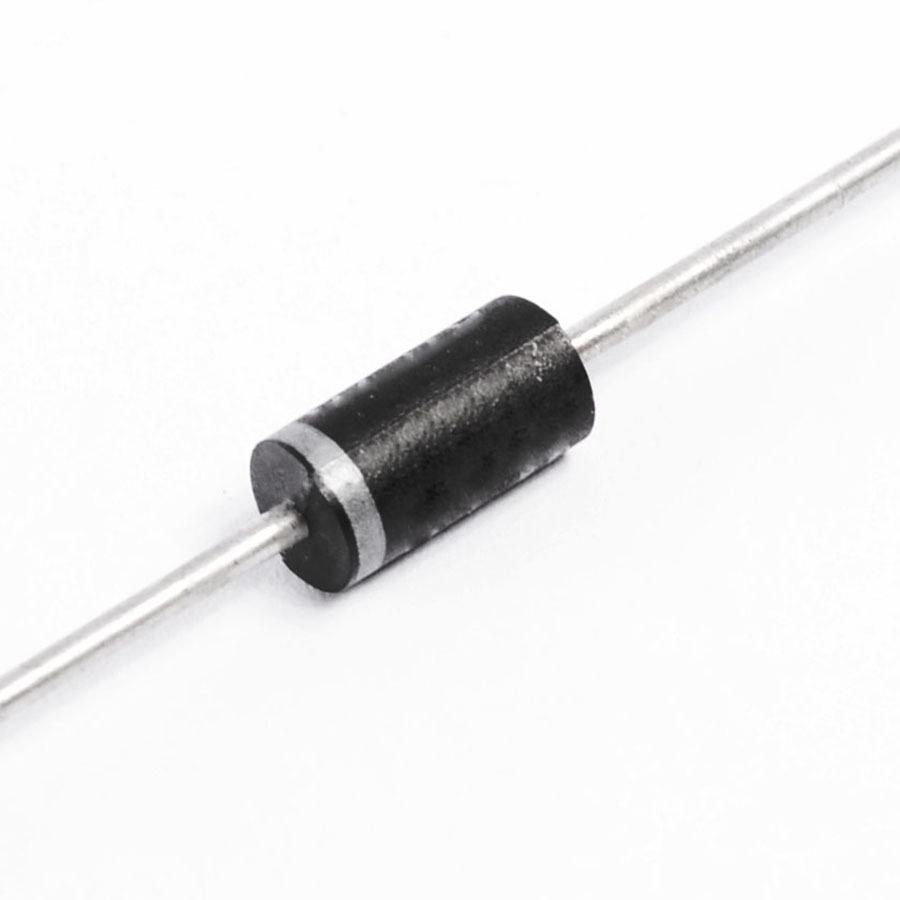

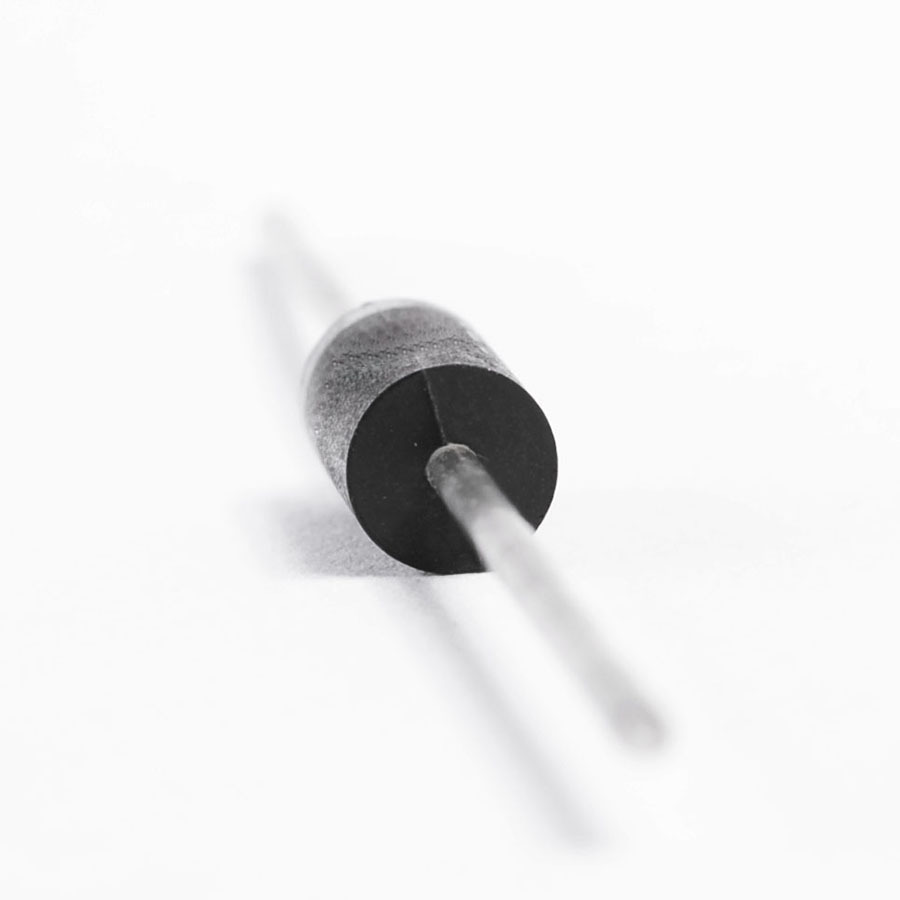

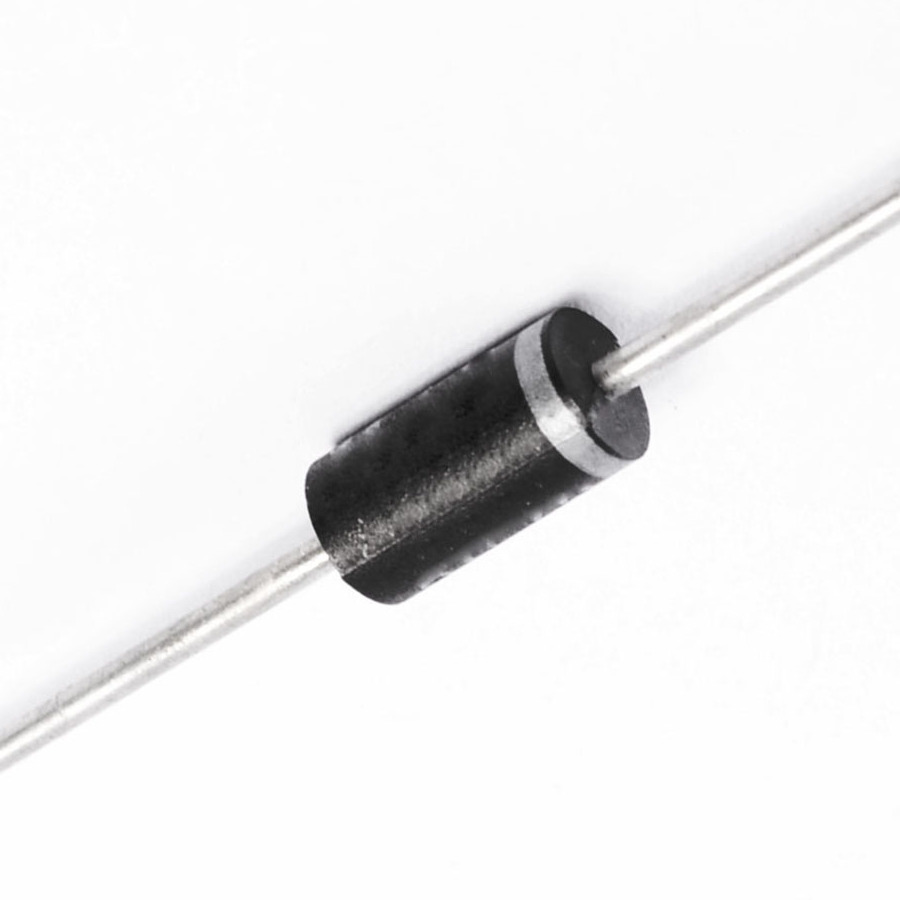

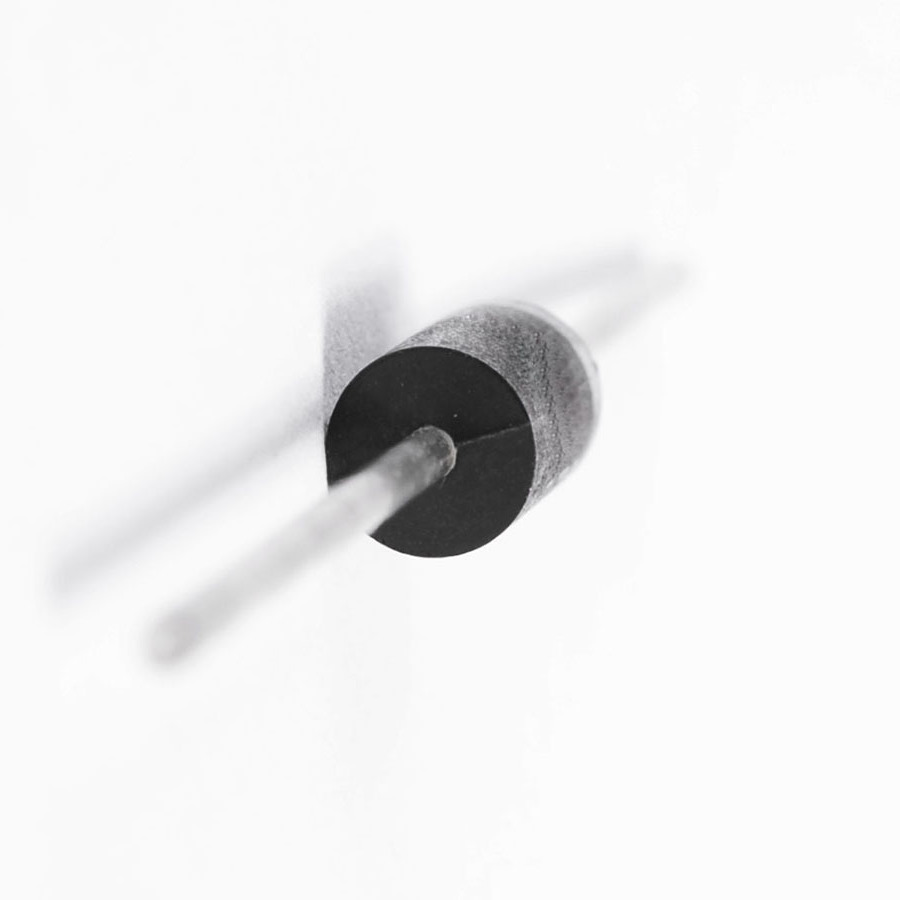

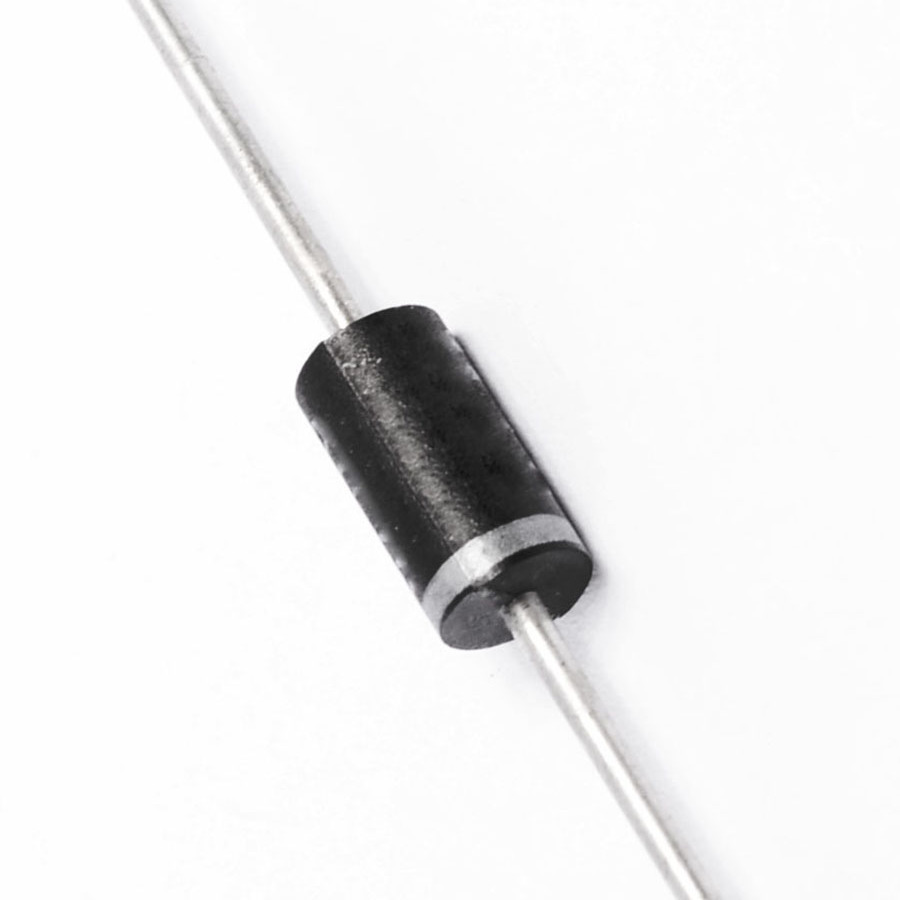

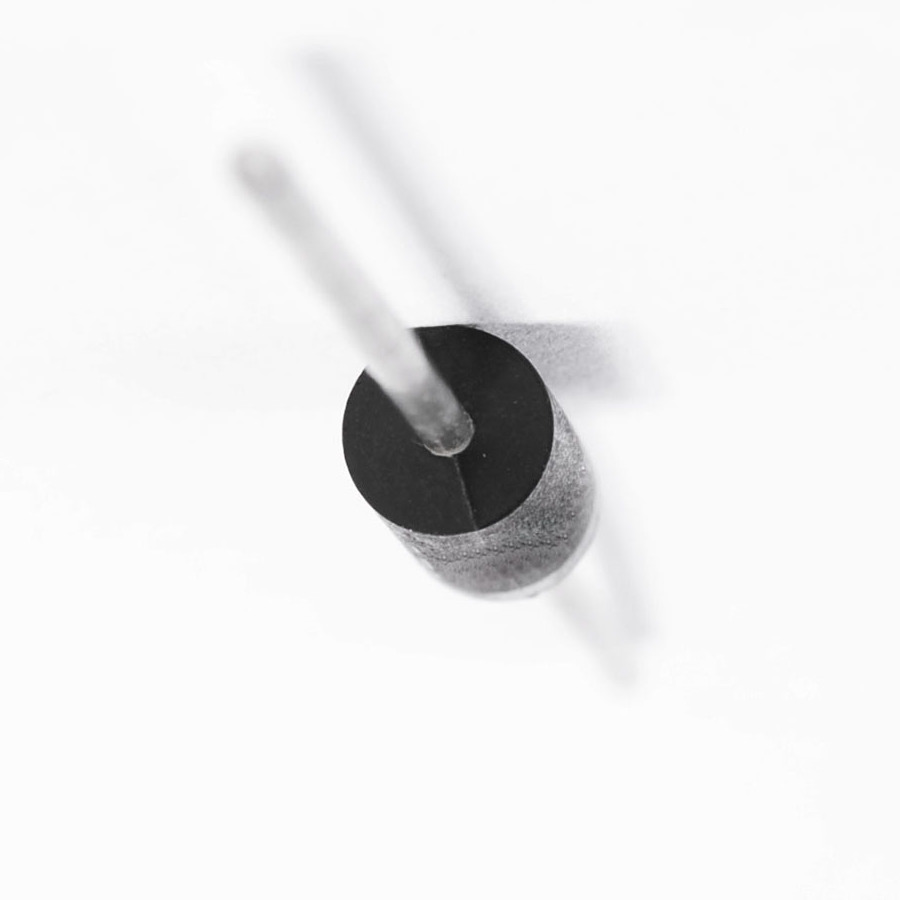

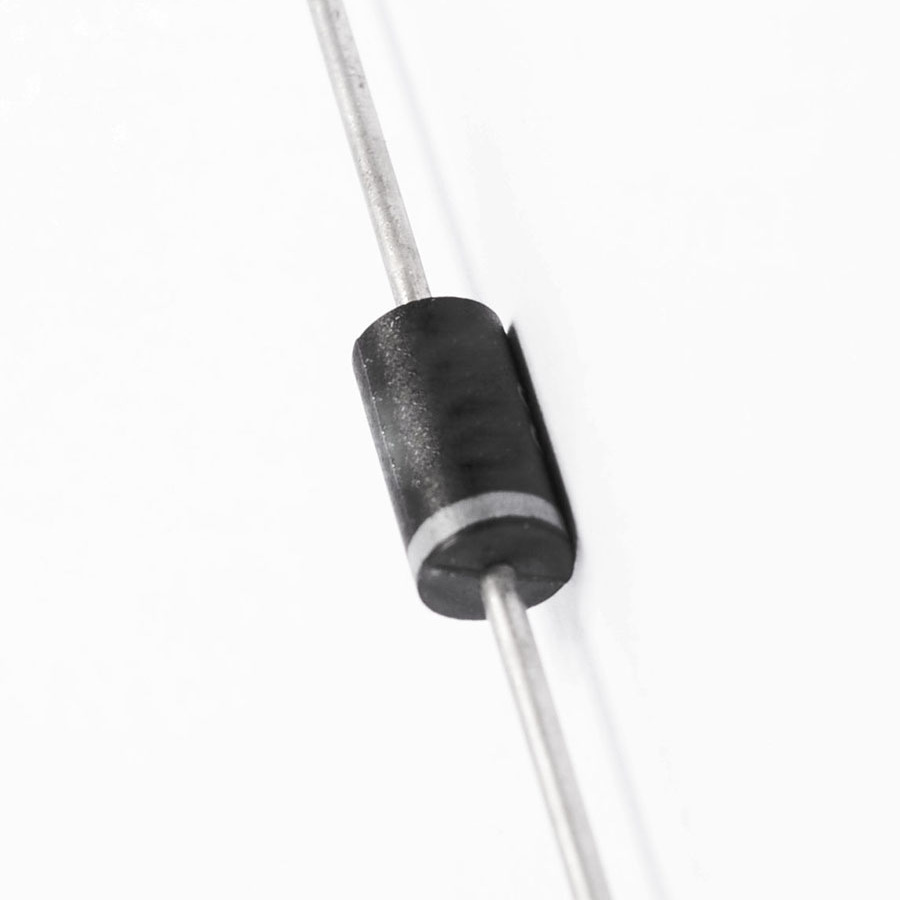

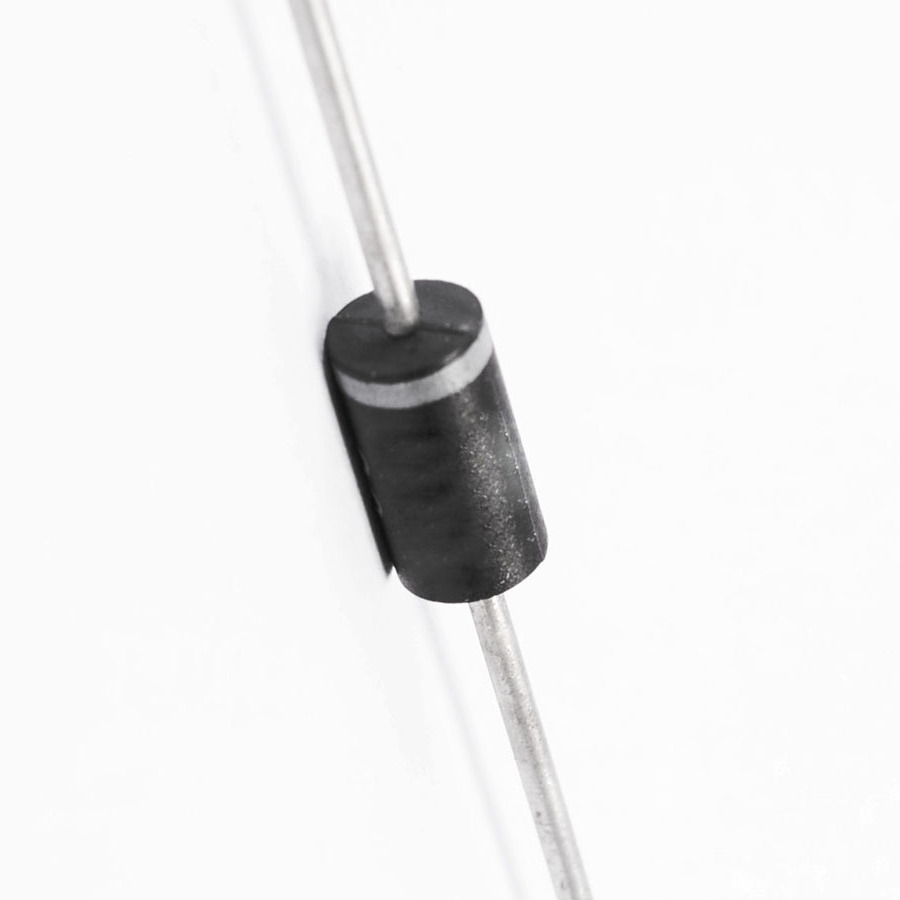

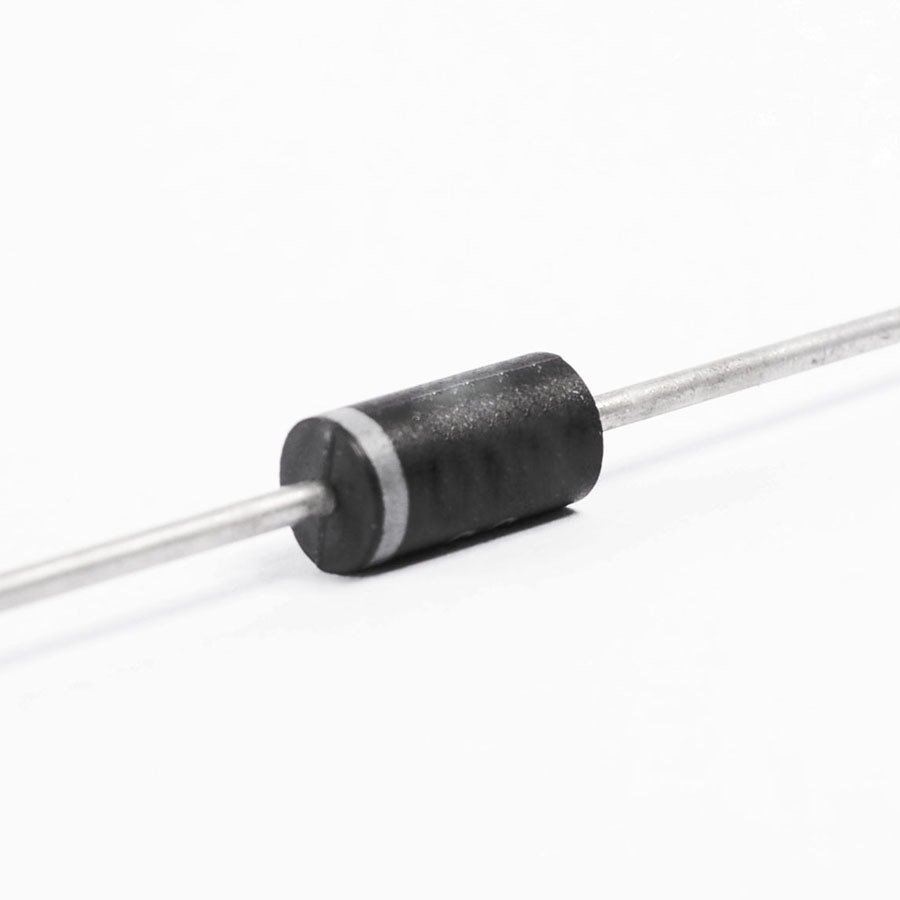

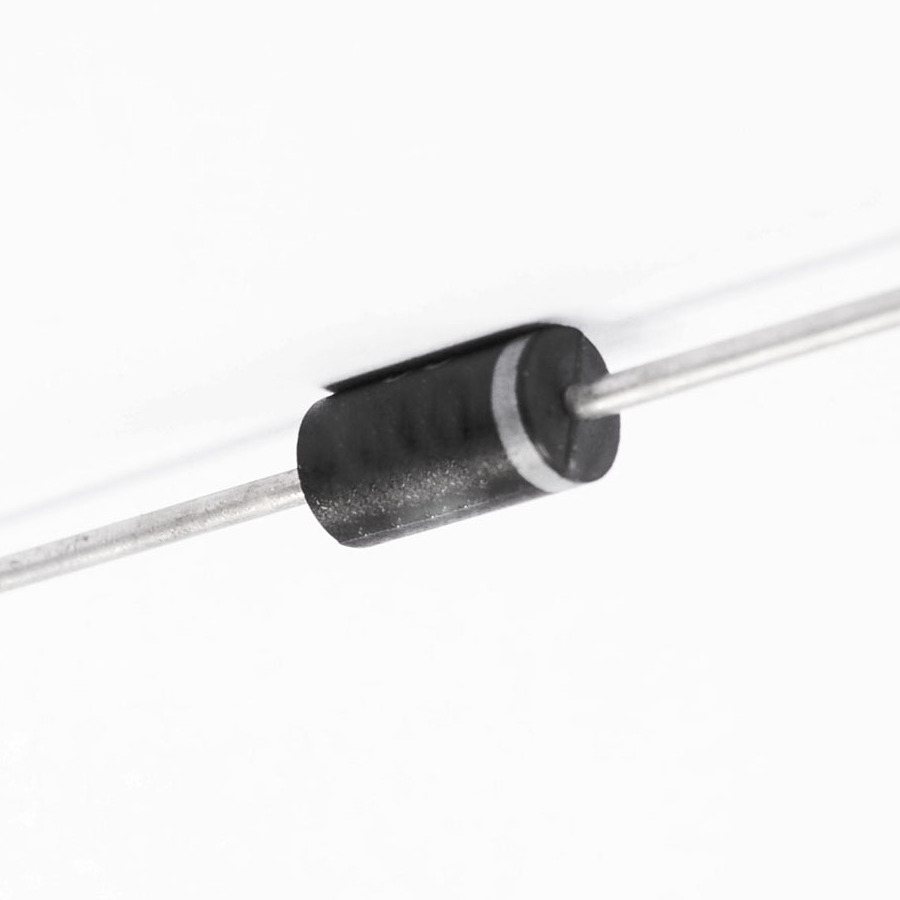

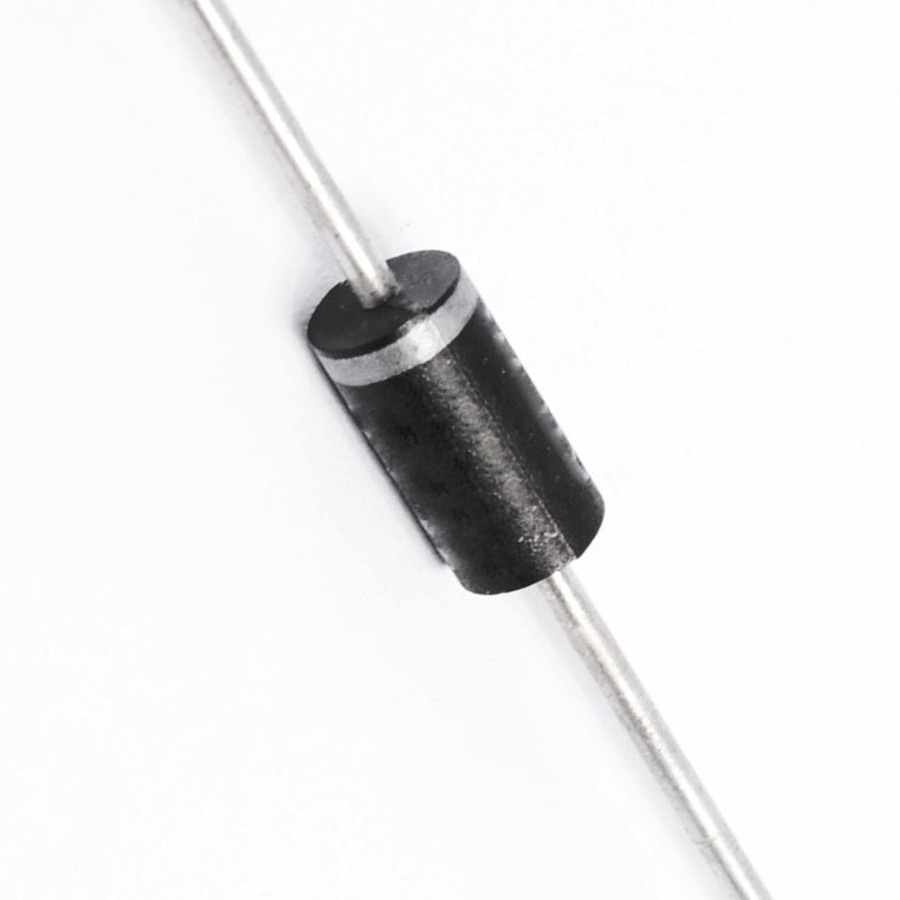

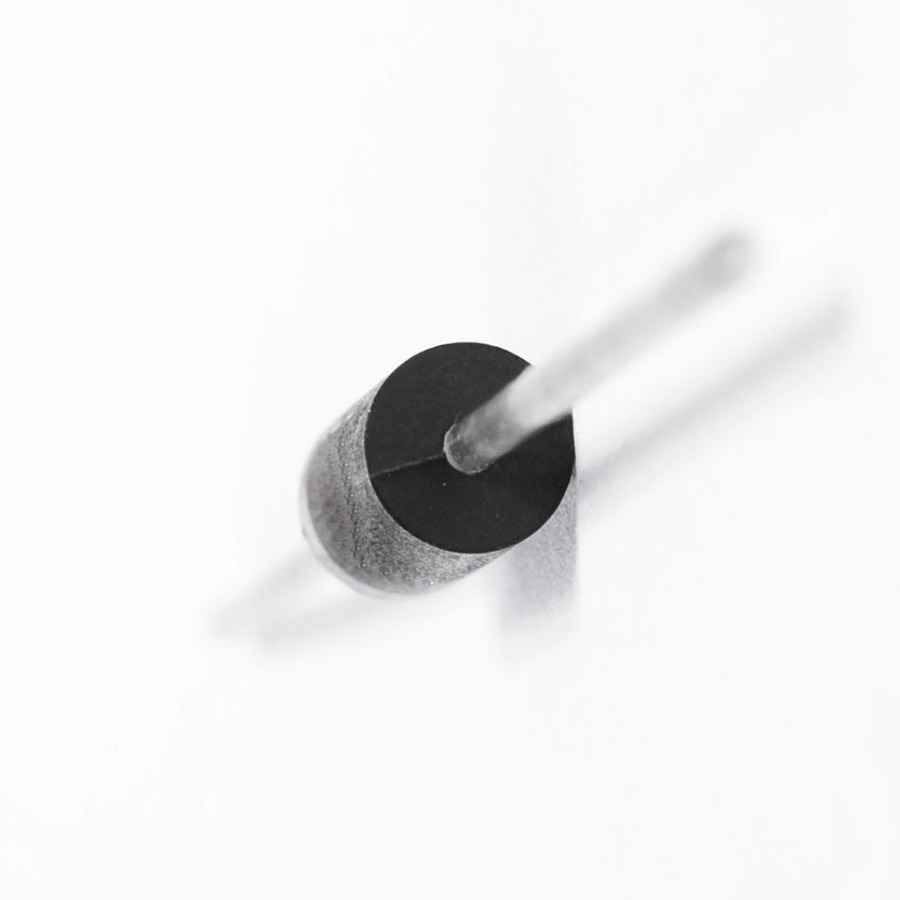

SB560 Silicon Diode CASE: DO15 MAKE: Fairchild Semiconductor
Price:
£5.75 Inc. VAT (£4.79 Ex. VAT)
£5.75 Inc. VAT (£4.79 Ex. VAT)
Qty
  • 23 pieces in 1-2 Days
  • More pieces shipped in 14 days
?
Datasheet
SB560 Datasheet
Product specifications
Type Silicon Diode
Case DO15
Manufacturer Fairchild Semiconductor
@Temp. (test) (°C) 85
Ir @ Diff. Temp (A) 50m
VRRM 60
1-Cycle Surge Current (A) 250
@Temp (test) (°C) 100
@Temp. (test) for Vf) 25
Vf Max. 700m
Ir @25°C 10m
I(out) (If AVG) Max. 5
@Volts (test) (V) 60
@If (test) 5
Oper. Temp (°C) Max. 150
Surface Mounted Yes/No NO
SKU 79546
