SC3507Q1

SC3507Q1

SKU: SC3507Q1

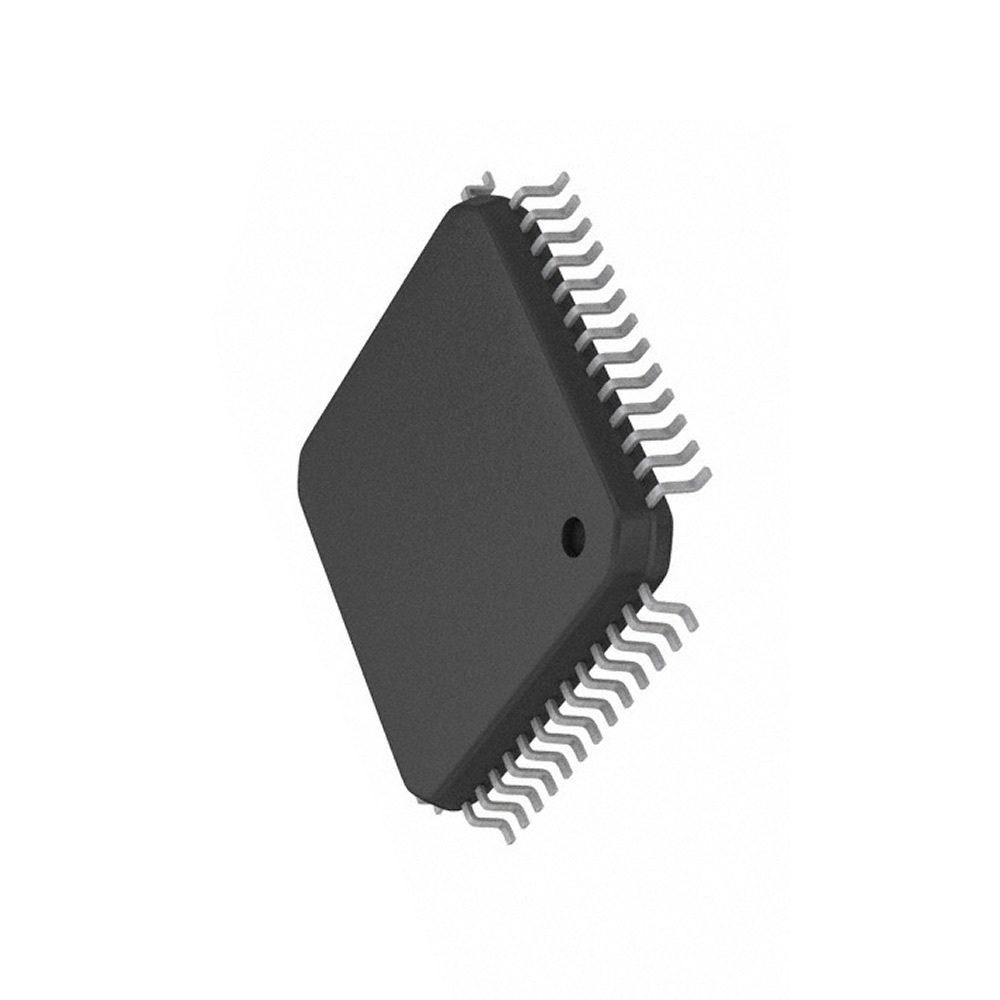

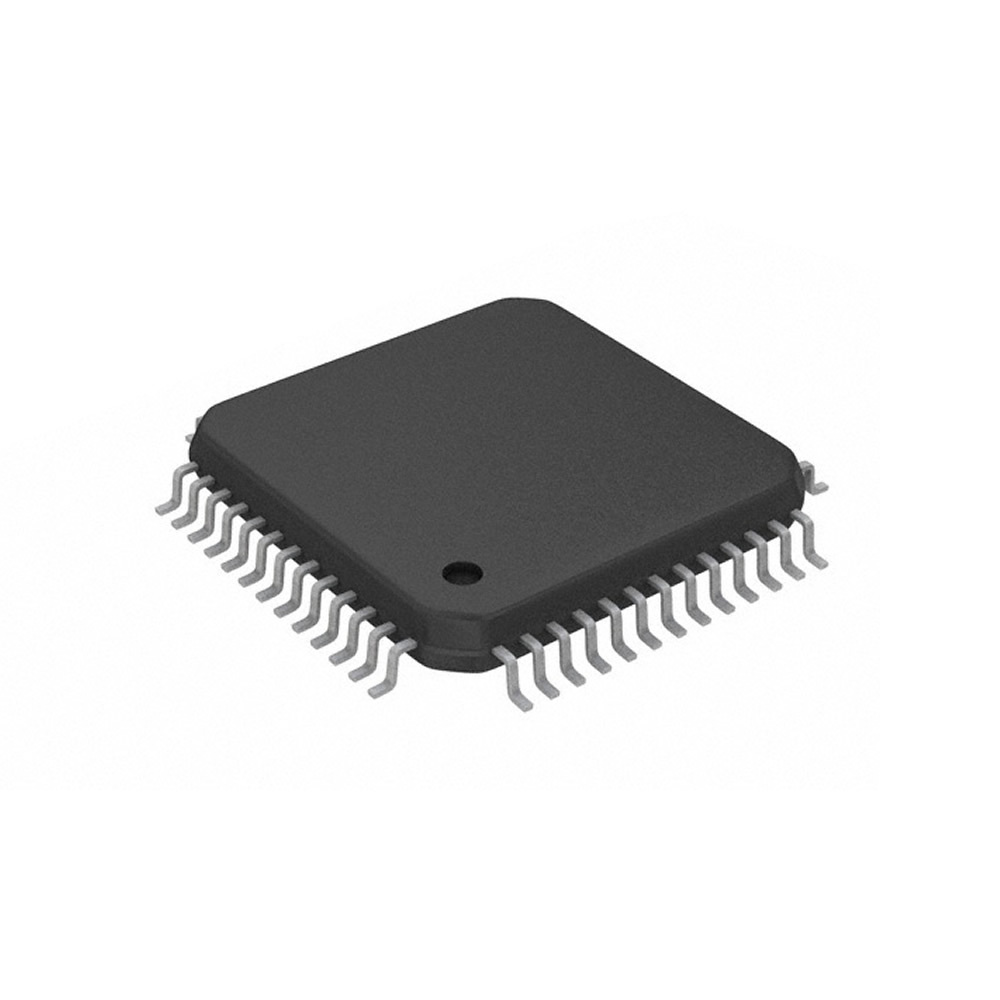

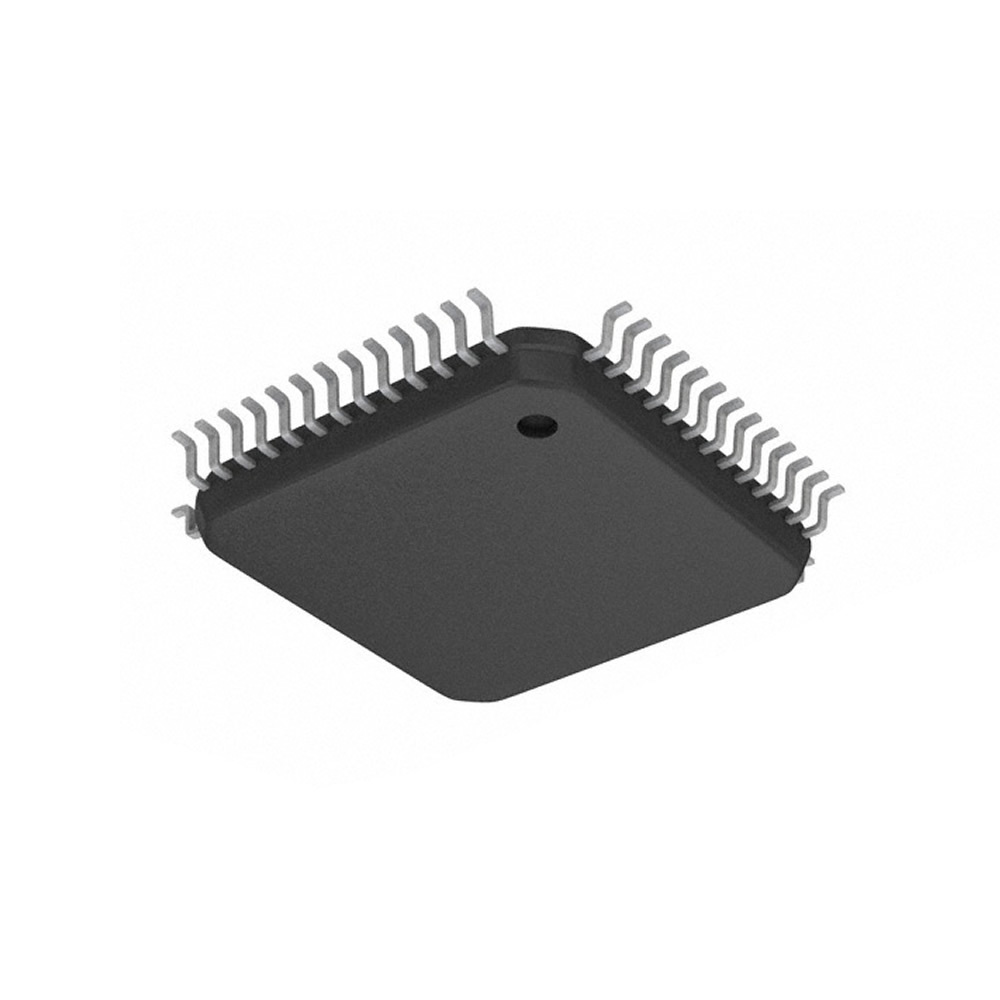

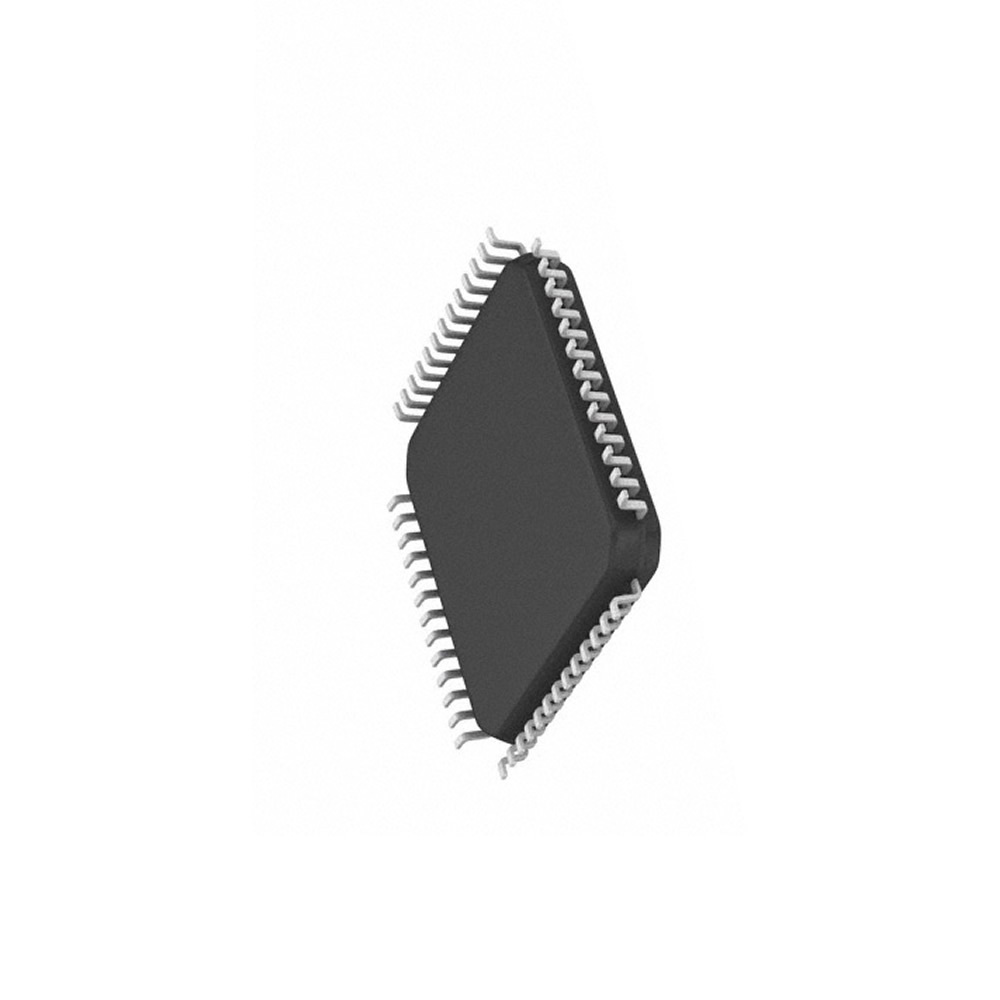

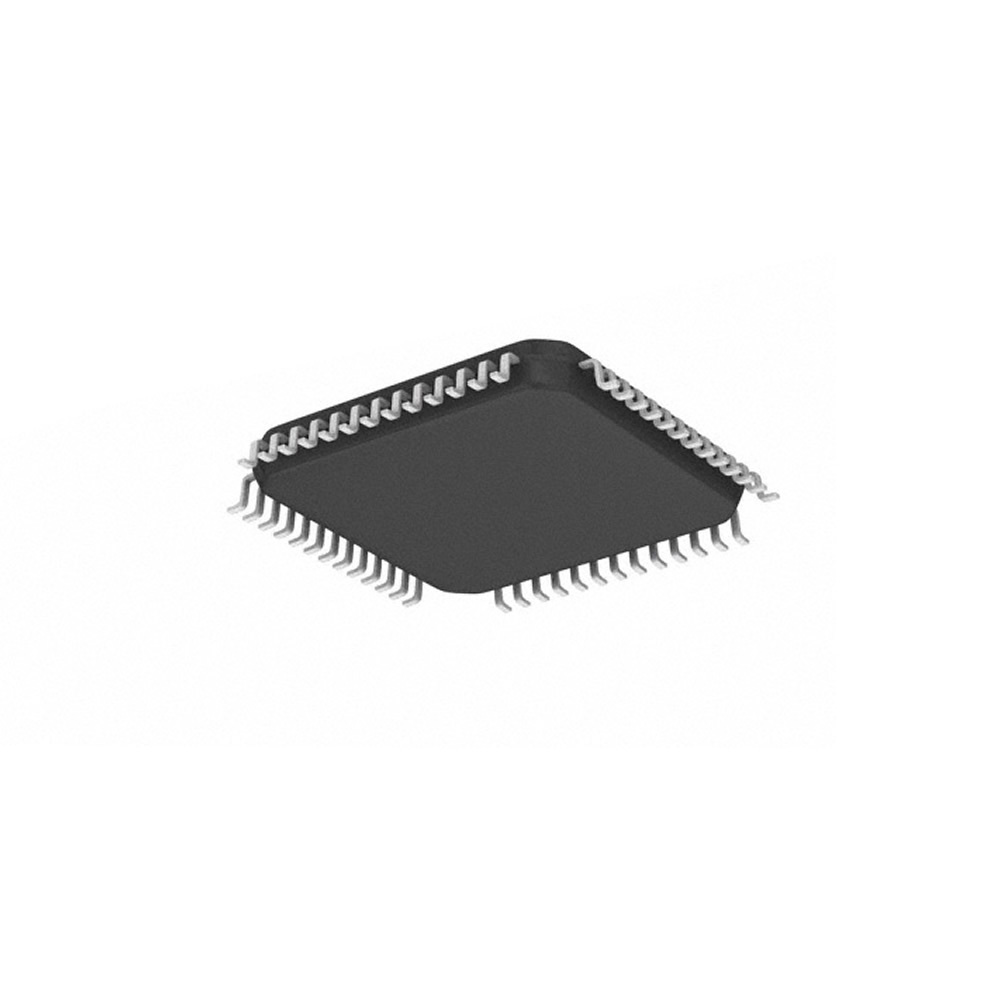

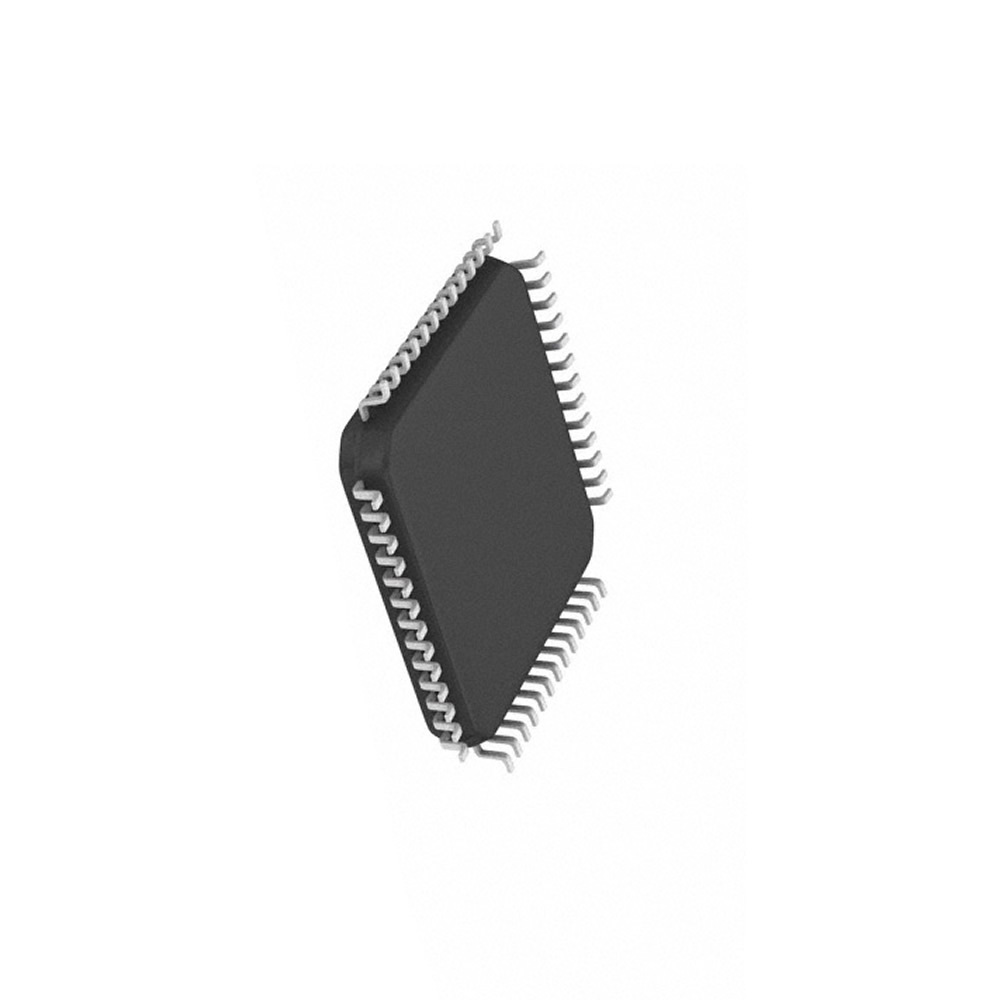

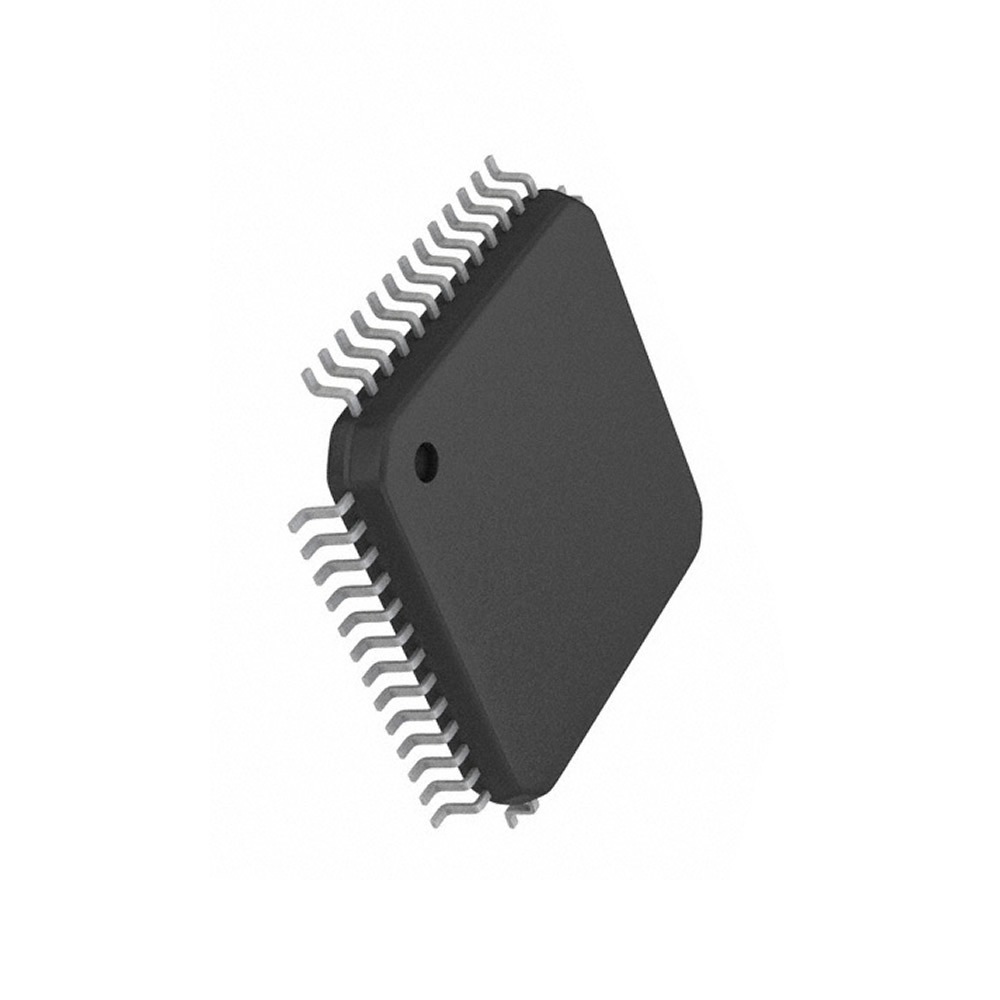

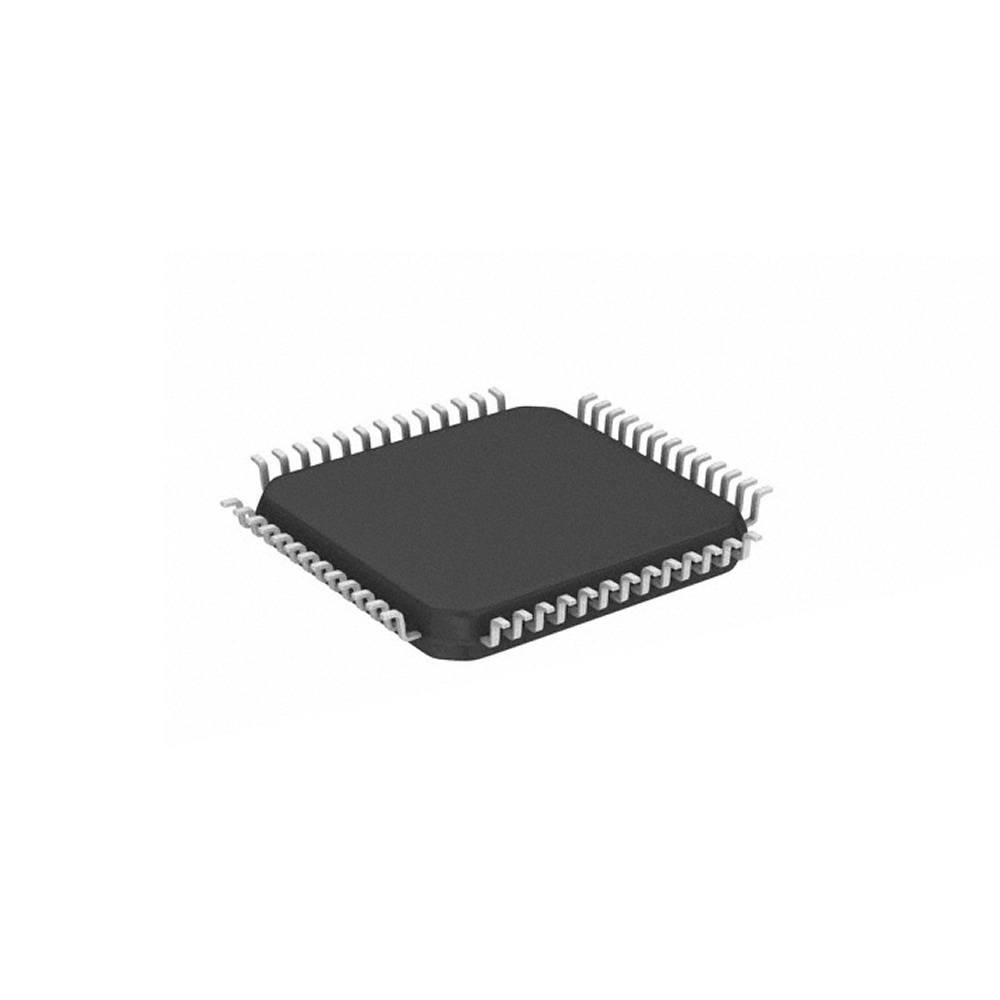

SC3507Q1 Integrated Circuit CASE: QFP52 MAKE: AMCC
Product specifications
Type Integrated Circuit
Case QFP52
Manufacturer AMCC
Ckts Per Dev. 20
I(inp) Max. (A) 15u
Vih Min (V) 2.0
Vil Max. (V) 0.8
VOL Max. 0.6
PD Max. (W) 1.0
Tech. Bioplar CMOS Integrated Circuit
Oper. Temp (°C) Min 0
Oper. Temp (°C) Max. 70
VOH Max. 2.6
Pinout Equivalence Number 52-45
Descript 0.5ns Max Skew; w/Sym Adj
No. of Pins 52
Surface Mounted Yes/No YES
SKU 925003
