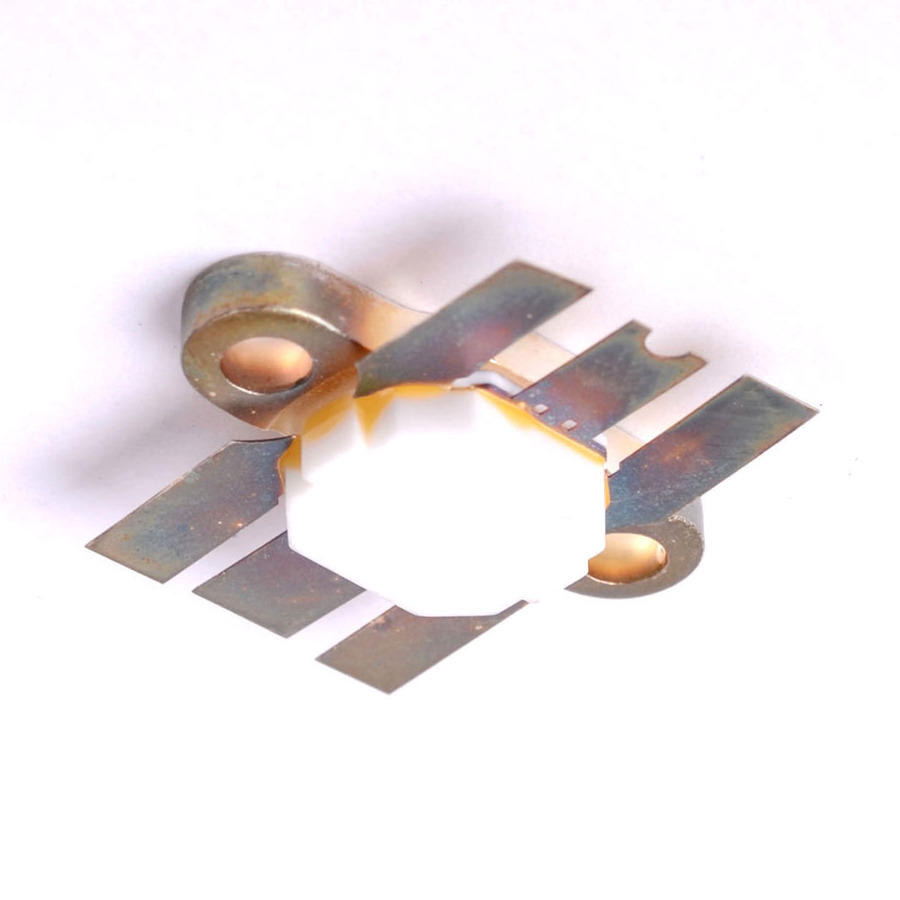

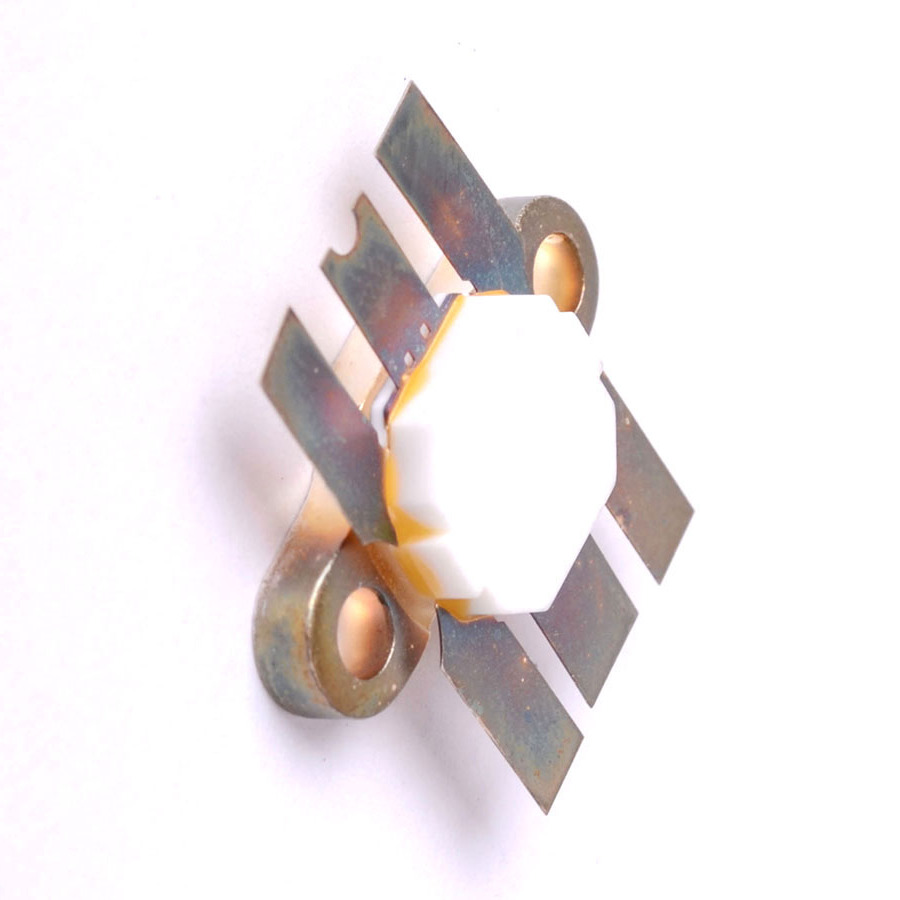

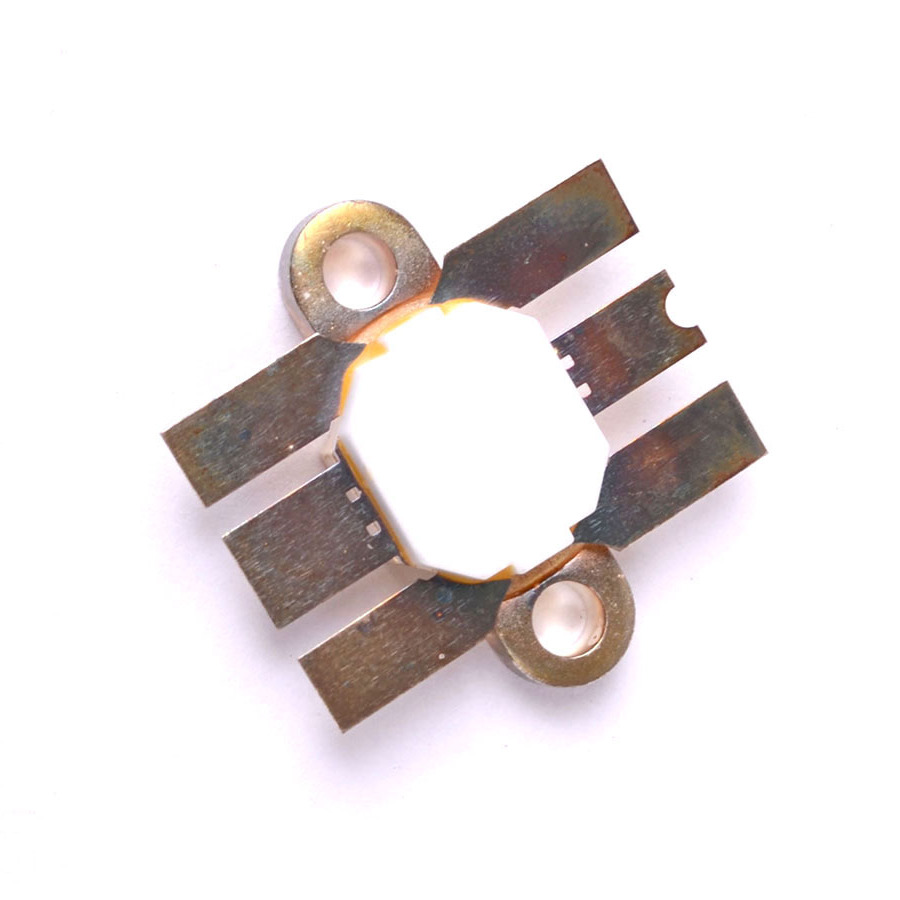

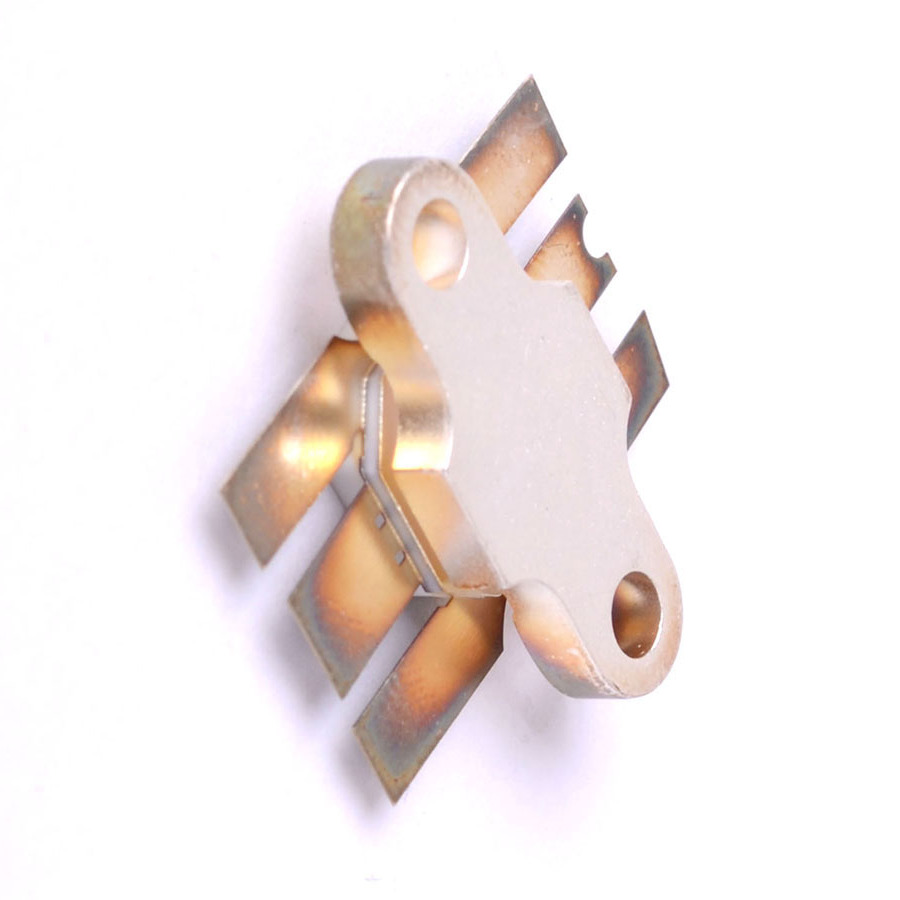

SD1429 Transistor Silicon NPN CASE: SOT119 MAKE: Generic
Product specifications
Type Transistor Silicon NPN
Case SOT119
Manufacturer Generic
Vbr CBO 36
@Freq. (test) 470M
@Ic (A) 2.0
Mat. Silicon Logic
Oper. Gain Typ (S21) 7.8
Oper. Pwr Out Typ. 12
f(osc) Max. (Hz) 470M
Polarity NPN
PD Max. (W) 37
S11 Deg. (Typ) -1.0
S11 Mag Typ. .80
S22 Deg. Typ. 1.8
S22 Mag Typ. 2.4
@VDS (VCE) (test) (V) 12
Coll. (or drain) Current Max. 3.4
Oper. Temp (°C) Max. 175
Pinout Equivalence Number 4-28
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 37.5 W
Maximum Collector-Base Voltage |Vcb| 36 V
Maximum Collector-Emitter Voltage |Vce| 16 V
Maximum Emitter-Base Voltage |Veb| 4 V
Maximum Collector Current |Ic max| 3.4 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 50 pF
Transition Frequency (ft): 470 MHz
Forward Current Transfer Ratio (hFE), MIN 20
SKU 442115
