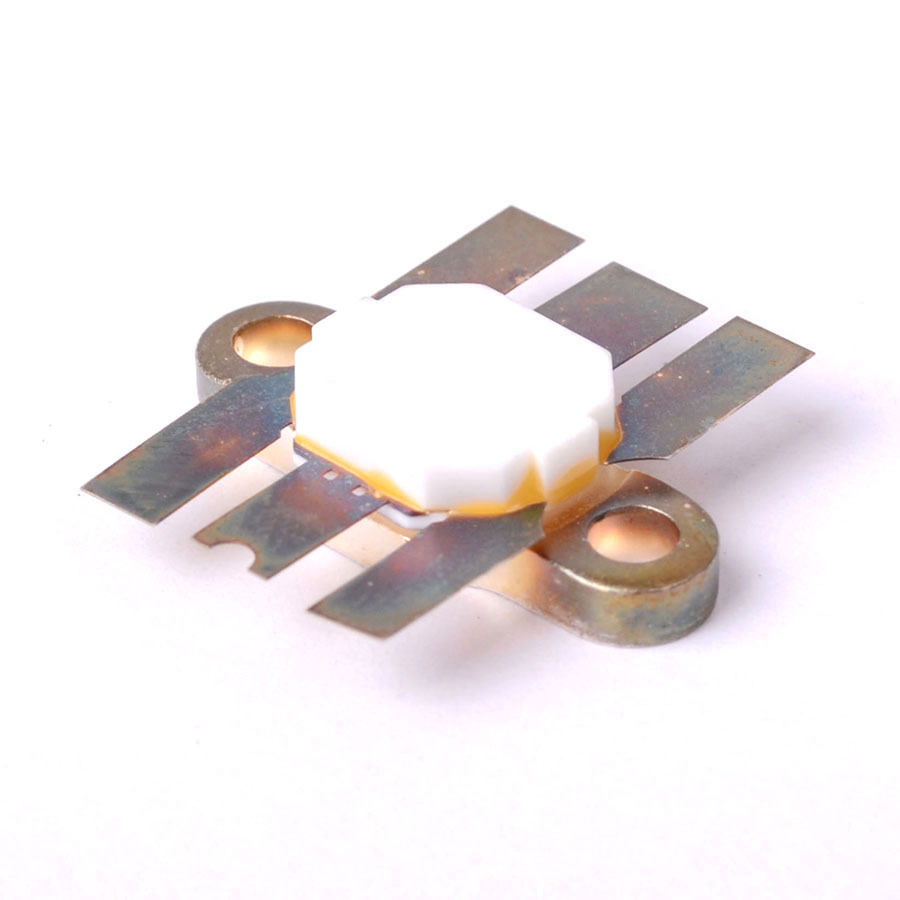

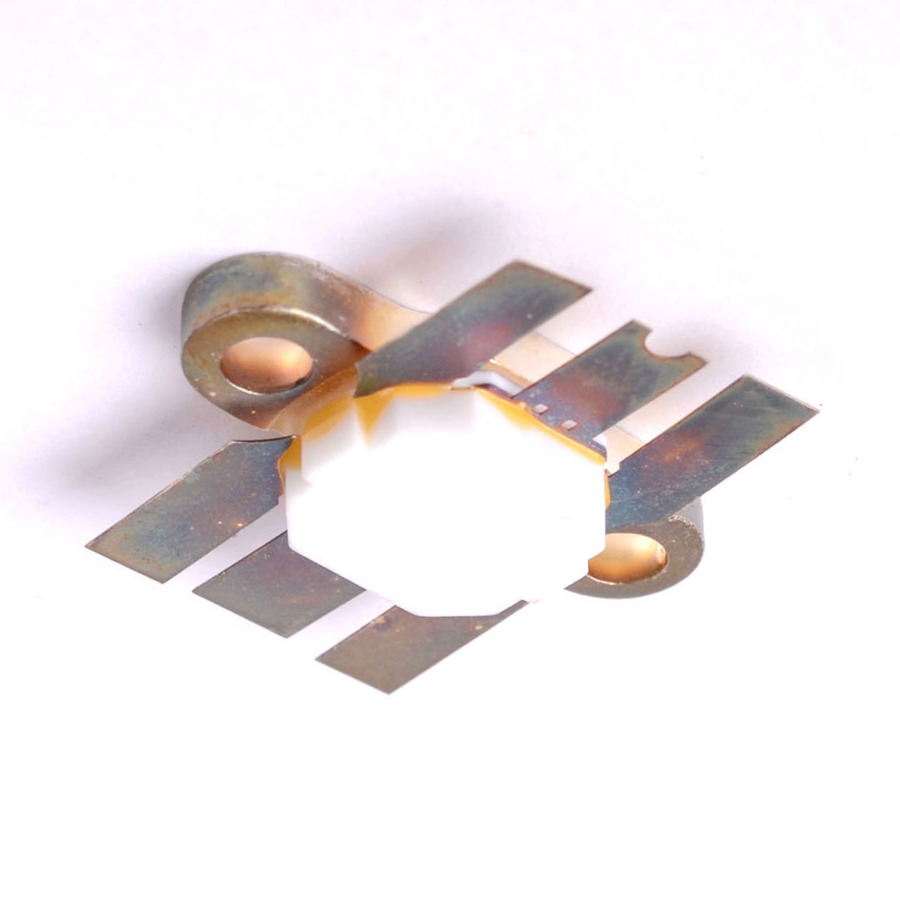

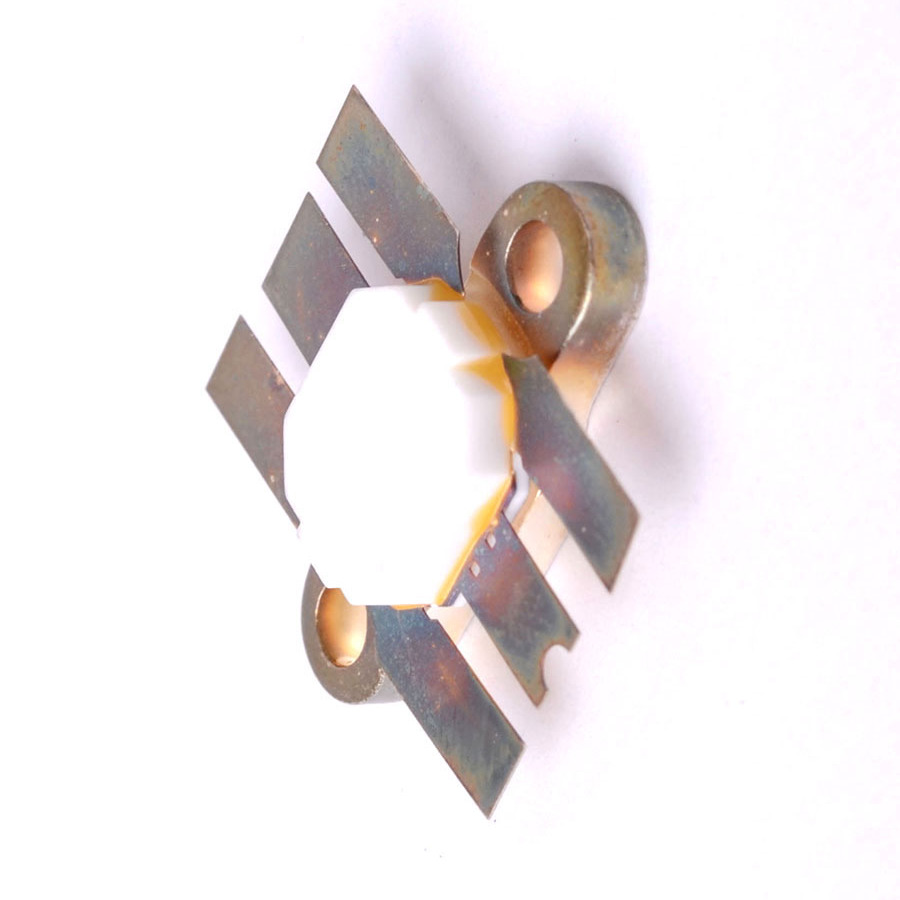

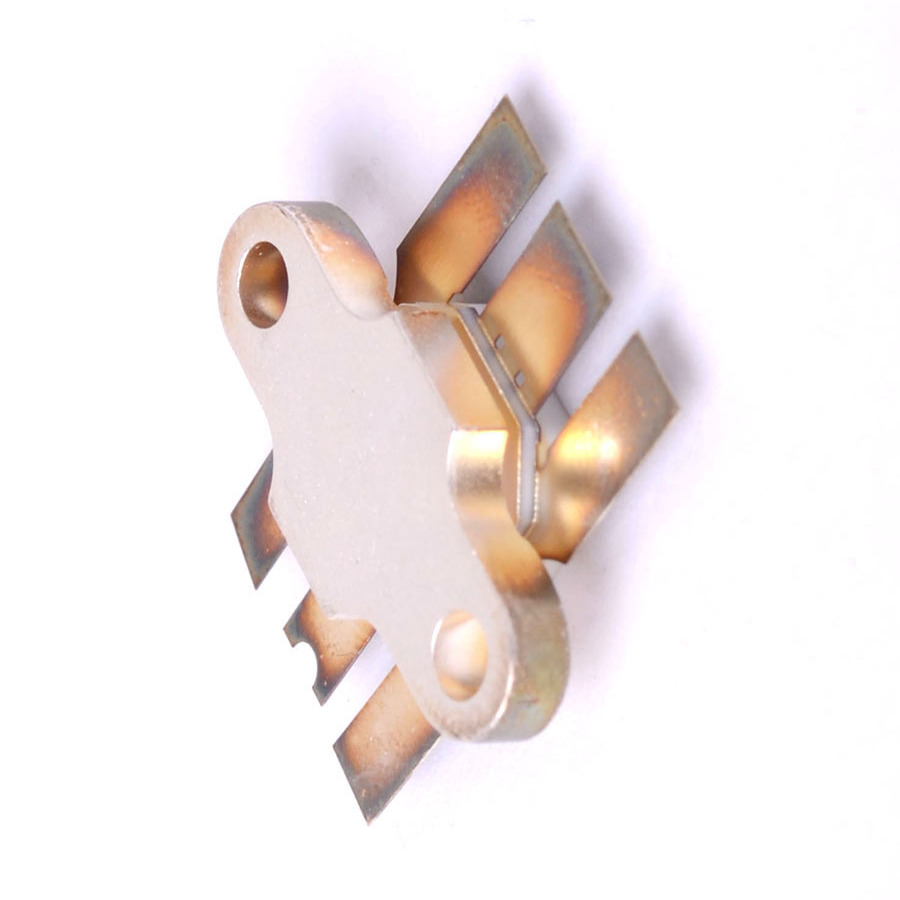

SD1480 Transistor Silicon NPN CASE: SOT119 MAKE: SGS Thomson
Datasheet
SD1480 Datasheet
Product specifications
Type Transistor Silicon NPN
Case SOT119
Manufacturer SGS Thomson
Vbr CBO 65
Vbr CEO 36
Max. PD (W) 270
Min hFE 20
Ic Max. (A) 15
@Ic (test) (A) 5.0
Icbo Max. @Vcb Max. (A) 15m
Polarity NPN
Derate Above 25°C 1.5
Oper. Temp (°C) Max. 175
@VCE (V) 5.0
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 270 W
Maximum Collector-Base Voltage |Vcb| 65 V
Maximum Collector-Emitter Voltage |Vce| 35 V
Maximum Emitter-Base Voltage |Veb| 4 V
Maximum Collector Current |Ic max| 20 A
Max. Operating Junction Temperature (Tj) 200 °C
Collector Capacitance (Cc) 250 pF
Transition Frequency (ft): 175 MHz
Forward Current Transfer Ratio (hFE), MIN 5
