SD820

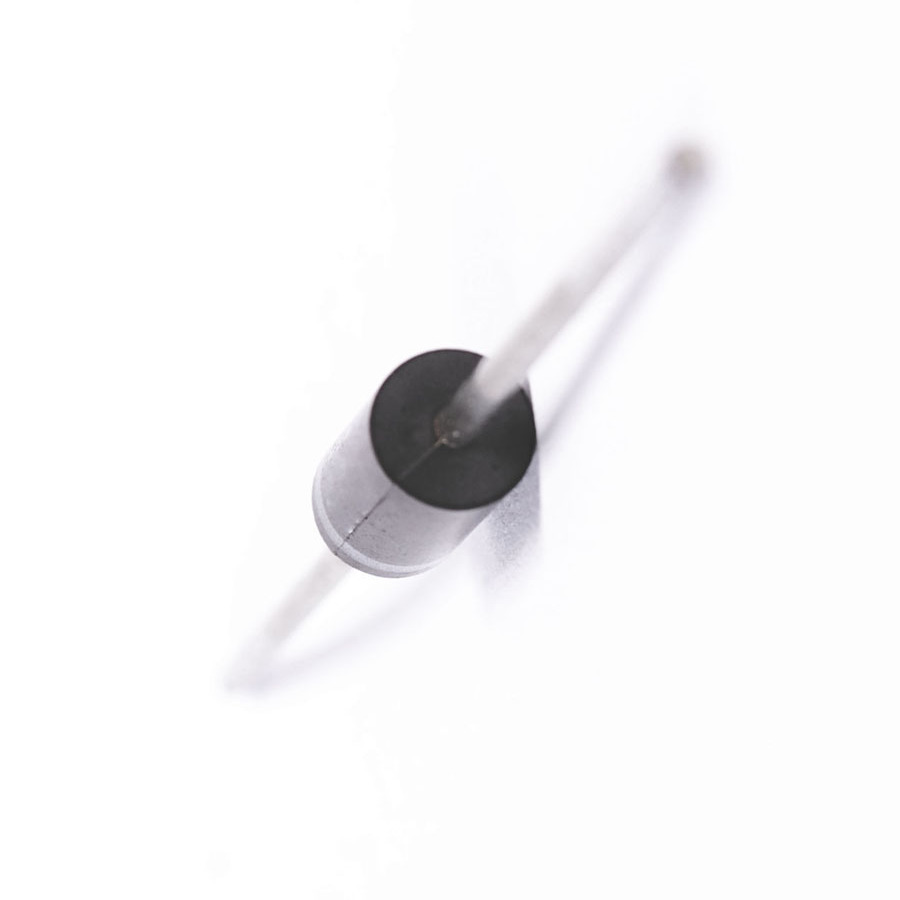

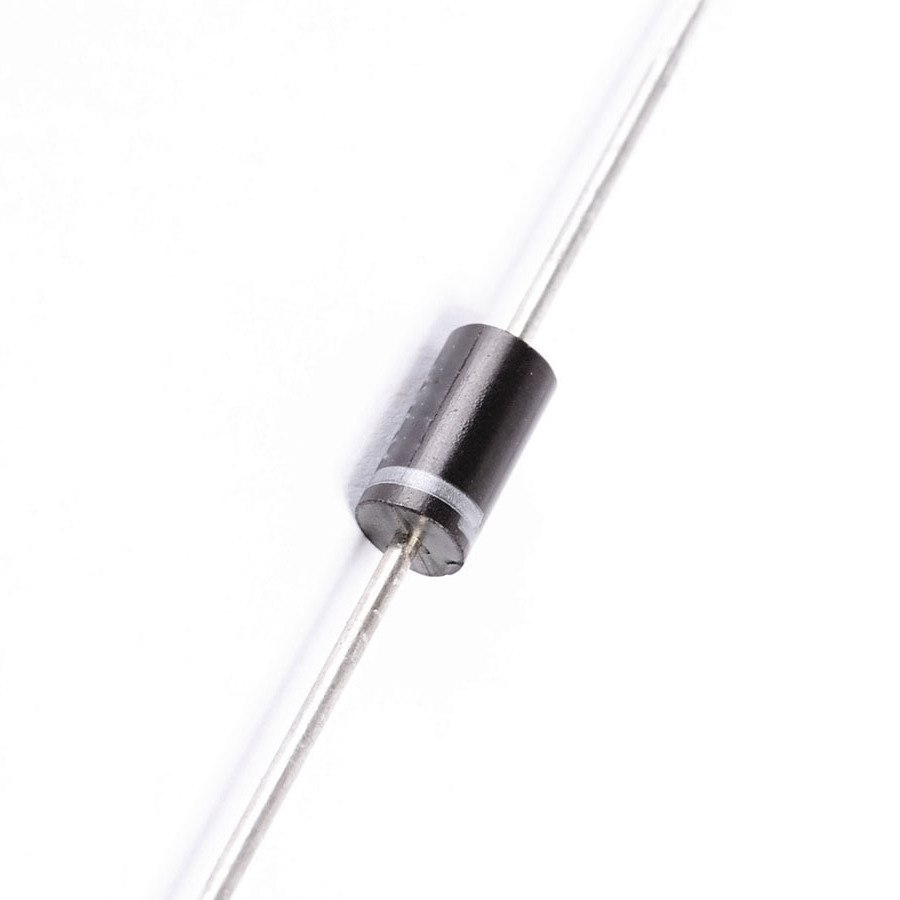

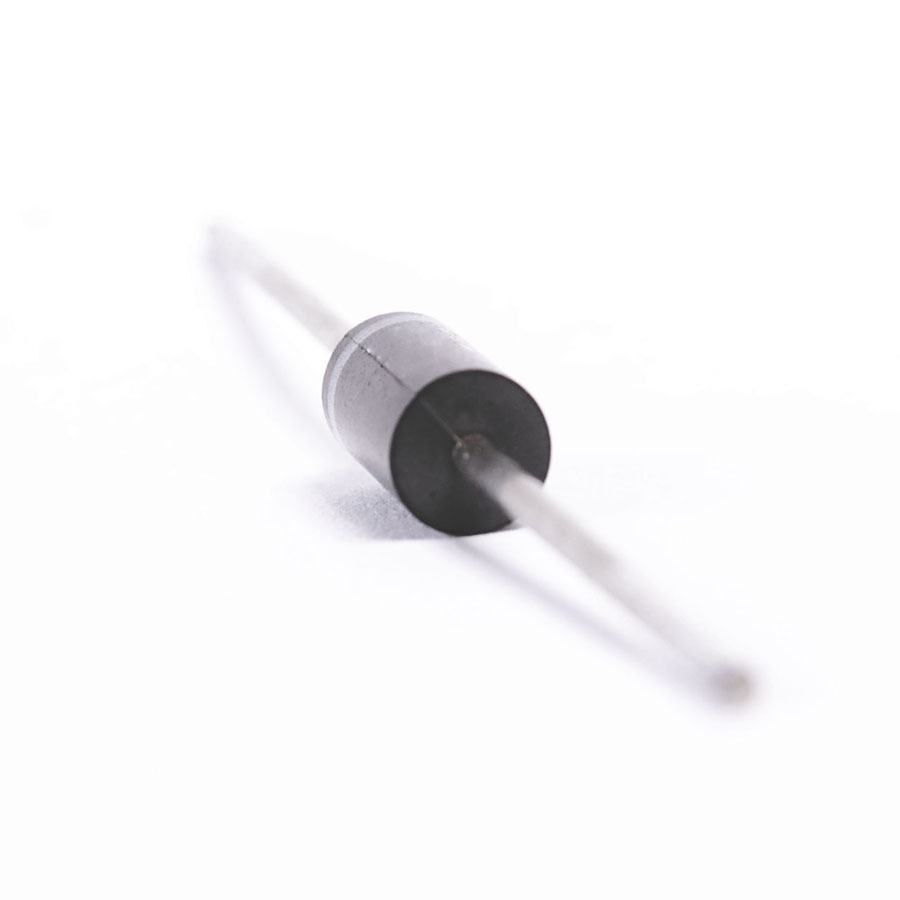

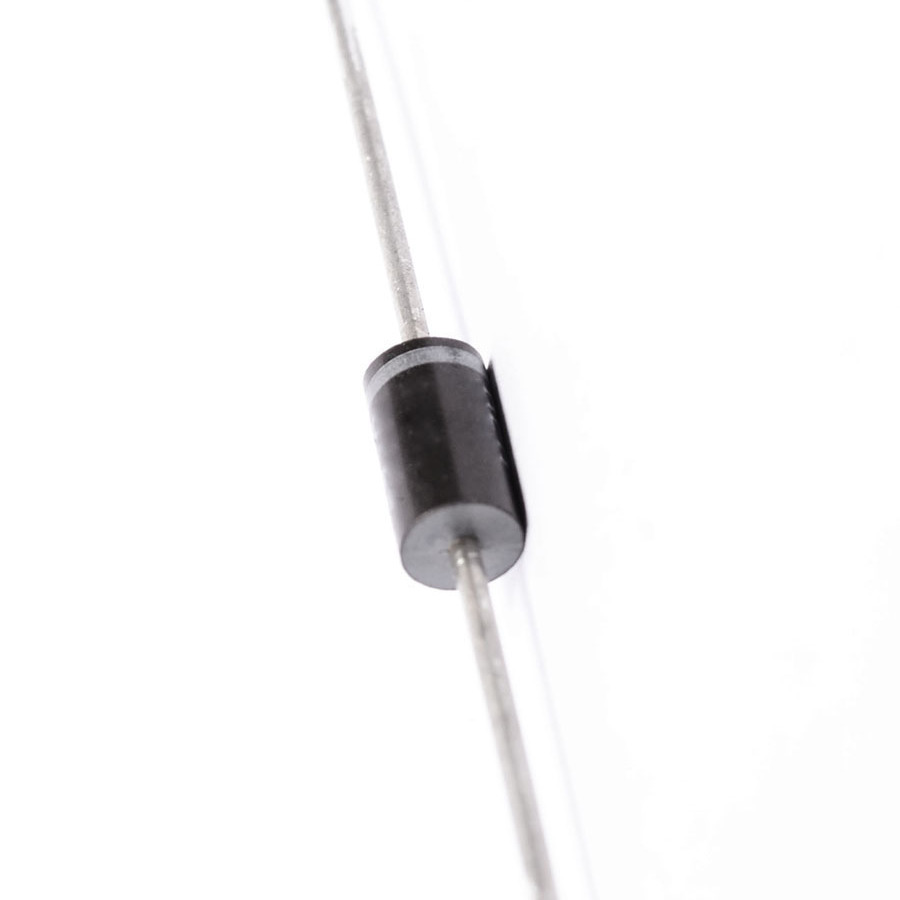

View detailed images (12)

SD820

SKU: SD820

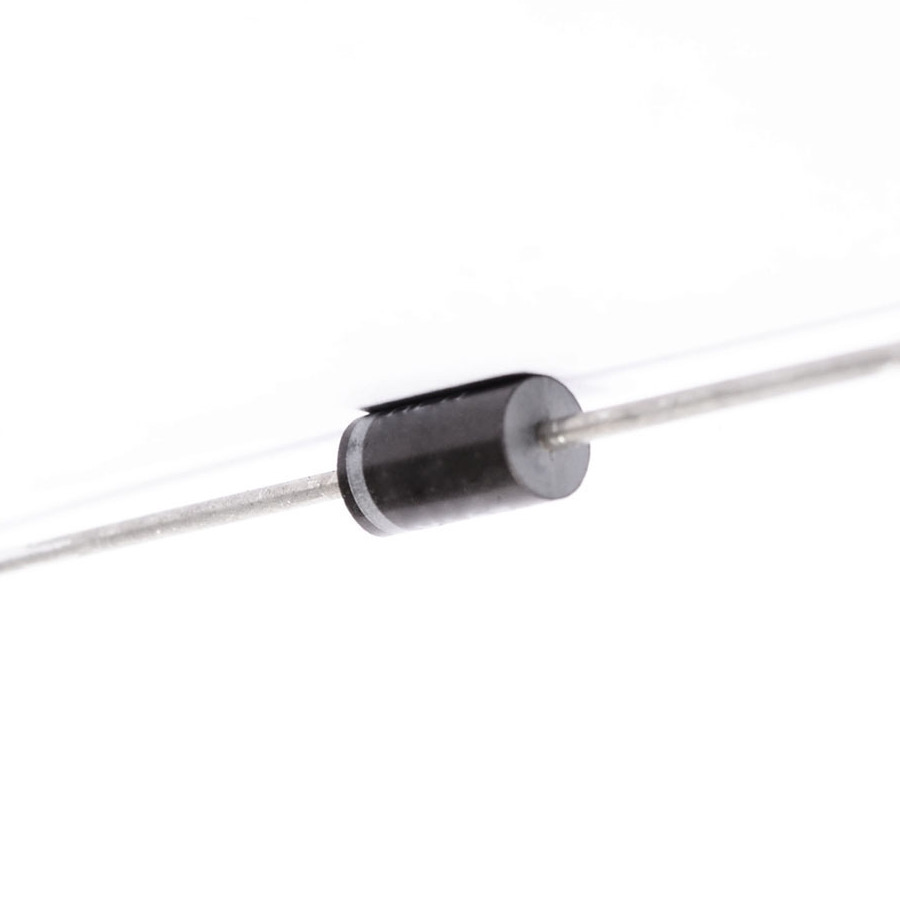

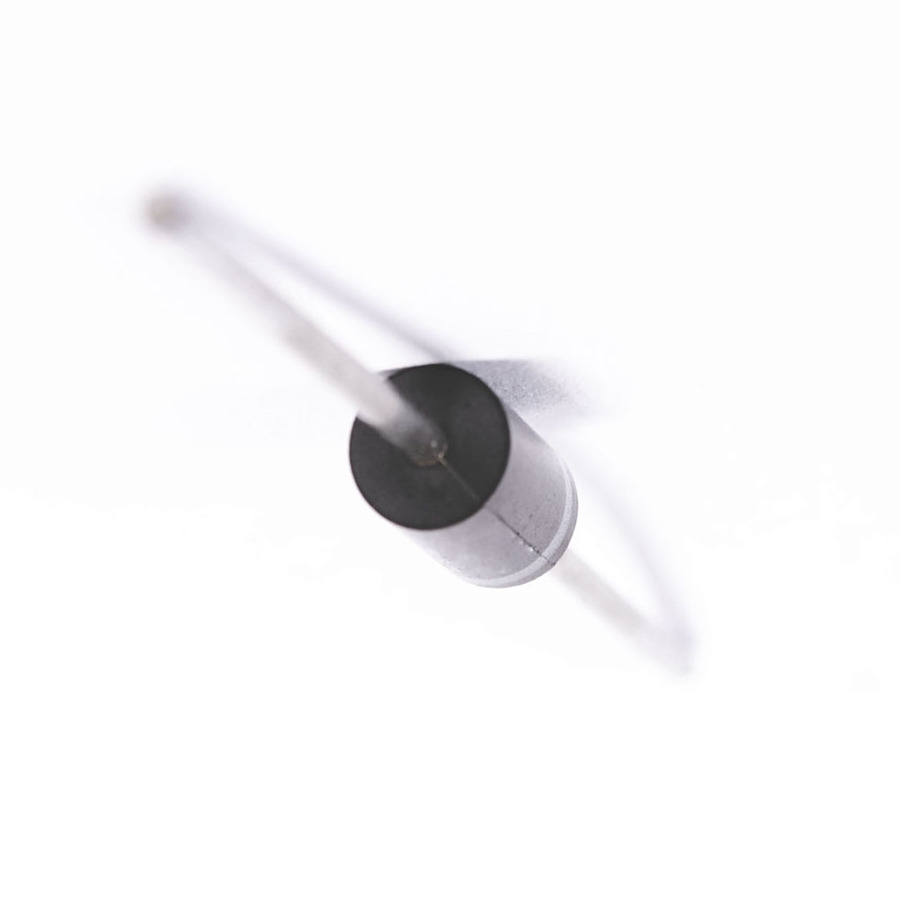

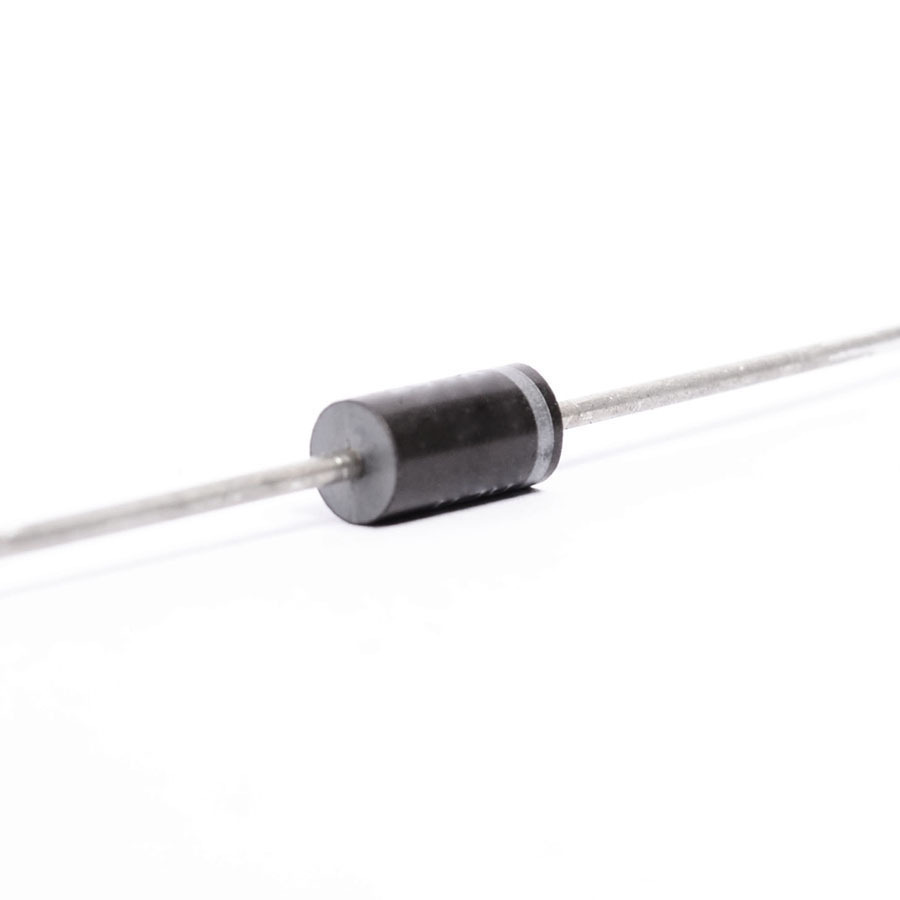

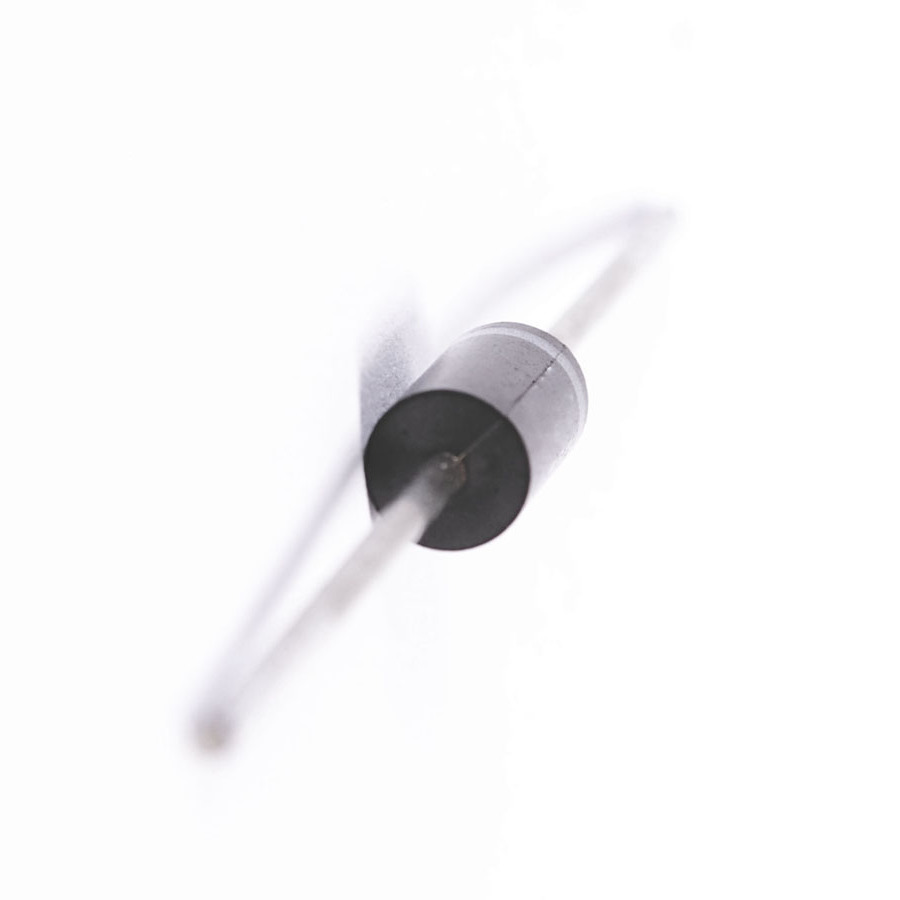

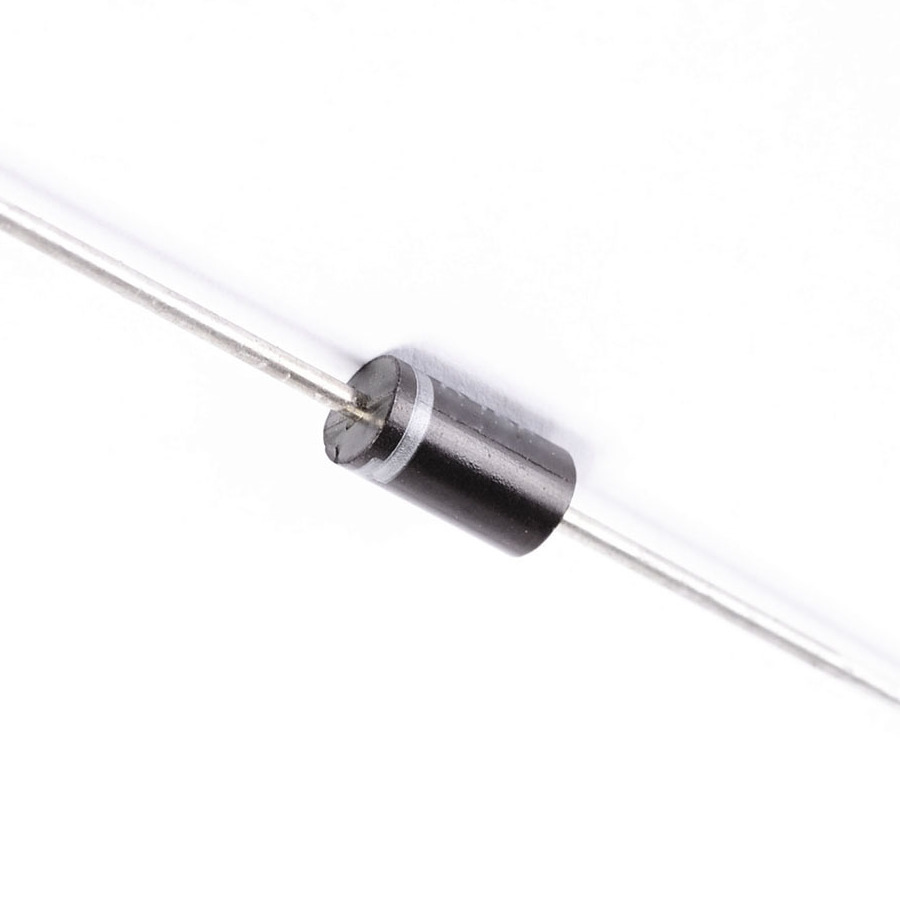

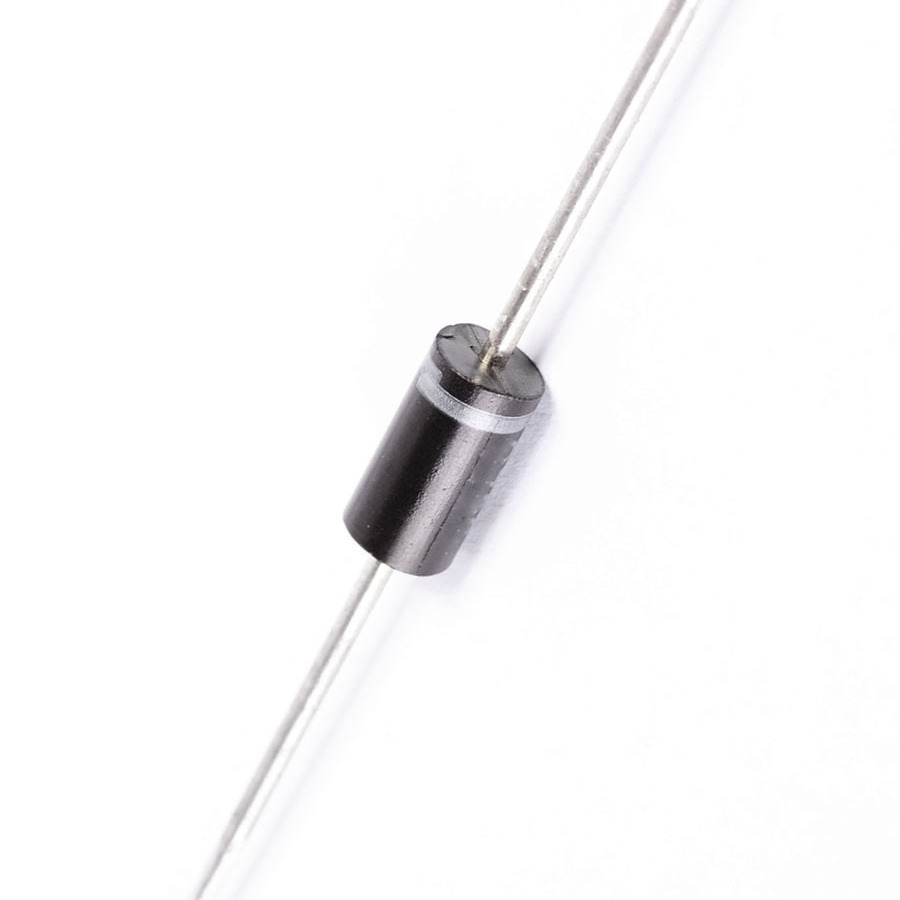

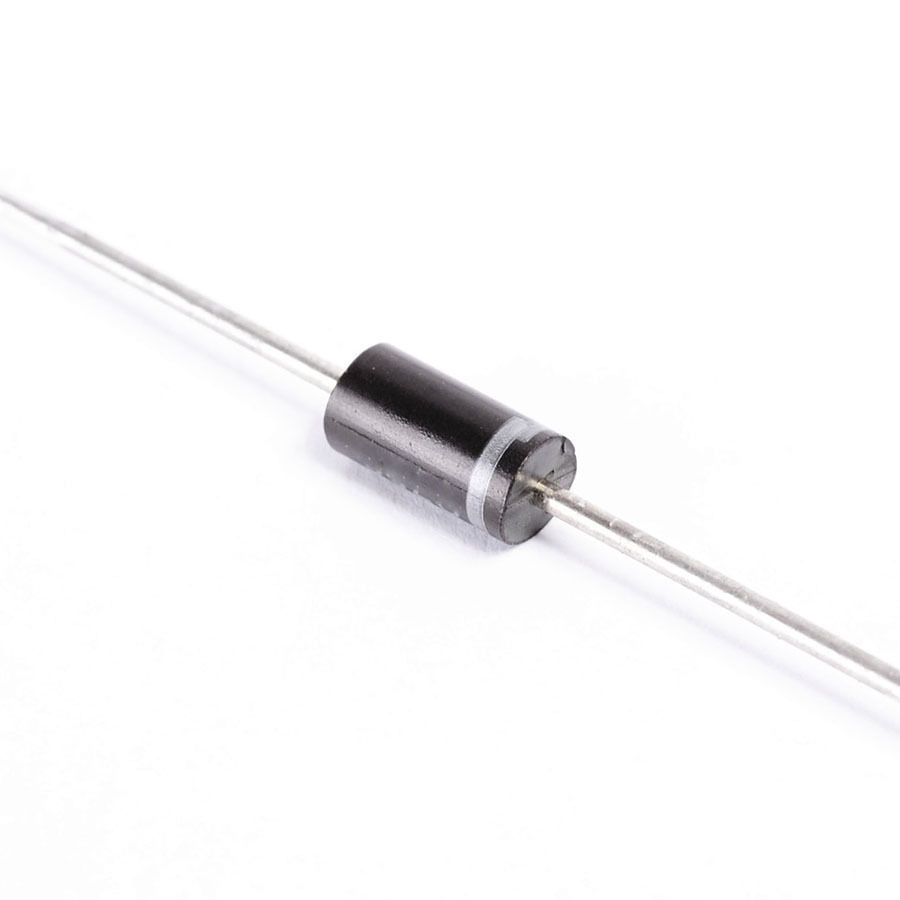

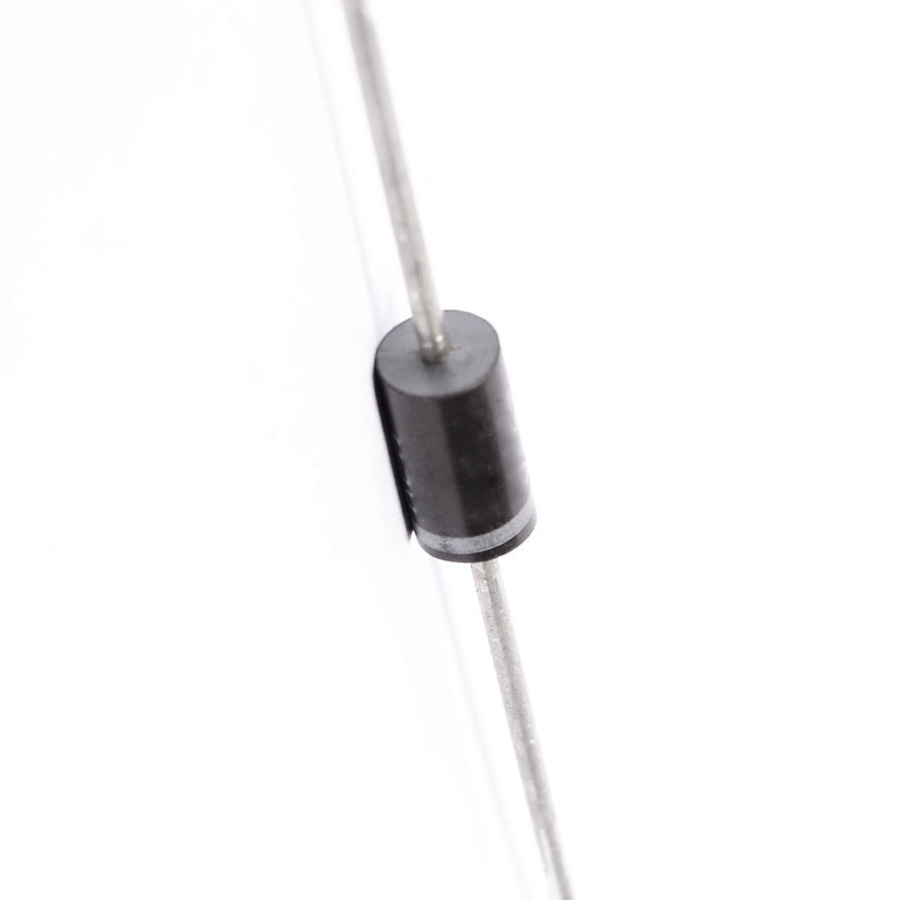

SD820 Semiconductor CASE: DO201AD MAKE: STI
Product specifications
Type Semiconductor
Case DO201AD
Manufacturer STI
fT Min (Hz) 125M
Min hFE 100
@Temp. (test) (°C) 90
Ir @ Diff. Temp (A) 50m
Mat. Silicon Logic
VRRM 20
PD Max. (W) 300m
1-Cycle Surge Current (A) 400
@Temp (test) (°C) 100
@Temp. (test) for Vf) 25
@VCE (test) (V) 5.0
Vf Max. 600m
Ir @25°C 10m
I(out) (If AVG) Max. 8.0
@Volts (test) (V) 20
@Ic (test) 1.0m
@If (test) 8.0
Oper. Temp (°C) Max. 125
Vceo Max. 45
Pinout Equivalence Number N/A
Surface Mounted Yes/No NO
SKU 904276
