SE6023
View detailed images (12)

SE6023

SKU: SE6023

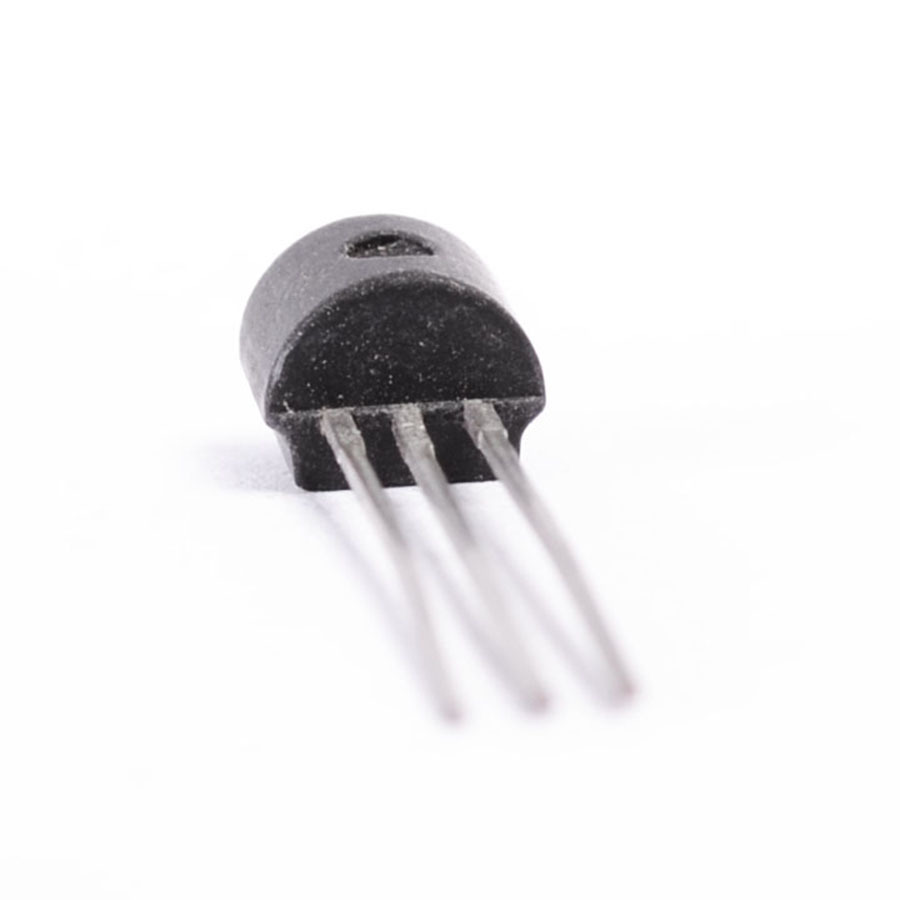

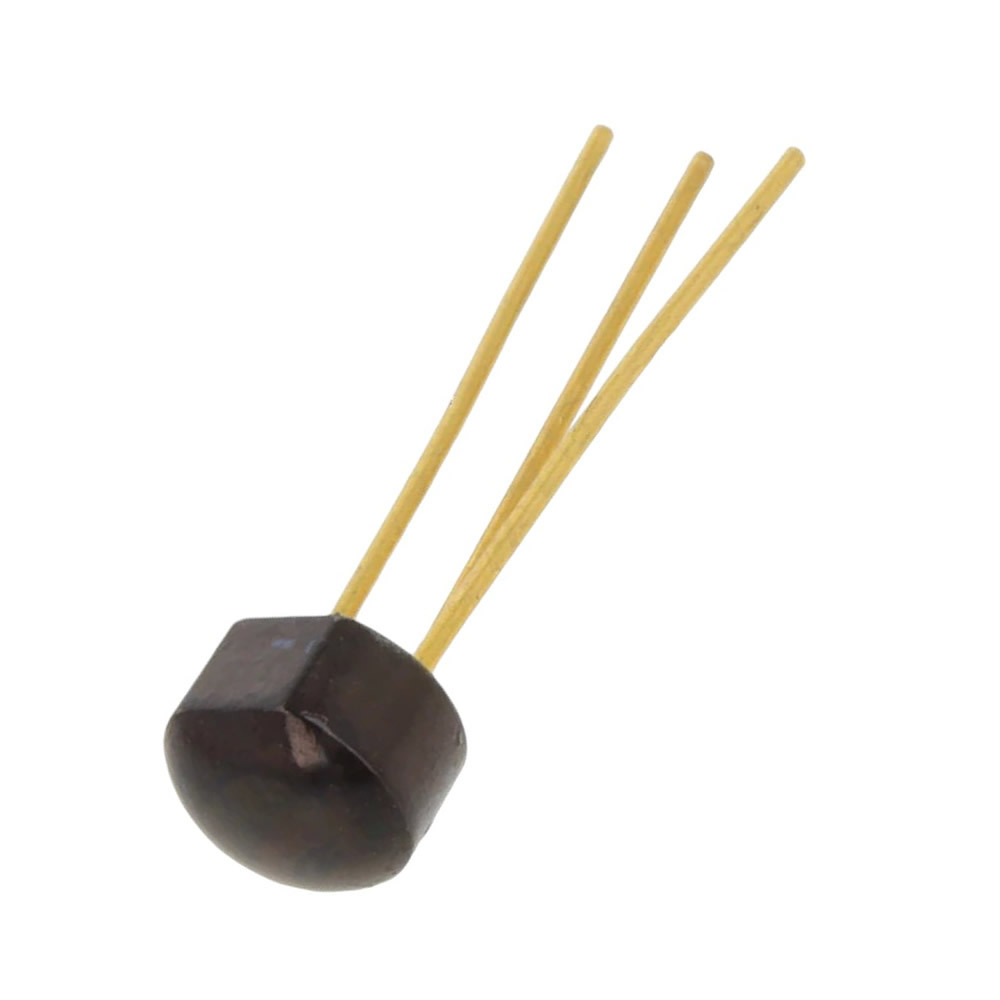

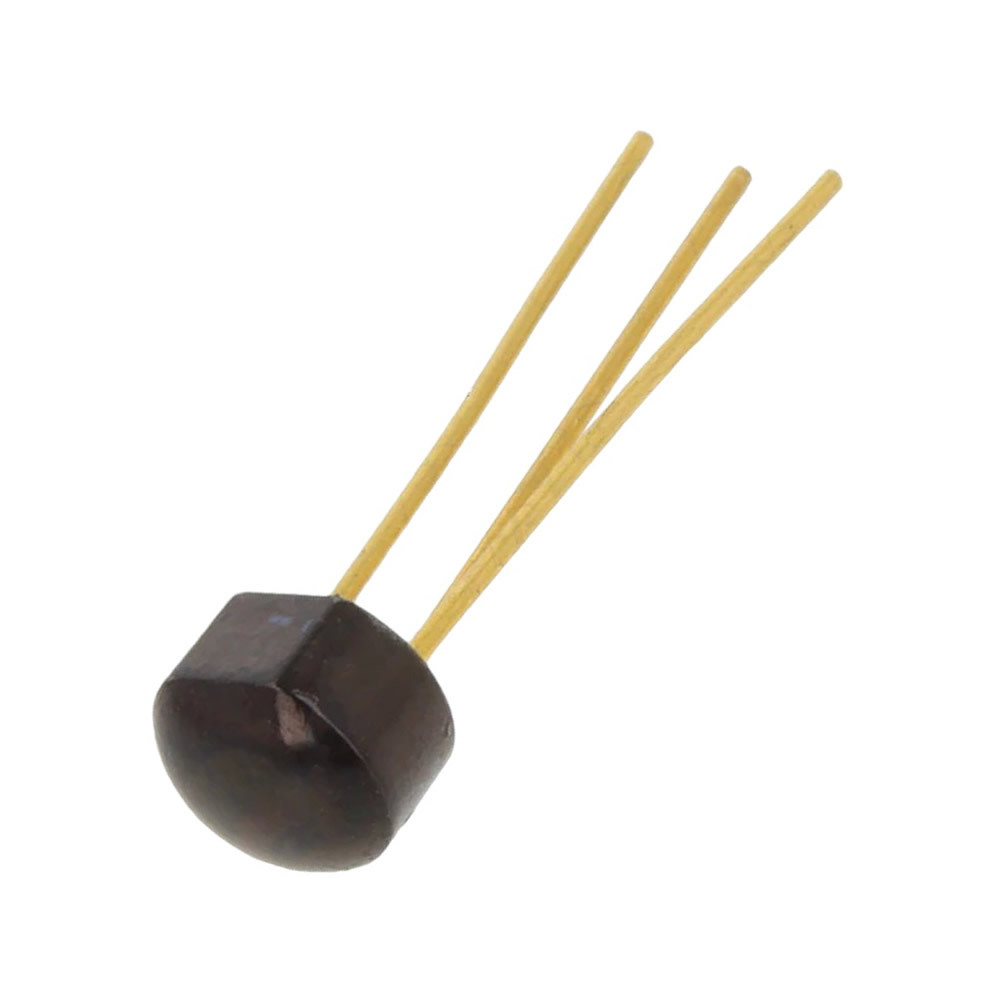

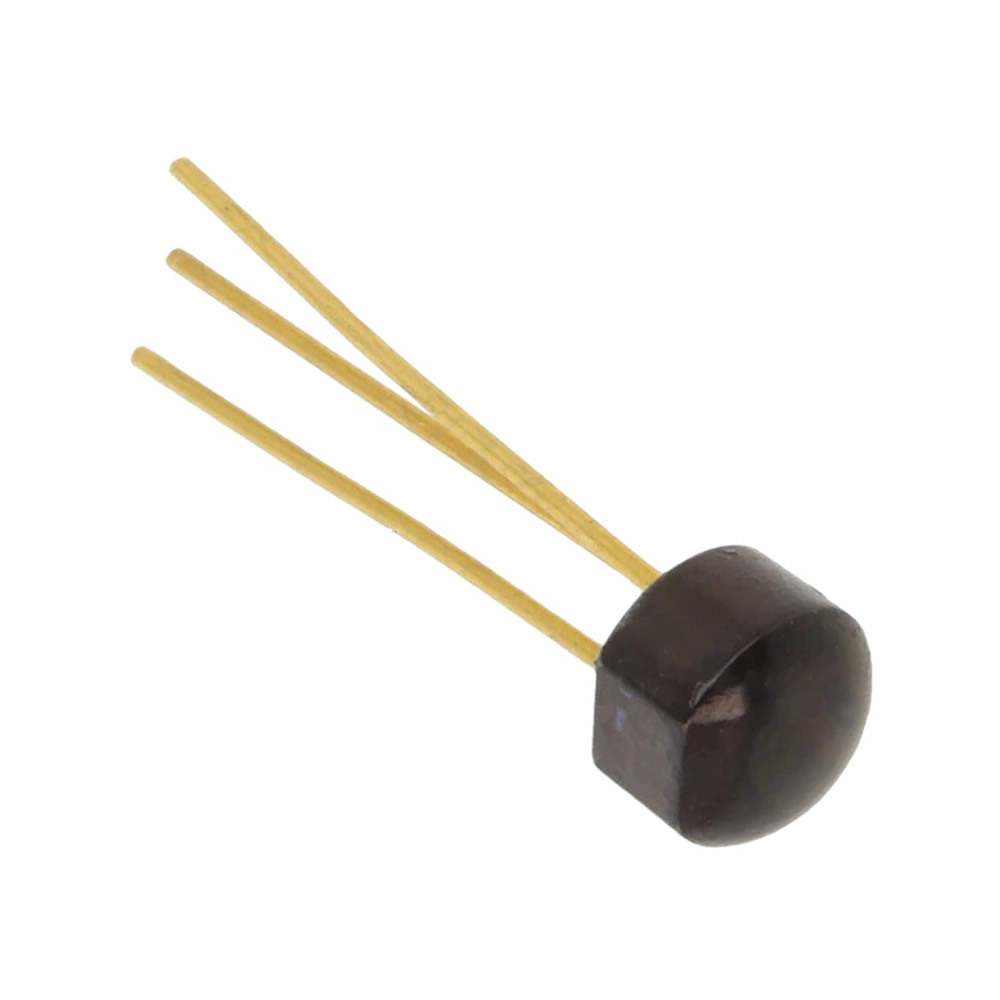

SE6023 Transistor Silicon NPN CASE: TO106 MAKE: Fairchild Semiconductor
Product specifications
Type Transistor Silicon NPN
Case TO106
Manufacturer Fairchild Semiconductor
Vbr CBO 80
Vbr CEO 80
Max. PD (W) 220m
C(ob) (F) 11p
Derate (Amb) (W/°C) 2.2m
t(f) Max. (S) 1.0u+
hfe 120
Ic Max. (A) 1
Icbo Max. @Vcb Max. (A) .10u
Polarity NPN
Tr Max. (s) 150n
Trans. Freq (Hz) Min. 400M
@VCE (test) (V) 10
Oper. Temp (°C) Max. 125
@Ic (A) 1.0m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.22 W
Maximum Collector-Base Voltage |Vcb| 80 V
Maximum Collector-Emitter Voltage |Vce| 80 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 1 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 15 pF
Transition Frequency (ft): 250 MHz
Forward Current Transfer Ratio (hFE), MIN 100
SKU 1281993
