Home / Integrated Circuit / SED1522DAB
SED1522DAB

SED1522DAB

SKU: SED1522DAB

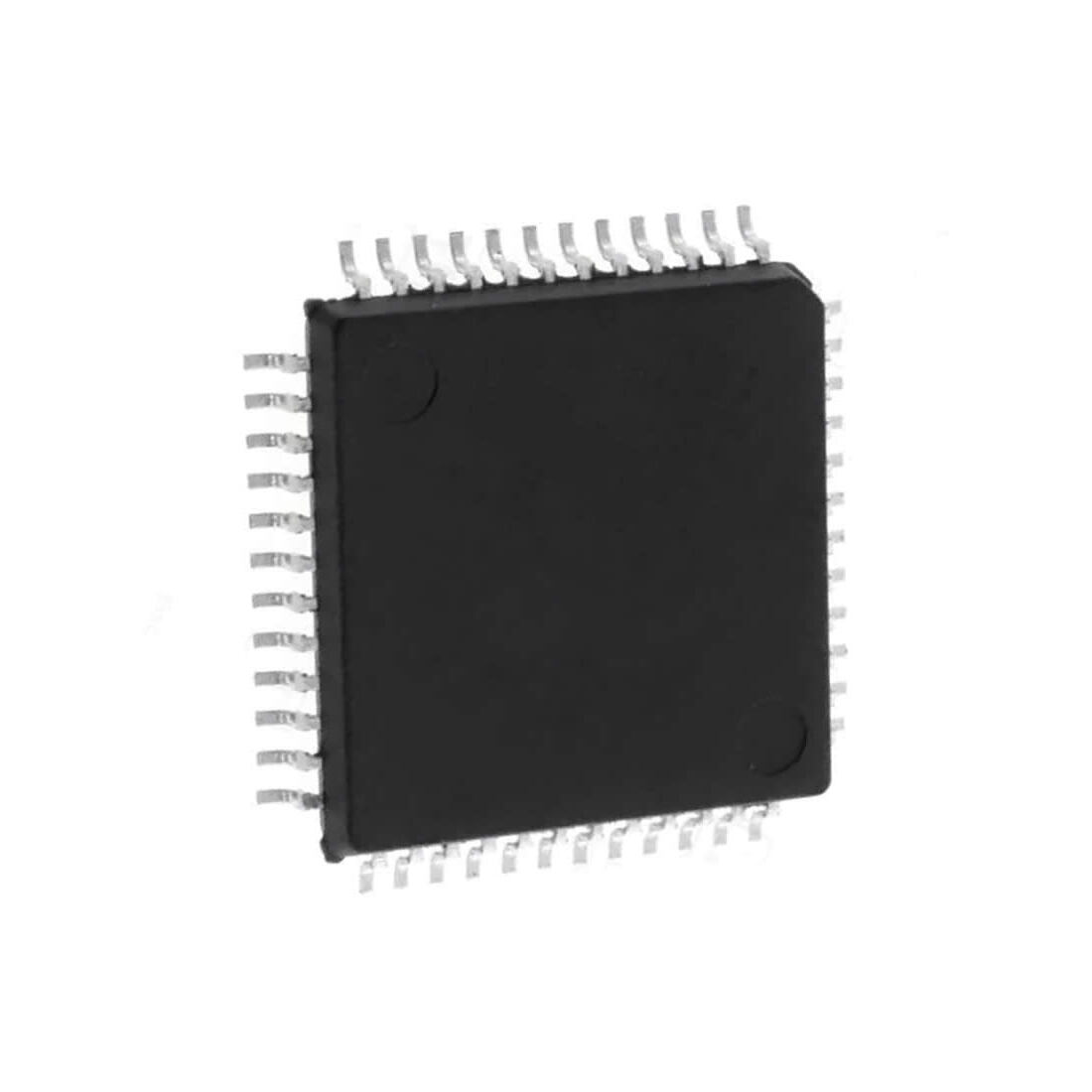

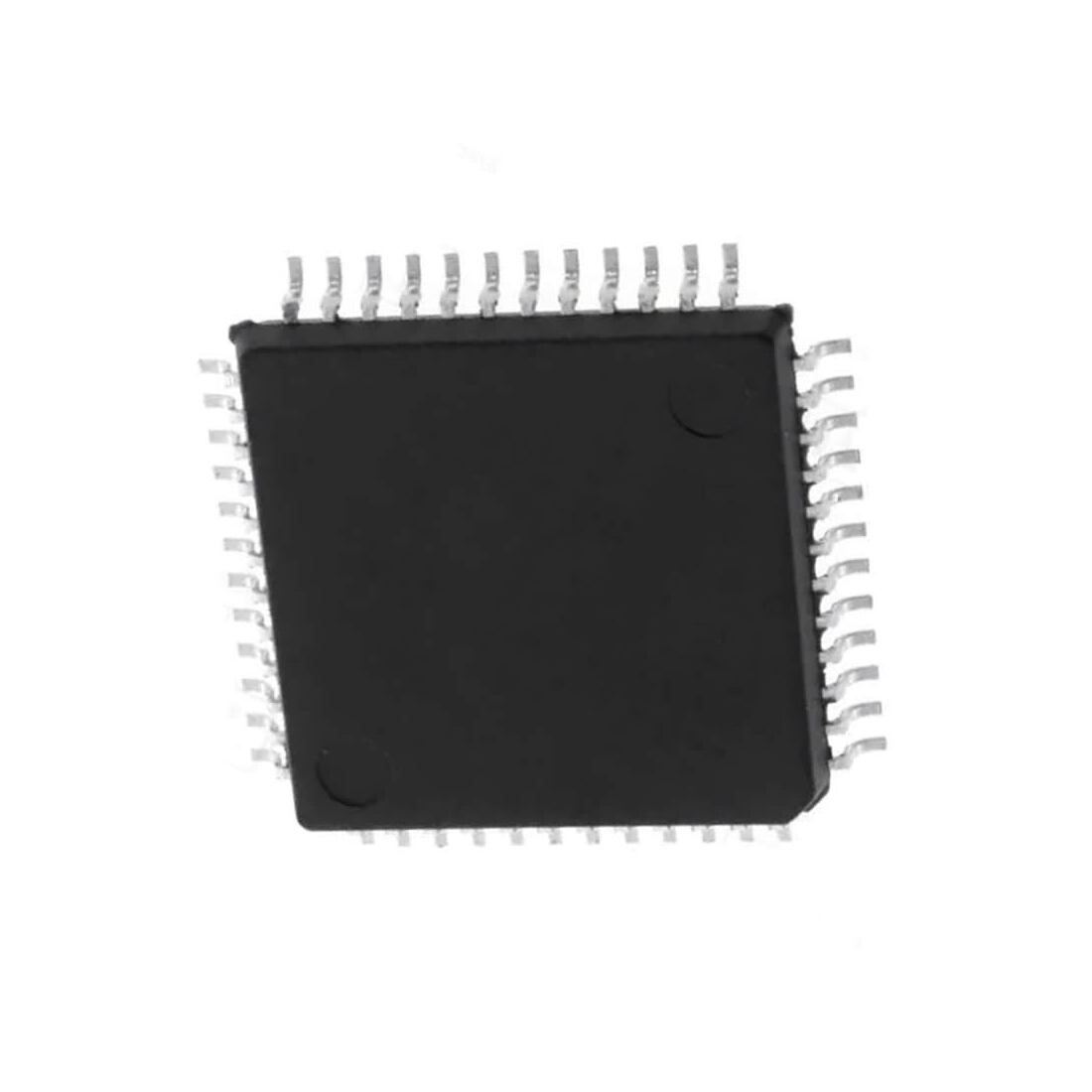

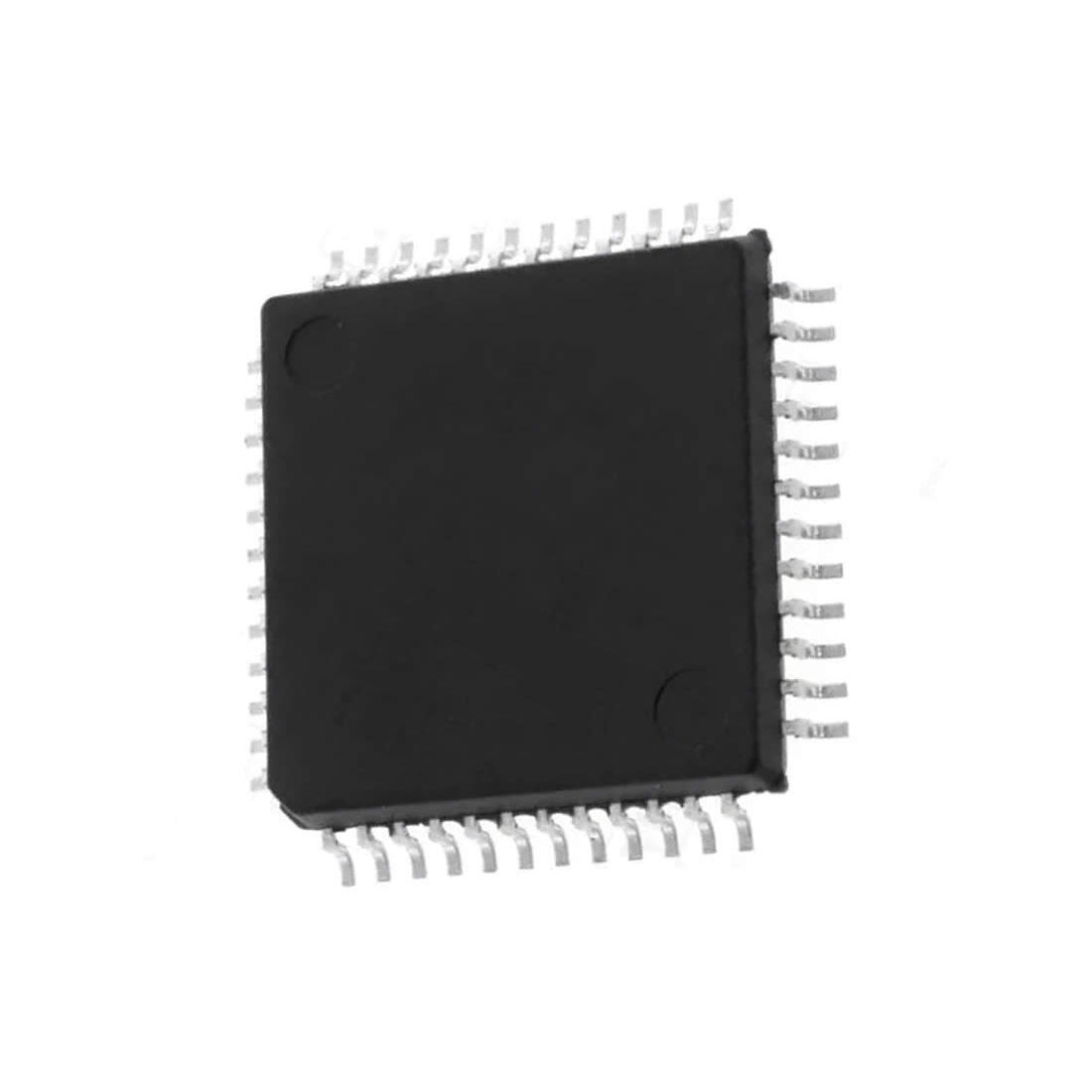

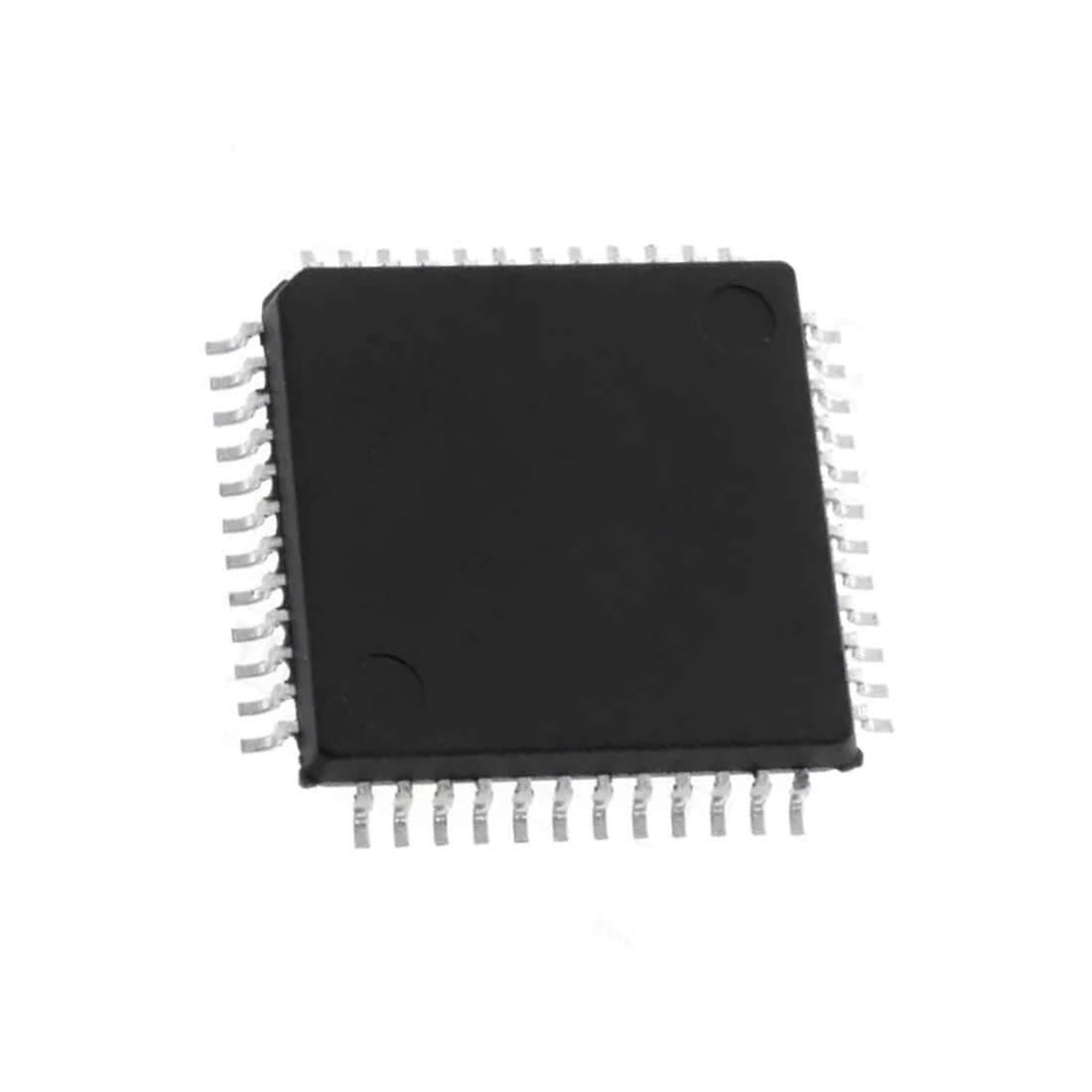

SED1522DAB Integrated Circuit CASE: QFP48 MAKE: Epson
Product specifications
Type Integrated Circuit
Case QFP48
Manufacturer Epson
Vih Min (V) -3.5
Vil Max. (V) -4.2
Output Display Lines 77
Nom. Neg Supp 5.0
Nom. Pos. Supp 0
Type of Display LCD
Tech. CMOS Integrated Circuit
Oper. Temp (°C) Min -30
Oper. Temp (°C) Max. 85
@Iol (A) 3.0m
Pinout Equivalence Number 48-65
No. of Pins 48
Surface Mounted Yes/No YES
SKU 932209
